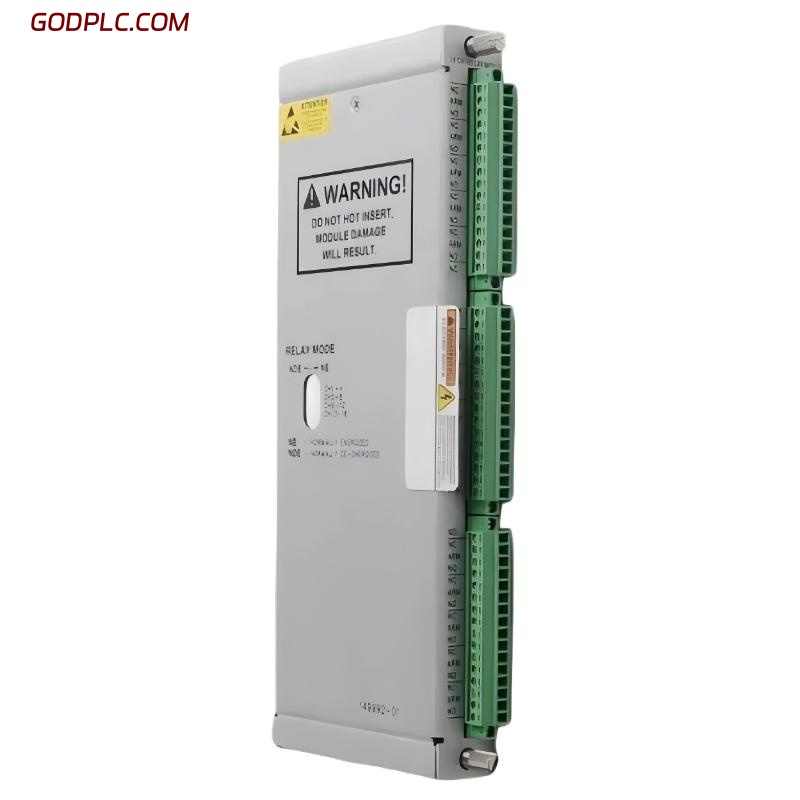

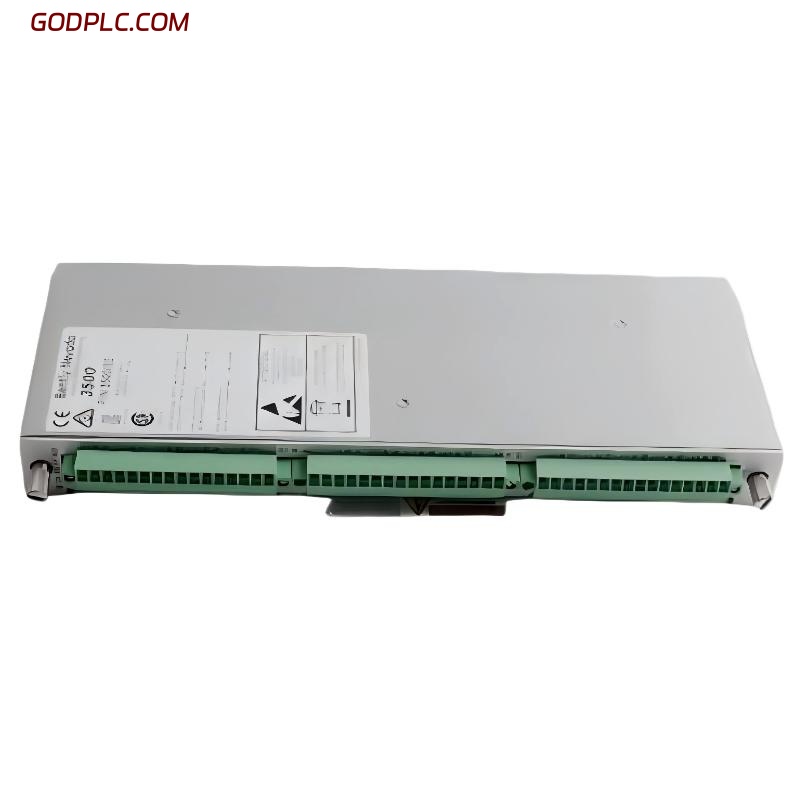

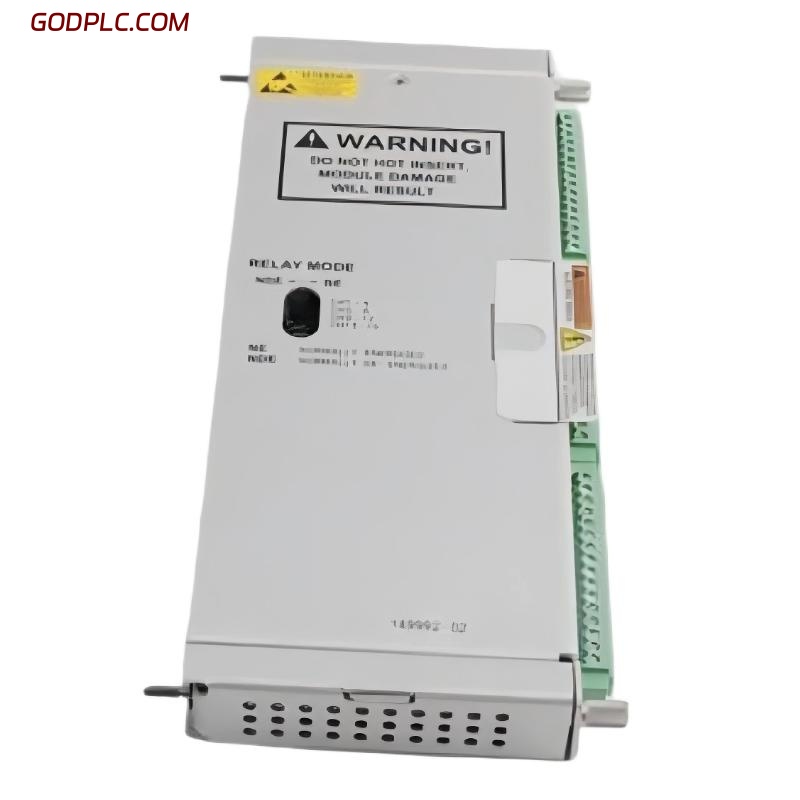

Bently Nevada 3500/33 149992-02 16-Channel Relay Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 3500/33 |
| Order Number | 149992-02 |
| Product Type | 16-Channel Relay Module |
| Manufacturer | Bently Nevada |
| Function | Provides 16 independent relay outputs for alarm, trip, and control functions in machinery protection systems |
| Channels | 16 relay output channels |
| Relay Type | SPDT (Single Pole Double Throw, Form C) |
| Contact Rating | Up to 5 A at 250 VAC or 125 VDC |
| Maximum Switching Power | 1200 VA (AC), 70 W (DC) |
| Minimum Switching Load | 100 mA @ 5 VDC |
| Relay Sealing | Epoxy-sealed for industrial environments |
| Arc Suppression | Built-in arc suppression circuitry |
| Power Consumption | Approx. 5.8 W |
| Operating Voltage | Supplied via 3500 rack backplane |
| Operating Temperature Range | −30 °C to +65 °C |
| Storage Temperature Range | −40 °C to +85 °C |
| Humidity | Up to 95% non-condensing |
| Installation | 3500 system rack, half-height module slot |
| Dimensions | 241 × 24.4 × 99.1 mm |
| Weight | 0.4 kg |
| Origin | USA |
FAQ
Q1: What are the primary applications of this module?
A: It is mainly used for alarm outputs, interlocking control, and trip signal activation in machinery protection systems, capable of driving external devices or control circuits.
Q2: Can all 16 relay channels be configured independently?
A: Yes, each relay channel can be configured individually with different alarm sources, logic conditions, and output behaviors.
Q3: Does the module support logical operations such as AND/OR?
A: Yes, it supports configurable logic functions like AND and OR for implementing complex alarm and control strategies.
Q4: Are the relay outputs normally open or normally closed?
A: Each relay is SPDT type, providing Normally Open (NO), Normally Closed (NC), and Common (COM) contacts.
Q5: Does the module have protection against electrical noise?
A: Yes, it features industrial-grade design with sealed relays and built-in arc suppression for stable operation in harsh environments.
Q6: What happens to the relays during a power failure?
A: The module supports fail-safe configuration, where relays revert to a predefined safe state when power is lost.
Q7: Is this module suitable for safety-critical applications?
A: Yes, it is designed for high-reliability applications such as alarm and trip systems, though overall safety certification depends on the full system design.
Q8: Does the module support hot swapping?
A: It can be replaced according to system guidelines, but it is recommended to perform replacement during maintenance mode or when powered down to avoid unintended operations.
Bently Nevada 3500/33 149992-02 16-Channel Relay Module is in stock. Please contact us for a quick quote and competitive pricing.
