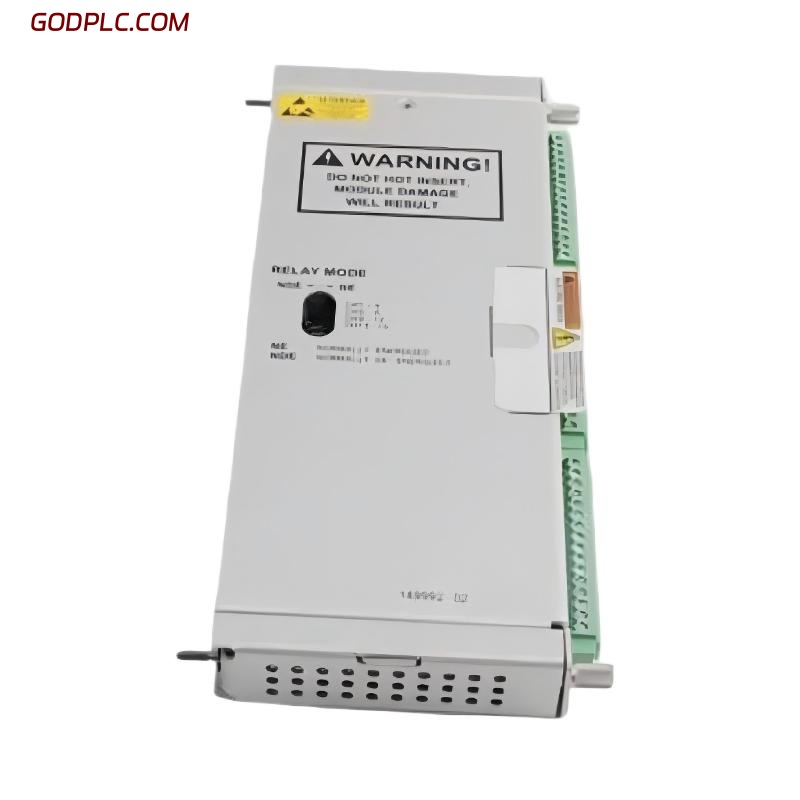

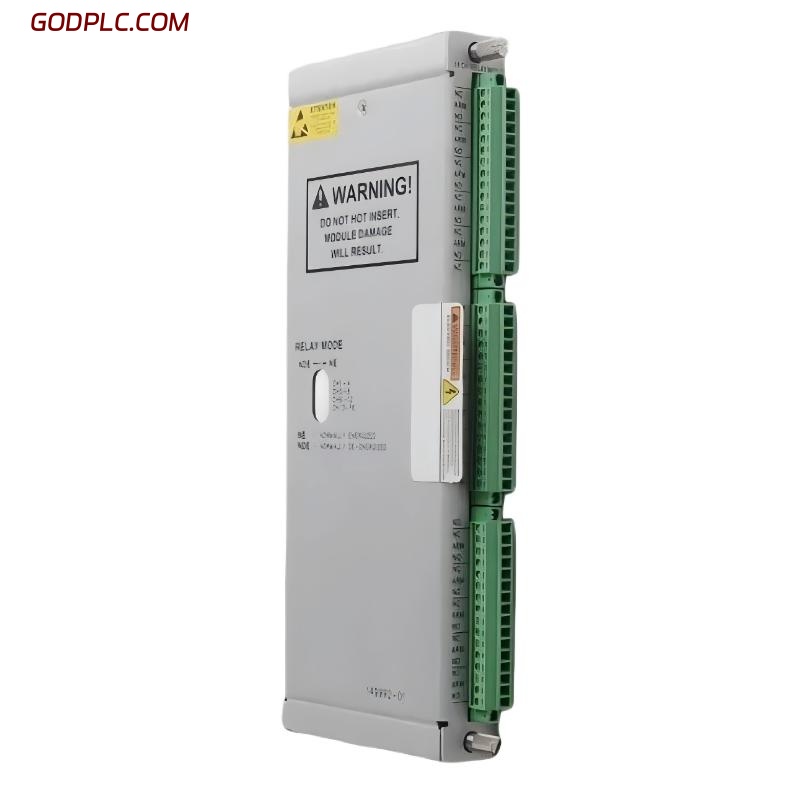

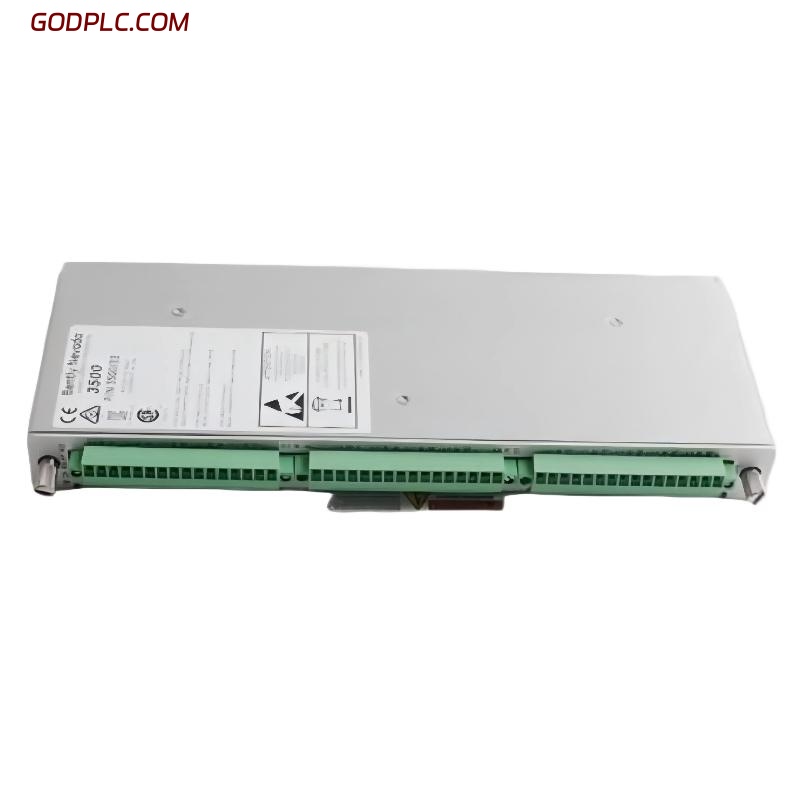

Bently Nevada 3500/33 149992-02 Backup 16-Channel Fail-Safe Relay Output Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 3500/33 |
| Ordering Number | 149992-02 |
| Product Type | Backup 16-Channel Fail-Safe Relay Output Module |
| Series | 3500 Machinery Protection System |
| Function Type | Backup Relay Output |
| Channels | 16 relay outputs |
| Relay Type | SPDT (Single Pole Double Throw, fail-safe design) |
| Output Characteristics | De-energized to safe state (fail-safe operation) |
| Contact Rating | 5A @ 250VAC / 3A @ 30VDC (typical) |
| Minimum Load | 10 mA @ 5VDC |
| Switching Voltage Range | 5–250VAC / 5–125VDC |
| Response Time | Operate <10 ms, Release <5 ms |
| Isolation | 1500 VAC (coil to contact) |
| Power Consumption | Approx. 5W (typical) |
| Operating Temperature | -30°C to +65°C |
| Humidity | 5% to 95% (non-condensing) |
| Configuration | Configurable via 3500 system software |
| Mounting | Installed in designated 3500 rack slots |
| Dimensions | 241 × 24.4 × 99.1 mm |
| Weight | 0.4 kg |
FAQ
1. What does “fail-safe” mean in this module?
It means the relays automatically return to a predefined safe state when power is lost or a fault occurs.
2. What is the role of this backup relay module?
It provides redundant relay outputs to enhance system reliability and ensure protection actions are executed.
3. Can this module operate independently?
It is typically used alongside primary relay modules within the 3500 system for redundancy.
4. How are the relay outputs triggered?
They are driven by system alarms, events, or configured logic conditions.
5. Does the module support logic configuration?
Yes, logic can be configured through the 3500 configuration software.
6. What types of loads can be connected?
Both resistive and inductive loads are supported within rated limits; protection is recommended for inductive loads.
7. How does the module indicate its status?
Front panel LEDs provide real-time indication of relay states and module health.
8. Is this module suitable for critical safety applications?
Yes, it is designed for use in high-reliability and safety-critical protection systems when properly configured.
Bently Nevada 3500/33 149992-02 Backup 16-Channel Fail-Safe Relay Output Module is in stock. Please contact us for a quick quote and competitive pricing.
