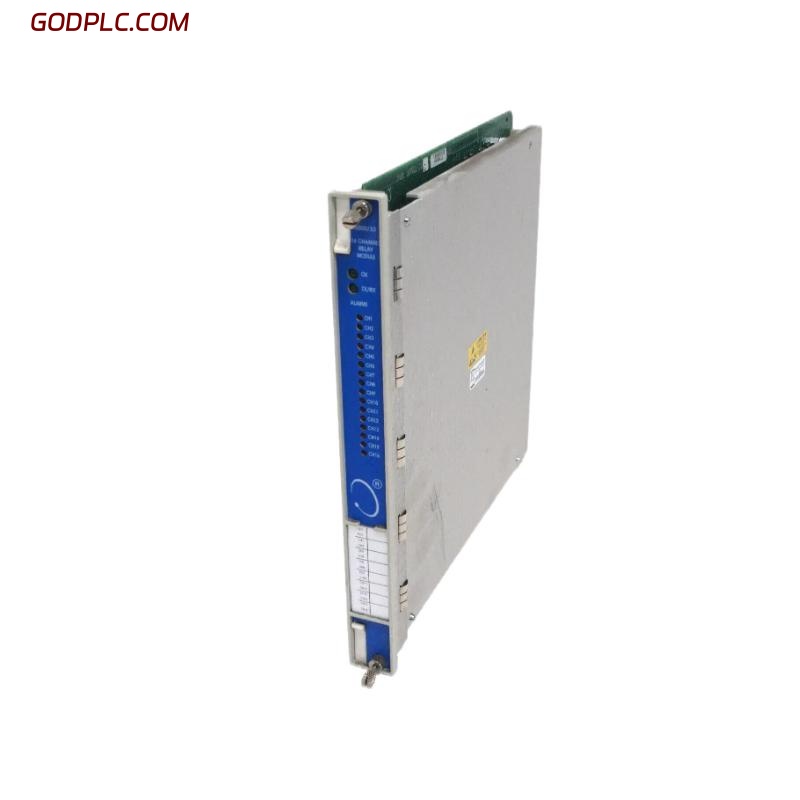

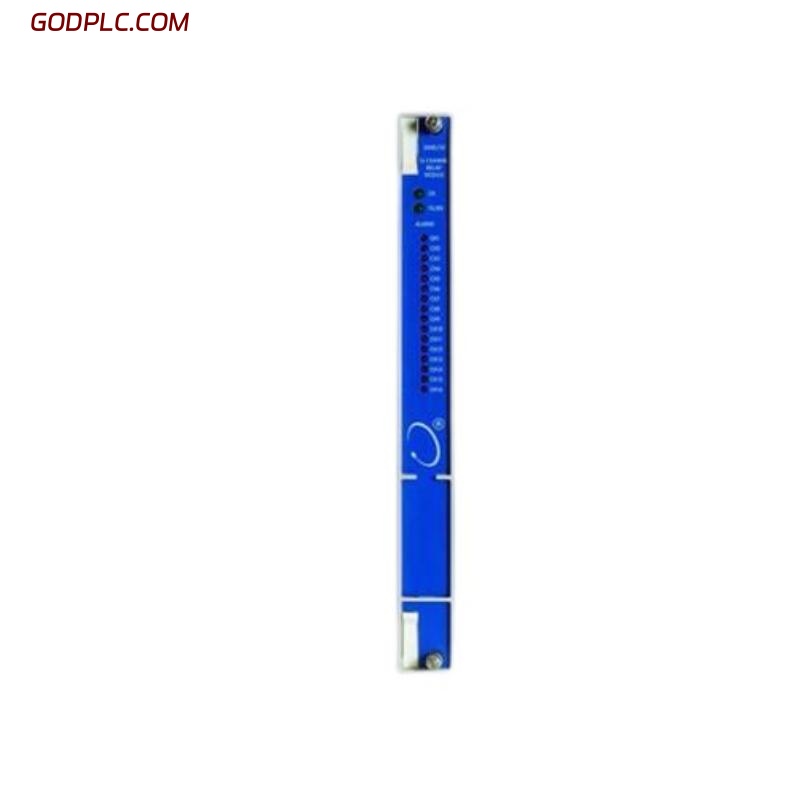

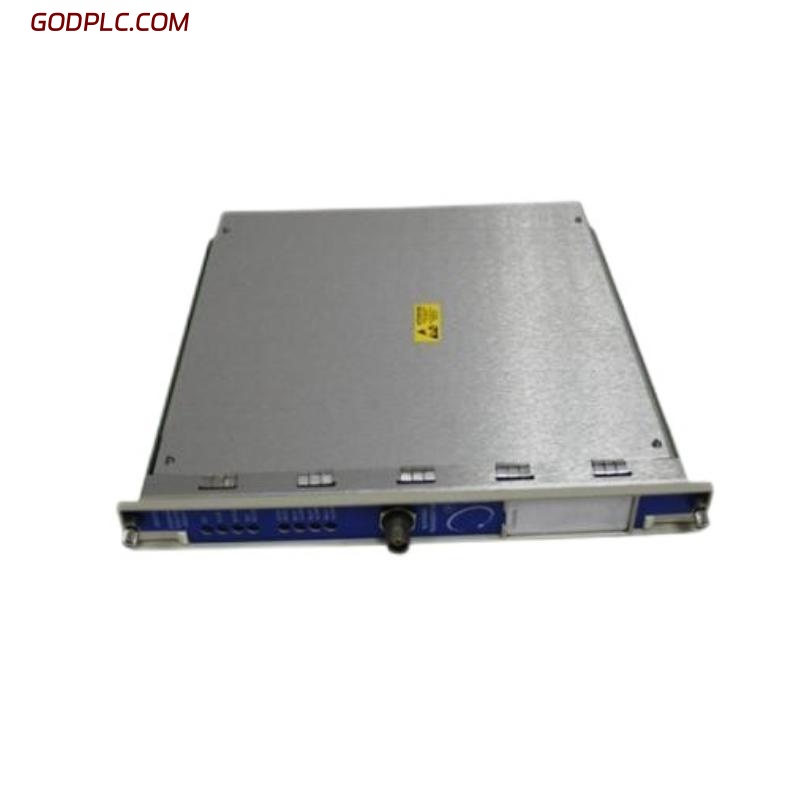

Bently Nevada 3500/33 184631-01F 16-Channel Relay Module
Product Overview
The Bently Nevada 3500/33 184631-01F is a full-height 16-channel relay module designed to operate within the Bently Nevada 3500 Series Machinery Protection System. This module provides independent relay outputs, enabling precise and programmable response actions such as alarms and shutdowns. Engineered to support Alarm Drive Logic (ADL) and voting logic, the 184631-01F ensures accurate and dependable relay actuation for safety-critical applications in a wide range of industrial environments.
Key Features
-
Sixteen Isolated Relay Channels – Each output relay is independently controlled based on user-defined logic.
-
Alarm Drive Logic (ADL) – Supports AND/OR logic combinations for flexible alarm routing.
-
Voting Logic Functionality – Enhances system reliability by allowing configurable relay actuation based on multiple alarm conditions.
-
SPDT Relay Configuration – Each relay features a Single Pole Double Throw design to accommodate a variety of control schemes.
-
Configurable Operation Mode – Relays may be set in groups of four to operate as either Normally Energized or Normally De-energized.
-
Hot-Swappable – Enables field replacement without powering down the rack, minimizing operational downtime.
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 241 x 24.4 x 242 mm |
| Weight | 0.7 kg |
3.2 Electrical Characteristics
| Item | Specification |
|---|---|
| Relay Type | SPDT (Single Pole Double Throw) |
| Contact Rating | 2 A @ 30 VDC / 0.5 A @ 125 VAC |
| Power Consumption | Approx. 5.8 W |
| Contact Life | ≥10,000 cycles at rated load |
3.3 Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temp | -30°C to +65°C |
| Storage Temp | -40°C to +85°C |
| Humidity | 5%–95% RH (non-condensing) |
| Vibration | Complies with IEC 60068-2 |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Platform | Bently Nevada 3500 Series |
| Module Type | Full-height relay output module |
| Rack Position | To the right of the TDI in a 3500 rack |
Industry Applications
-
Oil & Gas – For alarm and trip actuation in turbomachinery, pumps, and compressors.
-
Power Generation – Ensures safe operating conditions for turbines and generators.
-
Chemical and Petrochemical – Controls relay logic for rotating and processing equipment.
-
Industrial Manufacturing – Provides precise relay control for critical equipment protection.
The Bently Nevada 3500/33 184631-01F 16-Channel Relay Module is an essential component for implementing precise control responses within the 3500 Series system. Its support for advanced logic, high reliability, and hot-swap capability make it ideal for critical industrial protection applications.
Bently Nevada 3500/33 184631-01F 16-Channel Relay Module is in stock. Please contact us for a quick quote and competitive pricing.
