1. What is the main function of the Bently Nevada 3500/40-01-K0 3500/40M Preamplifier Monitor?

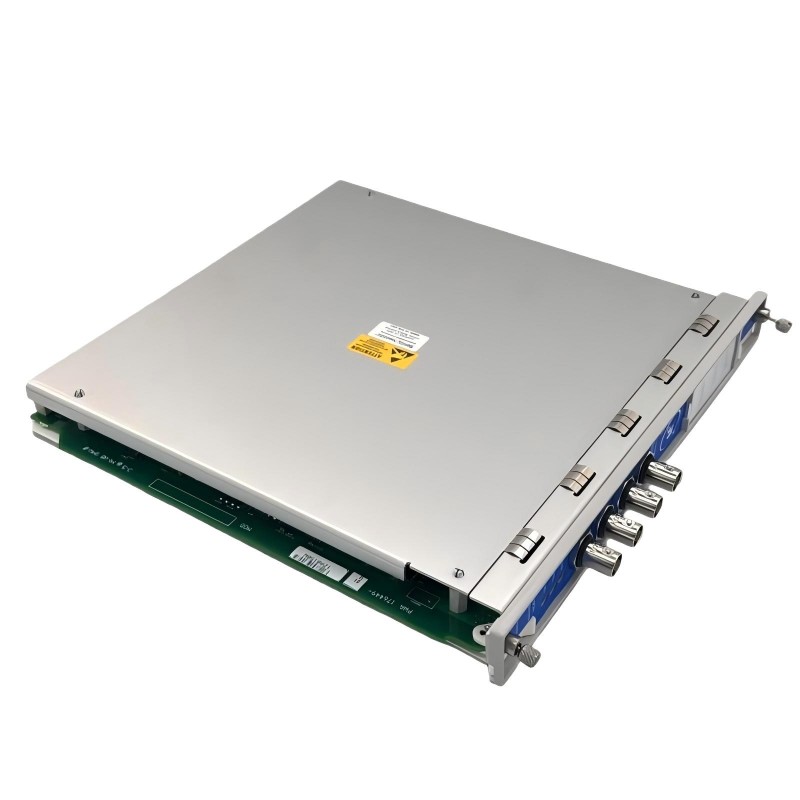

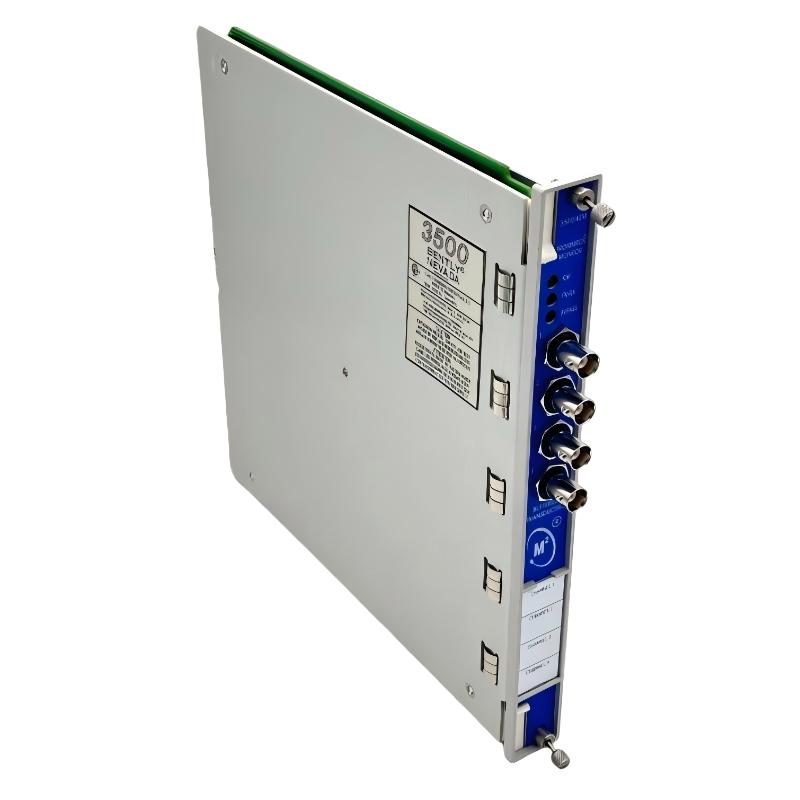

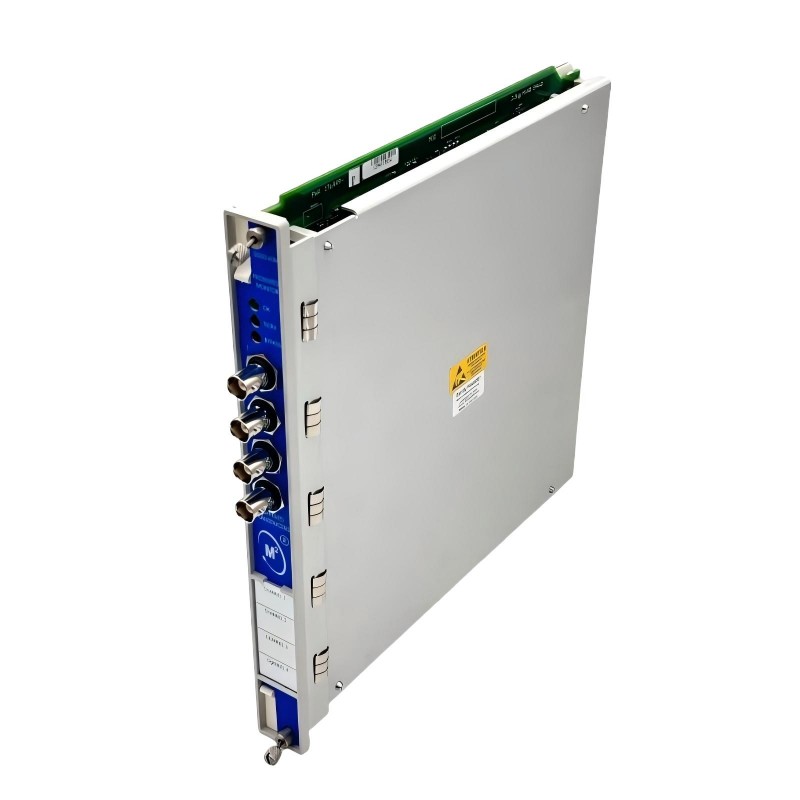

The 3500/40-01-K0 is a four-channel monitoring module used within the Bently Nevada 3500 machinery protection and condition monitoring system. It processes compatible proximity transducer signals and provides measurement information for evaluating the operating condition of rotating machinery. Depending on the system configuration, the monitor can be used for radial vibration, thrust position, differential expansion, eccentricity, and REBAM-related monitoring. It works as part of the complete 3500 protection system, allowing monitored parameters to be evaluated against configured alarm and protection conditions.

2. What types of machinery can the 3500/40-01-K0 be used to monitor?
The 3500/40-01-K0 is suitable for industrial machinery protection applications involving critical rotating equipment. Typical applications can include turbines, compressors, pumps, motors, generators, and other rotating machinery requiring continuous condition monitoring. The appropriate monitoring function depends on the machine design, installed proximity transducers, measurement requirements, and protection strategy. Before commissioning, the channel configuration should be checked carefully to ensure that the selected monitoring functions correspond to the actual operating requirements of the machinery.

3. What monitoring functions are supported by the 3500/40M?
The 3500/40M platform supports several machinery monitoring functions, including radial vibration, thrust position, differential expansion, eccentricity, and REBAM applications. The four channels can be configured in channel pairs, allowing different measurement requirements to be handled within the same monitoring module. The actual function assigned to each channel depends on the system configuration and connected transducer arrangement. Correct configuration is essential because it determines how the incoming sensor signal is processed and how alarm or protection conditions are evaluated.

4. How should the 3500/40-01-K0 be installed?
The module should be installed in the appropriate position of a compatible Bently Nevada 3500 rack. Before installation, the equipment should be placed in a safe condition and the applicable electrical isolation procedures should be followed. Insert the module carefully into the rack and ensure that it is fully seated without applying excessive force to the connector. Associated I/O connections, proximity transducer wiring, and channel assignments should be checked against the system configuration. After installation, verify that the 3500 system recognizes the module correctly and that the configured channels provide valid measurements before returning the protection system to normal operation.

5. What should be checked if a 3500/40-01-K0 channel displays an abnormal reading?
Start by checking the associated proximity transducer, signal cable, termination connections, and channel configuration. Look for loose connections, damaged cables, incorrect wiring, poor contact, or sensor installation problems. The configured measurement function should also be verified to ensure that it matches the connected transducer and intended machinery application. If the field instrumentation appears normal, review the monitor status and diagnostic information. Comparing the affected channel with other relevant machine measurements can help determine whether the abnormal value is caused by a sensor or wiring problem, incorrect configuration, a monitoring hardware issue, or an actual change in machine operating conditions.

6. What are the common causes of 3500/40-01-K0 monitoring faults?
Common causes include defective proximity transducers, damaged signal cables, loose connections, incorrect wiring, improper channel configuration, electrical interference, and problems with the monitoring hardware. Actual changes in machinery operating conditions can also produce abnormal measurements even when the monitoring electronics are functioning normally. Troubleshooting should therefore follow the complete signal path instead of immediately assuming that the monitor is defective. Check the transducer, wiring, connections, configuration, and diagnostic information systematically to determine whether the problem originates from the field instrumentation, monitoring system, or machinery itself.

7. Can the 3500/40-01-K0 be replaced while the machinery is operating?
Whether the module can be replaced while the machinery is operating depends on the specific 3500 system configuration, the role of the affected monitoring channels, site maintenance procedures, and machinery protection requirements. Because the 3500/40M can form part of a critical protection system, removing the module may affect the availability of the associated monitoring channels. Replacement should therefore only be carried out under an approved maintenance procedure that addresses operational and safety requirements. Qualified personnel should confirm the system condition and implement any required protection or bypass measures before removing the module.

8. What should be verified after replacing the 3500/40-01-K0 module?
After installing a replacement module, confirm that it is correctly seated in the 3500 rack and that all associated connections are secure. Verify that the monitoring system recognizes the module without hardware or configuration errors. Each active channel should be checked to ensure that the expected proximity transducer signal is being received and processed correctly. Review the configured channel functions, alarm settings, diagnostic status, and measurement values, and compare the readings with expected machine operating conditions where appropriate. Before returning the machinery protection system to normal operation, complete the required functional checks to confirm that the complete measurement and protection path is operating correctly.
