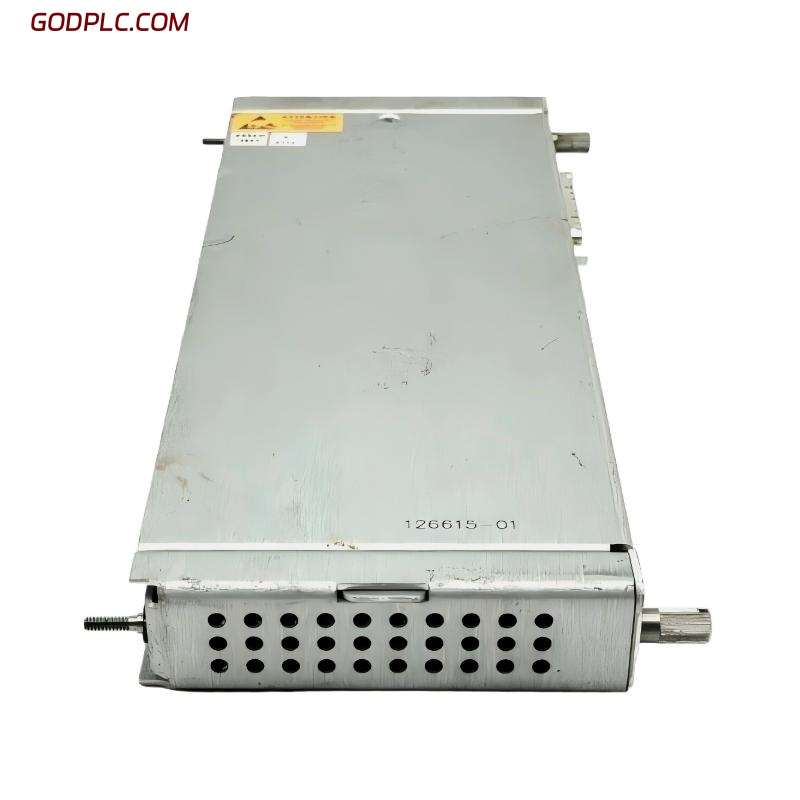

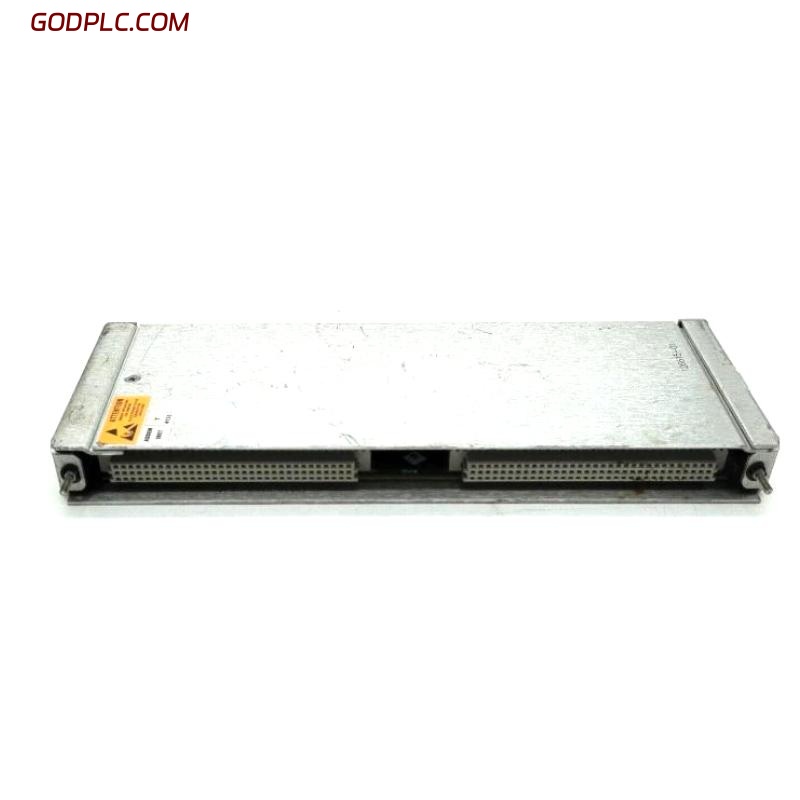

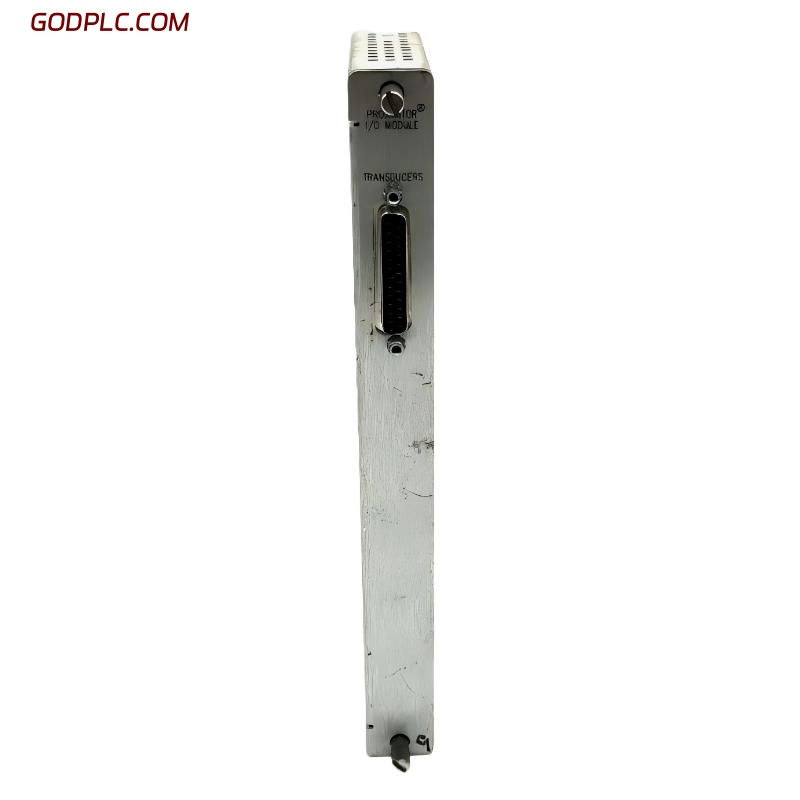

Bently Nevada 3500/40M 126615-01 Proximiotr I/O Module With External Terminals
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 3500/40M |
| Order Number | 126615-01 |
| Product Type | Proximitor I/O Module with External Terminals |
| Manufacturer | Bently Nevada |
| Function | Interfaces Proximitor sensor signals to the 3500 monitoring system, providing signal conditioning, monitoring, and distribution with external wiring terminals |
| Channels | Single channel per module |
| Input Type | Proximitor (eddy-current) sensors |
| Output Type | Conditioned analog signals to 3500 system backplane |
| Safety Features | External terminals for reliable and flexible wiring |
| Frequency Response | 0.5 Hz to 20 kHz |
| Linearity | ±1% of full scale |
| Power Consumption | Approx. 3 W |
| Operating Voltage | Supplied via 3500 system rack backplane |
| Operating Temperature Range | −30 °C to +65 °C |
| Storage Temperature Range | −40 °C to +85 °C |
| Humidity | Up to 95% non-condensing |
| Installation | 3500 system rack, half-height module slot |
| Dimensions | 241.3 × 24.4 × 99.1 mm |
| Weight | 0.2 kg |
| Origin | USA |
FAQ
Q1: What is the main function of the 3500/40M Proximitor I/O Module with External Terminals?
A: It interfaces Proximitor sensor signals to the 3500 system, providing signal conditioning, monitoring, and distribution, with external terminals for flexible and reliable field wiring.
Q2: How many channels does the module provide?
A: Each module provides a single channel for one Proximitor sensor input.
Q3: Which types of sensors are supported?
A: Supports Proximitor (eddy-current) displacement sensors commonly used for vibration, proximity, and shaft position monitoring.
Q4: What is the purpose of external terminals?
A: External terminals simplify wiring connections, making installation and maintenance easier while ensuring secure and reliable signal transmission.
Q5: What is the frequency response of the module?
A: 0.5 Hz to 20 kHz, allowing precise detection of both low-frequency displacement and high-frequency vibration signals.
Q6: Can this module operate continuously in critical machinery environments?
A: Yes, it is designed for 24/7 operation in high-reliability machinery protection and condition monitoring systems.
Q7: How is the module powered and installed?
A: Powered through the 3500 system rack backplane and installed in a half-height module slot, ensuring secure mechanical and electrical connections.
Q8: How does this module contribute to machinery protection?
A: By providing accurately conditioned Proximitor signals, it enables early detection of abnormal vibration or displacement, allowing operators to take preventive actions before equipment damage occurs.
Bently Nevada 3500/40M 126615-01 Proximiotr I/O Module With External Terminals is in stock. Please contact us for a quick quote and competitive pricing.
