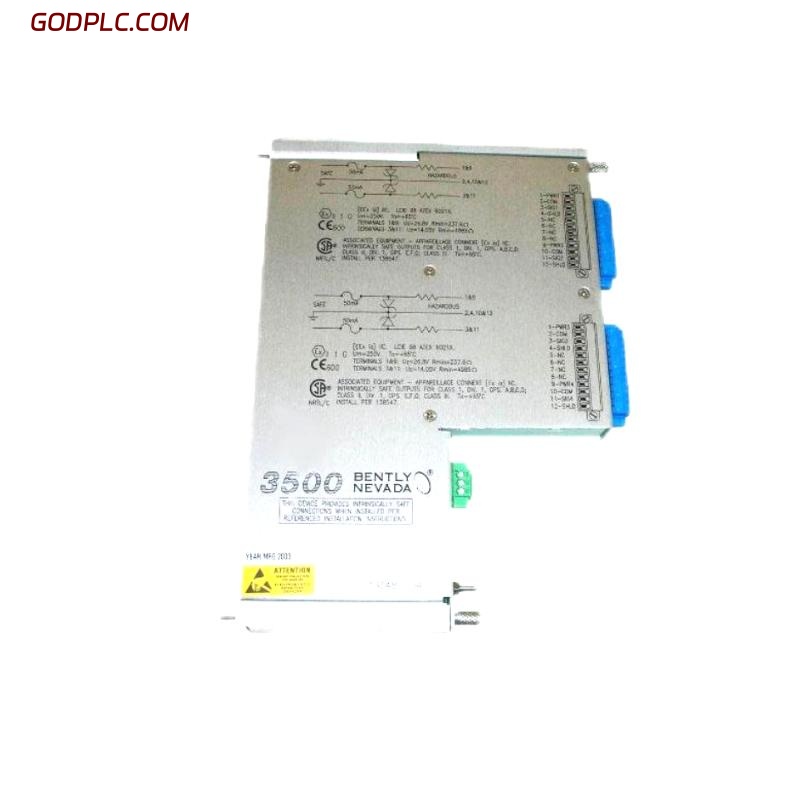

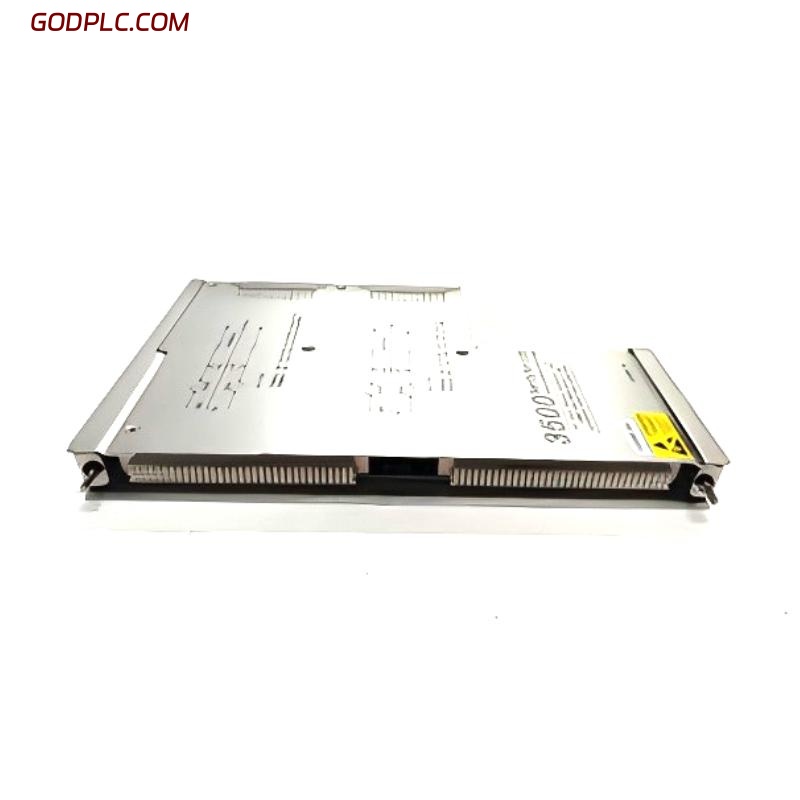

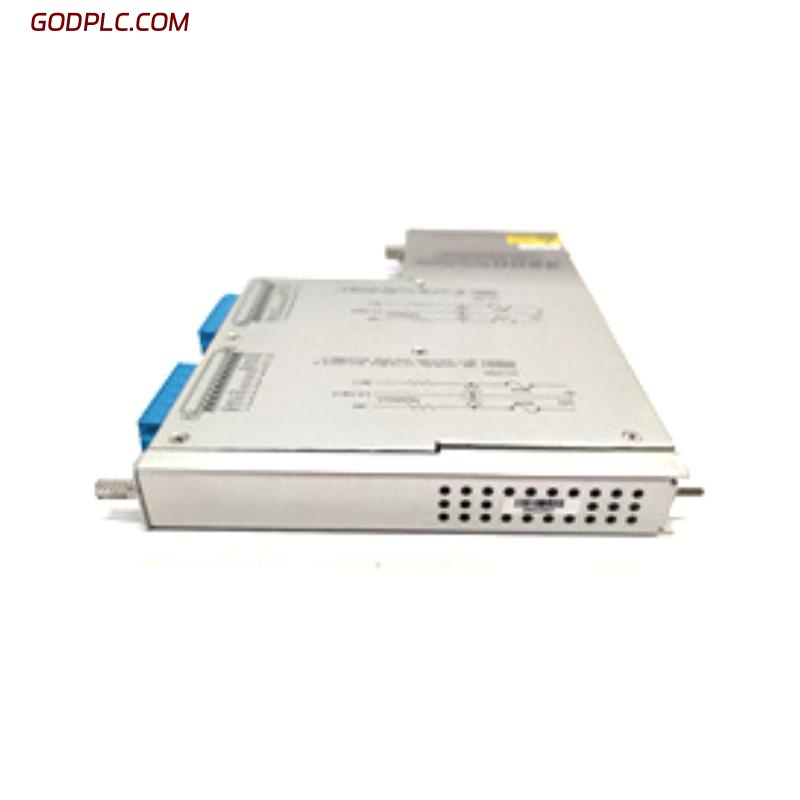

Bently Nevada 3500/40M 135489-04 Proximitor® Monitor
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Product Overview
The Bently Nevada 3500/40M 135489-04 is a four-channel Proximitor® monitor designed to continuously measure and protect rotating machinery. It interfaces with Bently Nevada proximity probes to monitor shaft vibration, radial position, and axial thrust displacement. As part of the 3500 Machinery Protection System, the 3500/40M ensures early detection of abnormal conditions and provides accurate real-time data for both protection and condition monitoring applications. Its robust design and integration capabilities make it an essential component in critical industrial environments such as oil & gas, power generation, and chemical processing.
_
Main Features
-
Four independent input channels configurable for radial vibration, axial position, or phase reference monitoring
-
Direct interface with Bently Nevada Proximitor® sensors for high measurement accuracy
-
Buffered transducer outputs for advanced diagnostics and analysis
-
Programmable alarm setpoints with alert and danger levels for machinery protection
-
4–20 mA proportional outputs for integration with control systems and DCS/PLC networks
-
Hot-swappable card design allowing replacement without shutting down the rack system
-
Compatible with 3500 rack backplane communication for seamless system integration
-
Rugged design suitable for harsh industrial environments with reliable long-term stability
_
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 241.3 × 24.4 × 99.1 mm |
| Weight | 0.2 kg |
_
General Information
| Item | Specification |
|---|---|
| Manufacturer | Bently Nevada (GE) |
| Model Number | 3500/40M 135489-04 |
| Product Type | Proximitor® Monitor |
| System | 3500 Machinery Protection System |
| Mounting | 3500 rack installation |
_
Electrical Characteristics
| Item | Specification |
|---|---|
| Input Channels | 4 (independent) |
| Input Type | Proximitor® proximity probe signals |
| Measurement Types | Shaft radial vibration, axial position, thrust position, phase reference |
| Accuracy | ±0.25% of full scale |
| Outputs | Buffered transducer outputs, 4–20 mA proportional outputs |
| Alarm Functions | Alert and danger setpoints with relay activation |
| Power Supply | Via 3500 rack backplane |
_
Environmental Specifications
| Item | Specification |
|---|---|
| Operating Temp. | -30°C to +65°C |
| Storage Temp. | -40°C to +85°C |
| Humidity | 0–95% RH, non-condensing |
| Vibration | 5–500 Hz, 1.5 g |
| Shock | 15 g, 11 ms half-sine |
_
Industry Applications
The Bently Nevada 3500/40M 135489-04 is widely applied in critical rotating machinery across industries:
-
Oil & Gas – Vibration and thrust monitoring of compressors, pumps, and turbines
-
Power Generation – Condition monitoring of steam and gas turbines
-
Chemical & Petrochemical – Machinery protection in process units and refineries
-
Metals & Mining – Monitoring mills, crushers, and rotary equipment
-
General Manufacturing – Early fault detection in fans, blowers, and electric motors
Bently Nevada 3500/40M 135489-04 Proximitor® Monitor is in stock. Please contact us for a quick quote and competitive pricing.
