1. What is the Bently Nevada 3500/42-04-02 primarily used for?

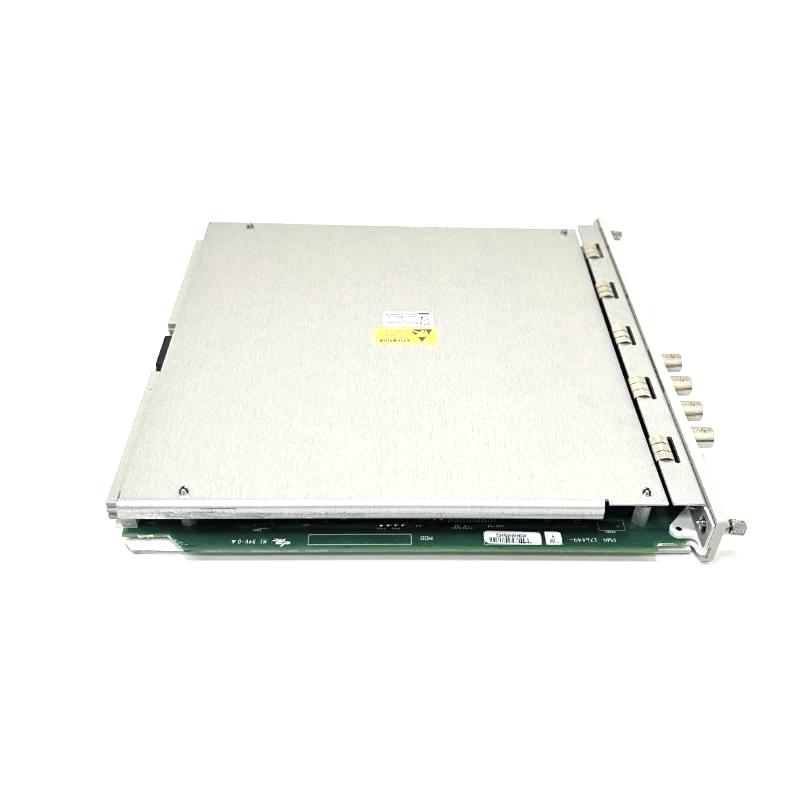

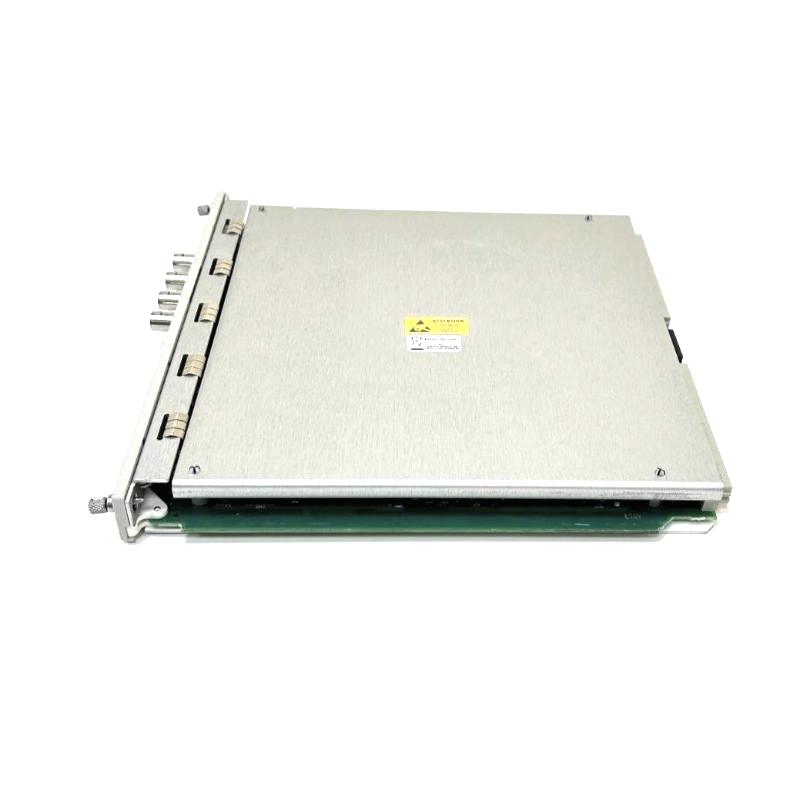

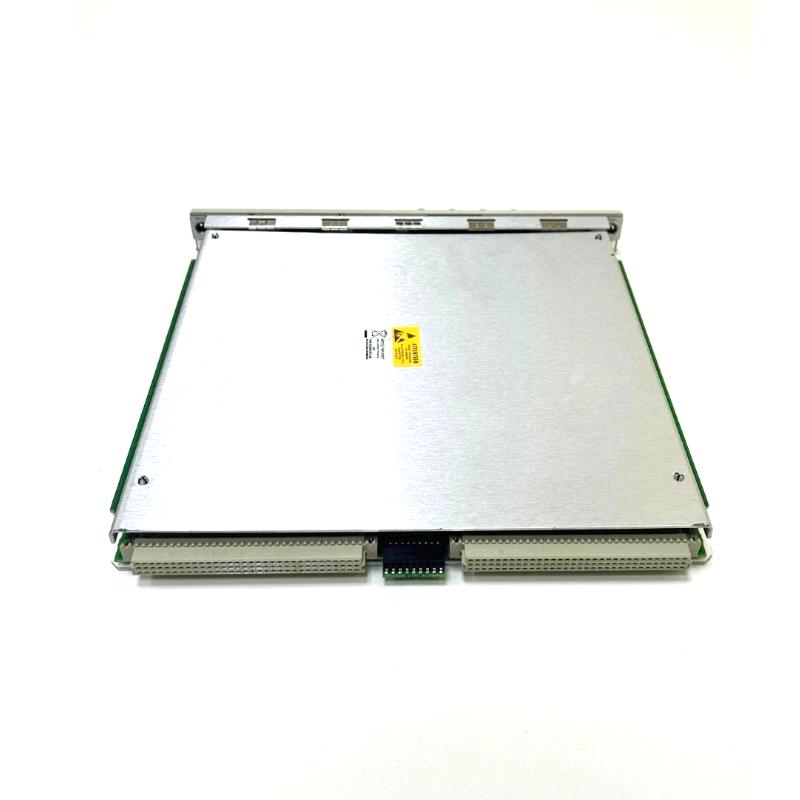

The Bently Nevada 3500/42-04-02 is a four-channel Proximitor/Seismic Monitor designed for continuous vibration and machinery condition monitoring within the 3500 Machinery Protection System. This configuration provides four Proximity/Acceleration channels for processing compatible transducer signals. Depending on the application and channel configuration, the monitor can be used for radial vibration, thrust position, differential expansion, eccentricity, shaft absolute vibration and other supported machinery measurements. The measured values can be compared with configured Alert and Danger thresholds, allowing abnormal shaft movement or vibration conditions to be identified at an early stage. It is suitable for critical rotating equipment such as turbines, compressors, generators, motors and pumps.

2. What type of I/O module does the 3500/42-04-02 use?
The 3500/42-04-02 uses the 135489-01 I/O module with internal barriers and internal terminations. The module supports four Proximity/Acceleration channels and provides the required interface between field transducer circuits and the monitoring electronics. The internal barrier and termination arrangement is an important part of the system configuration because different 3500/42 variants can use different I/O arrangements. When selecting a replacement, the complete model number should be verified rather than relying only on the basic 3500/42 designation. The replacement should match the existing I/O configuration, termination arrangement, certification requirements and connected transducer system.

3. How many monitoring channels does the 3500/42-04-02 provide?
The 3500/42-04-02 provides four monitoring channels and can process up to four compatible transducer inputs. Channels 1 and 2 form one channel pair, while Channels 3 and 4 form the second pair. This arrangement allows several machinery parameters to be monitored through a single module. For example, multiple proximity measurements can be used to monitor shaft vibration or position on critical rotating equipment. During commissioning, each active channel should be checked individually to verify the connected sensor, input signal, measurement function, scaling, alarm thresholds and overall signal stability.

4. What types of transducers can be used with the 3500/42-04-02?
The 3500/42-04-02 uses Proximity/Acceleration channel configuration and can accept compatible proximity or acceleration transducer signals according to the selected application. Proximity transducers are commonly used for shaft displacement, radial vibration and axial position measurements, while acceleration transducers can be used for structural or casing vibration monitoring. The correct sensor selection depends on sensitivity, output characteristics, power requirements, measurement range, installation position and compatibility with the 135489-01 I/O module. When replacing a sensor, the complete measurement chain should be checked, including the probe, extension cable and associated interface components. Physical connector compatibility alone does not guarantee electrical or measurement compatibility.

5. What should be checked if the 3500/42-04-02 shows an abnormal vibration value?
When an abnormal vibration value is detected, the first step is to determine whether the condition originates from the machinery or from the measurement circuit. Inspect the associated transducer, field cable, connector and I/O termination for loose connections, damaged wiring, short circuits, poor contact or shielding problems. The channel configuration should then be reviewed to make sure that the selected transducer type, measurement function and engineering range are correct. If the abnormal vibration changes together with machine speed, load or operating conditions, the mechanical equipment should be investigated further. Comparing the affected channel with other vibration measurements can also be useful. An isolated abnormal channel often requires closer inspection of the sensor and wiring, while simultaneous changes across several channels may indicate an actual machinery condition.

6. How are Alert and Danger alarm settings configured on the 3500/42-04-02?
The 3500/42-04-02 can be configured using the 3500 Rack Configuration Software, including the Alert and Danger thresholds associated with the selected monitoring functions. Alarm limits should be established according to the normal operating range of the machine, rotational speed, load conditions, startup and shutdown behavior, historical operating data and applicable equipment recommendations. Alarm values should not simply be copied from another machine because normal vibration levels can vary considerably between different equipment types and applications. After configuration, the alarm functions should be tested under controlled conditions to confirm that the system responds correctly at the programmed thresholds. Any interface between the monitor alarms and the plant DCS, control system or machinery protection logic should also be verified.

7. What is the purpose of the B02 certification configuration?
The B02 configuration corresponds to a certification option intended for specific hazardous-area applications and is associated with ATEX, IECEx and CSA Class 1, Zone 2 requirements. For equipment installed in potentially explosive atmospheres, the certification of the monitor is only one part of the overall installation. The complete measurement circuit, including the I/O module, transducers, field wiring, rack configuration and installation method, must satisfy the applicable hazardous-area requirements. The exact certification requirements should therefore be checked against the actual site classification and project specifications. A certified module alone does not automatically mean that every possible installation arrangement is suitable for a hazardous location.

8. What should be considered when replacing a 3500/42-04-02?
Before replacing a 3500/42-04-02, verify the complete model number, including the 3500/42 series, the -04 I/O configuration and the -02 certification option. Confirm that the replacement uses the same 135489-01 I/O module with internal barriers and internal terminations and that the four Proximity/Acceleration channels match the existing installation. Before removing the original module, it is recommended to record the sensor types, channel assignments, measurement functions, engineering ranges, alarm thresholds and other important configuration parameters. After installation, verify that the module is correctly seated in the 3500 rack and that all field connections are secure. Review the configuration with the 3500 Rack Configuration Software, check each active channel individually and test the Alert and Danger functions under controlled conditions. Critical rotating machinery should only be returned to normal operation after the monitoring channels, sensor signals, alarm functions and protection logic have been confirmed to operate correctly.
