1. What is the Bently Nevada 3500/42-06-RU used for?

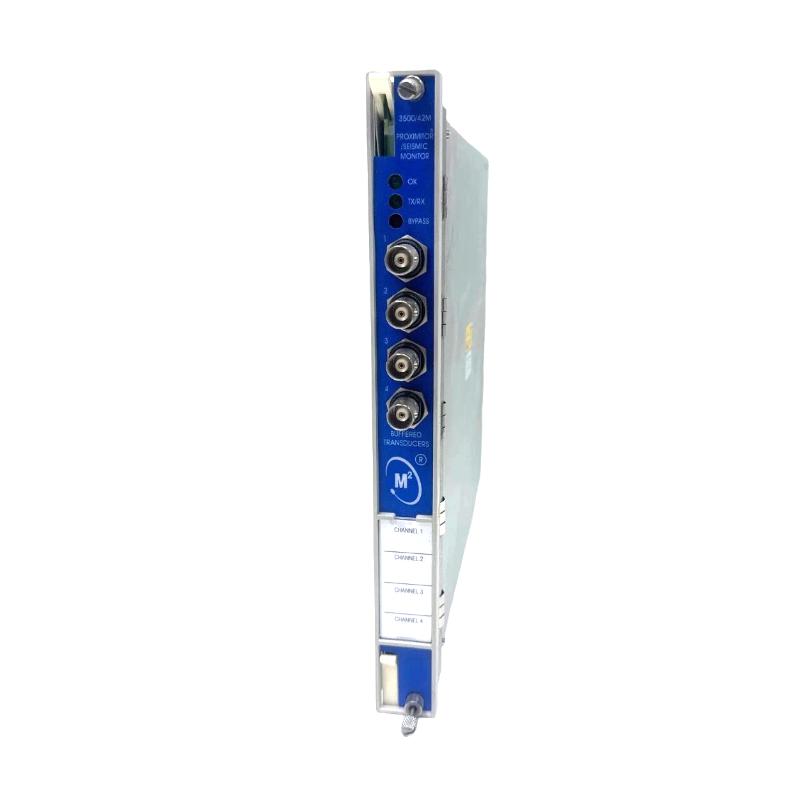

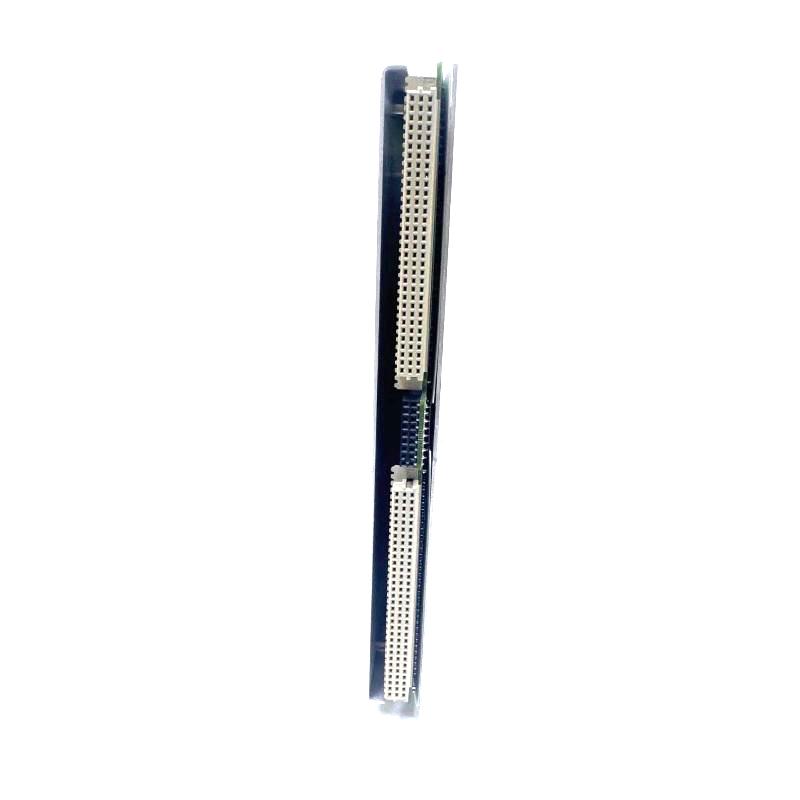

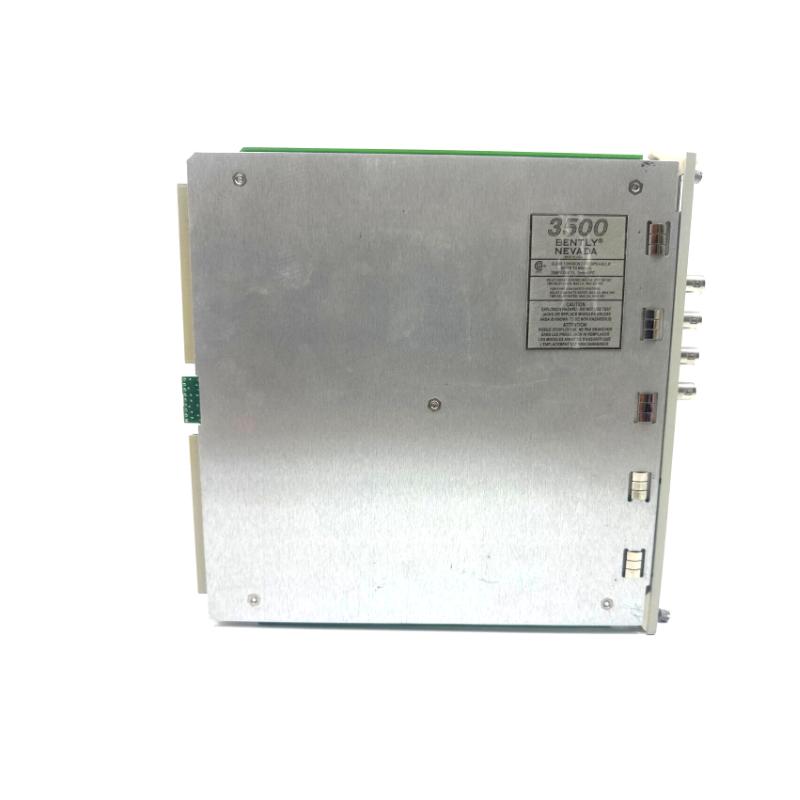

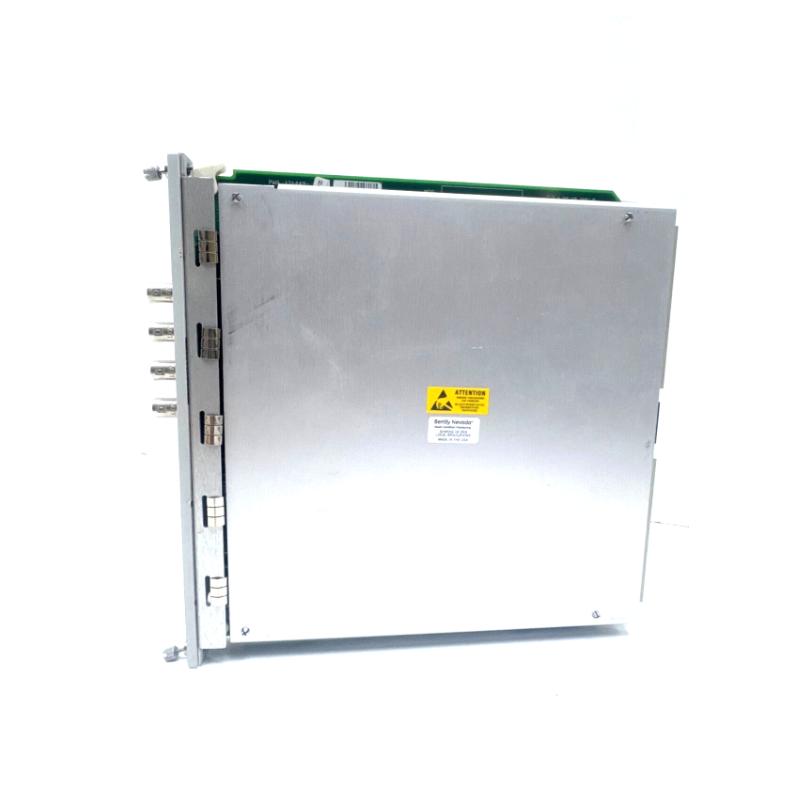

The 3500/42-06-RU is a four-channel Proximitor/Seismic monitoring module designed for continuous monitoring and protection of critical rotating machinery. It receives signals from compatible Proximitor and seismic transducers, processes the input signals, and compares configured measurement values with alarm setpoints. Depending on the application, it can be configured for radial vibration, thrust position, eccentricity, differential expansion, acceleration, or velocity measurements. The module is intended for integration into a Bently Nevada 3500 machinery protection system and can provide important operating information for equipment such as turbines, compressors, pumps, and other rotating machines.

2. How many channels does the 3500/42-06-RU provide?

The 3500/42-06-RU provides four independent monitoring channels. Each channel can be configured according to the connected transducer and the measurement function required by the machinery protection application. This allows several vibration or mechanical condition parameters to be monitored through one monitor module. During commissioning, each channel should be matched carefully with its corresponding sensor, measurement point, and configured function. Correct channel assignment is particularly important on critical machinery because an incorrect configuration can result in inaccurate readings or inappropriate alarm conditions.

3. What measurement functions can be configured on the 3500/42-06-RU?

The 3500/42 platform can be configured for several machinery monitoring functions, including radial vibration, thrust position, eccentricity, differential expansion, acceleration, and velocity. The actual function available for a particular channel depends on the connected transducer and system configuration. This flexibility allows the same monitor platform to be used across different rotating machinery applications. Before commissioning, the sensor type, sensitivity, measurement range, channel configuration, and alarm parameters should be checked together to ensure that the monitoring setup accurately represents the mechanical parameter being measured.

4. What types of transducers can be connected to the 3500/42-06-RU?

The 3500/42 monitor is designed to accept signals from compatible Proximitor and seismic transducers. Depending on the configured measurement function, the system can work with proximity probes, acceleration transducers, and velocity transducers. Each sensor type has different electrical and measurement characteristics, so the selected transducer must correspond to the configuration of the monitoring channel. For example, proximity transducers are commonly associated with shaft vibration or position measurements, while seismic sensors can be used for machine casing vibration, acceleration, or velocity monitoring. Correct sensor selection is essential for accurate measurement and reliable alarm operation.

5. What should be checked if the 3500/42-06-RU shows an abnormal vibration reading?

Troubleshooting should begin by determining whether the abnormal reading is limited to one channel or affects multiple channels. For a single-channel problem, inspect the corresponding transducer, field wiring, connector, sensor power, and channel configuration. Check for loose terminals, damaged cables, incorrect sensor installation, or incorrect sensitivity settings. If several channels become abnormal simultaneously, the 3500 rack, module installation, power supply, and system configuration should also be checked. The monitor’s status information and diagnostic data should be reviewed to distinguish an instrumentation problem from an actual change in machine vibration. The physical condition and operating state of the monitored machinery should always be considered during the final diagnosis.

6. How are alarm settings configured for the 3500/42-06-RU?

The monitoring functions and alarm parameters are configured through the Bently Nevada 3500 Rack Configuration Software. Depending on the selected measurement function, users can establish appropriate Alert and Danger setpoints for the monitored values. These limits should be selected based on the characteristics of the protected machine, normal operating vibration, manufacturer recommendations, and the overall machinery protection strategy. Alarm thresholds should not be selected arbitrarily because excessively low settings can create nuisance alarms, while excessively high settings may delay detection of a developing mechanical problem. After configuration, the alarm behavior should be verified during commissioning.

7. What installation precautions should be followed when installing the 3500/42-06-RU?

The module should be installed correctly in a compatible Bently Nevada 3500 rack and securely seated in the designated monitor position. Sensor wiring should be connected according to the approved system design, with proper attention to signal polarity, shielding, grounding, and cable routing. Signal cables should be kept away from high-power wiring and other strong sources of electromagnetic interference wherever practical. The connected transducers should also be mounted correctly because poor mechanical installation can introduce unwanted vibration or unstable signals. After installation, the channel configuration, sensor settings, alarm parameters, status indicators, and measured values should all be checked before the machinery is returned to normal operation.

8. What are the main advantages of using the 3500/42-06-RU for machinery protection?

The 3500/42-06-RU combines four-channel vibration and seismic monitoring with configurable measurement and alarm functions within the Bently Nevada 3500 machinery protection platform. Its ability to work with different types of compatible transducers allows it to support several important mechanical measurements, including radial vibration, thrust position, acceleration, velocity, eccentricity, and differential expansion. Continuous monitoring enables abnormal conditions to be detected while equipment is operating, rather than relying only on periodic inspections. When properly configured and integrated with the rest of the 3500 system, the module can provide useful protection and diagnostic information for critical rotating equipment, helping maintenance personnel identify developing mechanical problems and reduce the risk of unexpected failures and unplanned downtime.
