1. What is the Bently Nevada 125808-02 used for?

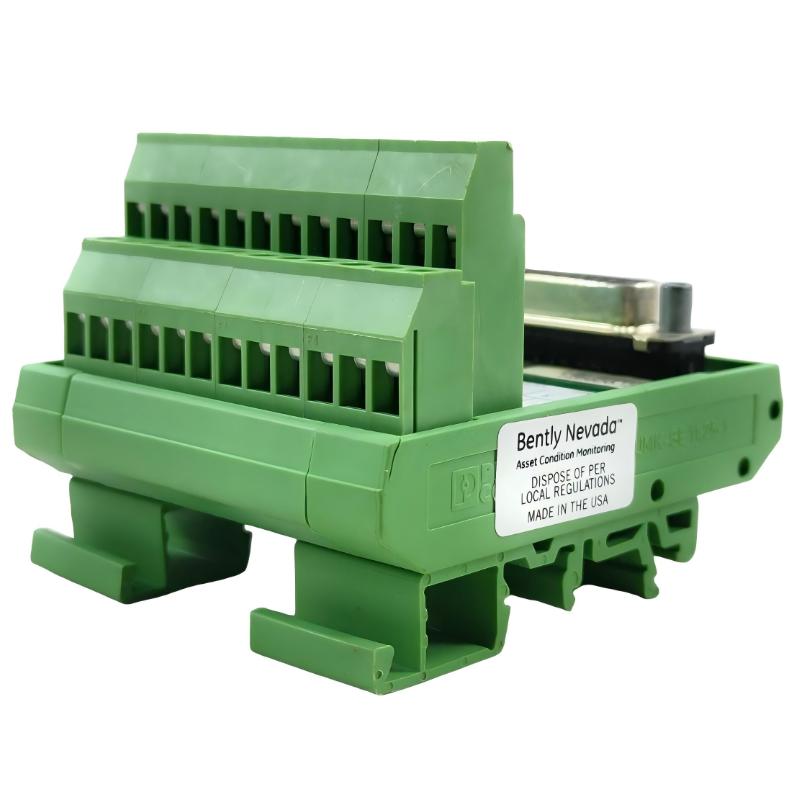

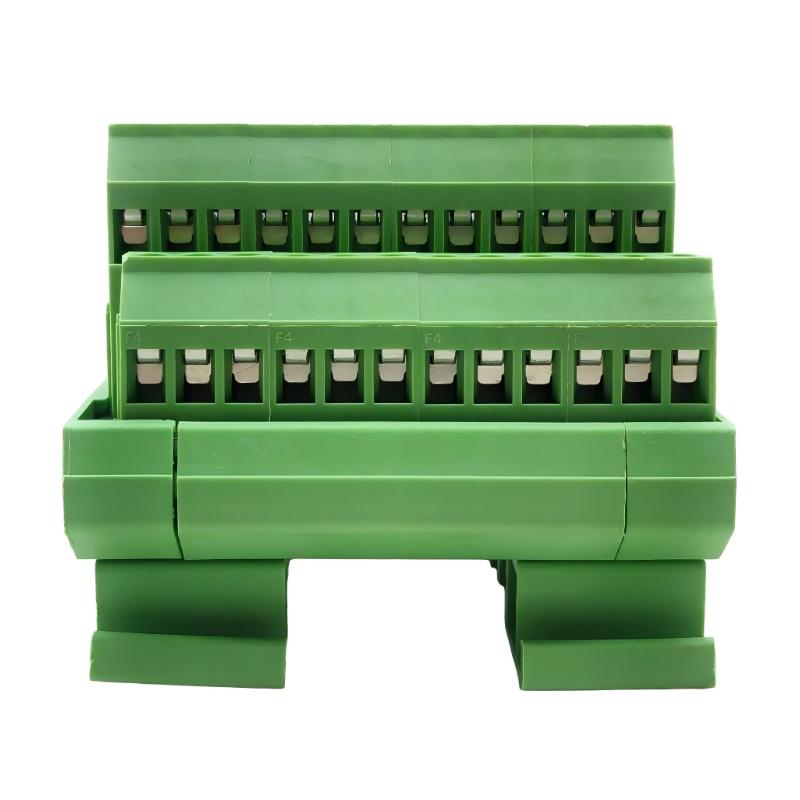

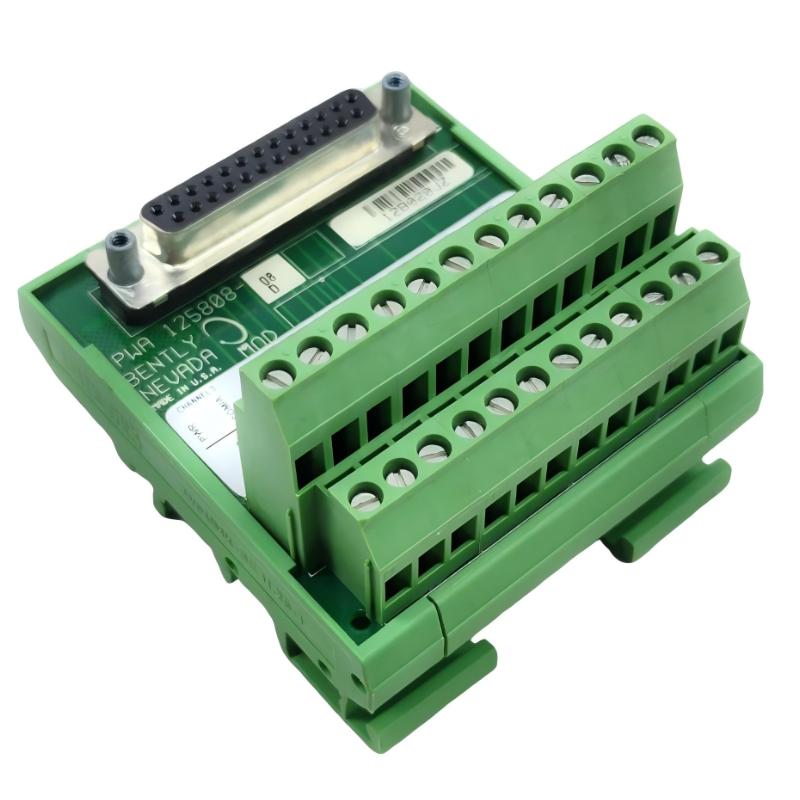

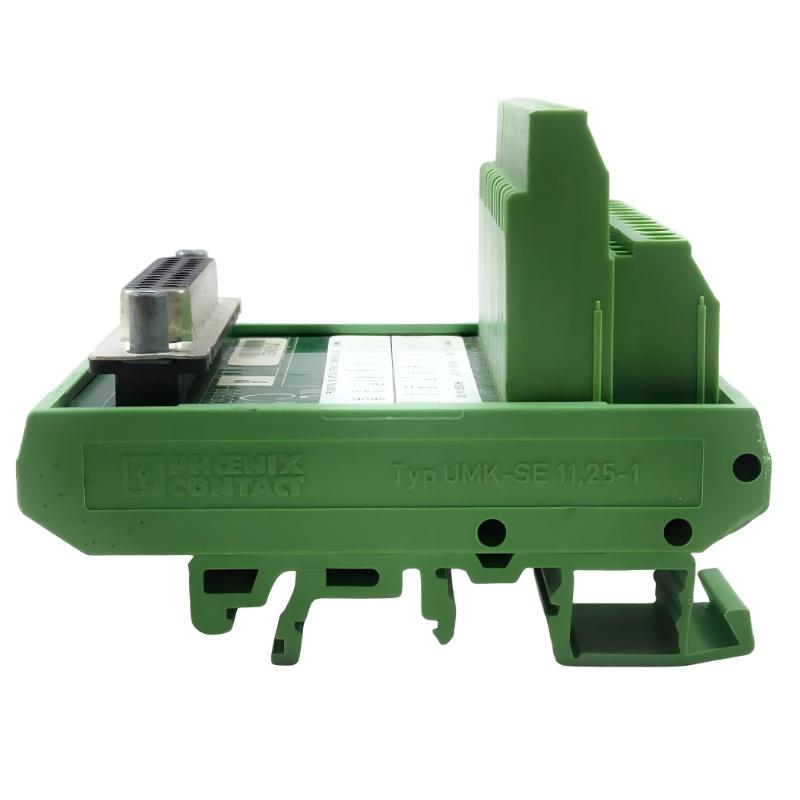

The 125808-02 is a Proximitor External Termination Block designed for use with the Bently Nevada 3500/42M Proximitor Seismic Monitor. Its primary purpose is to provide an external connection point between field transducer wiring and the corresponding 3500/42M I/O module. By moving the field termination away from the monitor rack, the wiring arrangement can be more convenient for equipment installation and maintenance. It is particularly useful in systems where the 3500/42M is configured with an I/O module that uses external terminations. The termination block works as part of the signal connection path and helps organize the transducer wiring used for rotating machinery monitoring.

2. What type of connector does the 125808-02 use?

The 125808-02 uses Euro Style connectors. This connector arrangement provides a practical interface for connecting field wiring associated with Proximitor monitoring applications. The Euro Style configuration is different from the terminal-strip version used on some other Bently Nevada external termination blocks, so the connector type should be considered when selecting a replacement. Before installation, the connector arrangement, cable assembly, and I/O module configuration should be checked to make sure all components are compatible. Using the correct connector and cable configuration helps prevent wiring errors and ensures that the transducer signals reach the intended 3500/42M monitoring channels correctly.

3. Which 3500/42M configuration is compatible with the 125808-02?

The 125808-02 is intended for 3500/42M configurations that use external terminations. In the 3500/42M system, the Prox/Seismic I/O Module with external terminations is identified as an external-termination configuration. The termination block should not be used with an I/O module designed specifically for internal terminations because the connection architecture is different. Before replacing or installing the termination block, the existing I/O module part number and system configuration should be checked. Matching the external termination block with the appropriate I/O module and cable assembly is important for maintaining correct signal routing and reliable monitoring.

4. What cable is normally used with the 125808-02?

The 125808-02 can be connected using the 129529 series External Termination Block Cable. Several cable lengths are available, including approximately 1.5 m, 2.1 m, 3.0 m, 7.6 m, 15.2 m, and 30.5 m. The appropriate cable length depends on the physical distance between the 3500/42M rack and the external termination location. During installation, the cable should be routed away from sources of excessive electromagnetic interference and protected against mechanical damage. Correct cable selection and routing are important because poor connections or excessive electrical interference can affect the quality of the transducer signals reaching the monitoring system.

5. How should the 125808-02 be wired in a 3500/42M system?

The 125808-02 should be wired according to the specific 3500/42M I/O configuration and the associated connection diagram. The field transducer wiring is connected to the external termination block, while the termination block is connected to the appropriate 3500/42M I/O module through the designated external termination cable. Each signal should be connected to the correct channel and terminal according to the system wiring documentation. Before energizing the system, technicians should verify channel assignments, polarity where applicable, cable continuity, connector seating, and shielding or grounding requirements. Incorrect wiring can result in missing signals, incorrect measurements, unstable readings, or improper machinery protection responses.

6. What problems can occur if the 125808-02 has a poor connection?

A poor connection can cause intermittent or completely lost transducer signals, unstable vibration measurements, incorrect channel readings, or unexpected diagnostic indications from the 3500/42M system. Loose connectors, damaged wiring, corrosion, improper cable termination, and mechanical stress on the connection can all contribute to signal problems. When troubleshooting, inspect the termination block and associated connectors first, then check the external cable and field transducer wiring. Comparing the affected channel with other properly operating channels can help determine whether the issue is isolated to a particular connection. After correcting the connection, the monitoring signal should be checked again under normal operating conditions.

7. Can the 125808-02 be used in a redundant or TMR monitoring system?

The 3500/42M platform supports redundant and TMR monitoring configurations, but the exact termination block arrangement depends on the system architecture and transducer configuration. Standard Proximitor external termination blocks are intended for the corresponding external-termination installation, while dedicated bussed external termination blocks are available for certain redundant arrangements. Therefore, the 125808-02 should not automatically be substituted for a TMR-specific termination block. Before modifying a redundant monitoring system, the complete I/O configuration, transducer arrangement, termination type, and signal distribution method should be verified to ensure that the selected termination hardware matches the intended protection architecture.

8. What should be checked when replacing a 125808-02?

When replacing a 125808-02, first verify the exact part number and confirm that the replacement is the Euro Style connector version. The 3500/42M I/O module should also be checked to make sure it is designed for external terminations. Inspect the associated external termination cable, connectors, field wiring, and channel assignments for signs of damage or incorrect connections. After installation, verify that each transducer signal is present on the correct monitoring channel and that the 3500/42M system does not report connection or configuration faults. It is also advisable to compare the new readings with the previous operating values to confirm that the replacement has restored normal signal transmission and that the machinery monitoring system is functioning correctly.
