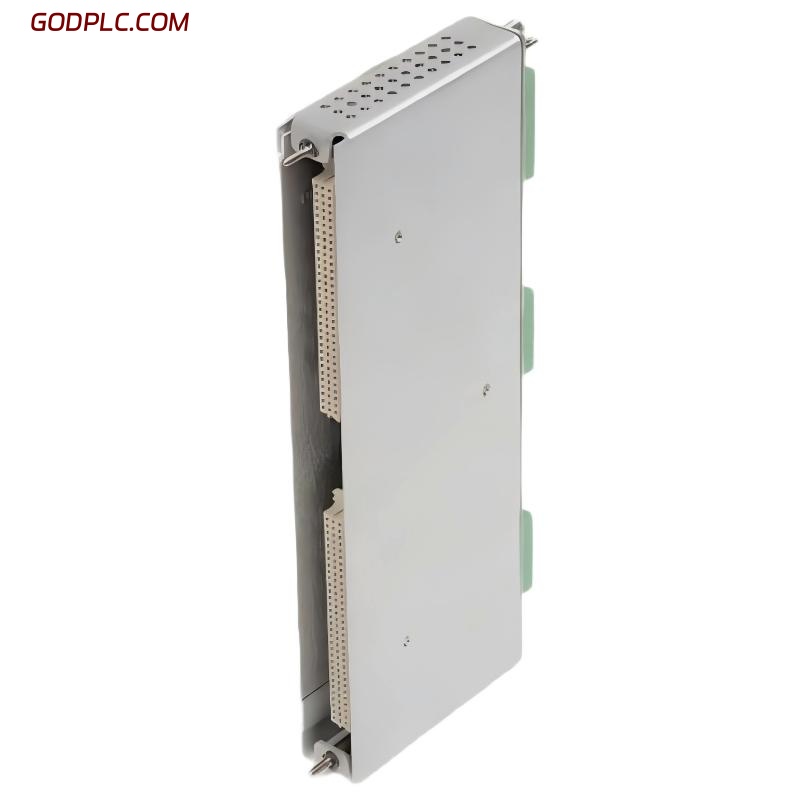

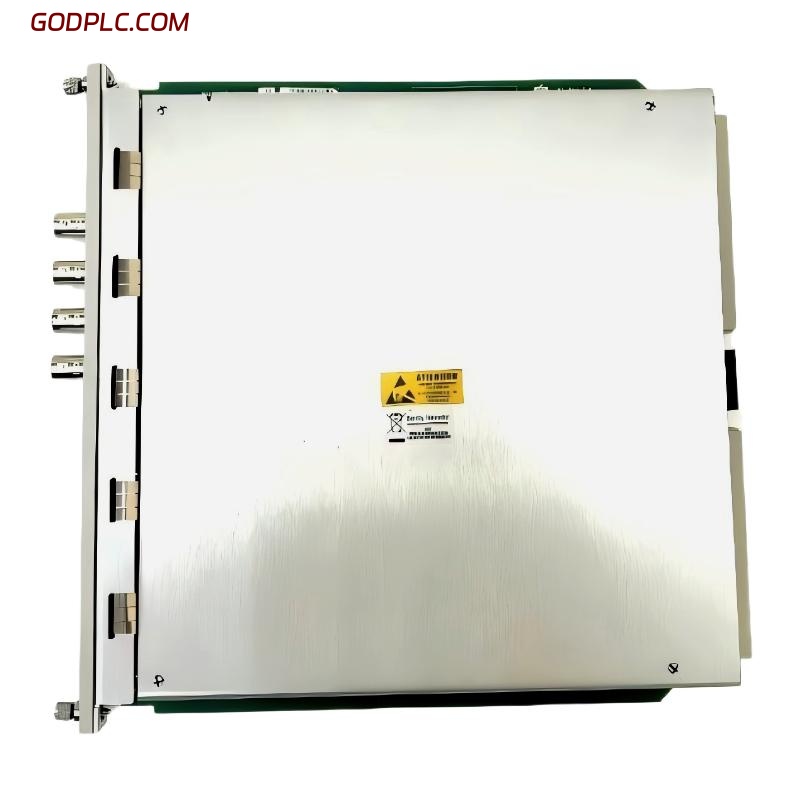

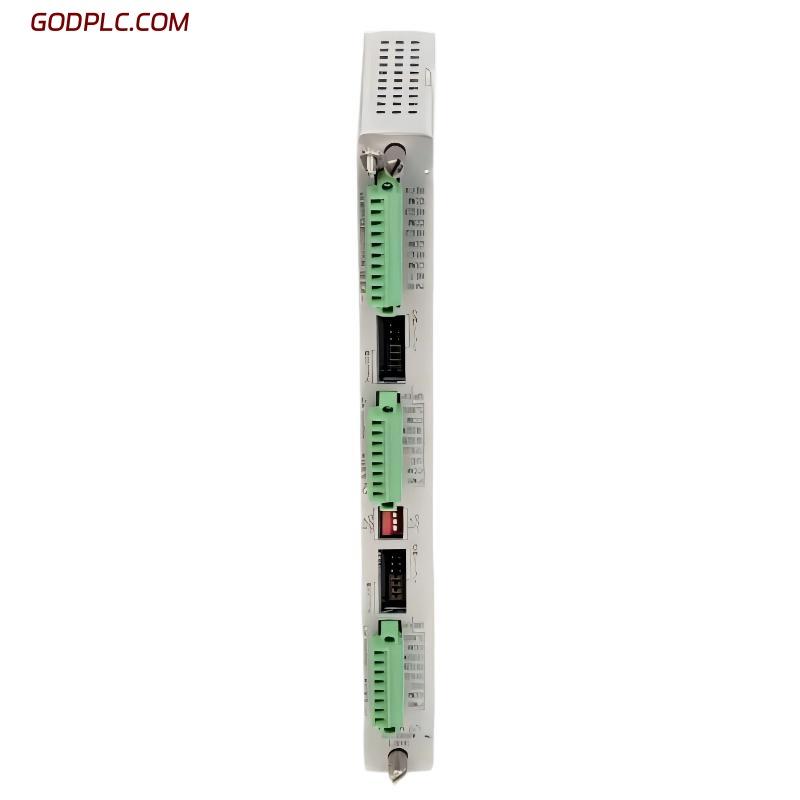

Bently Nevada 3500/42M 176449-02+138708-01 Preamplifier Monitor + I/O Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 3500/42M |
| Ordering Number | 176449-02 + 138708-01 |
| Product Type | Preamplifier Monitor + I/O Module |
| Manufacturer | Bently Nevada |
| Channels | 4 independent monitoring channels |
| Input Signal Types | Proximity, velocity, acceleration, position |
| Input Range | -20 VDC to +20 VDC (typical) |
| Frequency Range | 0.5 Hz to 20 kHz |
| Measurement Accuracy | ±0.33% typical (max ±1%) |
| Sensitivity | 100 mV/mil (proximity), 100 mV/g (acceleration) |
| Power Supply | 18–32 VDC |
| Power Consumption | Approx. 7.7–8 W |
| Analog Outputs | 4–20 mA per channel |
| Communication | Modbus, Profibus (via rack system) |
| Alarm Functions | Configurable Alert and Danger thresholds with delay |
| Operating Temperature | 0°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | Up to 95% non-condensing |
| Certifications | ATEX, IECEx, cNRTLus, RoHS |
| Mounting | 3500 rack system (front and rear module configuration) |
| Dimensions | 241.3 × 24.4 × 241.8 mm |
| Weight | 0.91 kg |
FAQ
1. What is the primary application of this module?
It is designed for continuous monitoring of vibration, position, and dynamic parameters in rotating machinery such as turbines, compressors, and pumps.
2. What is the function of the 138708-01 I/O module?
The I/O module provides signal isolation, output interfaces, and communication with the 3500 rack and external control systems.
3. What measurement types are supported?
The module supports vibration, shaft position, velocity, and acceleration measurements.
4. Can each channel be configured independently?
Yes, all four channels can be individually configured for different measurement types and alarm settings.
5. How does the alarm system operate?
It includes configurable Alert and Danger thresholds with adjustable delays, allowing precise machinery protection and trip logic.
6. Is the module compatible with control systems like DCS or PLC?
Yes, it integrates with DCS and PLC systems through the 3500 platform using standard communication protocols.
7. Is it suitable for harsh industrial environments?
Yes, it is designed for industrial applications with high reliability and resistance to electrical noise and environmental factors.
8. Does it support hot-swapping?
Yes, the module supports hot-swapping when performed according to system guidelines, minimizing downtime during maintenance.
Bently Nevada 3500/42M 176449-02+138708-01 Preamplifier Monitor + I/O Module is in stock. Please contact us for a quick quote and competitive pricing.
