Product Overview

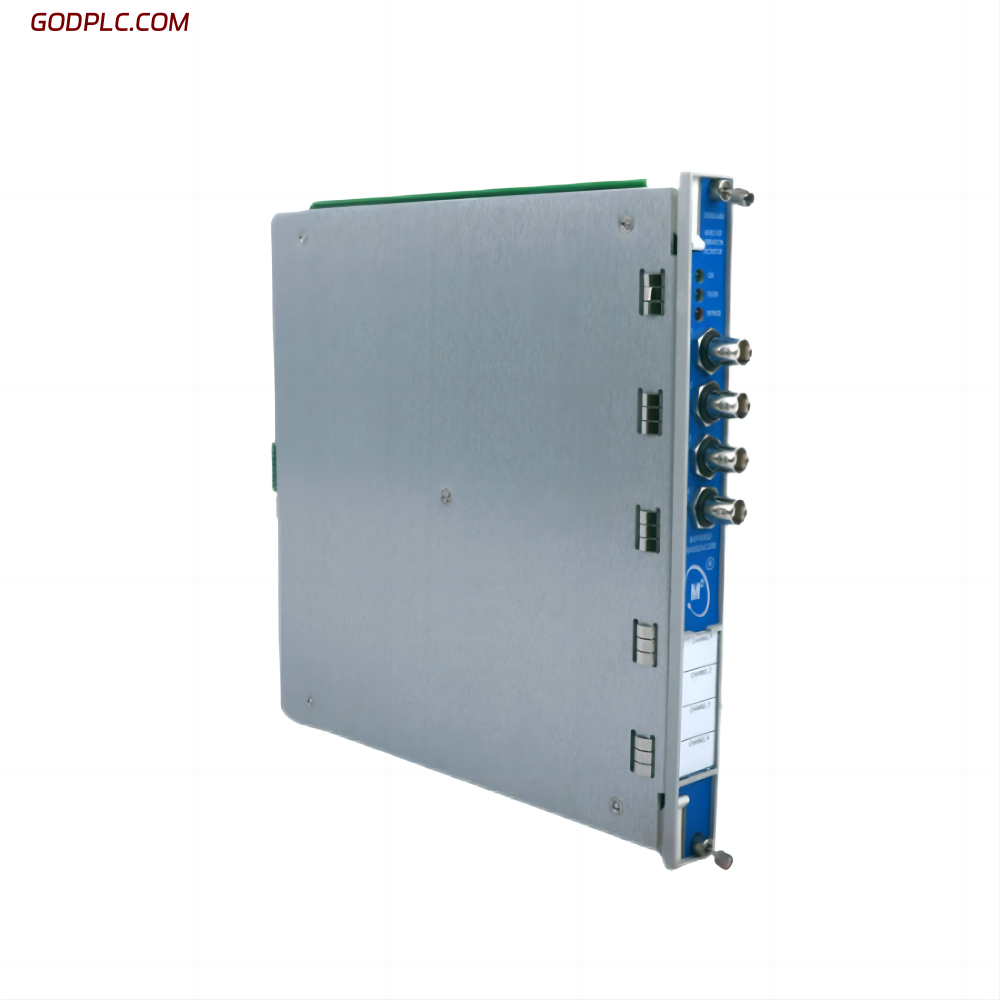

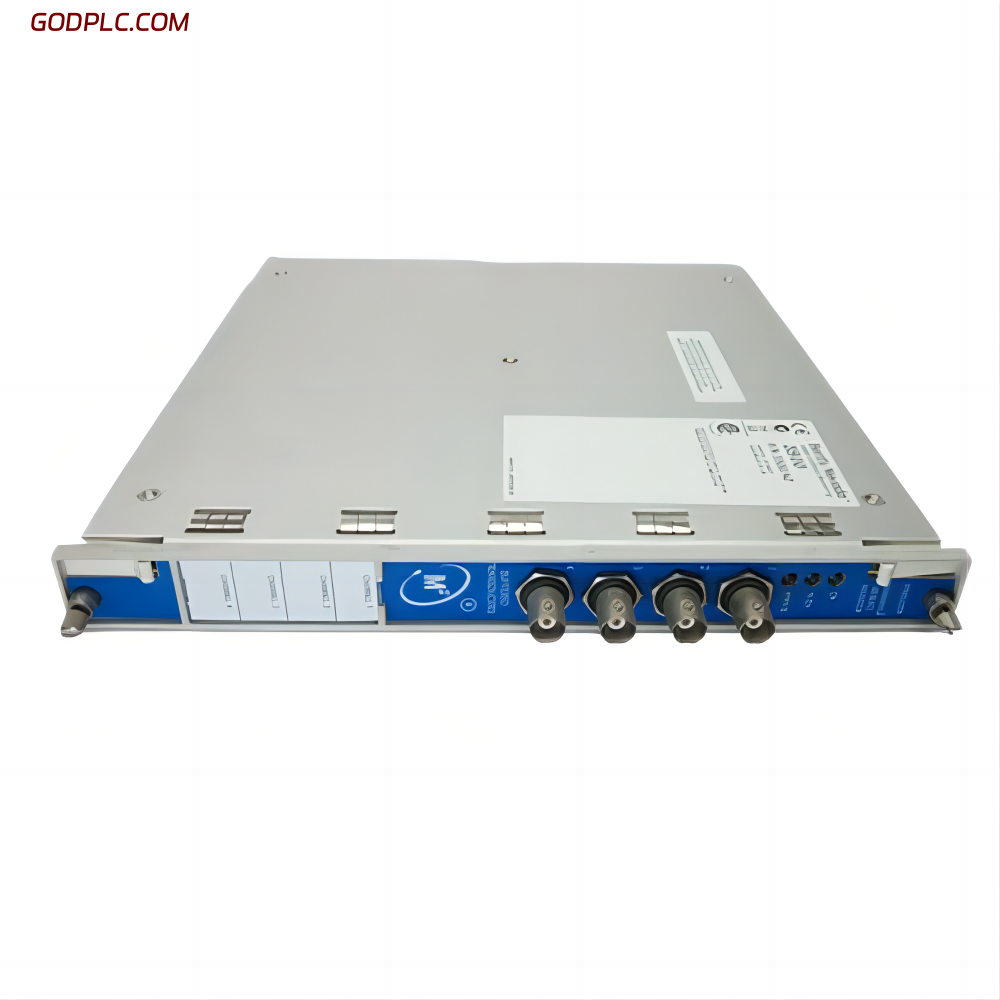

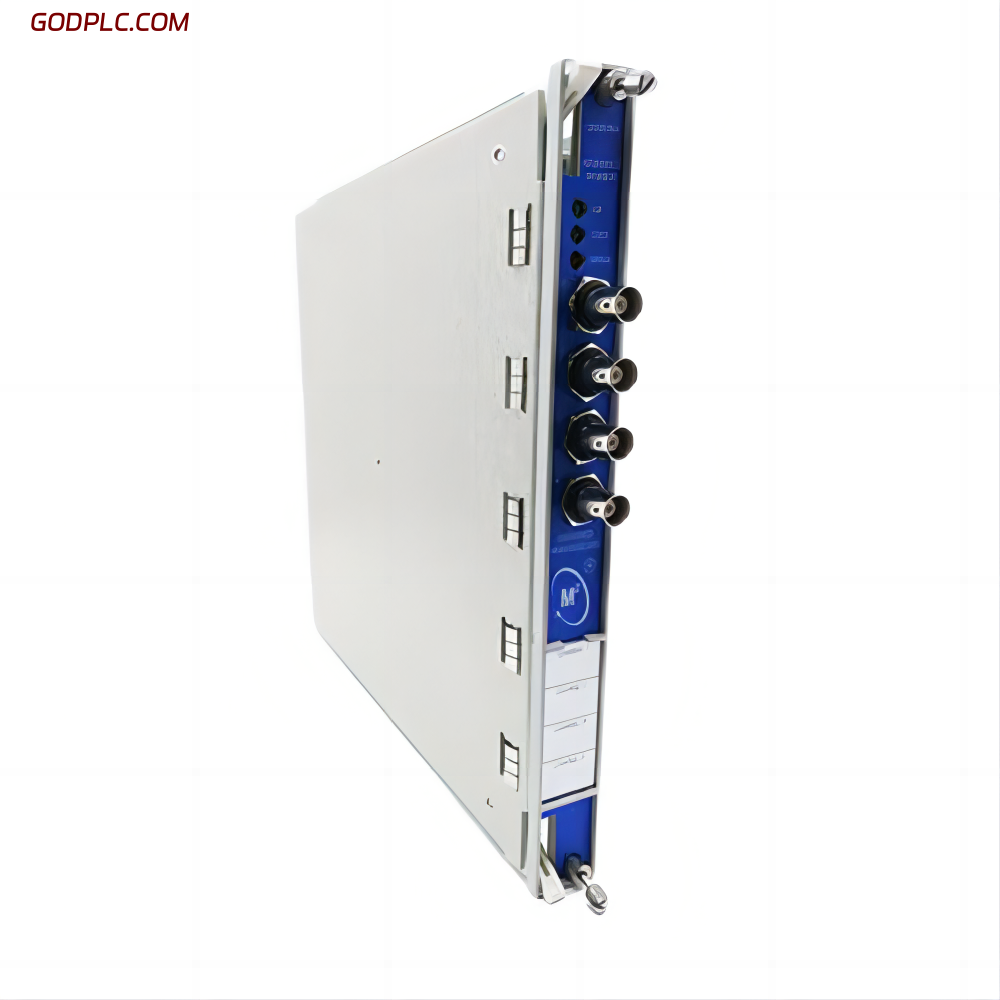

The Bently Nevada 3500/44M Velocity Monitor (176449-03) is a four-channel machinery protection module designed for the 3500 Series Machinery Protection System.
It continuously measures and monitors casing vibration velocity or absolute shaft vibration from seismic transducers such as Velomitor velocity sensors and accelerometers.
The 3500/44M module provides real-time vibration monitoring, configurable alarm logic, and data transmission for machinery protection and condition monitoring applications.
It is a key component in rotating equipment systems such as turbines, compressors, motors, and pumps, where reliable vibration detection and automatic trip capability are essential to prevent equipment damage and unplanned shutdowns.
Key Features
-
Four independent velocity monitoring channels.
-
Compatible with Bently Nevada Velomitor and seismic accelerometer sensors.
-
Provides both machinery protection and condition monitoring data.
-
Programmable Alert and Danger setpoints for each channel.
-
Advanced digital filtering for high signal integrity.
-
Field-replaceable front and rear module configuration.
-
Designed for operation in harsh industrial environments.
-
Fully integrates with all 3500 rack and communication systems.
Technical Specifications
| Parameter | Specification | Description |
|---|---|---|
| Model Number | 3500/44M (176449-03) | Four-channel Velocity Monitor Module |
| Function | Measures casing vibration velocity or absolute shaft vibration | Designed for seismic transducers |
| Number of Channels | 4 channels (configured as 2 pairs) | Each pair independently programmable |
| Sensor Input Types | Velomitor velocity sensors, accelerometers | AC-coupled dynamic inputs |
| Input Impedance | 10 kΩ nominal | Matches Bently Nevada standard sensors |
| Frequency Response | 4 Hz – 4 kHz (−3 dB typical) | Full-scale response for most industrial machines |
| Measurement Range | Software configurable | User-defined per application |
| Measurement Units | mm/s RMS or in/s RMS | Selectable in configuration software |
| Accuracy | ±1 % of full scale | Within the calibrated range |
| Alarm Setpoints | Programmable Alert and Danger thresholds | Individual channel configuration |
| Outputs | 4–20 mA, relay trip, rack data bus | Transmits to DCS or condition monitoring software |
| Power Consumption | Approx. 7.5 W typical | Per installed module |
| Operating Temperature | −30 °C to +65 °C | Industrial operating range |
| Storage Temperature | −40 °C to +85 °C | For non-operating storage |
| Rack Requirement | Occupies one front and one rear slot | Standard 3500 rack system |
| Dimensions (H × W × D) | 241.3 mm × 24.4 mm × 163.1 mm (9.50 in × 0.96 in × 6.42 in) | Standard 3500 form factor |
| Weight | Approx. 0.46 kg (1.01 lb) | Lightweight modular construction |
| Housing Material | Anodized aluminum alloy | Provides EMI/RFI shielding |
| Compliance | CE, CSA, ATEX (per model certification) | Global industrial approvals |
| Country of Origin | United States – Minden, Nevada (USA) | Manufactured by Bently Nevada, Baker Hughes |
Bently Nevada 3500/44M 176449-03 Velocity Monitor is in stock. Please contact us for a quick quote and competitive pricing.
