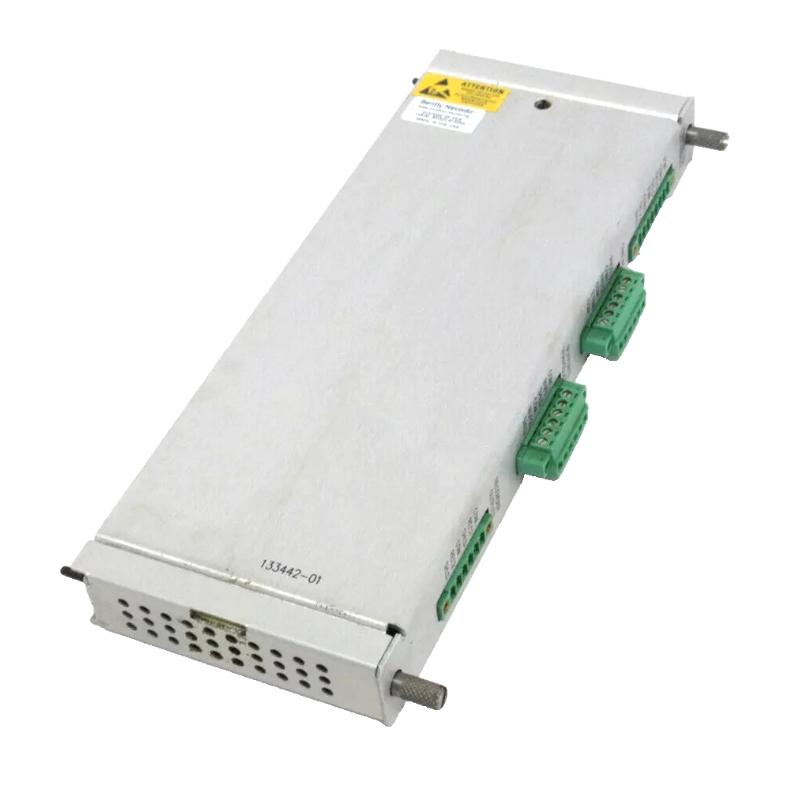

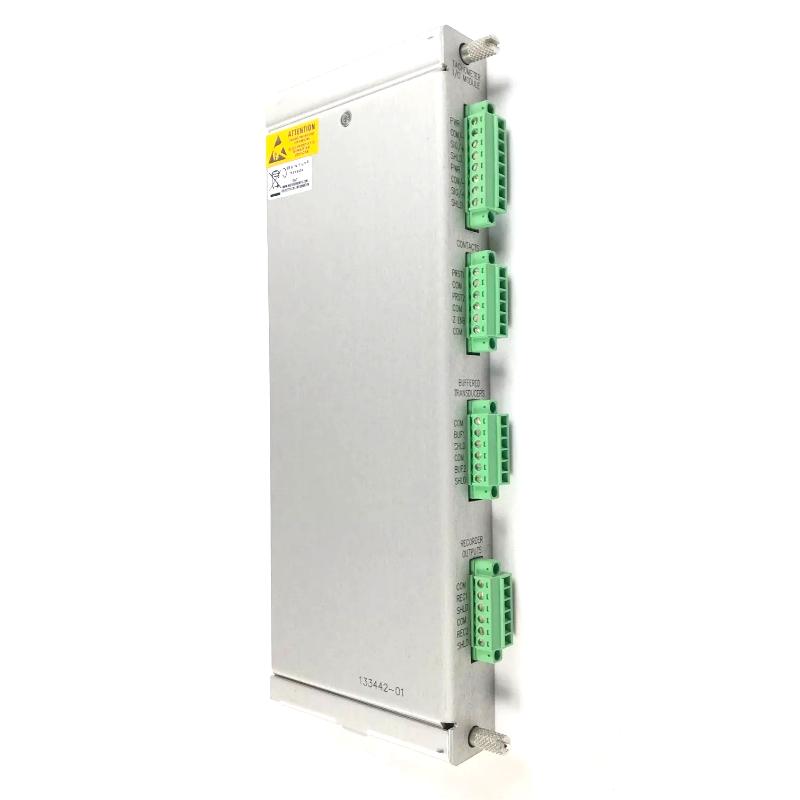

1. What is the main function of the Bently Nevada 3500/50-01-00 133442-01 Tachometer Module?

The 3500/50-01-00 is a tachometer monitoring solution used within the Bently Nevada 3500 machinery protection system to acquire and process rotational speed signals from rotating machinery. The associated 133442-01 I/O module provides two input channels and is designed to accept signals from proximity probes or magnetic pickups. These signals can be used to determine shaft rotational speed, rotor acceleration, and rotation direction. The module can also support functions such as zero-speed detection, reverse-rotation detection, speed-band monitoring, and peak-speed monitoring, depending on the configured application. Because rotational speed information is also used by other machinery monitoring functions, reliable tachometer signal acquisition is important for applications involving turbines, compressors, pumps, generators, and other critical rotating equipment.

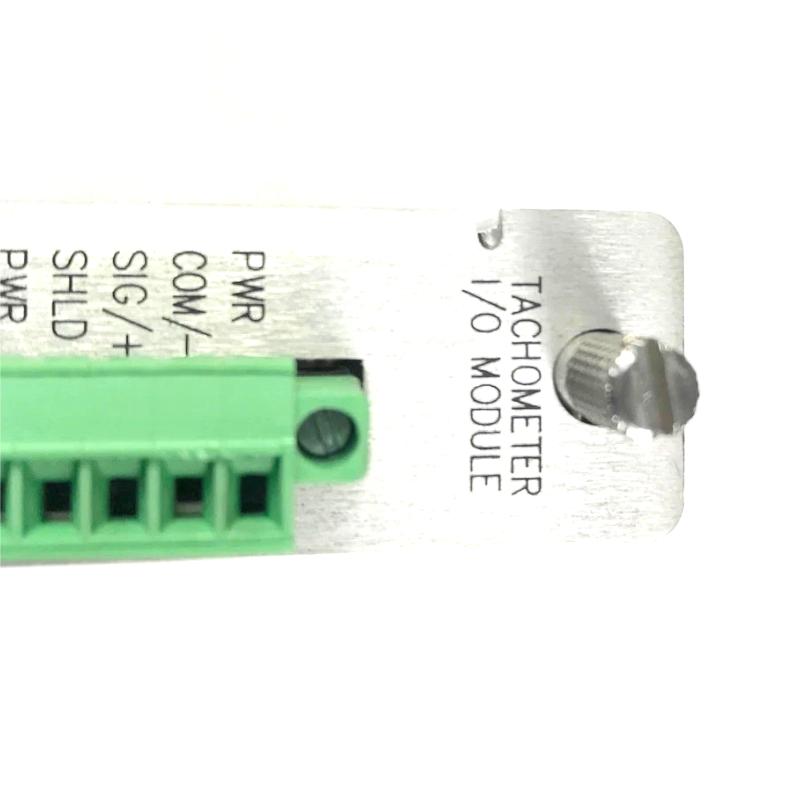

2. What types of sensors can be connected to the 133442-01 I/O module?

The 133442-01 I/O module accepts signals from compatible proximity probes and magnetic pickup transducers. A proximity probe can provide a pulse signal associated with the passage of a shaft target, while a magnetic pickup can generate an electrical signal based on changes in the magnetic field as a rotating target passes the sensor. The appropriate sensor depends on the machine design, shaft configuration, speed range, and installation requirements. When replacing a sensor, technicians should verify its electrical output characteristics and ensure that the signal falls within the input range supported by the tachometer interface. Incorrect sensor selection, insufficient signal amplitude, damaged wiring, or poor sensor installation can result in unstable RPM readings or loss of speed detection.

3. What is the input signal range of the 133442-01?

The 133442-01 accepts input signals within approximately +10.0 V to -24.0 V. This input range allows the module to interface with the types of proximity probes and magnetic pickups commonly used in machinery speed-monitoring applications. The actual signal produced by the field sensor depends on sensor type, machine speed, target geometry, sensor gap, and installation conditions. During commissioning, the signal should be checked under actual operating conditions rather than only verifying continuity with the machine stopped. If the input signal is too weak, distorted, intermittent, or outside the expected range, the tachometer may report an incorrect speed or fail to recognize individual pulses. Checking the sensor output together with the wiring and configuration is therefore an important part of troubleshooting.

4. What speed range can the 3500/50 tachometer system monitor?

The 3500/50 tachometer system supports a maximum full-scale speed range of up to 99,999 RPM, making it suitable for a wide variety of rotating machinery applications. The usable minimum speed depends on the sensor type and the number of events generated per revolution. For proximity transducers, the minimum input frequency can be very low, allowing the system to detect extremely slow rotational movement when the correct configuration is used. The system also supports different events-per-revolution settings, allowing it to accommodate different shaft targets and sensing arrangements. During configuration, the number of pulses or events generated per shaft revolution must be entered correctly because an incorrect scaling factor can cause the displayed RPM to differ significantly from the actual machine speed.

5. What monitoring functions are available with the 3500/50 tachometer system?

The 3500/50 system provides several functions beyond basic RPM measurement. Depending on the selected configuration, it can monitor shaft rotational speed, rotor acceleration, zero speed, and rotation direction. It can also provide speed-band alarming, reverse-rotation notification, and peak-speed information. These functions allow the tachometer system to be used for both routine monitoring and machinery protection applications. For example, zero-speed detection can confirm whether a shaft has completely stopped, while reverse-rotation detection can identify an unexpected change in rotational direction. Rotor acceleration monitoring can provide information about rapid changes in speed. The actual functions available depend on the configured channel type, sensor arrangement, and overall 3500 system configuration.

6. How should a 3500/50 tachometer channel be configured for accurate RPM measurement?

Accurate RPM measurement depends heavily on correct sensor scaling and channel configuration. The first step is to determine how many electrical events or pulses the sensor produces for each shaft revolution. This value must correspond to the actual physical target arrangement on the machine. The technician should then configure the channel with the correct sensor type and events-per-revolution value. The expected speed range should also be considered so that the measurement scale is appropriate for the machine. After configuration, the displayed RPM should be compared with an independent reference whenever possible. If the displayed speed is consistently higher or lower than the actual shaft speed by a fixed ratio, an incorrect events-per-revolution setting is often worth checking first. If the reading fluctuates randomly, the sensor signal, wiring, shielding, grounding, and mechanical installation should be investigated.

7. What should be checked if the 3500/50 shows an unstable or incorrect speed reading?

Troubleshooting should begin with the sensor and signal path. Check the proximity probe or magnetic pickup for correct installation, mechanical security, sensor gap where applicable, and physical damage. Inspect the cable and terminals for loose connections, broken conductors, short circuits, moisture, or electrical interference. The input signal should then be measured while the machine is operating to confirm that clean and consistent pulses are reaching the I/O module. If the input signal is stable, verify the channel configuration, especially the events-per-revolution setting and measurement range. A wrong scaling factor can produce a consistently incorrect RPM value, while a poor or intermittent sensor signal can produce unstable readings. If the sensor, wiring, and configuration are all confirmed to be correct, the I/O module and associated 3500/50 monitor should then be checked as potential sources of the problem.

8. What should be checked after replacing the 3500/50-01-00 133442-01 module?

After installing a replacement 133442-01, the module should be fully inspected and commissioned before the machinery is returned to normal operation. First confirm that the replacement I/O module is correctly installed in the rear section of the 3500 rack and that all internal termination connections are secure. Next verify the connected sensor type, input wiring, events-per-revolution setting, speed range, and other channel parameters. Each tachometer input should be tested individually to confirm that the module receives a stable signal and that the displayed shaft speed corresponds to the actual machine speed. If the application uses rotor acceleration, zero-speed detection, reverse-rotation monitoring, or speed-band alarms, each applicable function should also be checked. The system should then be monitored during startup and normal operation to confirm that speed measurements remain stable across the operating range. Particular attention should be paid to abnormal pulse loss, unexpected speed fluctuations, or false reverse-rotation indications, as these may indicate sensor, wiring, configuration, or signal-quality problems rather than a fault in the replacement module itself.
