1. What is the main function of the Bently Nevada 3500/50-04-00 136703-01?

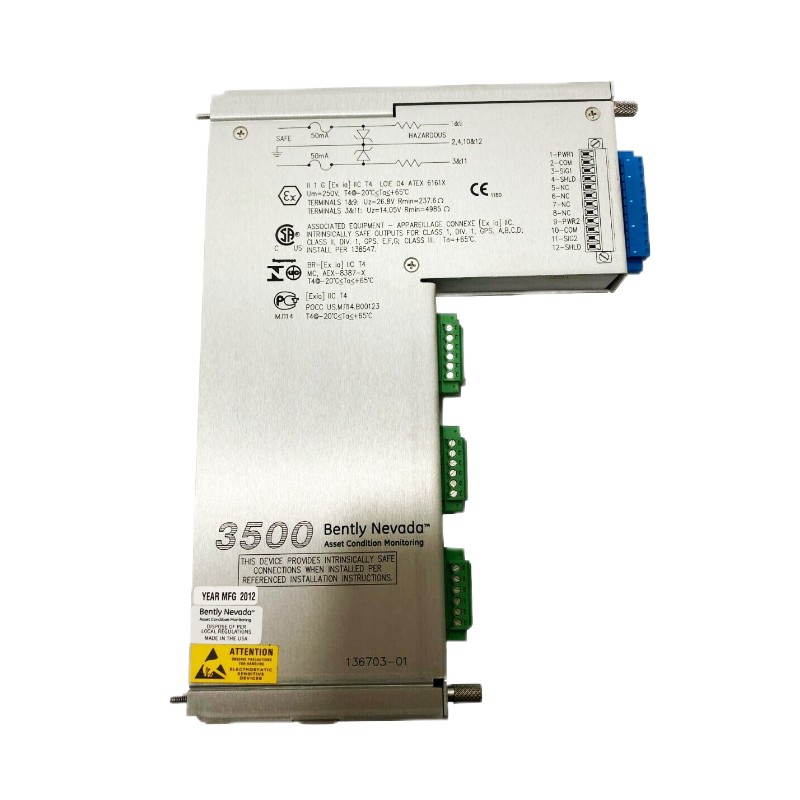

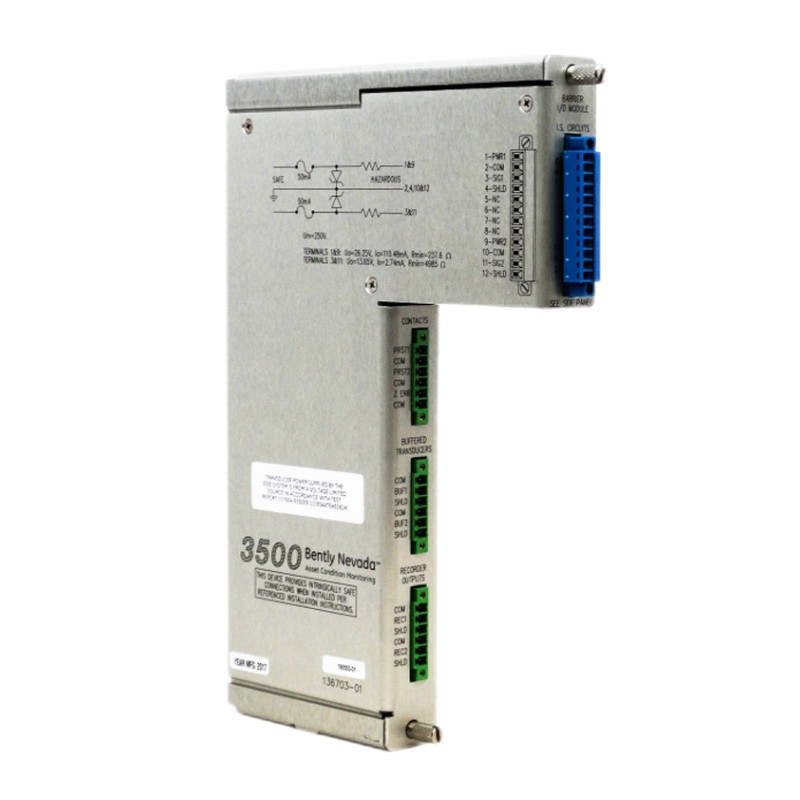

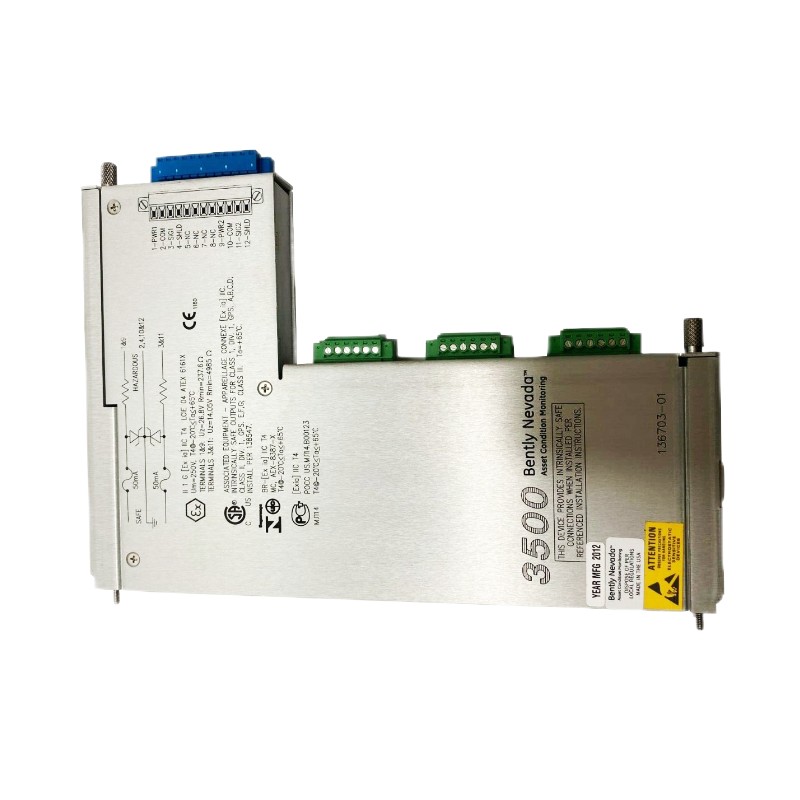

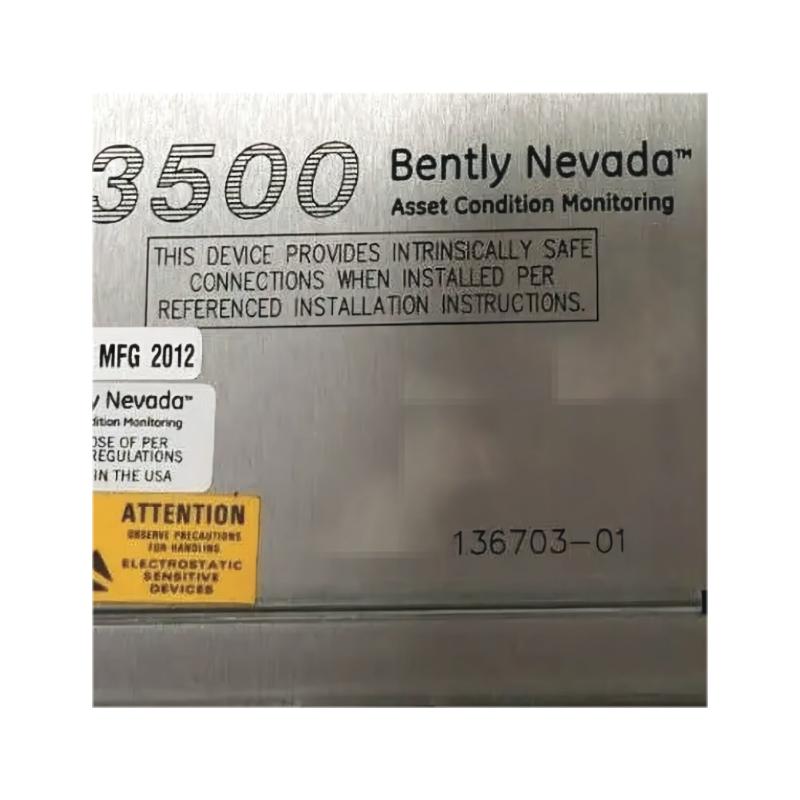

The 3500/50-04-00 with 136703-01 is an I/O configuration used with the Bently Nevada 3500/50 Tachometer Module for rotational speed and machinery protection applications. Unlike a standard I/O module, the 136703-01 includes internal barriers and internal terminations, making it suitable for installations where electrical separation between safe-area and hazardous-area field wiring is required. The module receives pulse signals from compatible proximity transducers or magnetic pickups and transfers these signals to the associated 3500/50 tachometer monitor. The system can then calculate shaft speed and perform functions such as rotor acceleration, zero-speed detection, and reverse-rotation monitoring. This makes the configuration useful for critical rotating machinery where reliable speed information is required for both monitoring and protection.

2. Why does the 3500/50-04-00 use internal barriers?

The internal barriers provide electrical separation between field wiring associated with hazardous areas and the safe-area electronics within the monitoring system. This arrangement is particularly useful in industrial installations where the connected machinery or instrumentation is located in a classified hazardous area. By integrating the barriers into the I/O module, the installation can maintain the required separation without relying on an external barrier assembly for the same signal interface. The internal-barrier configuration also affects the physical depth of the I/O module because additional internal circuitry is required. When installing this module, technicians should verify that the rack enclosure provides adequate clearance and that the installation follows the applicable hazardous-area requirements for the complete system.

3. What types of sensors can be connected to the 136703-01?

The 136703-01 is designed to interface with compatible pulse-producing proximity transducers and magnetic pickups used with the 3500/50 tachometer system. A proximity transducer can detect a rotating target on the shaft and generate pulses corresponding to shaft movement, while a magnetic pickup can produce an electrical pulse as a suitable ferromagnetic target passes the sensing element. The selected sensor must have electrical characteristics compatible with the tachometer input circuit and internal barrier arrangement. During commissioning, technicians should verify sensor type, output signal amplitude, wiring polarity where applicable, sensor installation, and the number of pulses or events generated per revolution. A sensor that produces an unstable or insufficient signal can result in incorrect speed readings even when the I/O module itself is functioning correctly.

4. What monitoring functions are available when 136703-01 is used with the 3500/50?

When combined with the 3500/50 tachometer monitor, the 136703-01 supports several rotational monitoring functions. The primary functions include rotor speed measurement, rotor acceleration monitoring, zero-speed detection, and reverse-rotation detection. The system can also provide a Keyphasor-type timing signal for use by other monitoring functions when configured appropriately. Rotor speed measurement provides continuous information about the operating speed of the machine, while zero-speed detection can be used to determine whether the shaft has stopped. Reverse-rotation detection is particularly useful for applications where rotation in the wrong direction could cause mechanical damage. The exact functions available depend on the configuration of the associated 3500/50 monitor and the selected application parameters.

5. What should be checked if the 3500/50 does not detect the tachometer signal?

Troubleshooting should begin with the field sensor and work progressively toward the 3500 rack. First inspect the proximity probe or magnetic pickup to make sure it is correctly installed and mechanically secure. For proximity probes, the sensor gap and target condition should be checked carefully. Next inspect the field cable, terminals, shielding, and connections for open circuits, shorts, loose terminals, corrosion, or other wiring problems. The sensor output should then be measured during machine operation to confirm that a stable pulse signal is reaching the 136703-01 input. If the field signal is correct, verify the 3500/50 channel configuration, including sensor type, events per revolution, and speed-related parameters. If the signal is present at the I/O input but the monitor still fails to recognize it, the I/O module, internal barrier circuit, interconnection cable, and associated monitor module should be investigated.

6. Can the 136703-01 be used as a direct replacement for a standard 133442-01 I/O module?

The 136703-01 and 133442-01 are both associated with the 3500/50 tachometer system, but they are not identical I/O configurations. The 133442-01 is an I/O module with internal terminations, while the 136703-01 adds internal barriers and internal terminations for installations requiring the appropriate hazardous-area interface. Therefore, the correct replacement depends on the existing system architecture, field-area classification, wiring arrangement, and applicable approval requirements. A standard I/O module should not simply be substituted for an internal-barrier module when the installation depends on the barrier function. Before replacing the module, technicians should verify the complete 3500/50 ordering configuration and ensure that the replacement module provides the same required interface and hazardous-area functionality.

7. What firmware and configuration software requirements apply to the 3500/50 with 136703-01?

The internal-barrier I/O configuration requires compatible firmware and configuration software. For the 3500/50 Tachometer Module used with the internal-barrier I/O arrangement, the applicable firmware should be Revision F (1.06) or later, while the 3500 Rack Configuration Software should be Version 2.30 or later. Compatibility is important because older firmware or software may not properly support the internal-barrier configuration. Before commissioning a replacement module, technicians should verify the installed firmware and configuration software versions rather than assuming that an older 3500 installation will automatically support the newer configuration. If the system is being upgraded, the firmware, software, rack monitor, I/O module, and existing configuration should be reviewed together to prevent compatibility problems.

8. What should be checked after replacing the 136703-01 I/O module?

After replacing a 136703-01, the complete tachometer signal path should be checked before the monitored machine is returned to normal operation. First confirm that the replacement module is the correct internal-barrier and internal-termination version and that it is properly seated in the 3500 rack. The field wiring should then be checked carefully, especially because the internal-barrier configuration is intended to maintain the required separation between hazardous-area and safe-area circuits. Verify the connected sensor type, sensor signal, events per revolution, channel assignment, and associated 3500/50 configuration. After power-up, confirm that the tachometer monitor recognizes the I/O module and that the input signal is stable. The actual shaft speed should be compared with an independent reference when available. Finally, test the configured zero-speed, reverse-rotation, rotor-acceleration, and alarm functions as applicable to the installation. This ensures that the replacement module is not only electrically operational but also correctly integrated into the machinery protection system.
