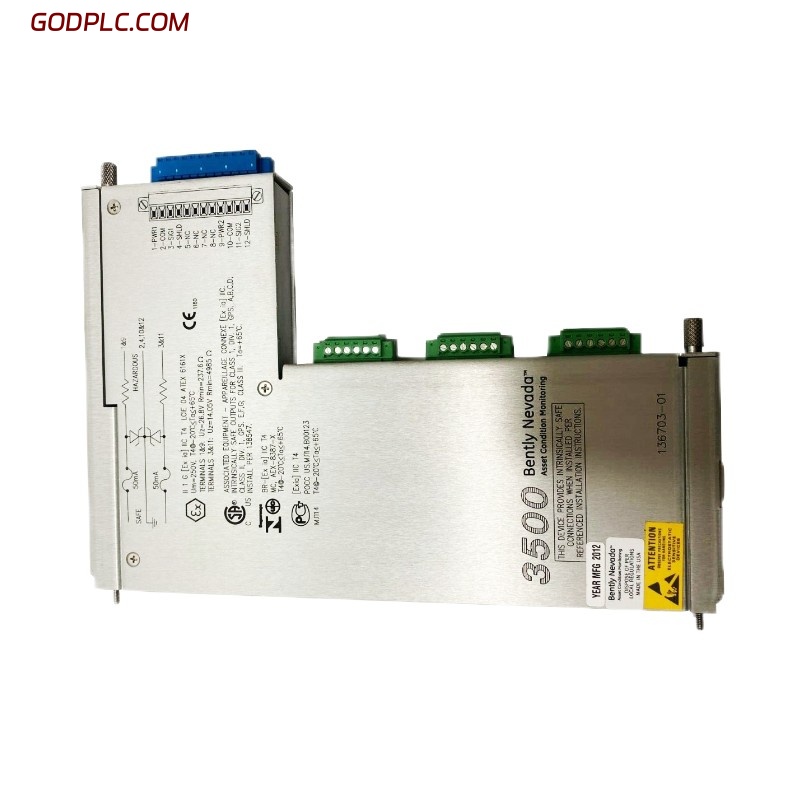

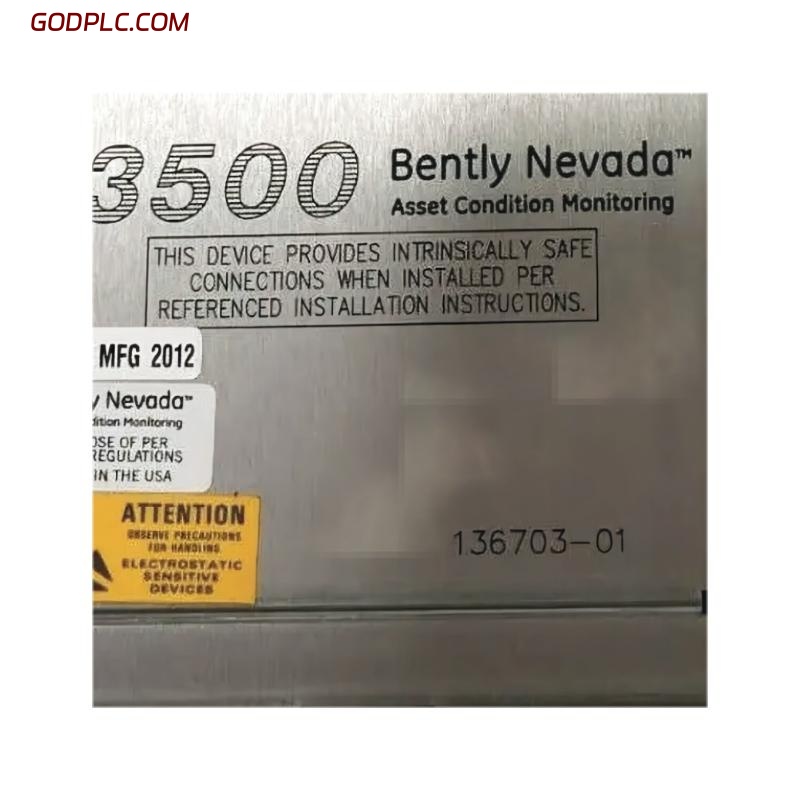

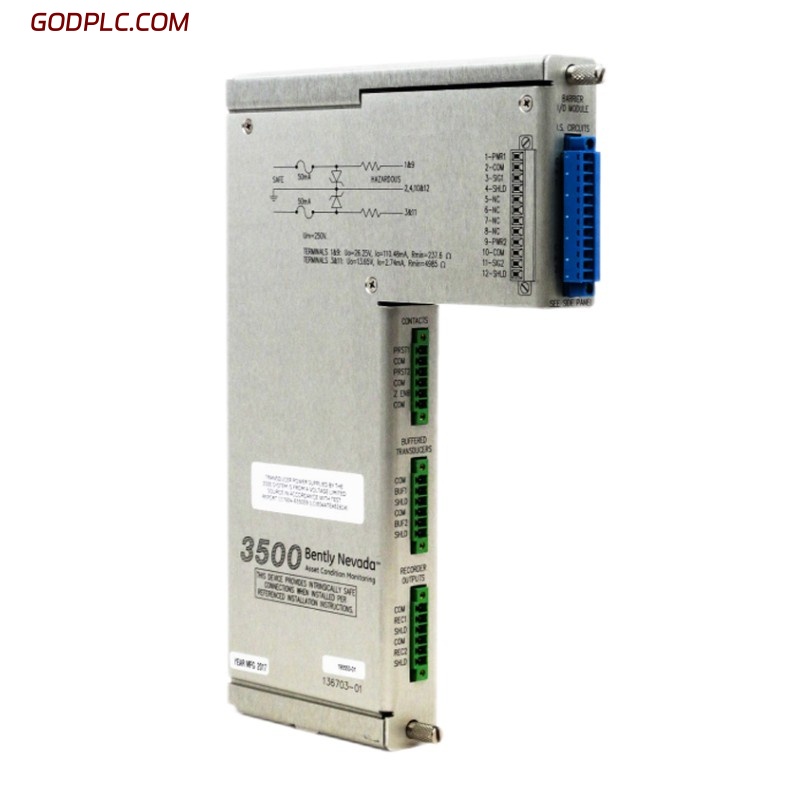

Bently Nevada 3500/50 136703-01 Tachometer Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Product Overview
The Bently Nevada 3500/50 Tachometer Module (136703-01) is an integral component of the Bently Nevada 3500 Machinery Protection System, engineered for continuous and accurate measurement of rotational speed, phase reference, and acceleration in critical rotating machinery such as turbines, compressors, and motors.
The 3500/50 module processes signals from magnetic pickups, proximity probes, or TTL-type sensors, converting them into precise speed and phase information for machine protection and control systems. Its robust architecture and proven reliability make it a standard in industrial machinery monitoring applications.
Key Features
-
Dual-channel tachometer for independent or redundant monitoring.
-
Measures speed (RPM), phase angle, and acceleration.
-
Compatible with Keyphasor®, magnetic pickup, and TTL-type sensors.
-
Configurable overspeed and underspeed protection thresholds.
-
Provides 4–20 mA analog outputs, relay alarms, and digital system data.
-
Hot-swappable design allows easy maintenance without disturbing field wiring.
-
Full integration with System 1® condition monitoring software.
-
Meets global safety and EMC standards.
Technical Specifications
| Parameter | Specification | Description |
|---|---|---|
| Model Number | 136703-01 | 3500/50 Tachometer Front Module |
| System Compatibility | Bently Nevada 3500 Machinery Protection System | Works with 133442-01 rear I/O module |
| Function | Measures shaft speed, phase, and acceleration | Suitable for turbine, compressor, and motor monitoring |
| Number of Channels | 2 independent channels | Each channel configurable for speed or phase |
| Input Type | Magnetic pickup, proximity probe, or TTL sensor | Accepts voltage or current-type pulse signals |
| Input Frequency Range | 0.016 Hz – 20 kHz | Wide range for low- and high-speed machinery |
| Input Voltage Range | ±24 V peak (maximum) | Handles strong signal environments |
| Accuracy | ±0.1% of full scale | High precision across entire speed range |
| Alarm Levels | 2 per channel (Alert and Danger) | Fully programmable alarm thresholds |
| Outputs | 4–20 mA (per channel), relay contacts, digital communication | Routed via rear I/O module |
| Communication | Via 3500 rack backplane to System 1® software | Provides real-time monitoring and data logging |
| Power Consumption | < 5 W typical | Efficient power usage |
| Operating Temperature | −30 °C to +65 °C | Designed for industrial environments |
| Storage Temperature | −40 °C to +85 °C | Safe non-operating range |
| Humidity | Up to 95% non-condensing | Resistant to industrial humidity |
| Mounting Type | 3500 rack slot | Standard 3500 modular design |
| Dimensions (H × W × D) | 241.3 mm × 24.4 mm × 163.1 mm (9.50 in × 0.96 in × 6.42 in) | Standard 3500 form factor |
| Weight | Approx. 0.35 kg (0.77 lb) | Lightweight aluminum enclosure |
| Housing Material | Aluminum alloy with anodized coating | Corrosion-resistant and durable |
| Compliance | CE, CSA, ATEX (as part of 3500 system) | Meets international safety standards |
| Country of Origin | United States (Minden, Nevada – USA) | Manufactured by Bently Nevada, Baker Hughes |
Bently Nevada 3500/50 136703-01 Tachometer Module is in stock. Please contact us for a quick quote and competitive pricing.
