Bently Nevada 3500/50 288062-02+133442-01 Tachometer Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Product Overview
The Bently Nevada 3500/50 Tachometer Module (288062-02) is a dual-channel module designed to measure shaft rotational speed, rotor direction, zero speed, and acceleration. It is part of the 3500 series vibration and condition monitoring system used in turbines, compressors, pumps, and other rotating machinery.
This module accepts input signals from proximity probes or magnetic pickups, processes these signals, compares them against alarm setpoints, and provides conditioned Keyphasor® outputs for use by other modules in the 3500 rack.

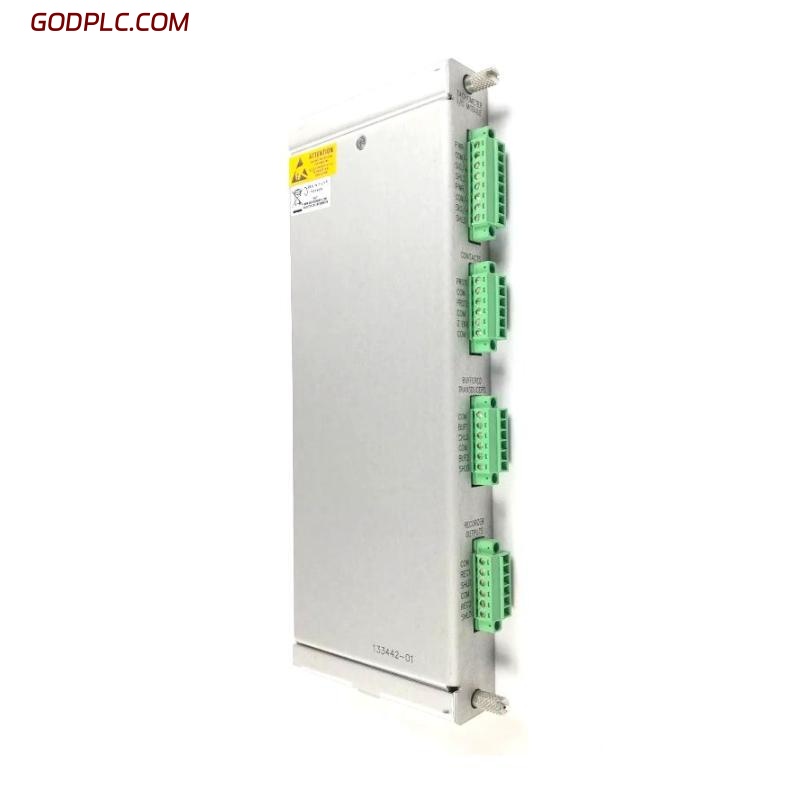

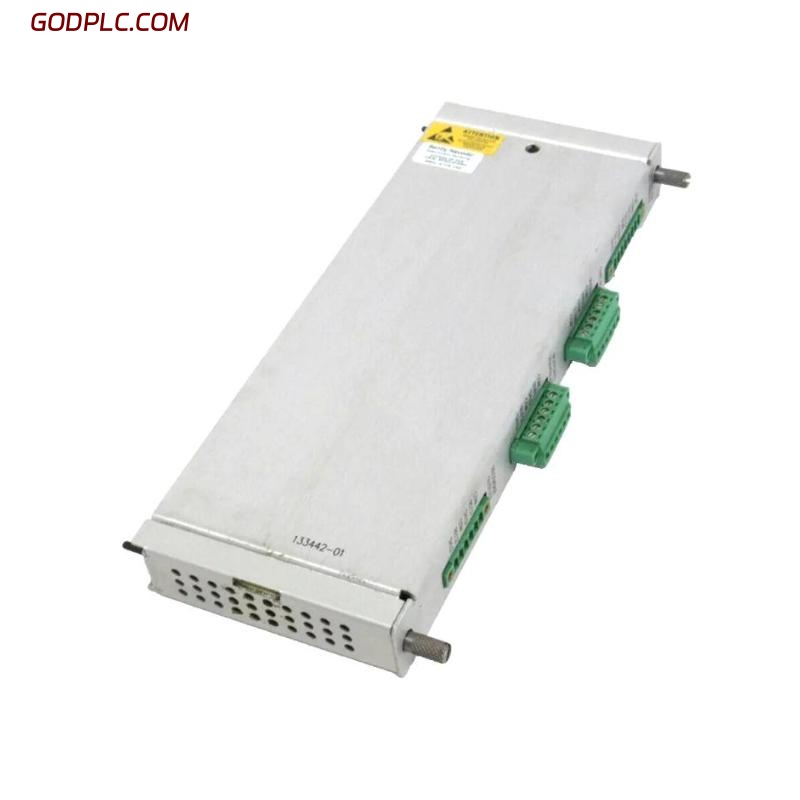

The 133442-01 I/O Module serves as the input/output interface for the 3500/50 module. It provides internal terminations for field wiring and ensures secure signal transmission between sensors and the monitoring system.
Together, these two modules form a complete subsystem for speed and direction monitoring in critical rotating equipment.
Key Features
-
Dual independent tachometer channels
-
Compatible with proximity probes or magnetic pickups
-
Monitors speed, reverse rotation, zero speed, and acceleration
-
Provides Keyphasor® reference output for system synchronization
-
Peak hold function for maximum speed or reverse rotation
-
Field-configurable alarm setpoints
-
Plug-in modular design for 3500 rack system
-
Designed for continuous machinery condition monitoring
Technical Specifications
| Parameter | Specification | Description |
|---|---|---|
| Module Model | 3500/50 | Tachometer / Speed Measurement Module |
| Part Number | 288062-02 | Dual-channel version |
| Associated I/O Module | 133442-01 | Internal termination I/O board |
| Number of Channels | 2 | Independent measurement channels |
| Input Type | Proximity probe or magnetic pickup | Configurable per channel |
| Measurement Functions | Speed, reverse rotation, zero speed, acceleration | Fully programmable |
| Full-Scale Speed Range | Up to 99,999 rpm | Depends on sensor type |
| Maximum Input Frequency | 20 kHz | Typical signal processing capability |
| Input Impedance | Approx. 20 kΩ | Standard signal input path |
| Power Consumption | Approx. 5.8 W | Typical operating power |
| Transducer Power Supply (I/O Module) | 24 VDC | Supplied to connected sensors |
| Input Signal Range (I/O Module) | +10 V to –24 V | Acceptable sensor signal voltage |
| Number of I/O Channels | 12 | Available signal inputs per I/O board |
| Operating Temperature | –30 °C to +65 °C | Suitable for industrial environments |
| Storage Temperature | –40 °C to +85 °C | For long-term storage conditions |
| Dimensions (L × W × H) | 241.3 mm × 24.4 mm × 241.8 mm | Typical 3500 module size |
| Weight (Tachometer Module) | Approx. 0.82 kg | Typical installed weight |
| Weight (I/O Module) | Approx. 0.20 kg | Standard I/O board weight |
| Mounting Type | Plug-in module for 3500 rack | Requires matching backplane slot |
| Termination Type | Internal screw terminals | For direct field wiring |
| System Compatibility | 3500 Series Machinery Protection System | Rack-based modular design |
| Functional Safety | Not for primary overspeed protection | Used for monitoring only |
Bently Nevada 3500/50 288062-02+133442-01 Tachometer Module is in stock. Please contact us for a quick quote and competitive pricing.
