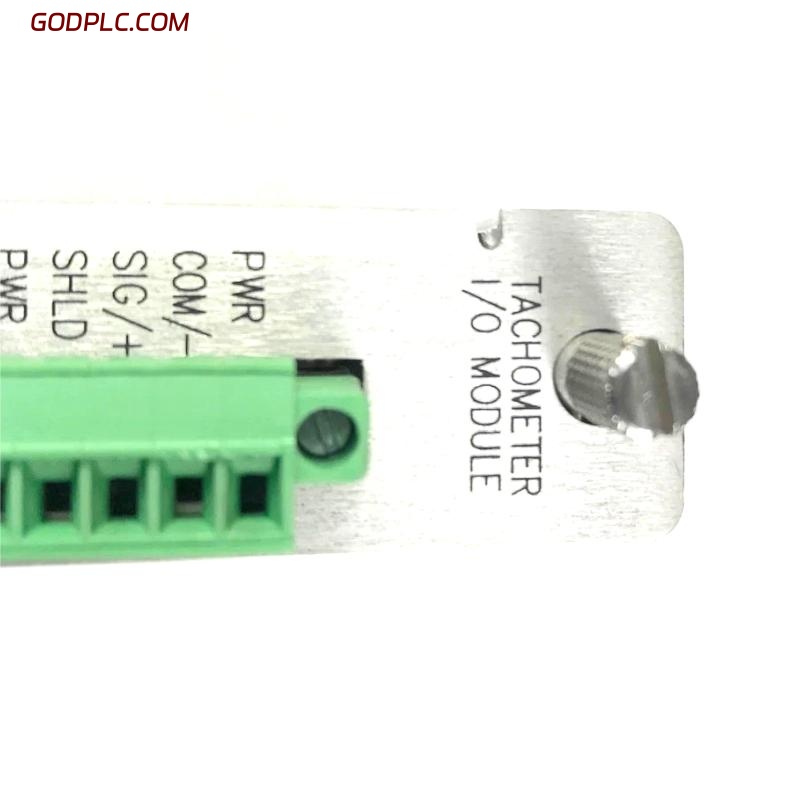

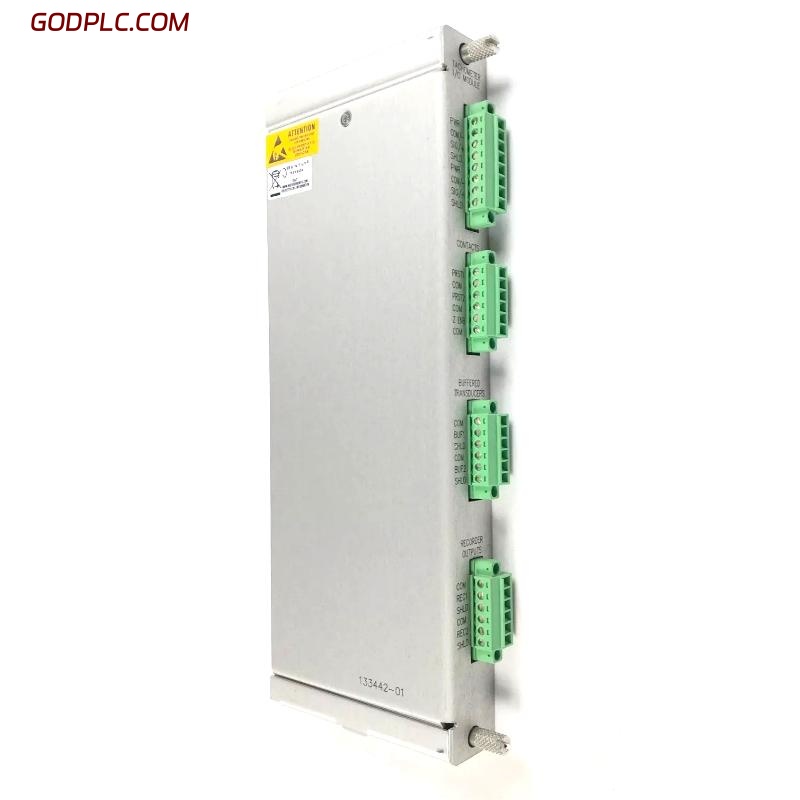

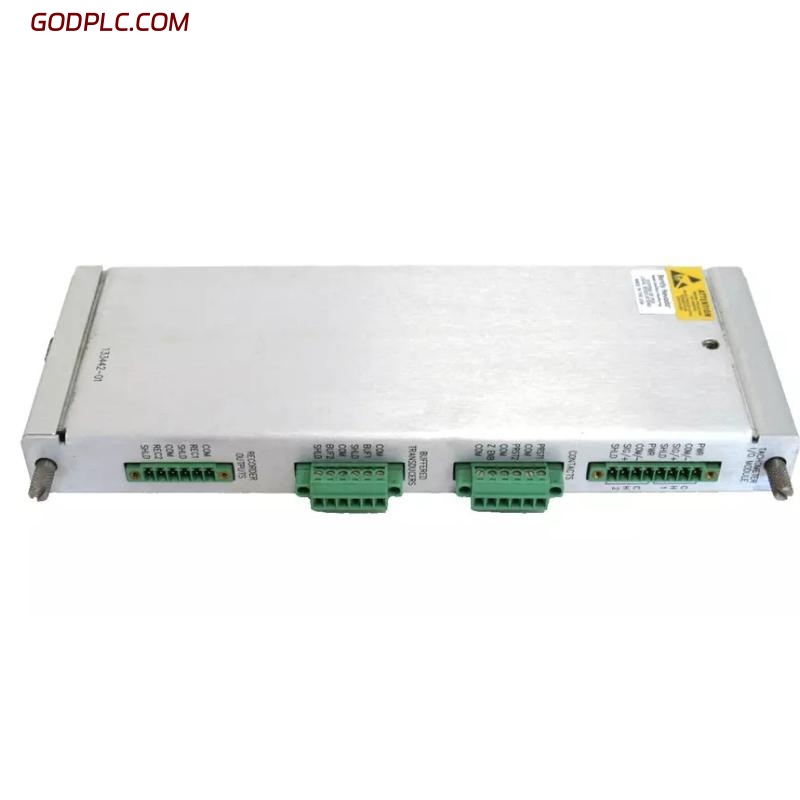

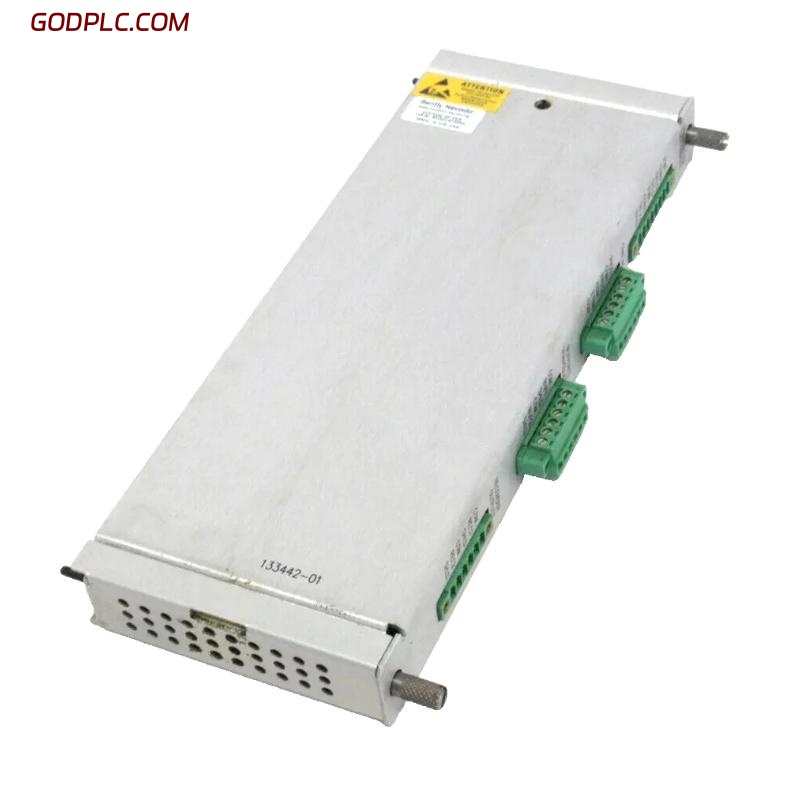

Bently Nevada 3500/50M 133442-01 I/O Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Product Overview
The Bently Nevada 133442-01 I/O Module is designed as an internal-termination interface board for the 3500 Series machinery protection and monitoring system. It supports tachometer and speed measurement modules such as the 3500/50M Tachometer, providing signal interface, sensor power supply, and termination of rotor speed inputs in a high-reliability industrial environment.
With its internal terminal wiring (as opposed to external termination blocks), the 133442-01 module affords compact installation, simplified wiring and improved reliability for signal routing between field sensors (proximity probes, magnetic pickups) and the monitoring rack.
This module is intended for monitoring applications and forms part of a larger condition-monitoring architecture; it does not constitute a primary safety or overspeed shutdown system by itself.
Key Features
-
Internal terminal wiring for sensor inputs (no external blocks required)
-
Compatible with proximity probes or magnetic pickups for speed/rotation sensing
-
Supports signal conditioning for speed, zero-speed, reverse rotation, rotor acceleration when used with the proper tachometer module
-
Compact plug-in format compatible with the 3500 Series rack architecture
-
Simplifies wiring and enhances reliability by maintaining routing inside the rack module environment
-
Suitable for installation in industrial rotating-machinery monitoring systems
Technical Specifications
| Parameter | Specification | Description |
|---|---|---|
| Part Number | 133442-01 | Internal termination I/O module |
| Module Type | I/O Interface Module – Internal Terminations | Board providing sensor and signal interface |
| Compatible Series | 3500 Series (for use with 3500/50M Tachometer) | Monitoring rack family |
| Sensor Input Channels | Up to 12 channels (varies by wiring) | Signal inputs for tachometer or other modules |
| Input Impedance | ~ 20 kΩ (standard) | Standard input impedance for signal path |
| Alternate Impedance (TMR) | ~ 40 kΩ | Special termination variant |
| Input Signal Range | +10.0 V to -24.0 V | Acceptable voltage range from sensors |
| Power Supply to Transducers | 24 V DC | Sensor power supply provided by module |
| Power Consumption | Approx. 5.8 W typical | Operating power draw of module |
| Number of Channels (I/O) | 12 (typical) | Number of I/O signal channels supported |
| Dimensions (L × W × H) | 241.3 mm × 24.4 mm × 241.8 mm | Standard full-height 3500 module size |
| Weight | Approx. 0.20 kg (0.44 lb) | Approximate mass of the I/O board |
| Operating Temperature | –30 °C to +65 °C | Suitable for standard industrial ambient |
| Storage Temperature | –40 °C to +85 °C | Safe storage range |
| Functional Safety Note | Monitoring only — not for primary shutdown/overspeed | Use with proper protection modules |
Bently Nevada 3500/50M 133442-01 I/O Module is in stock. Please contact us for a quick quote and competitive pricing.
