Product Overview

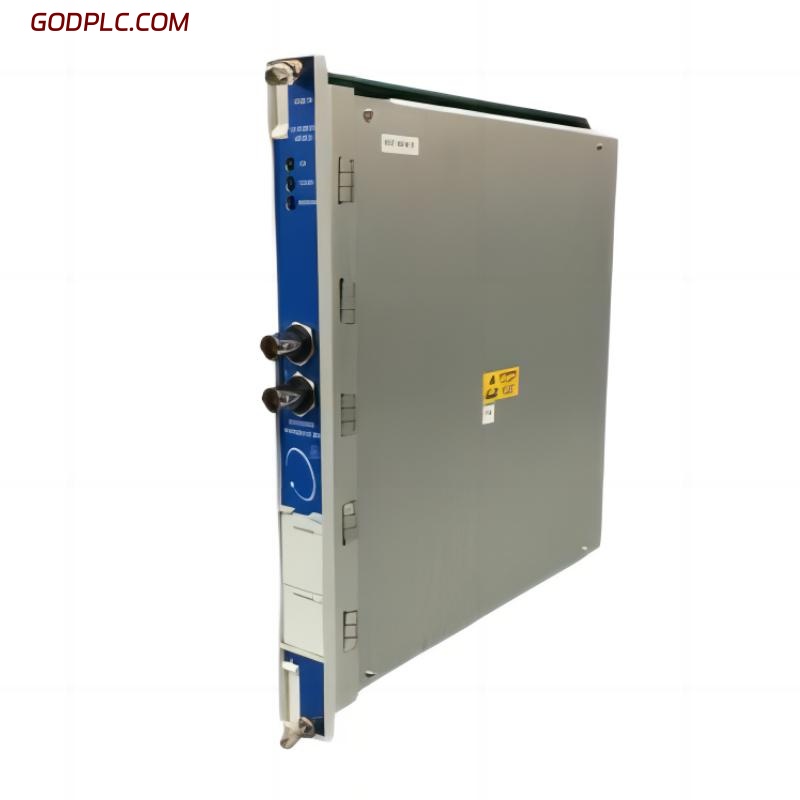

The Bently Nevada 3500/50M Tachometer Module (288062-02) is a dual-channel monitoring module used in the Bently Nevada 3500 Series Machinery Protection System. It measures shaft rotational speed, zero speed, reverse rotation, and rotor acceleration using proximity probes or magnetic pickups. Each channel can be configured independently to perform multiple monitoring and alarm functions.
The module provides a conditioned Keyphasor® output via the system backplane, enabling synchronization with other monitoring modules such as vibration or phase reference systems.

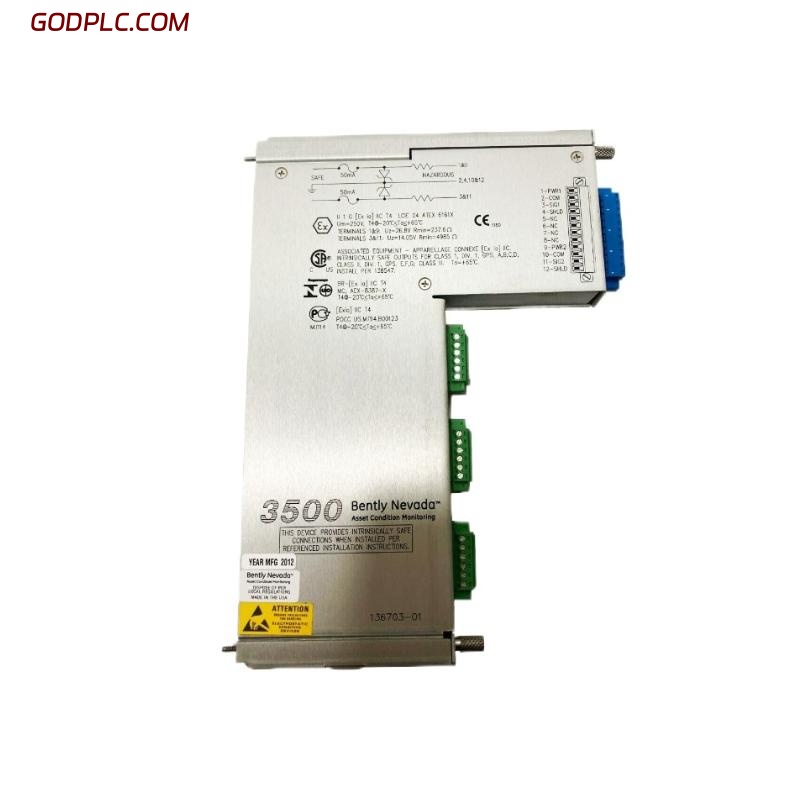

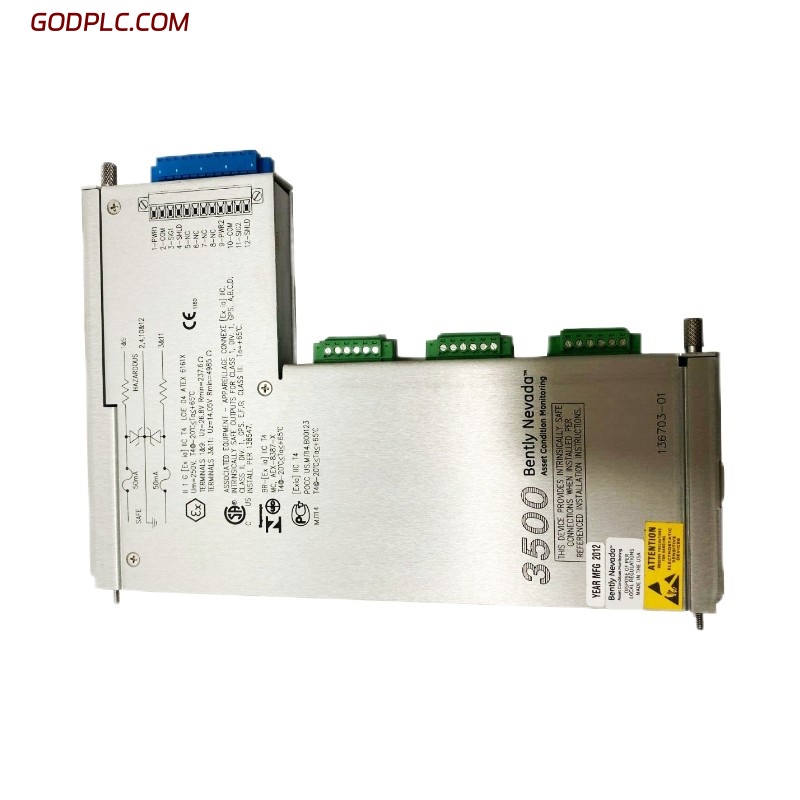

When paired with the 136703-01 Internal Barrier I/O Module, the system becomes suitable for hazardous-area applications, ensuring intrinsic safety by limiting energy transfer from the field wiring into the monitoring rack. This configuration is widely used in oil & gas, petrochemical, and power generation industries where hazardous conditions are present.
Key Features
-
Dual independent tachometer channels
-
Accepts input from proximity probes or magnetic pickups
-
Configurable modes: speed, reverse rotation, zero speed, rotor acceleration
-
Conditioned Keyphasor® output for phase reference synchronization
-
Peak-hold function for maximum or reverse speed data retention
-
Compatible with Bently Nevada 3500 Series racks
-
Internal-barrier I/O (136703-01) ensures intrinsic safety compliance
-
Designed for use in hazardous-area monitoring systems
-
Rugged and reliable construction for industrial environments
Technical Specifications
| Parameter | Specification | Description |
|---|---|---|
| Tachometer Module Model | 3500/50M | Dual-channel monitoring module |
| Tachometer Module Part Number | 288062-02 | Standard dual-channel version |
| I/O Module Model | Internal Barrier I/O Module | Provides intrinsic safety protection |
| I/O Module Part Number | 136703-01 | Discrete internal barrier type |
| Number of Channels | 2 | Independent monitoring channels |
| Input Types | Proximity probe or magnetic pickup | Field-configurable |
| Measurement Modes | Speed, Zero Speed, Reverse Rotation, Acceleration | Software configurable |
| Full-Scale Speed Range | Up to 99,999 rpm | Depends on sensor configuration |
| Maximum Input Frequency | 20 kHz | Maximum supported input pulse rate |
| Input Impedance | Approximately 20 kΩ | Standard system impedance |
| Output Type | Conditioned Keyphasor® signal | Through system backplane |
| Peak-Hold Function | Supported | Records max speed and reverse rotation data |
| Operating Temperature | –30 °C to +65 °C | Suitable for industrial use |
| Storage Temperature | –40 °C to +85 °C | Safe long-term storage |
| Power Consumption | Approx. 5.8 W | Typical system consumption |
| Dimensions (Tachometer Module) | 241.3 mm × 24.4 mm × 241.8 mm | Full-height module |
| Weight (Tachometer Module) | Approx. 0.82 kg | Typical |
| Dimensions (I/O Module) | 103.1 mm × 24.4 mm × 241.3 mm | Standard I/O module size |
| Weight (I/O Module) | Approx. 0.46 kg | Typical |
| Functional Safety | Monitoring only | Not suitable for overspeed protection |
| Mounting Type | Plug-in rack module | 3500 Series system compatibility |
| Hazardous Area Certification | Intrinsic Safety (with 136703-01 I/O) | Suitable for Zone 1/Division 1 use |
| Country of Origin | United States | Manufactured by Bently Nevada |
Bently Nevada 3500/50M 288062-02+136703-01 ndustrial Monitoring Modules – Dual-Channel Tachometer with Internal-Barrier I/O Interface is in stock. Please contact us for a quick quote and competitive pricing.
