Bently Nevada 3500/53 133388-01+133396-01 Overspeed Detection Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Product Overview
The 3500/53 system is a dedicated overspeed protection system designed for rotating machinery requiring fast-acting, reliable speed monitoring and shutdown functionality. It complies with American Petroleum Institute (API) standards 670 and 612 and supports redundant voting architectures (such as 2-out-of-2 or 2-out-of-3) for high-integrity protection.
In this configuration:
-
The 133388-01 module serves as the main overspeed detection (tachometer) module.
-
The 133396-01 module functions as an I/O module for the overspeed detection system, interfacing signals, relays or outputs as required.
Together they form a complete overspeed protection subsystem within a 3500-series rack with redundant power supplies and proper voting configuration.
Key Features
-
Accepts pickup or proximity-probe signals from rotating shafts (input range +10.0 V to -24.0 V).
-
Rapid response to exceedance of preset trip thresholds; supports alarm and trip outputs.
-
Designed for voting schemes (2-out-of-2 or 3-out-of-2) to enhance reliability and reduce false trips.
-
Modular architecture allowing integration into the 3500 machinery protection rack system.
-
I/O module supports field wiring for relay outputs, status signals or external logic interface.
Technical Specifications

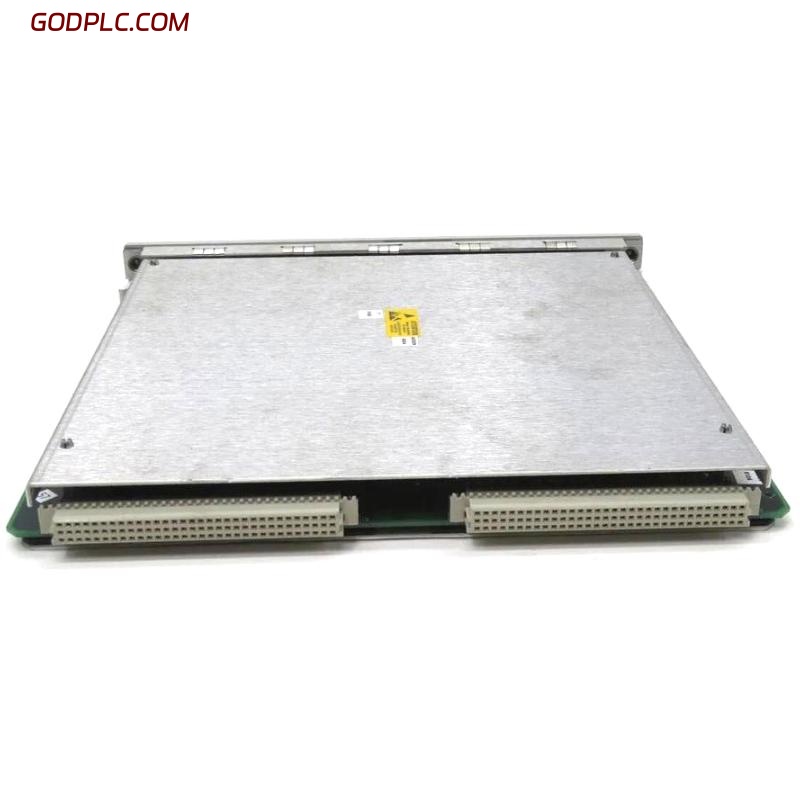

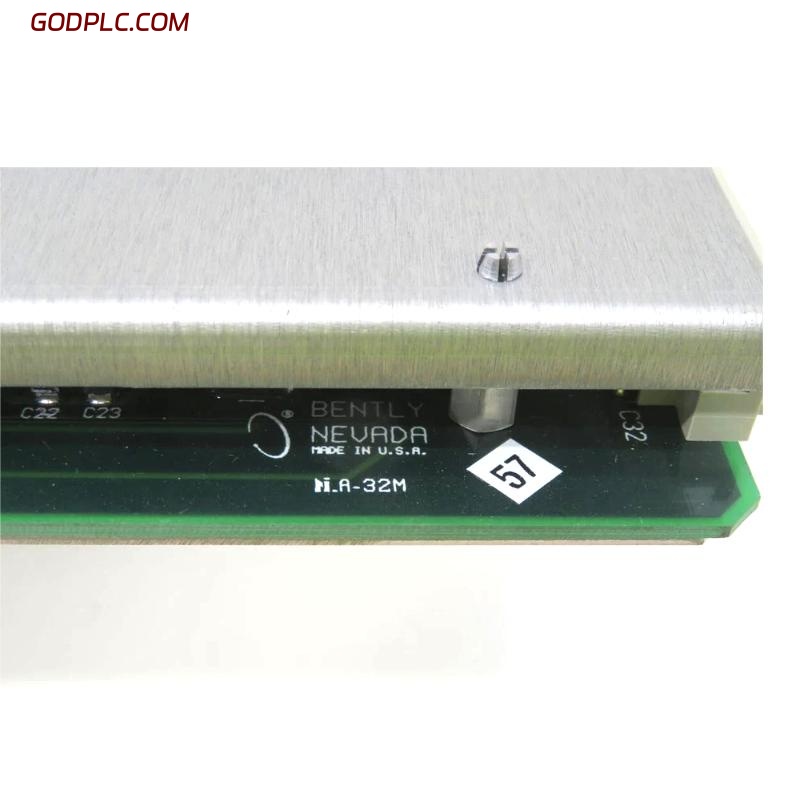

Module: 133388-01 (Overspeed Detection Module)
| Parameter | Specification | Description |
|---|---|---|
| Model / Catalog Number | 133388-01 | Overspeed detection module |
| Input Signal Range | +10.0 V to -24.0 V | Accepts proximity probe / magnetic pick-up signals |
| Input Impedance | ≈ 20 kΩ | Typical value |
| Operating Temperature Range | -30 °C to +65 °C | Ambient rating |
| Storage Temperature | -40 °C to +85 °C | Non-operating condition |
| Dimensions (H × W × D) | 241.3 mm × 24.4 mm × 241.8 mm (approx.) | Full-height 3500 module |
| Weight | Approx. 0.82 kg | Typical module weight |
| Compliance | API 670 & API 612 | For overspeed protection systems |

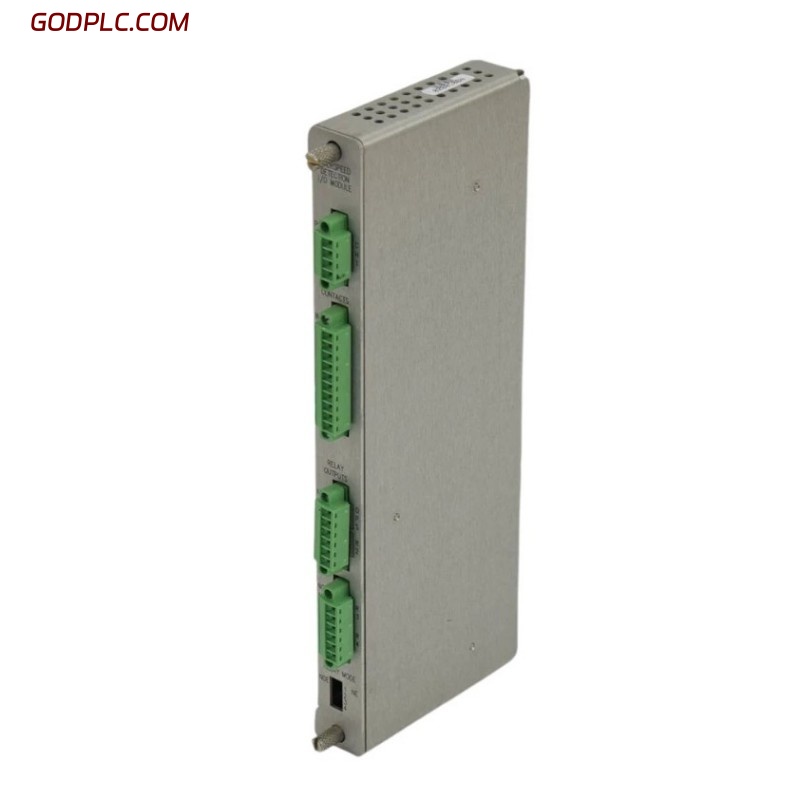

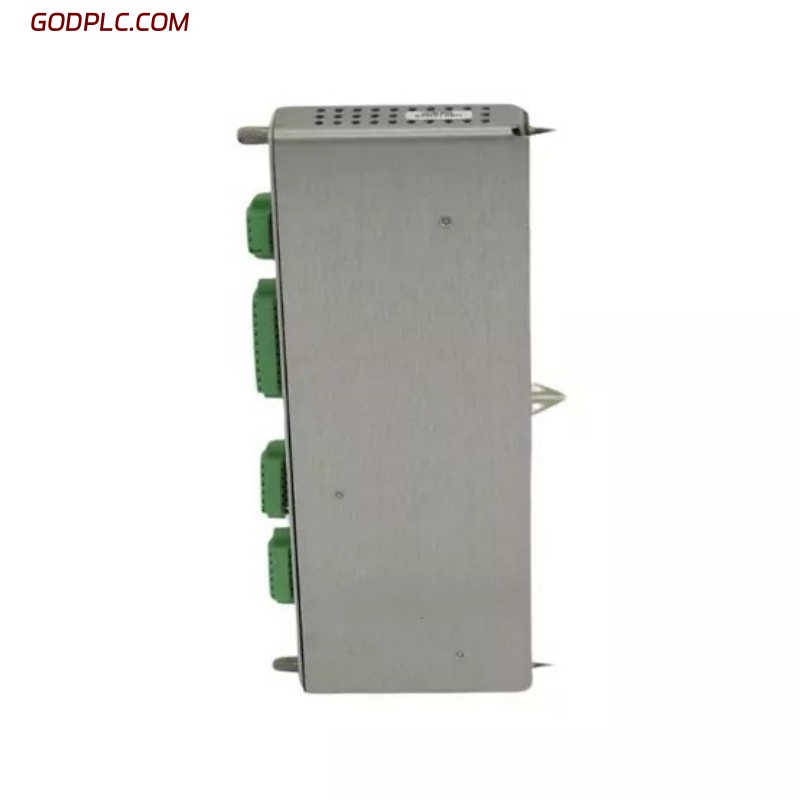

Module: 133396-01 (Overspeed Detection I/O Module)
| Parameter | Specification | Description |
|---|---|---|
| Model / Catalog Number | 133396-01 | Overspeed detection I/O module |
| Operating Temperature Range | -30 °C to +65 °C | Ambient rating |
| Weight | Approx. 0.45 kg | Typical module weight |
| Power Consumption | ~8.0 W typical | For this module’s electronics |
| Compatible Systems | 3500/53 or 3500/54 voting systems | I/O support module |
Bently Nevada 3500/53 133388-01+133396-01 Overspeed Detection Module is in stock. Please contact us for a quick quote and competitive pricing.
