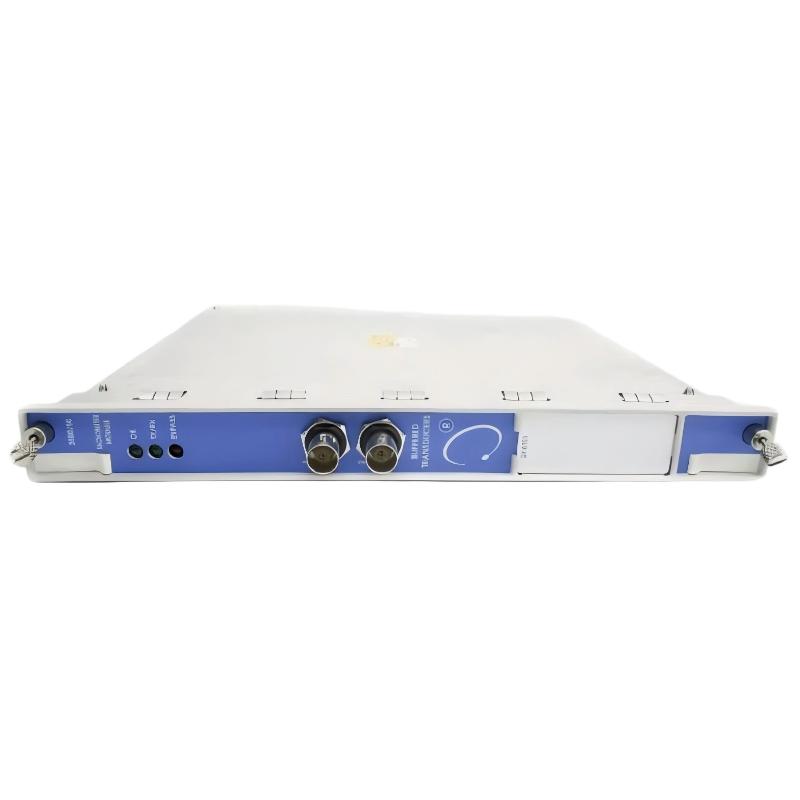

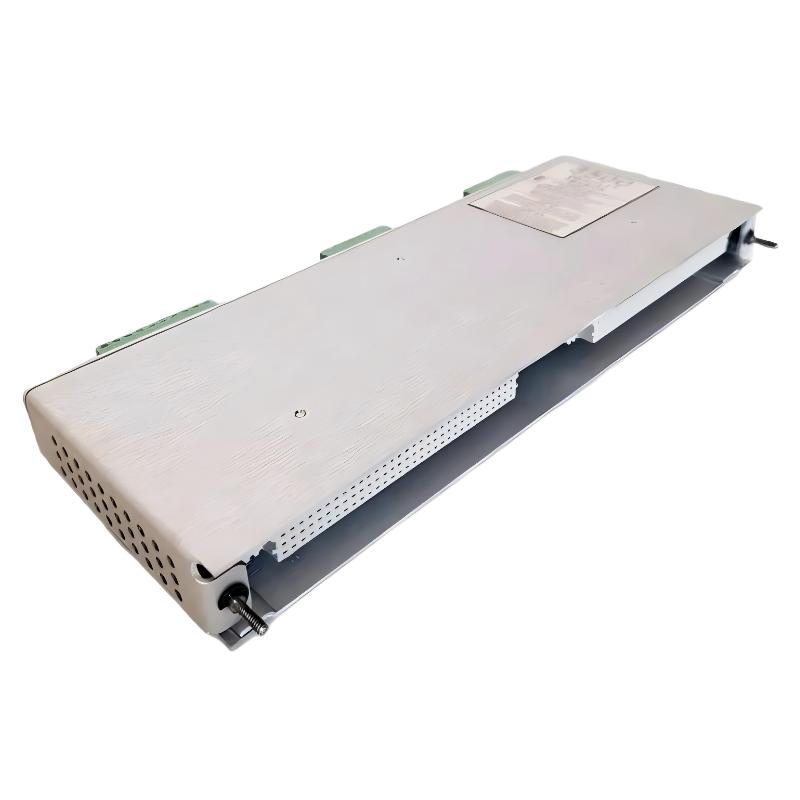

Bently Nevada 3500/54 286566-01+133396-01 Overspeed Detection Module + I/O Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 3500/54 |
| Ordering Number | 286566-01 + 133396-01 |
| Series | 3500 Machinery Protection System |
| Function | Overspeed detection module combined with I/O module for monitoring rotating machinery speed, overspeed protection, and digital input/output functionality |
| Input Signals | Proximity probe (eddy current) signals, magnetic pickup (MPU) signals, digital I/O signals |
| Channels | 2 independent overspeed channels + I/O interface |
| Measurement Range | 0 to 99,999 RPM (depending on sensor type and configuration) |
| Alarm Function | Overspeed alarm with configurable delay and trigger logic; I/O can trigger events |
| Output | Data and alarm signals transmitted via 3500 rack backplane; I/O signal interface for system integration |
| Compatibility | Compatible with 3500 rack and other 3500 series modules |
| Indicators | Front panel LEDs (module status, alarm, TX/RX, and I/O status) |
| Power Consumption | Approximately 5.5 W |
| Operating Temperature | -30°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 95% non-condensing |
| Mounting | Installed in 3500 rack slot |
| Dimensions (H × W × D) | 241.3 x 24.4 x 241.8 mm |
| Weight | 0.82 kg |
FAQ
- What is the primary purpose of this module combination?
The combination of the overspeed detection module and I/O module monitors rotating machinery speed, provides overspeed protection, and offers digital input/output functionality for integrated system control. - What types of input signals are supported?
Supports proximity probes (eddy current), magnetic pickup (MPU) sensors, and digital I/O signals for broader monitoring and control applications. - How many overspeed channels are provided?
Two independent overspeed channels are provided, along with an I/O interface for additional event triggering and control. - How are alarms implemented?
Overspeed thresholds and delays can be configured via software. The module triggers alarms automatically when limits are exceeded, and I/O signals can trigger external events. - How is data transmitted within the system?
Overspeed and I/O data are transmitted through the 3500 rack backplane to other system modules or monitoring software. - Can it detect rotation direction?
Yes, with proper sensor configuration, it can identify forward and reverse rotation. - Is the module hot-swappable?
Yes, it supports hot swapping, allowing replacement while the system is running to minimize downtime. - How is the module configured?
Configuration is performed using 3500 Rack Configuration Software for channel setup, overspeed threshold, alarm logic, and I/O signal configuration.
Bently Nevada 3500/54 286566-01+133396-01 Overspeed Detection Module + I/O Module is in stock. Please contact us for a quick quote and competitive pricing.
