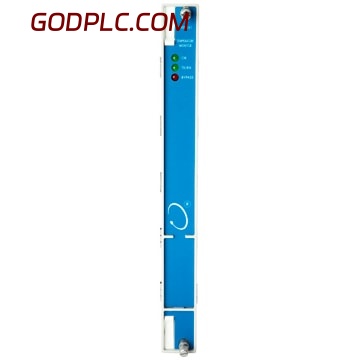

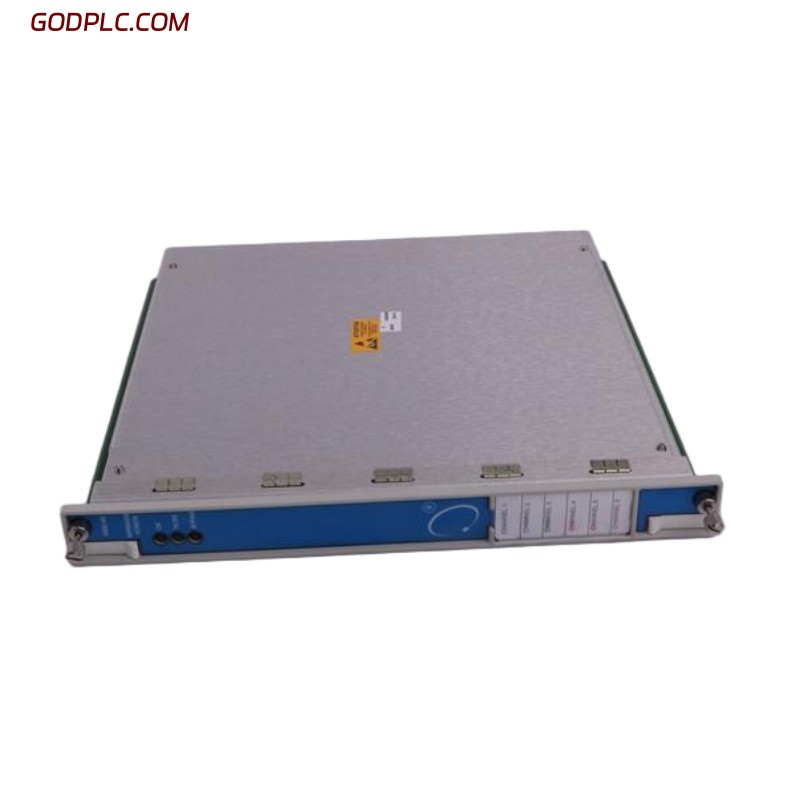

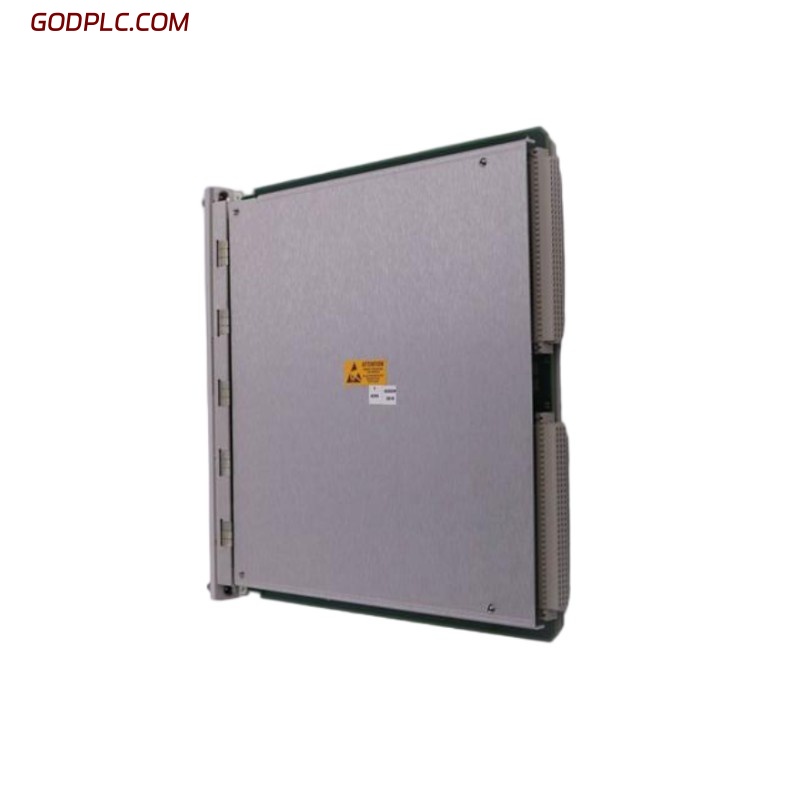

Bently Nevada 3500/61 133811-02 Temperature Monitor Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Product Overview
The Bently Nevada 3500/61 (Part Number 133811-02) is a six-channel temperature monitor module designed for continuous measurement and protection of rotating machinery.
It accepts inputs from Resistance Temperature Detectors (RTDs) and Thermocouples (TCs), processes the signals, and compares them to configured Alert and Danger setpoints.
The 3500/61 module differs from the 3500/60 model by providing individual 4–20 mA recorder outputs for each of its six channels, allowing direct connection to external data acquisition or control systems.
It is a core component of the Bently Nevada 3500 Series Machinery Protection System, meeting API 670 standards for industrial vibration and temperature monitoring.
Key Features
-
Six independent temperature input channels (RTD or Thermocouple).
-
Accepts multiple sensor types, including Platinum, Nickel, and Copper RTDs, and Thermocouples (Types E, J, K, T).
-
Provides 4–20 mA recorder output for each channel.
-
Field-configurable input type and alarm setpoints using configuration software.
-
Integrates seamlessly with the Bently Nevada 3500 Series rack system.
-
Suitable for redundant and safety-critical machine protection applications.
-
High reliability and long-term stability in industrial environments.
Technical Specifications
| Parameter | Specification | Description / Notes |
|---|---|---|
| Model / Catalog Number | 133811-02 | Six-channel temperature monitor module |
| System Compatibility | Bently Nevada 3500 Series | Full-height rack slot installation |
| Number of Channels | 6 channels | Each channel configurable independently |
| Input Types | RTD and Thermocouple | Multiple RTD and TC types supported |
| Supported RTDs | Platinum (100 Ω), Nickel, Copper | Configurable per channel |
| Supported Thermocouples | Types E, J, K, T | Configurable per channel |
| Input Impedance | >10 MΩ per lead | Ensures accurate sensor signal processing |
| Recorder Output | 4–20 mA per channel | Proportional to measured temperature |
| Alarm Setpoints | 2 per channel (Alert and Danger) | User-programmable |
| Accuracy | ±3 °C at 25 °C (typical) | Depending on input type |
| Signal Processing | Linearization and filtering | Individual per channel |
| Power Consumption | Approx. 9 W | Typical module consumption |
| Operating Temperature Range | –30 °C to +65 °C | Continuous operation |
| Storage Temperature Range | –40 °C to +85 °C | Non-operating condition |
| Dimensions (H × W × D) | 241.3 mm × 24.4 mm × 241.8 mm (9.50″ × 0.96″ × 9.52″) | Standard 3500 full-height module |
| Weight | Approx. 0.91 kg (2.0 lb) | Typical module weight |
| Mounting Type | Full-height rack slot | 3500 system rack installation |
| Compliance | API 670, CE, CSA, ATEX | Certified for industrial monitoring |
Bently Nevada 3500/61 133811-02 Temperature Monitor Module is in stock. Please contact us for a quick quote and competitive pricing.
