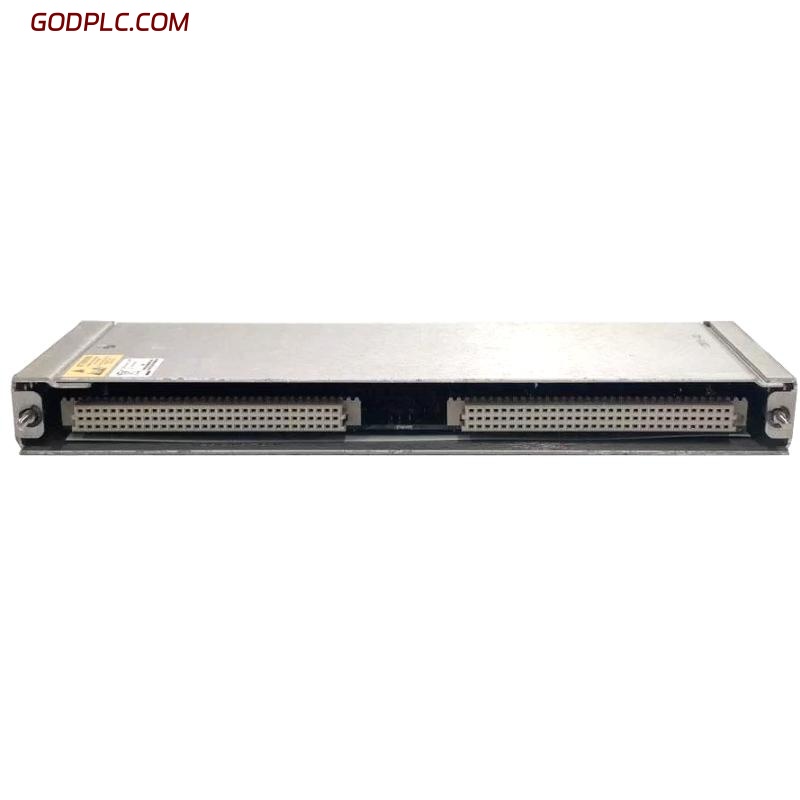

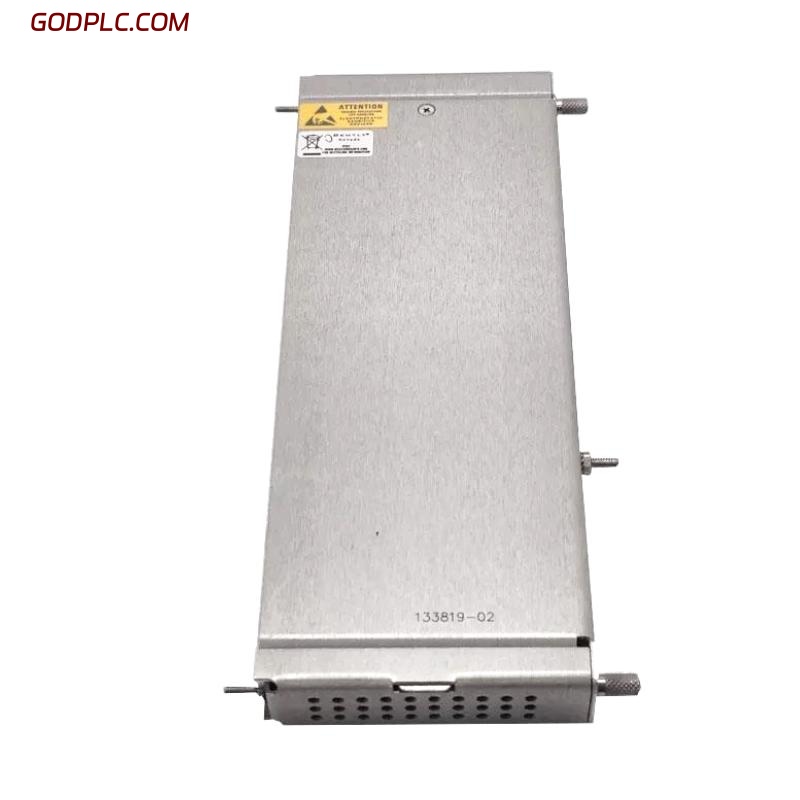

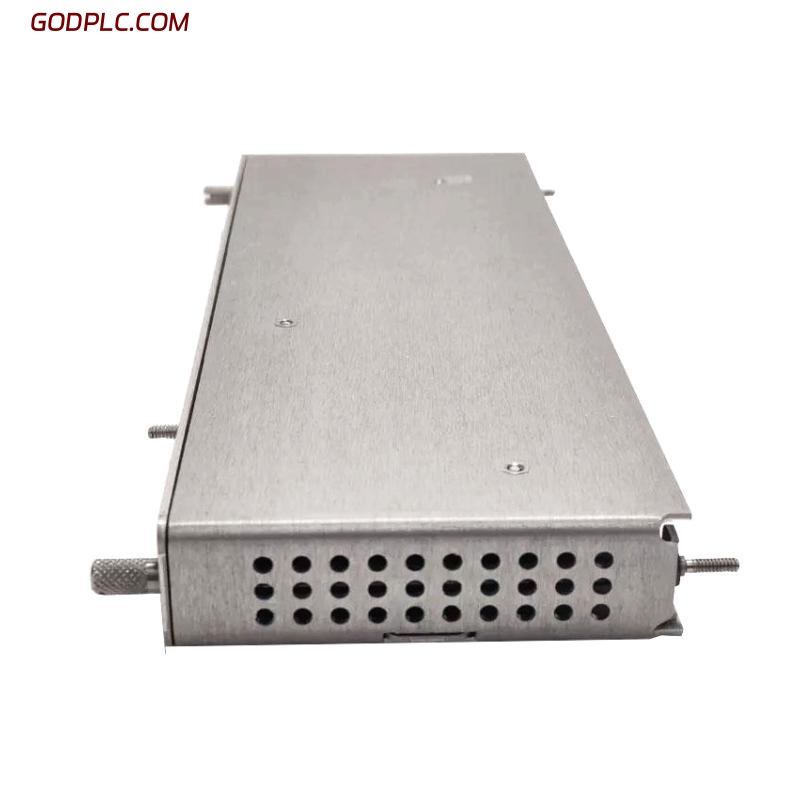

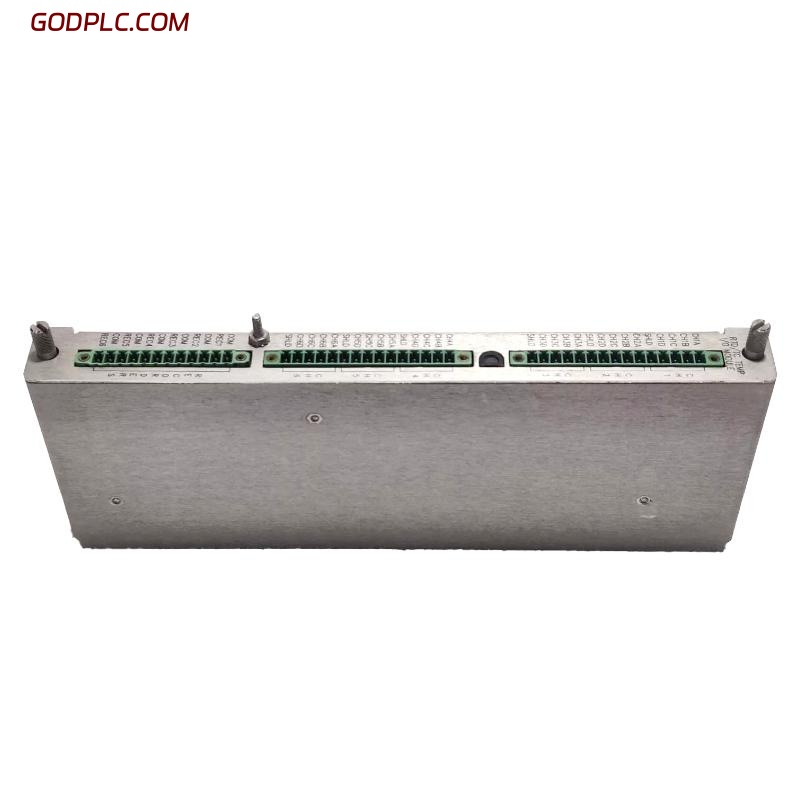

Bently Nevada 3500/61 133819-02 Temperature Monitor Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Product Overview
The Bently Nevada 3500/61 (Part Number 133819-02) is a six-channel temperature monitor module designed for continuous temperature measurement and machinery protection within the Bently Nevada 3500 Series Monitoring System.
This version (133819-02) features isolated I/O, providing enhanced signal integrity and electrical protection between channels, sensors, and system backplane.
The module accepts inputs from Resistance Temperature Detectors (RTDs) and Thermocouples (TCs), converting them into engineering temperature values. Each channel continuously compares its measured temperature against user-defined Alert and Danger setpoints, ensuring timely detection of abnormal operating conditions.
The 3500/61 module also provides a 4–20 mA proportional recorder output for each channel, allowing connection to external control, display, or data acquisition systems.
Key Features
-
Six fully independent, isolated input channels.
-
Supports both RTD and Thermocouple sensor types.
-
Provides one 4–20 mA output per channel for external data systems.
-
Field-configurable for different sensor types and temperature ranges.
-
Channel-to-channel and channel-to-backplane isolation for noise immunity.
-
Real-time monitoring with programmable alarm thresholds.
-
Seamless integration into the Bently Nevada 3500 Series machinery protection system.
-
High accuracy and reliability in harsh industrial environments.
Technical Specifications
| Parameter | Specification | Description / Notes |
|---|---|---|
| Model / Catalog Number | 133819-02 | Six-channel temperature monitor with isolated I/O |
| System Compatibility | Bently Nevada 3500 Series | Full-height module for 3500 rack system |
| Number of Channels | 6 channels | Each channel independently configurable |
| Input Types | RTD or Thermocouple | Configurable per channel |
| Supported RTDs | Platinum (100 Ω), Nickel, Copper | 2-, 3-, or 4-wire configuration supported |
| Supported Thermocouples | Types E, J, K, T | Field-configurable |
| Recorder Output | 4–20 mA per channel | Proportional to measured temperature |
| Input Isolation | 500 V channel-to-channel and to backplane | Electrical isolation for noise immunity |
| Accuracy | ±3 °C typical at 25 °C | Depending on input and configuration |
| Alarm Setpoints | 2 per channel (Alert and Danger) | User-programmable limits |
| Signal Processing | Linearization, filtering, and RMS conversion | Independent per channel |
| Power Consumption | Approx. 9 W | Typical consumption for six-channel operation |
| Operating Temperature Range | –30 °C to +65 °C | Continuous industrial operation |
| Storage Temperature Range | –40 °C to +85 °C | Safe non-operating condition |
| Dimensions (H × W × D) | 241.3 mm × 24.4 mm × 241.8 mm (9.50″ × 0.96″ × 9.52″) | Standard full-height module |
| Weight | Approx. 0.91 kg (2.0 lb) | Typical net weight |
| Mounting Type | Full-height rack slot | For 3500 system chassis |
| Compliance | API 670, CE, CSA, ATEX | Industrial protection certifications |
Bently Nevada 3500/61 133819-02 Temperature Monitor Module is in stock. Please contact us for a quick quote and competitive pricing.
