1. What is the main function of the 3500/77M-04-00 143737-01?

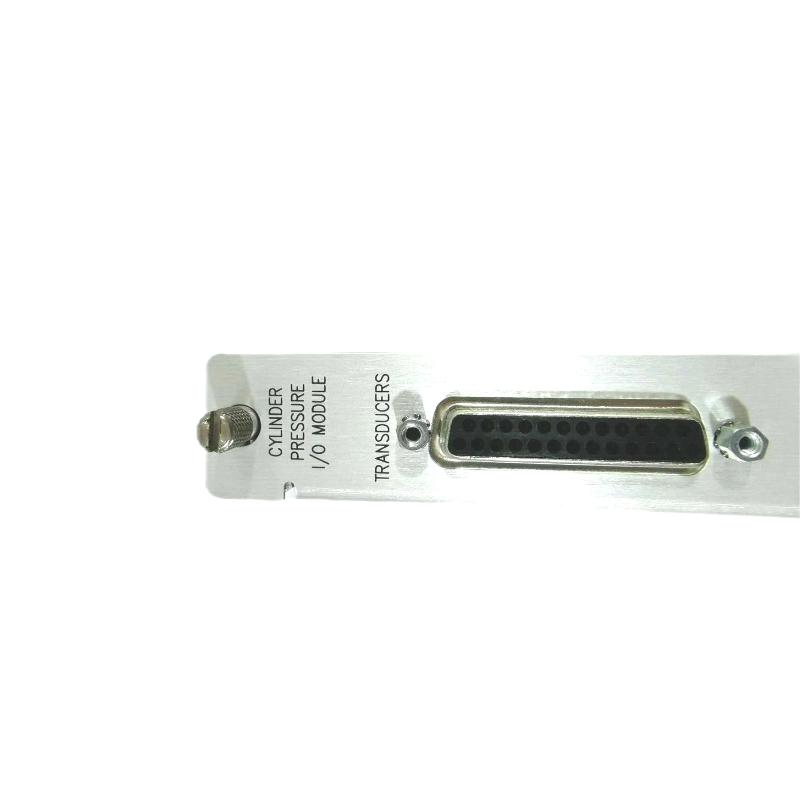

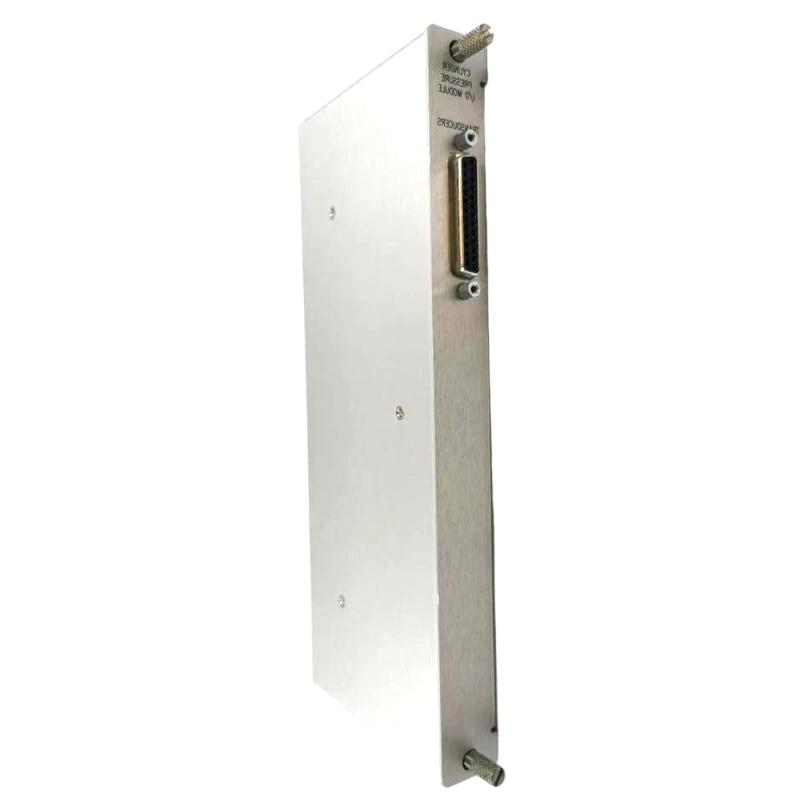

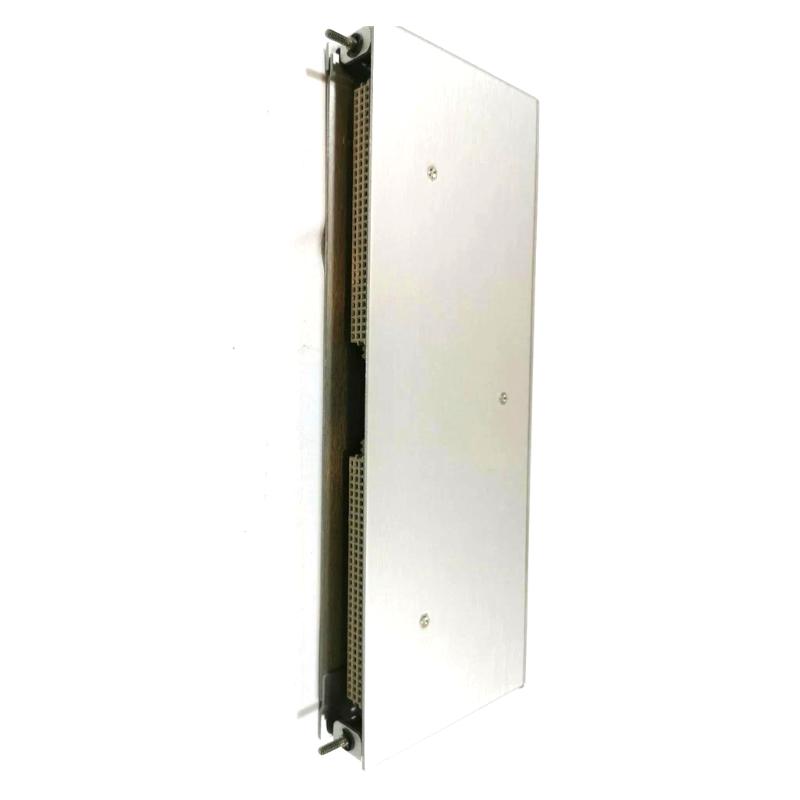

The 3500/77M-04-00 143737-01 is a cylinder pressure I/O module designed for use with the Bently Nevada 3500/77M reciprocating cylinder pressure monitoring system. Its primary function is to provide the interface between approved third-party pressure transducers and the 3500/77M monitor. The module receives positive-voltage pressure signals from the field pressure transducers, conditions the signals, and passes the processed information to the monitor for cylinder pressure analysis. The external termination configuration allows field wiring to be connected through external termination components rather than directly at the rear of the I/O module. It is intended for reciprocating compressor applications where accurate dynamic cylinder pressure information is required for machinery monitoring, condition assessment, and protection.

2. How many pressure transducer channels can the 143737-01 support?

The 143737-01 supports from one to four pressure transducer input channels, corresponding to the four-channel architecture of the 3500/77M reciprocating cylinder pressure monitor. Each channel can receive a compatible positive-voltage pressure signal from an approved third-party pressure transducer. Multiple channels can be used to monitor different compressor cylinders or different pressure measurement locations. During commissioning, each pressure transducer should be assigned to the correct channel and the corresponding pressure range and scale factor should be configured correctly. Proper channel identification is particularly important on multi-cylinder compressors because an incorrect channel assignment can cause an alarm to be associated with the wrong cylinder or pressure measurement point.

3. What pressure ranges are supported by the 143737-01?

The cylinder pressure I/O system supports several pressure ranges, including 100, 250, 500, 1000, 2500, 5000, and 10000 psia. The corresponding signal is based on a nominal +0.5 VDC signal at 0 psia and +10.0 VDC at the selected full-scale pressure. The associated scale factor changes according to the selected pressure range. When commissioning the system, the pressure transducer’s actual output characteristics must be matched with the configured pressure range. Using an incorrect range or scale factor can produce inaccurate pressure readings and may also cause the alarm thresholds to be interpreted incorrectly. The selected range should therefore be based on the actual pressure transducer specifications and the normal and maximum operating pressure of the compressor cylinder.

4. What type of pressure transducers can be connected to the 143737-01?

The 143737-01 is designed to accept positive-voltage signals from Bently Nevada approved third-party pressure transducers. The pressure transducer must provide an output compatible with the input characteristics of the cylinder pressure I/O module. The module provides approximately +23.0 ± 0.8 VDC sensor supply voltage with a current limit of 24.5 mA per channel. When selecting or replacing a pressure transducer, engineers should verify the pressure range, output voltage, excitation requirements, dynamic response, installation conditions, and compatibility with the 3500/77M system. A transducer with an unsuitable output range or incorrect electrical characteristics may result in inaccurate measurements, signal saturation, or abnormal channel behavior.

5. What is the frequency response of the 143737-01?

The cylinder pressure input system provides a frequency response from 0 to 5.5 kHz on configured pressure channels. This relatively wide dynamic response allows the system to capture rapid pressure changes occurring during reciprocating compressor operation. Dynamic pressure information is important because cylinder pressure does not remain constant during a compressor cycle. Pressure waveforms can contain useful information about suction and discharge valve behavior, compression performance, pressure pulsation, and other mechanical or process conditions. When troubleshooting an abnormal pressure waveform, the pressure transducer, mounting arrangement, signal cable, termination, and configuration should all be checked because a problem in any part of the measurement chain can affect the quality of the dynamic pressure signal.

6. What should be checked if the pressure signal from the 143737-01 is unstable?

If a pressure signal is unstable, troubleshooting should begin with the pressure transducer and field wiring rather than immediately replacing the I/O module. First, verify that the pressure transducer is correctly installed and securely connected. Check the signal cable, external termination points, connectors, shielding, grounding, and sensor supply voltage. The configured pressure range and scale factor should also be compared with the actual transducer specifications. Electrical interference from nearby high-power equipment can cause unwanted signal fluctuations and should be considered if the instability does not correspond to actual compressor operating changes. Comparing the affected channel with other pressure channels can help determine whether the problem is isolated to one transducer circuit or affects the overall monitoring system. If the field circuit is confirmed to be correct, the I/O module and monitor can then be investigated further.

7. What is the difference between the 143737-01 and an internal-termination cylinder pressure I/O module?

The primary difference is the field termination arrangement. The 143737-01 is the cylinder pressure I/O module with external terminations, while the corresponding internal-termination version is designed for field connections at the I/O module itself. The 143737-01 is therefore suitable for installations where external termination blocks and associated cables are part of the wiring architecture. The external termination arrangement can provide additional flexibility when the field wiring layout or installation requirements call for termination away from the rack. When replacing an existing I/O module, the termination type must match the original system design. Using an internal-termination module in an installation designed for external terminations, or vice versa, can result in incompatible field wiring and incorrect system installation.

8. What should be checked before replacing the 143737-01?

Before replacing the 143737-01, the fault should be isolated to the I/O module rather than the pressure transducer, external termination, field cable, power supply, or 3500/77M monitor. Check the affected pressure channel, sensor supply, input signal, external termination connections, cable continuity, shielding, and grounding first. The pressure range and scale factor configured for the channel should also be verified against the pressure transducer specifications. If the I/O module is confirmed to be defective, the existing wiring arrangement and channel configuration should be documented before removal. After installing the replacement 143737-01, verify all external terminations, sensor supply voltage, pressure signals, channel measurements, and communication with the 3500/77M monitor. The Alert and Danger settings should also be checked before returning the reciprocating compressor to normal operation.
