1. What is the main function of the Bently Nevada 3500/92-02-00-00?

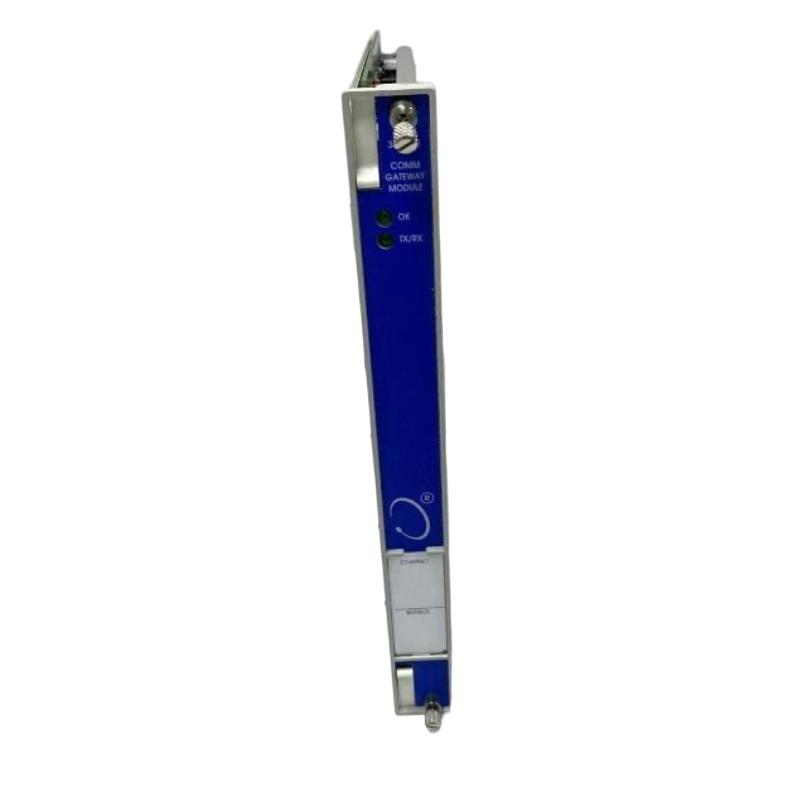

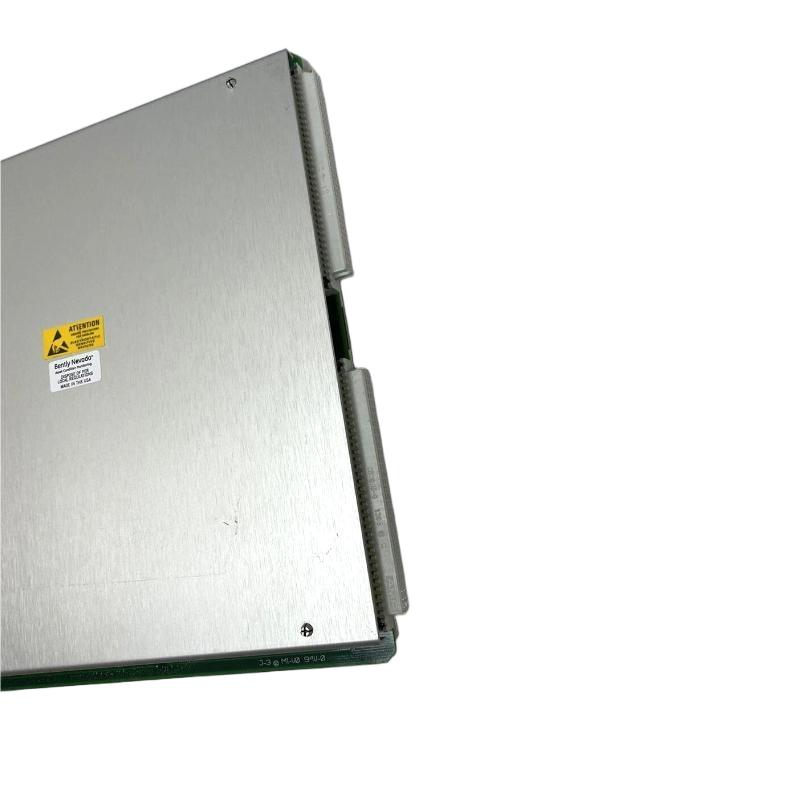

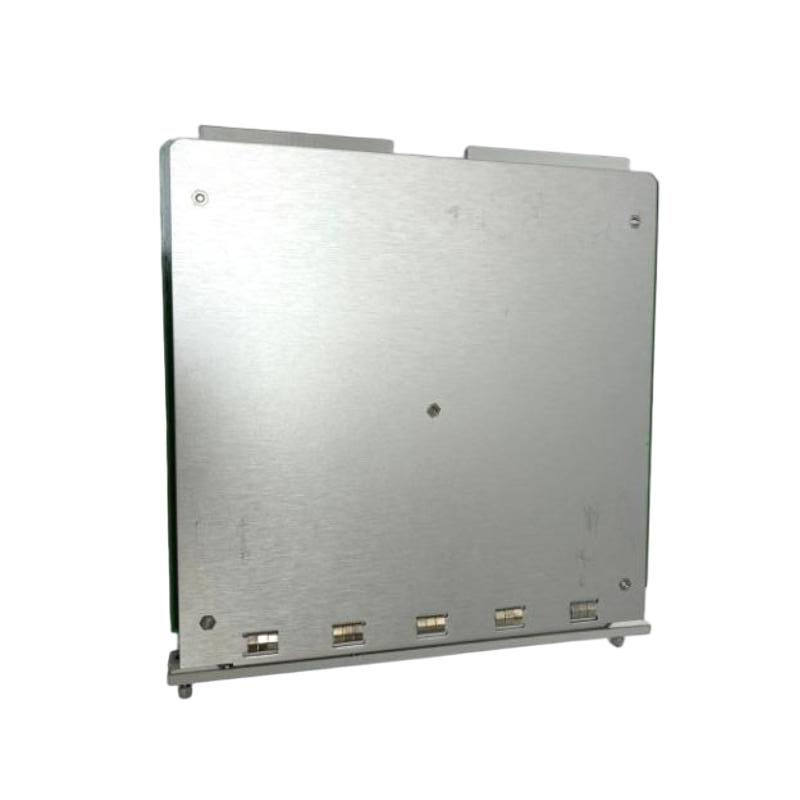

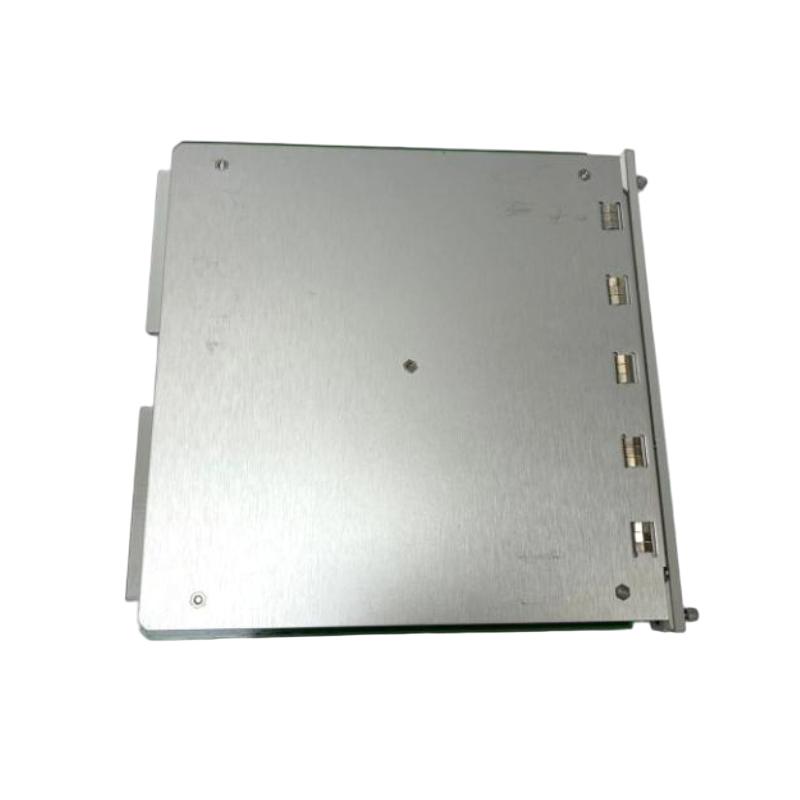

The 3500/92-02-00-00 is a Communication Gateway Module designed for the Bently Nevada 3500 machinery monitoring system. Its primary function is to transfer monitored values and status information from the 3500 rack to external process control and automation systems. The module can collect information from the monitoring modules through the rack’s high-speed internal network and make that information available to external systems through Ethernet and serial communication. It is commonly used when machinery condition monitoring data needs to be integrated into a PLC, DCS, SCADA, or plant information system for centralized monitoring, alarm management, and equipment status analysis.

2. What communication protocols does the 3500/92-02-00-00 support?

The 3500/92-02-00-00 supports Modicon Modbus through its serial communication interface, Modbus/TCP for Ethernet-based communication, and the proprietary Bently Nevada protocol used for communication with compatible 3500 Rack Configuration and Data Acquisition Software. The Ethernet connection uses an RJ-45 interface for 10BASE-T networks, while this configuration uses an RS485 I/O module for serial communication. When integrating the gateway into an automation system, the communication protocol should be selected according to the PLC, DCS, SCADA, or data acquisition platform being used. Communication parameters and register mapping should be verified before commissioning.

3. What type of data can the 3500/92-02-00-00 collect from the 3500 rack?

The gateway collects data from other modules installed in the 3500 rack through the internal high-speed network. Depending on the installed monitor module and channel configuration, the available information can include current measured values, time stamps, module status, channel status, and current alarm status. The exact data available to the external control system depends on the configuration of the individual monitoring modules. During system integration, the external controller should be configured to interpret the received data correctly. Each important measurement and status point should be checked against the corresponding 3500 channel to ensure that the correct engineering value and status information are being transferred.

4. What is the data update time of the 3500/92-02-00-00?

The gateway’s data collection rate depends on the configuration of the 3500 rack, but the data update time does not exceed one second for all modules in the rack under the specified operating conditions. This allows the gateway to provide relatively fast access to machinery monitoring information for process control and supervisory systems. However, the actual response observed by an external PLC or DCS can also depend on the communication protocol, controller scan cycle, network configuration, and application software. Therefore, when designing control logic around monitoring data, the complete communication chain should be considered rather than relying only on the gateway’s internal data collection rate.

5. How should the 3500/92-02-00-00 be connected to a PLC or DCS?

The connection method depends on the communication interface selected for the application. The -02 configuration uses a Modbus RS485 I/O module for serial communication, allowing the gateway to exchange Modbus data with a compatible PLC, DCS, or other control device. The 3500/92 also provides Ethernet communication capabilities through its gateway architecture, including Modbus/TCP. During installation, the communication interface, network or serial parameters, device addressing, baud rate where applicable, parity, register mapping, and controller communication settings should be configured consistently. After the physical connection is completed, individual data registers should be tested to confirm that the values displayed in the control system correspond correctly to the 3500 monitoring channels.

6. What should be checked if the 3500/92-02-00-00 cannot communicate with the control system?

Troubleshooting should begin with the physical communication connection and the gateway status indicators. Check the RS485 wiring, polarity, termination, shielding, and connection points when using the serial interface. If Ethernet communication is being used, inspect the RJ-45 connection, network cable, switch, and network configuration. The OK LED should be checked to verify that the gateway is operating normally, while the TX/RX LED can help identify communication activity. After the physical layer is confirmed, check the Modbus address, communication parameters, register mapping, PLC or DCS configuration, and expected data format. If the gateway communicates but incorrect values are received, the next step should be to verify the register configuration and the relationship between Modbus registers and the corresponding 3500 monitoring channels.

7. What is the purpose of the configurable Modbus register function in the 3500/92 system?

The configurable Modbus register function allows monitored information from the 3500 rack to be organized into Modbus registers according to the requirements of the external control or monitoring system. This is useful when a PLC or DCS requires specific machinery measurements to appear at predefined register locations. Instead of relying solely on a fixed arrangement of monitoring values, the register configuration can be planned around the actual application and the data required by the automation system. During commissioning, the selected registers should be documented and verified against the corresponding 3500 channels, engineering units, status information, and alarm conditions to prevent incorrect interpretation of machinery monitoring data.

8. What maintenance is recommended for the 3500/92-02-00-00?

Routine maintenance should focus on the module’s communication connections, rack installation, operating environment, and diagnostic indicators. The RS485 wiring should be checked periodically for loose terminals, incorrect polarity, damaged cables, and grounding or shielding problems. Ethernet connections should also be inspected when Ethernet communication is being used. The OK and TX/RX LEDs can provide useful information when investigating communication problems. The module should be kept within its specified temperature and humidity range, and the rack should be protected from excessive dust, moisture, vibration, and other environmental conditions that could affect reliable operation. It is also good practice to periodically verify communication data against the actual 3500 monitoring values so that any register mapping or communication abnormalities can be identified before they affect plant monitoring.
