1. What is the main function of the Bently Nevada 3500/92-04-01-00?

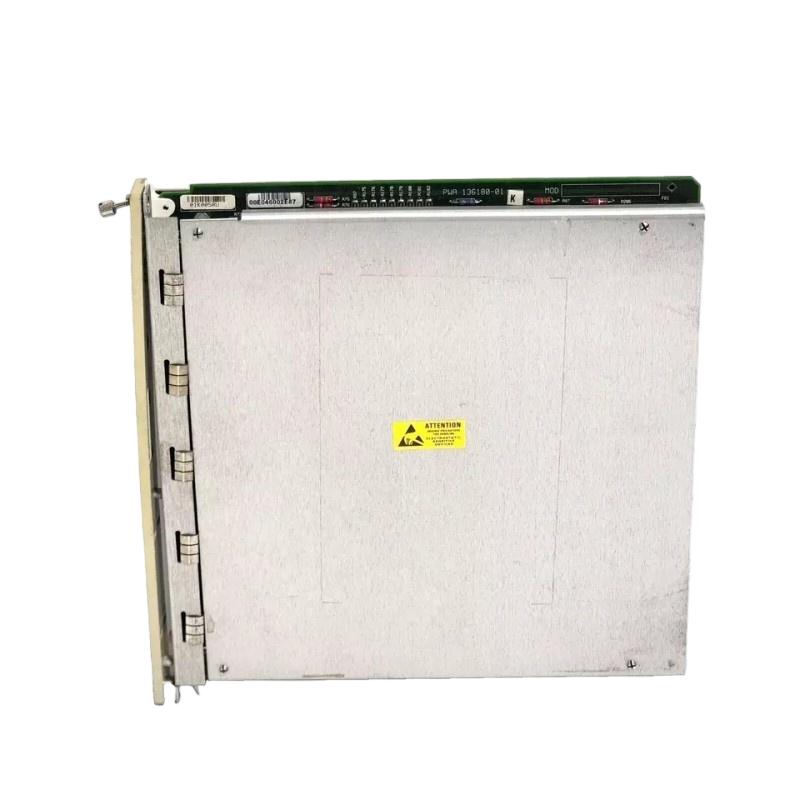

The Bently Nevada 3500/92-04-01-00 is a Communication Gateway Module used to connect a 3500 machinery monitoring rack with external process control and automation systems. The gateway collects monitoring values and status information from the modules installed in the 3500 rack through the internal high-speed rack network and makes the information available to external PLC, DCS, SCADA, and other compatible systems. This configuration combines the 3500/92 gateway module with the 136188-02 Ethernet/RS485 Modbus I/O module, providing both Ethernet and RS485 communication capabilities. It is particularly useful when machinery condition data needs to be transferred into a plant-level automation system for monitoring, alarm management, equipment diagnostics, and operational analysis.

2. What are the ordering numbers 136188-02 and 136180-01 used for?

The 136180-01 is the 3500/92 Communication Gateway Module, while 136188-02 is the Ethernet/RS485 Modbus I/O Module associated with this configuration. Together, they form the 3500/92-04-01-00 configuration. The 136188-02 I/O module provides the physical communication interfaces required for Ethernet and RS485-based Modbus communication. When replacing the complete assembly, both ordering numbers should be checked to make sure the replacement configuration matches the existing 3500 system. This is especially important when upgrading an older communication gateway because I/O module compatibility and firmware requirements may affect communication performance.

3. Which communication protocols are supported by the 3500/92-04-01-00?

The 3500/92-04-01-00 supports Modicon Modbus, Modbus/TCP, and the Bently Nevada proprietary communication protocol. Modbus/TCP can be used through the Ethernet interface for communication with compatible PLC, DCS, and SCADA systems, while RS485 provides a serial communication path for compatible Modbus applications. The Bently Nevada proprietary protocol can be used with compatible 3500 configuration and data acquisition software. The Ethernet interface uses an RJ-45 connection and supports 10 Mbps communication. During system integration, communication parameters and data mapping should be configured according to the selected protocol and the requirements of the external control system.

4. What type of data can the 3500/92-04-01-00 provide to a PLC or DCS?

The gateway can provide monitoring information collected from the 3500 rack, including measured values, time stamps, module status, channel status, and alarm status. Depending on the monitoring modules installed in the rack, the available values may include vibration-related measurements, shaft position, speed, gap measurements, and other machinery condition parameters. The gateway allows these values to be organized for transmission to an external control system. When integrating with a PLC or DCS, each required value should be mapped to the correct communication register or data location. The engineering units and status information should also be verified so that the control system interprets the received data correctly.

5. What is the purpose of the Ethernet/RS485 Modbus I/O Module 136188-02?

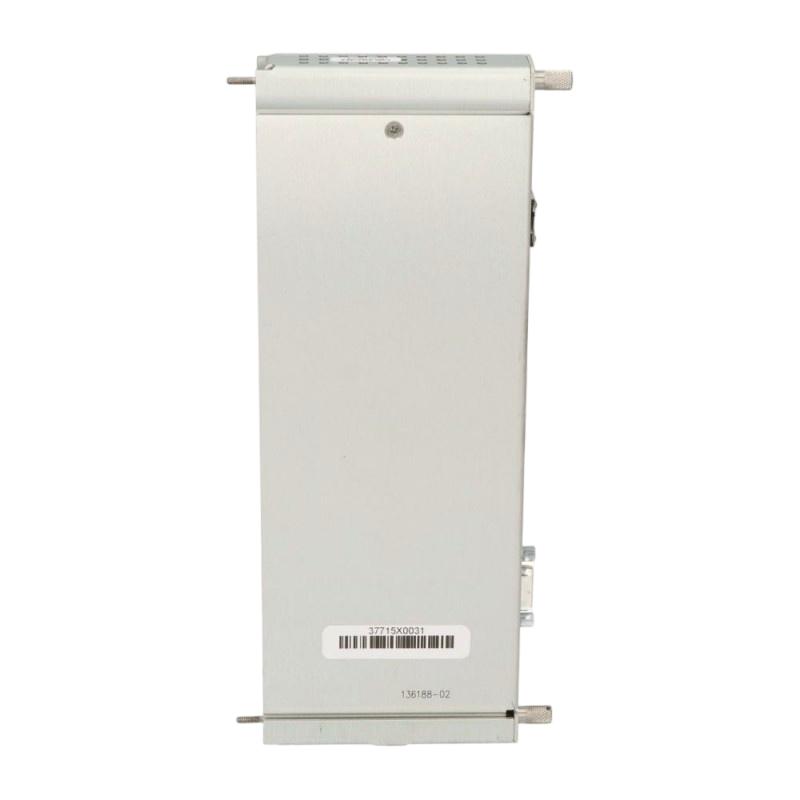

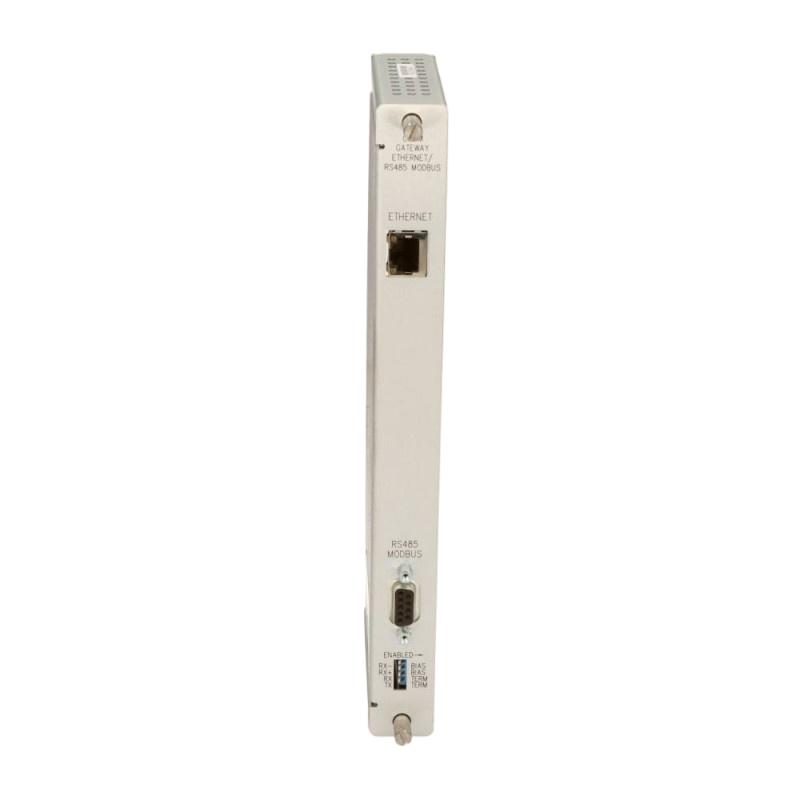

The 136188-02 provides the communication interface used by the 3500/92 gateway for Ethernet and RS485-based communication. It allows the gateway to exchange monitoring information with external systems using appropriate Modbus communication methods. The Ethernet connection is useful for network-based Modbus/TCP communication, while RS485 provides a serial interface for compatible Modbus equipment. This dual-interface configuration gives engineers greater flexibility when connecting the 3500 system to different plant automation architectures. Before commissioning, the selected interface should be clearly defined and its communication parameters, network configuration, device addressing, and register mapping should be verified.

6. What should be checked if the 3500/92-04-01-00 cannot communicate with the PLC or DCS?

Troubleshooting should begin by identifying whether the PLC or DCS is communicating through Ethernet or RS485. For Ethernet communication, check the RJ-45 connection, network cable, switch, IP configuration, and communication settings. For RS485 communication, inspect the A/B wiring, polarity, termination, shielding, grounding, and serial communication parameters. The OK LED should then be checked to verify the gateway operating status, while the TX/RX LED can indicate communication activity within the 3500 rack. If the physical connection is normal, check the Modbus address, register mapping, data format, controller configuration, and selected communication protocol. If communication is established but incorrect values are displayed, the register mapping and correspondence between external data points and 3500 monitoring channels should be checked carefully.

7. Does the 3500/92-04-01-00 support configurable Modbus registers?

Yes. The 3500/92 communication gateway supports the Configurable Modbus Register Utility, which allows users to create a custom or condensed Modbus map for communication with external control systems. This is useful when a PLC or DCS needs access to a specific selection of important machinery monitoring values rather than a large amount of unused data. Engineers can organize required measurements, status information, alarm conditions, and other rack information according to the requirements of the automation system. After configuration, the register map should be documented and tested point by point to confirm that each register corresponds to the intended 3500 channel and data type.

8. What should be considered when replacing a 3500/92-04-01-00 communication gateway assembly?

Before replacing the assembly, the existing model, I/O module, ordering numbers, firmware compatibility, communication configuration, and Modbus register mapping should be recorded. The 3500/92-04-01-00 configuration consists of the 3500/92 gateway module with the 136188-02 Ethernet/RS485 Modbus I/O module, while 136180-01 identifies the gateway module itself. Older communication gateway modules may require a firmware upgrade when used with newer I/O modules. After installation, the gateway status should be checked first, followed by Ethernet or RS485 communication, Modbus register values, alarm status, and communication with the external PLC or DCS. The replacement should not be considered complete until the received monitoring values have been compared with the actual 3500 rack values and all required communication functions have been verified.
