1. What is the main function of the Bently Nevada 3500/92-04-01-CN Communication Gateway Module?

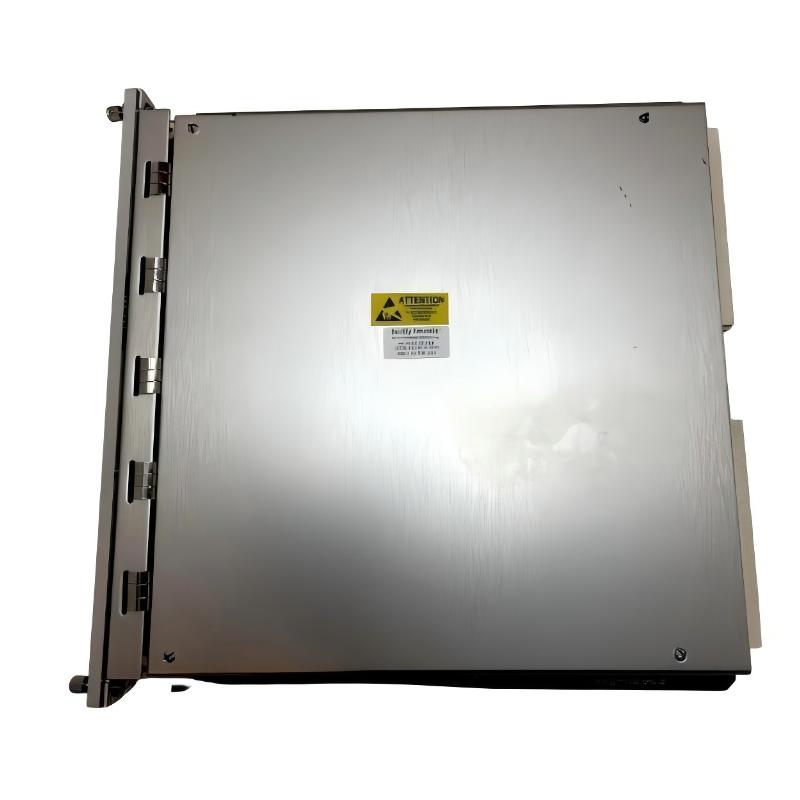

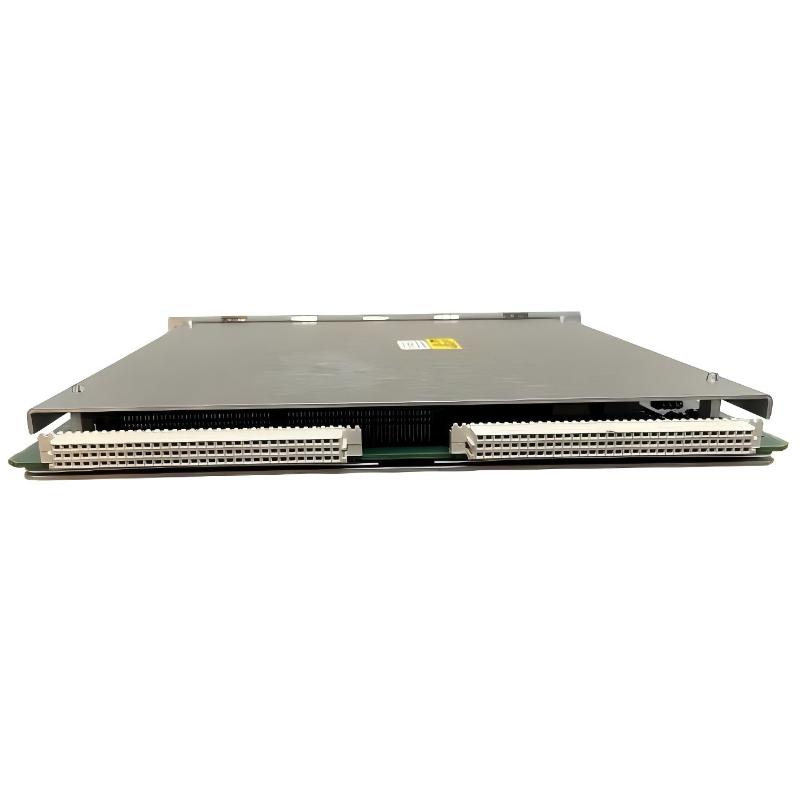

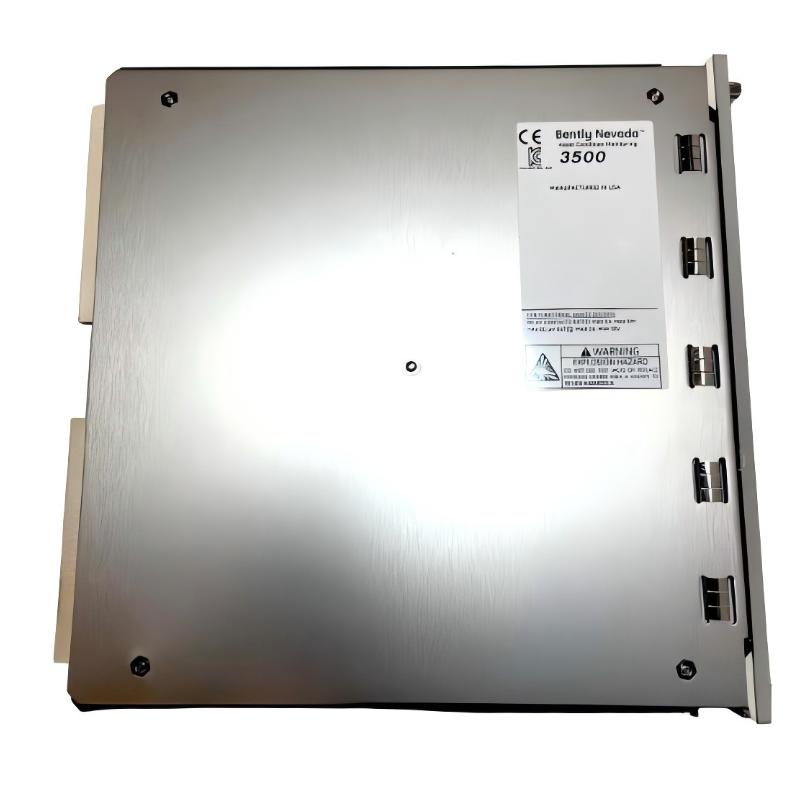

The Bently Nevada 3500/92-04-01-CN is a Communication Gateway Module designed to transfer monitoring data from a 3500 machinery monitoring rack to external automation and control systems. It collects measured values, channel information, module status, and alarm status through the internal high-speed rack network and makes this information available to PLC, DCS, SCADA, and other compatible systems. The -04 configuration uses an Ethernet/RS485 Modbus I/O module, providing Ethernet and RS485 communication capabilities. The -CN designation identifies the country-specific agency approval option, making this configuration suitable for applications where the required regional approval arrangement must be considered during system design and installation.

2. What does the “-04-01-CN” configuration of the 3500/92 represent?

The “-04” identifies the Ethernet/RS485 Modbus I/O Module configuration, while “-01” identifies the Low Memory configuration. The “-CN” suffix identifies the country-specific agency approval option. Therefore, 3500/92-04-01-CN is a specific configuration of the 3500/92 Communication Gateway rather than simply a general 3500/92 module. When ordering or replacing the gateway, the complete configuration code should be checked to ensure that the communication interface, memory configuration, and approval requirements match the existing system. This is especially important for installations where regulatory or hazardous-area requirements apply.

3. Which communication protocols are supported by the 3500/92-04-01-CN?

The 3500/92-04-01-CN supports Modicon Modbus, Modbus/TCP, and the Bently Nevada proprietary communication protocol. The Ethernet interface supports TCP/IP-based communication and uses an RJ-45 connection, while the RS485 interface provides a serial communication path for compatible Modbus equipment. Modbus/TCP can be used to exchange monitoring information with compatible PLC, DCS, and SCADA systems over an industrial Ethernet network. The Bently Nevada proprietary protocol can be used with compatible 3500 configuration and data acquisition software. Communication parameters should be configured according to the selected protocol and the requirements of the external control system.

4. What information can the 3500/92-04-01-CN provide to a PLC or DCS?

The gateway can provide monitoring information collected from modules installed in the 3500 rack. Typical information includes measured values, time stamps, module status, channel status, and alarm status. Depending on the specific monitoring modules installed, the available measurements may include vibration, shaft position, rotational speed, and other machinery condition parameters. The exact data structure depends on the 3500 rack configuration. During PLC or DCS integration, each required data point should be mapped to the correct Modbus register or communication location. Engineering units, status bits, alarm states, and measurement values should also be checked during commissioning to ensure that the external system interprets the received information correctly.

5. How does the Ethernet/RS485 Modbus I/O Module work with the 3500/92 gateway?

The Ethernet/RS485 Modbus I/O Module provides the physical communication interfaces used by the 3500/92 gateway to exchange information with external systems. Ethernet communication can be used for network-based Modbus/TCP applications, while RS485 provides a serial interface for compatible Modbus equipment. This configuration is useful when the 3500 system needs to communicate with different types of industrial automation equipment. During installation, the selected interface should be identified first, followed by configuration of the relevant network or serial communication parameters. The Modbus register map should then be verified against the actual 3500 monitoring channels before the system is placed into normal operation.

6. What should be checked if the 3500/92-04-01-CN cannot communicate with a PLC or DCS?

Troubleshooting should start with the physical communication layer. For Ethernet communication, check the RJ-45 connector, Ethernet cable, network switch, IP configuration, and network communication parameters. For RS485 communication, inspect the A/B wiring, polarity, termination, shielding, grounding, and serial communication settings. The OK LED should be checked to verify that the gateway is operating correctly, while the TX/RX LED can help indicate communication activity. If the physical connection is normal, check the Modbus address, register mapping, data format, PLC or DCS configuration, and selected protocol. If communication is established but the values are incorrect, the register mapping between the external control system and the 3500 monitoring channels should be examined carefully.

7. Does the 3500/92-04-01-CN support configurable Modbus registers?

Yes. The 3500/92 Communication Gateway supports the Configurable Modbus Register Utility, which allows users to organize selected monitoring information into Modbus registers according to the requirements of the external automation system. This is particularly useful when a PLC or DCS only needs access to specific machinery measurements, statuses, and alarm information. Engineers can define an appropriate register structure and map the required 3500 monitoring points to the corresponding communication locations. After configuration, the register map should be documented and tested point by point. The actual values, status information, alarm conditions, and engineering units should all be verified before the communication system is accepted for operation.

8. What should be considered when replacing a 3500/92-04-01-CN Communication Gateway Module?

Before replacement, the complete model configuration should be recorded, including the I/O configuration, memory option, approval option, firmware information, communication settings, and Modbus register mapping. Since the “-CN” configuration represents a country-specific approval option, the replacement module should have the appropriate approval configuration for the intended installation. After installation, check the OK LED and confirm that the gateway starts normally. Then verify Ethernet or RS485 communication, Modbus register values, alarm status, and communication with the PLC, DCS, or SCADA system. Finally, compare the data received by the external system with the corresponding values in the 3500 rack to ensure that the replacement has restored the complete monitoring communication path.
