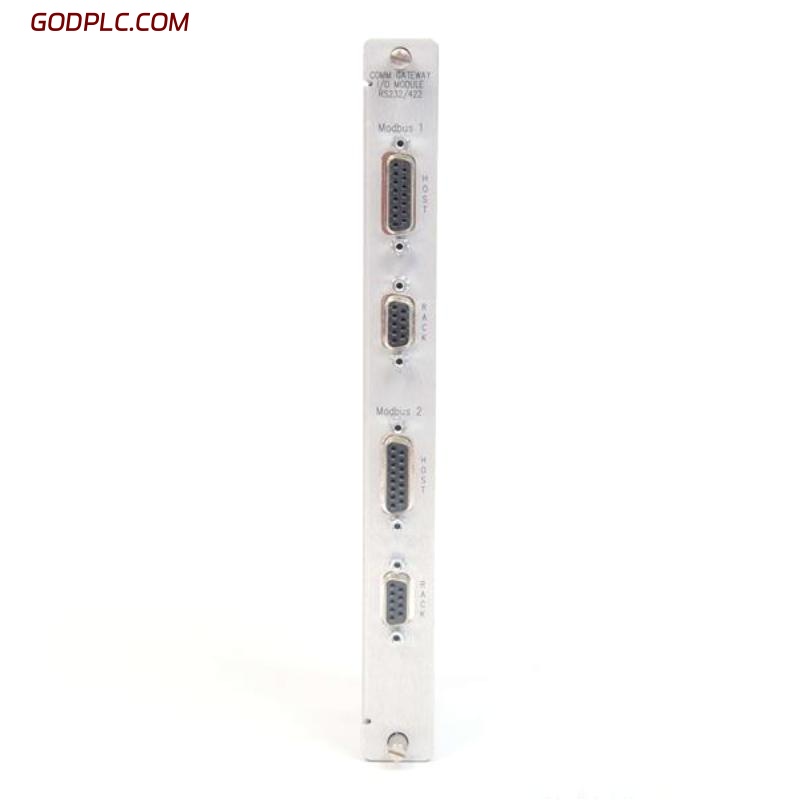

Bently Nevada 3500/92 125736-01 Industrial Communication Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Product Overview
The Bently Nevada 3500/92 (125736-01) is a Communications Gateway Module used within the Bently Nevada 3500 Machinery Protection System.
Its primary function is to provide an interface between the 3500 rack and external control or monitoring systems such as DCS (Distributed Control Systems), PLC (Programmable Logic Controllers), or System 1 Condition Monitoring Software.
The 3500/92 collects real-time machinery protection and diagnostic data from the rack and transmits it over industry-standard communication protocols such as Modbus RTU (RS-485) or Modbus TCP/IP (Ethernet).
This module plays a crucial role in integrating machinery protection systems with plant-wide control and asset management environments, ensuring comprehensive equipment supervision and data accessibility.
Key Features
-
Provides gateway communication between the 3500 rack and external systems.
-
Supports Modbus RTU and Modbus TCP/IP protocols.
-
Transmits real-time values, statuses, and alarm data from the rack.
-
Supports both serial (RS-232/RS-485) and Ethernet communication interfaces.
-
Two independent communication ports for flexible system integration.
-
Fully compatible with Bently Nevada System 1 Condition Monitoring Software.
-
Front-panel LEDs indicate communication and status conditions.
-
Supports redundant rack communication configurations.
-
Meets API 670 requirements for machinery protection systems.
-
Simple configuration via Bently Nevada 3500 Configuration Software.
Technical Specifications
| Parameter | Specification | Description / Notes |
|---|---|---|
| Model Number | 3500/92 | Communications Gateway Module |
| Part Number | 125736-01 | Standard version |
| System Compatibility | Bently Nevada 3500 Machinery Protection System | Full-height module |
| Communication Protocols | Modbus RTU, Modbus TCP/IP | Supports both serial and Ethernet communications |
| Communication Ports | 2 independent ports | RS-232/RS-485 and Ethernet |
| Baud Rate | Up to 115.2 kbps (serial) | User configurable |
| Ethernet Speed | 10/100 Mbps | Auto-negotiation supported |
| Network Connection | RJ-45 Ethernet connector | Shielded twisted pair cable recommended |
| Serial Connection | 9-pin D-sub (RS-232) or terminal block (RS-485) | User selectable |
| Data Transmitted | Channel data, alarm status, module OK status | Rack-wide communication |
| Data Update Rate | < 1 second typical | Depending on rack configuration |
| Addressing | Modbus device address selectable | Supports multiple devices on one network |
| Configuration | Via 3500 Configuration Software | Software setup required |
| Power Consumption | Approx. 6–8 W | Typical operating load |
| Operating Temperature | –30 °C to +65 °C | Continuous operation |
| Storage Temperature | –40 °C to +85 °C | Non-operating condition |
| Relative Humidity | 5–95% non-condensing | Industrial environment |
| Dimensions (H × W × D) | 241.3 × 24.4 × 241.8 mm (9.50″ × 0.96″ × 9.52″) | Full-height module |
| Weight | Approx. 0.9 kg (2.0 lb) | Typical |
| Mounting Type | Full-height rack slot | Installed via 3500 backplane |
| Compliance | API 670, CE, CSA, ATEX | Meets global industrial standards |
Bently Nevada 3500/92 125736-01 Industrial Communication Module is in stock. Please contact us for a quick quote and competitive pricing.
