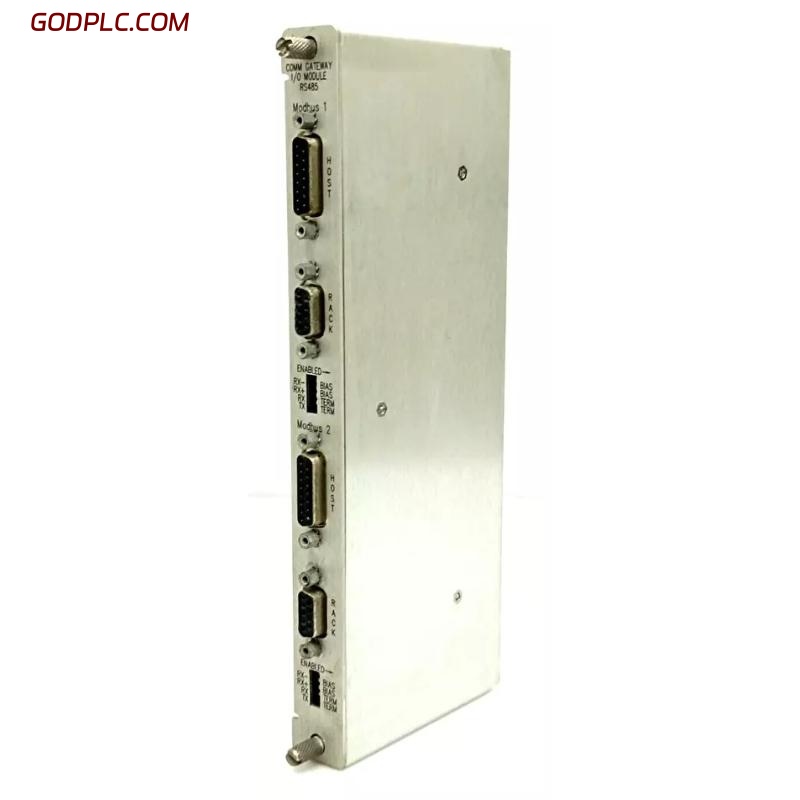

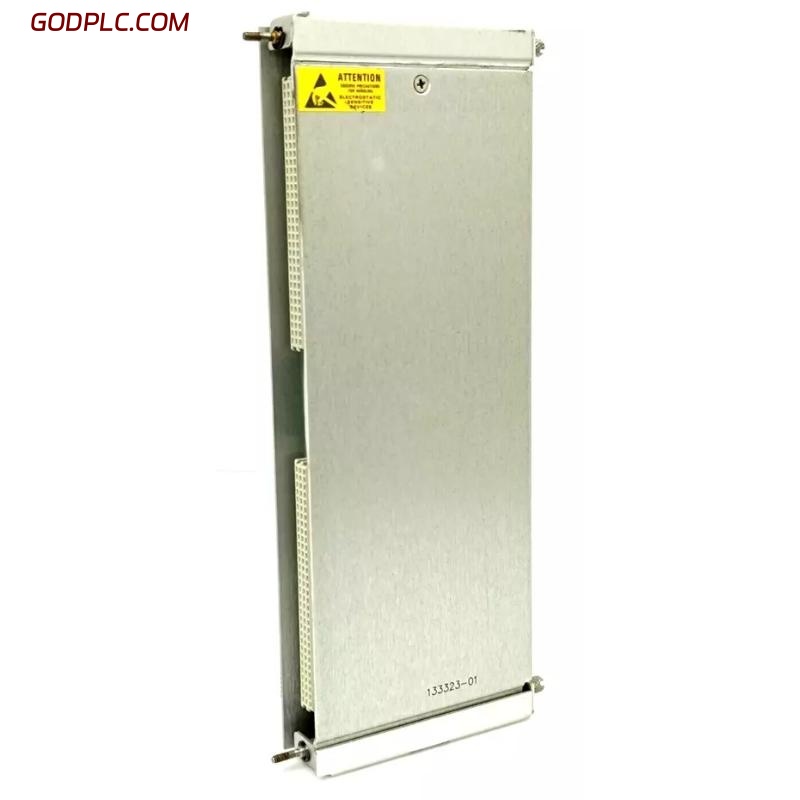

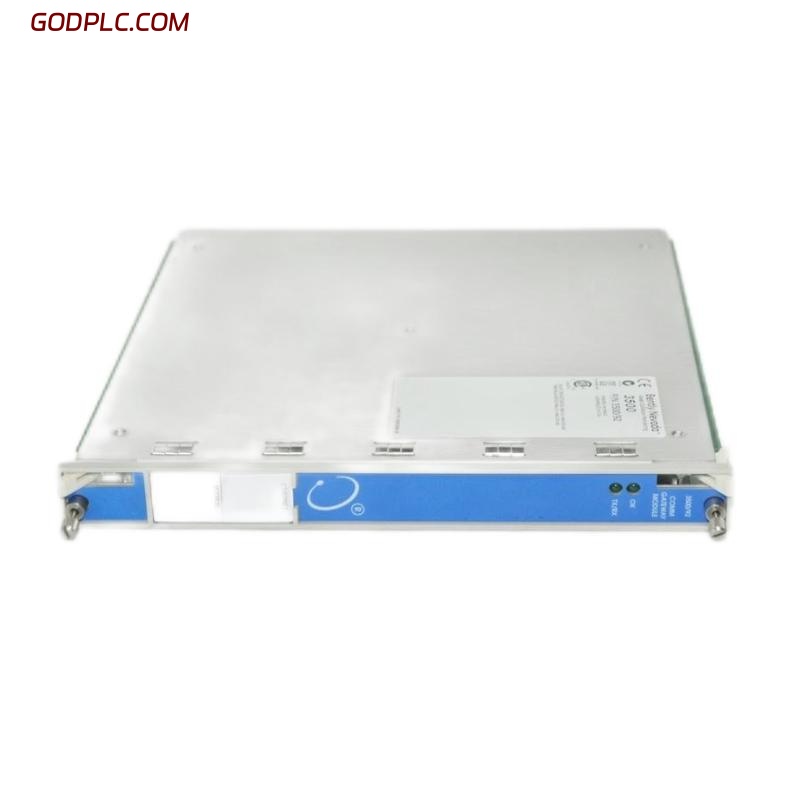

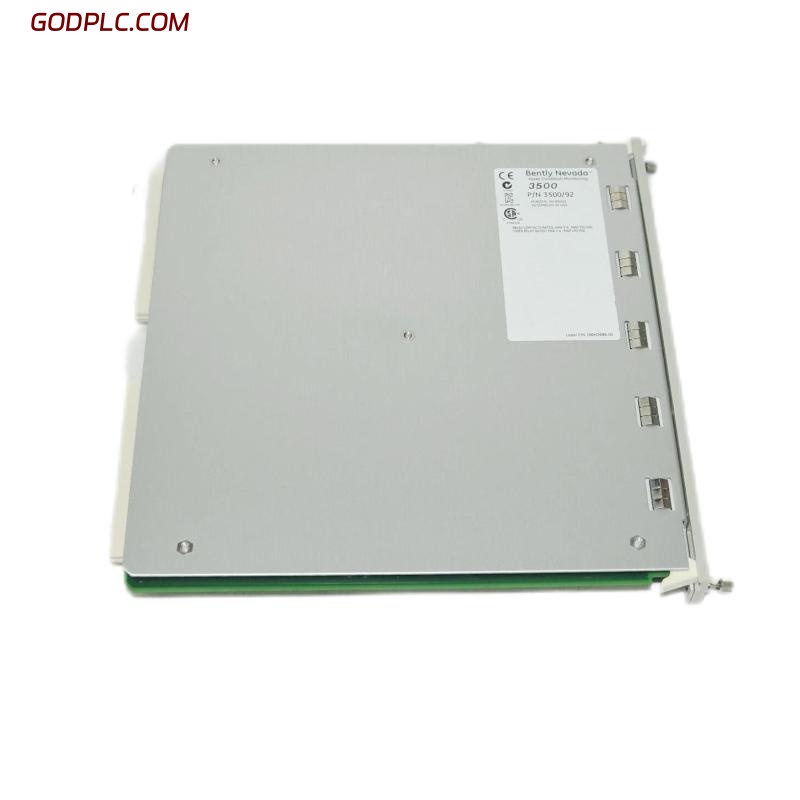

Bently Nevada 3500/92 136180-01+133323-01 Industrial Communication Gateway Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Product Overview
The Bently Nevada 3500/92 (136180-01 + 133323-01) is a Communications Gateway Module designed for use in the Bently Nevada 3500 Machinery Protection System.
This module provides seamless data communication between the 3500 rack and external monitoring and control systems such as DCS (Distributed Control Systems), PLC (Programmable Logic Controllers), and Bently Nevada System 1 software.
By combining the monitor module (133323-01) and the I/O module (136180-01), the 3500/92 allows complete access to machinery protection and condition monitoring data, including vibration, temperature, speed, alarm statuses, and system health.
It supports both Modbus RTU (RS-485) and Modbus TCP/IP (Ethernet) communication protocols, providing a reliable, high-performance interface between the machinery protection system and plant-wide automation networks.
Key Features
-
Dual communication capability: Modbus RTU and Modbus TCP/IP protocols supported simultaneously.
-
Provides full rack-wide data access including measurement values, alarm states, and module OK statuses.
-
Two independent communication ports (Ethernet and serial) for redundant or parallel system connections.
-
Fully compatible with Bently Nevada System 1 Condition Monitoring Software.
-
Front-panel LED indicators display power, configuration, and communication status.
-
Simple configuration using 3500 Configuration Software.
-
Complies with API 670 standards for machinery protection systems.
-
Robust industrial design for long-term reliability in harsh environments.
Technical Specifications
| Parameter | Specification | Description / Notes |
|---|---|---|
| Model Number | 3500/92 | Communications Gateway Module |
| Part Numbers | 136180-01 (I/O Module), 133323-01 (Monitor Module) | Standard configuration |
| System Compatibility | Bently Nevada 3500 Rack System | Full-height module |
| Communication Protocols | Modbus RTU (RS-485), Modbus TCP/IP (Ethernet) | Industry-standard protocols |
| Communication Ports | 2 independent ports | RS-232/RS-485 and Ethernet |
| Baud Rate (Serial) | 9.6 to 115.2 kbps | Configurable |
| Ethernet Speed | 10/100 Mbps | Auto-negotiation supported |
| Network Interface | RJ-45 port | For Modbus TCP/IP communication |
| Serial Interface | RS-232 or RS-485 | Field-selectable |
| Data Transmitted | Channel data, alarm statuses, OK conditions | Full rack communication |
| Data Update Rate | Typically < 1 second | Dependent on rack configuration |
| Configuration | Bently Nevada 3500 Configuration Software | Modbus register mapping configurable |
| Power Consumption | Approx. 6–8 W | Typical load |
| Operating Temperature | –30 °C to +65 °C | Continuous operation |
| Storage Temperature | –40 °C to +85 °C | Non-operating condition |
| Relative Humidity | 5–95% non-condensing | Industrial environment |
| Dimensions (H × W × D) | 241.3 × 24.4 × 241.8 mm (9.50″ × 0.96″ × 9.52″) | Full-height module |
| Weight | Approx. 0.9 kg (2.0 lb) | Typical |
| Mounting Type | Full-height rack slot | Installed via 3500 backplane |
| LED Indicators | OK, TX/RX, CONFIG OK | Operational status indicators |
| Compliance | API 670, CE, CSA, ATEX | Meets global standards |
Bently Nevada 3500/92 136180-01+133323-01 Industrial Communication Gateway Module is in stock. Please contact us for a quick quote and competitive pricing.
