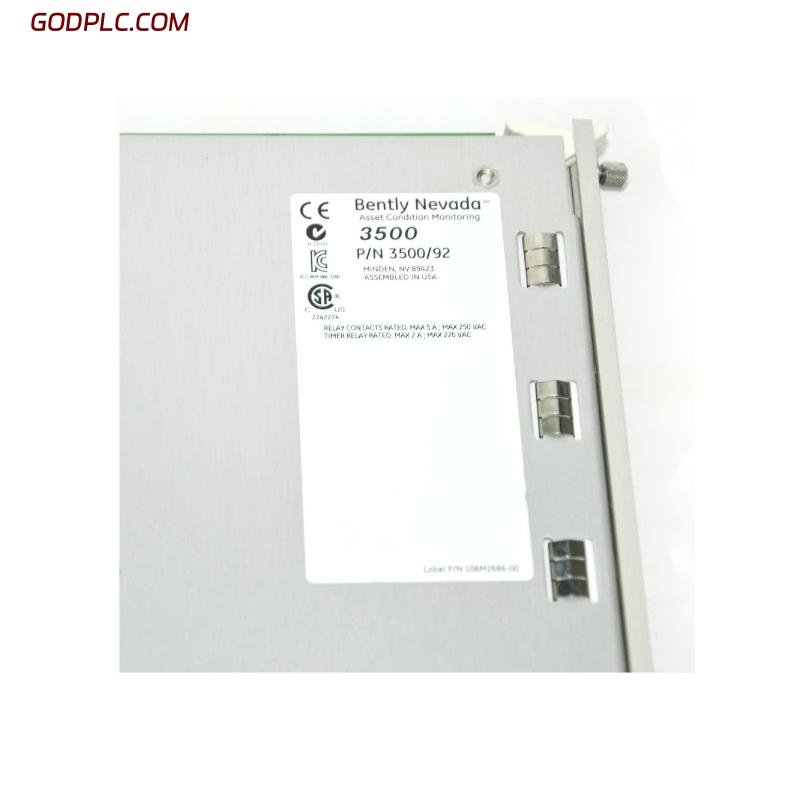

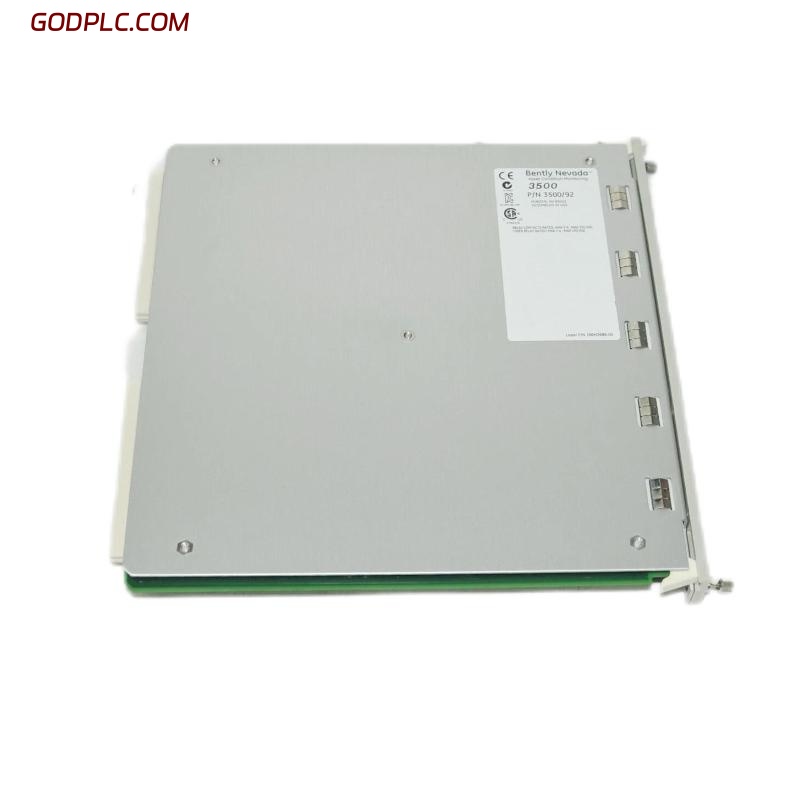

Bently Nevada 3500/92 136188-02+136180-01 Communications Gateway Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Product Overview
The Bently Nevada 3500/92 (136188-02 + 136180-01) is an advanced Communications Gateway Module designed for use within the Bently Nevada 3500 Machinery Protection System.
It provides an interface between the 3500 rack and external plant control systems such as DCS, PLC, SCADA, or System 1 Condition Monitoring software.

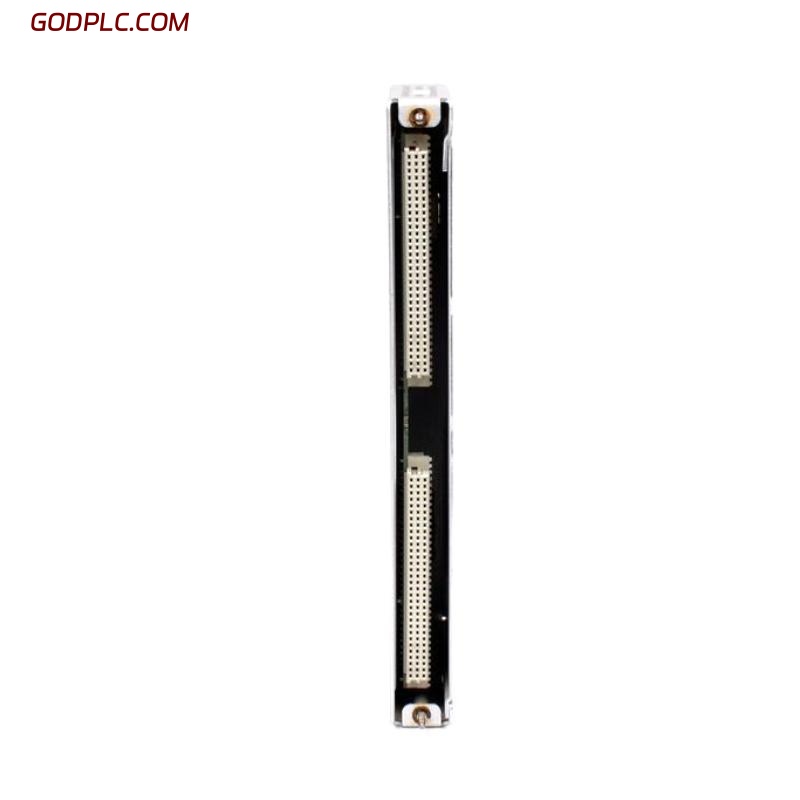

This configuration combines the 136188-02 Monitor Module (communication processor) and the 136180-01 I/O Module (physical interface). Together, they collect all data from the rack—including vibration, position, temperature, and alarm statuses—and transmit it to higher-level systems via Modbus RTU (RS-232/RS-485) or Modbus TCP/IP (Ethernet).
The 136188-02 revision features enhanced firmware, improved network stability, and expanded Modbus mapping, offering faster and more reliable communication than earlier models.
Key Features
-
Supports both Modbus RTU and Modbus TCP/IP communication protocols.
-
Provides rack-wide data: measurement values, alarm conditions, and OK statuses.
-

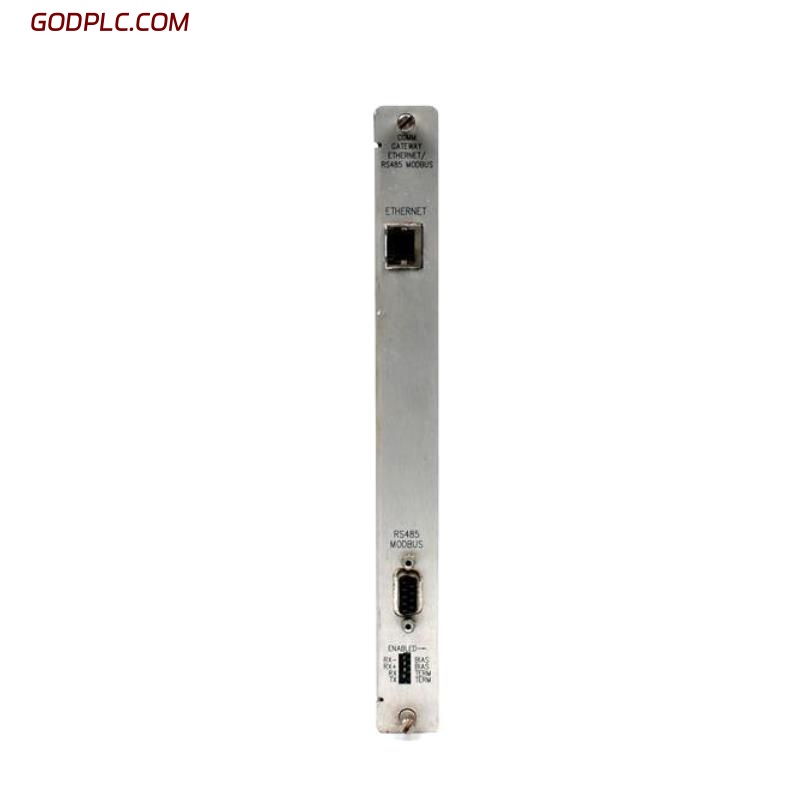

Two independent communication ports for simultaneous Ethernet and serial use.
-
Seamless integration with Bently Nevada System 1 and external DCS/PLC systems.
-
Improved Ethernet performance and data handling over previous revisions.
-
LED indicators for OK, TX/RX, and Configuration status.
-
Fully configurable via Bently Nevada 3500 Configuration Software.
-
Compliant with API 670, CE, CSA, and ATEX standards.
Technical Specifications
| Parameter | Specification | Description / Notes |
|---|---|---|
| Model Number | 3500/92 | Communications Gateway Module |
| Part Numbers | 136188-02 (Monitor Module), 136180-01 (I/O Module) | Complete assembly |
| System Compatibility | Bently Nevada 3500 Rack | Full-height module |
| Communication Protocols | Modbus RTU (RS-232/RS-485), Modbus TCP/IP (Ethernet) | Industry-standard |
| Communication Ports | 2 independent ports | Ethernet and Serial |
| Baud Rate (Serial) | 9.6 to 115.2 kbps | User-configurable |
| Ethernet Interface | 10/100 Mbps, RJ-45 connector | Modbus TCP/IP support |
| Serial Interface | RS-232 / RS-485 | Field-selectable |
| Data Provided | Channel values, alarms, OK status, rack data | From all installed modules |
| Data Update Rate | < 1 second (typical) | Depends on rack configuration |
| Configuration Tool | Bently Nevada 3500 Configuration Software | Setup and mapping |
| Power Consumption | Approx. 6 W | Typical |
| Operating Temperature Range | –30 °C to +65 °C | Continuous duty |
| Storage Temperature Range | –40 °C to +85 °C | Non-operating |
| Relative Humidity | 5–95% non-condensing | Industrial-grade |
| Dimensions (H × W × D) | 241.3 × 24.4 × 241.8 mm (9.50″ × 0.96″ × 9.52″) | Full-height module |
| Weight | Approx. 0.9 kg (2.0 lb) | Typical |
| Mounting Type | Full-height slot in 3500 rack | Installed in backplane |
| LED Indicators | OK, TX/RX, CONFIG OK | Front-panel status lights |
| Compliance | API 670, CE, CSA, ATEX | Global industrial certifications |
Bently Nevada 3500/92 136188-02+136180-01 Communications Gateway Module is in stock. Please contact us for a quick quote and competitive pricing.
