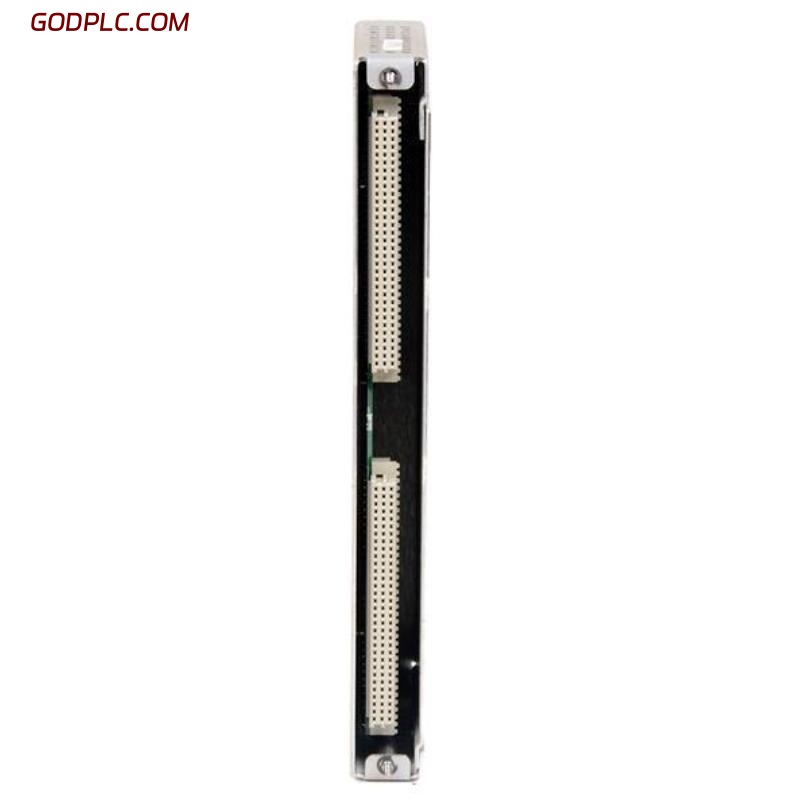

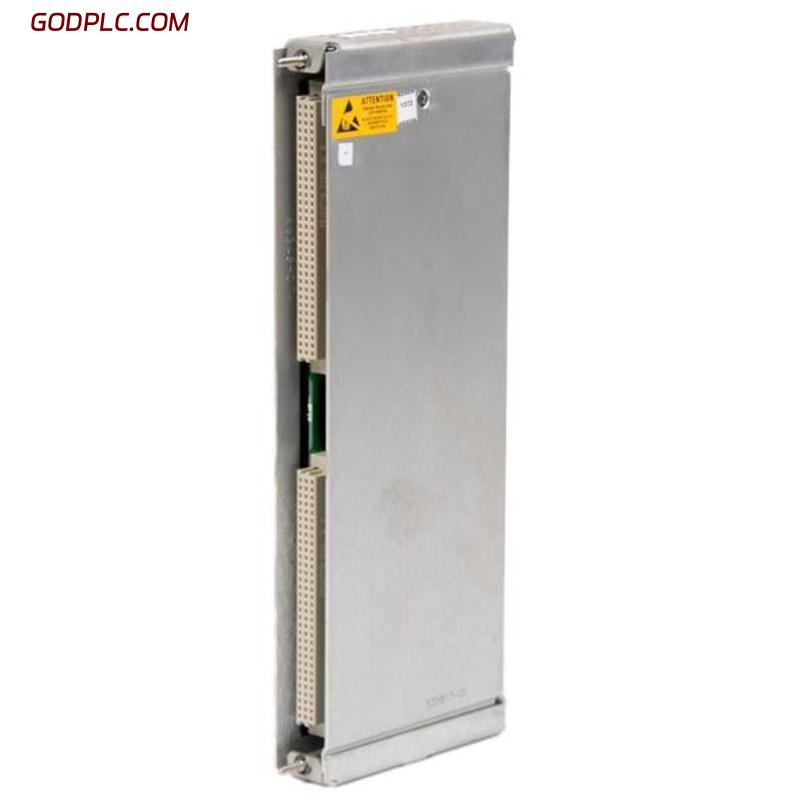

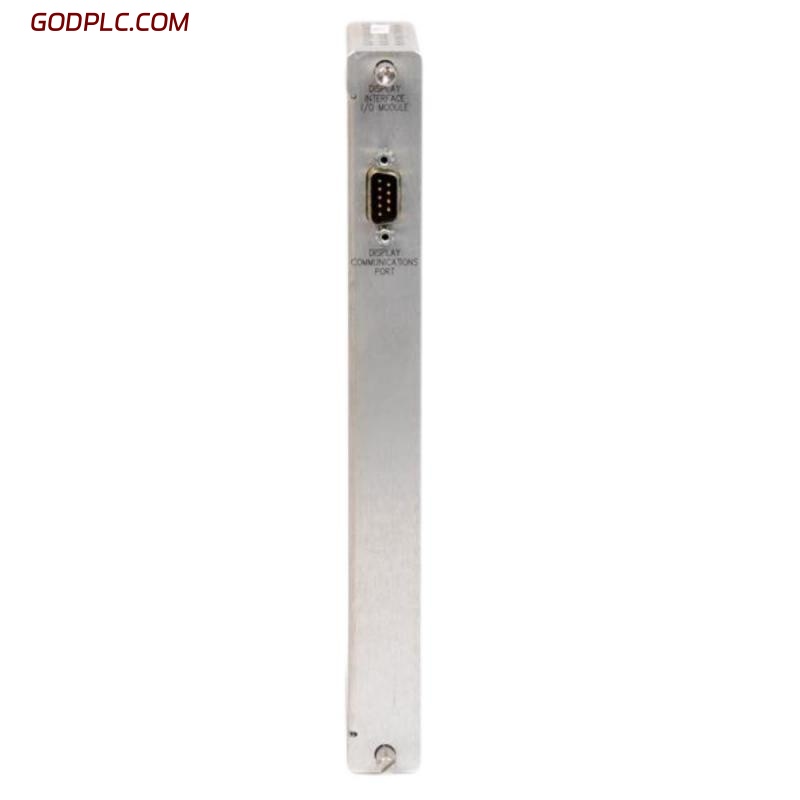

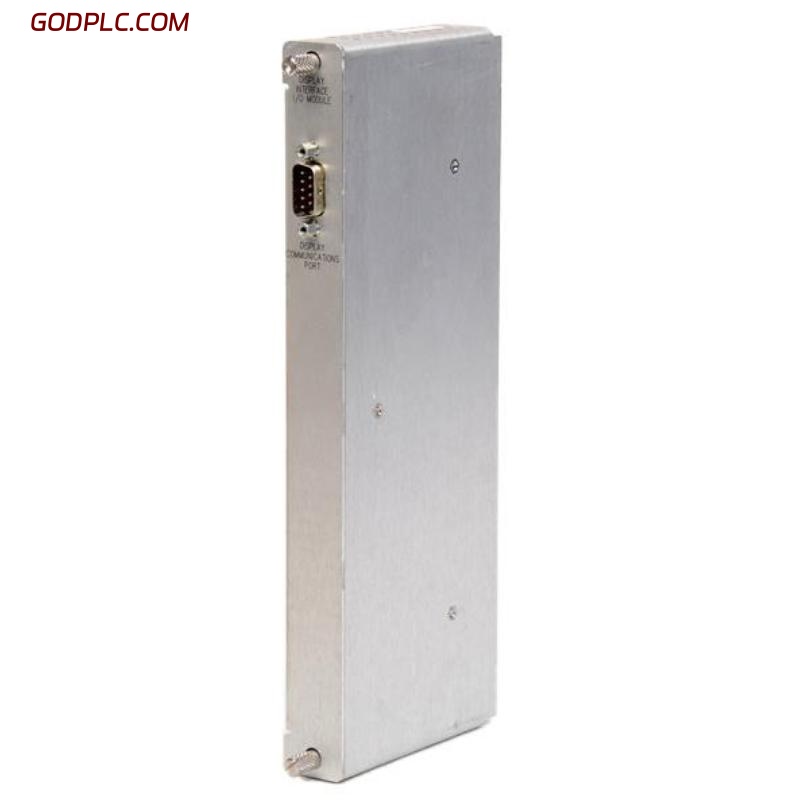

Bently Nevada 3500/93 135813-01 System Communications Gateway Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Product Overview
The Bently Nevada 3500/93 135813-01 Communications Gateway Module is a key interface component used in the 3500 Machinery Protection System.
It provides a centralized communication link between the 3500 rack and external plant control systems such as DCS (Distributed Control Systems), PLC (Programmable Logic Controllers), and System 1 Condition Monitoring Software.
This module collects all critical machinery and process data from the 3500 rack — including vibration, position, temperature, and alarm statuses — and transmits it via standard Ethernet or serial communication protocols.
The 3500/93 ensures reliable data exchange, high-speed communication, and robust integration for continuous monitoring applications in industrial environments.
Key Features
-
Interfaces the entire 3500 rack with external control systems.
-
Supports Modbus RTU (RS-232/RS-485) and Modbus TCP/IP (Ethernet) protocols.
-
Provides complete rack data, including measurement values, alarms, and OK statuses.
-
Features dual communication ports for simultaneous serial and Ethernet operation.
-
Fully compatible with Bently Nevada System 1 and other supervisory software.
-
Simple configuration using 3500 Configuration Software.
-
LED indicators on the front panel for quick communication and status monitoring.
-
High reliability for industrial operation with continuous uptime.
Technical Specifications
| Parameter | Specification | Description / Notes |
|---|---|---|
| Model Number | 3500/93 | Communications Gateway Module |
| Part Number | 135813-01 | Ethernet and Serial Interface Version |
| System Compatibility | Bently Nevada 3500 Rack | Full-height module |
| Communication Protocols | Modbus RTU (RS-232/RS-485), Modbus TCP/IP (Ethernet) | Standard industrial protocols |
| Communication Ports | 2 ports (Ethernet + Serial) | Simultaneous use supported |
| Baud Rate (Serial) | 9.6 to 115.2 kbps | User-configurable |
| Ethernet Interface | 10/100 Mbps, RJ-45 connector | Supports Modbus TCP/IP |
| Serial Interface | RS-232 / RS-485 | Selectable through configuration |
| Data Provided | Channel data, OK status, alarm and system parameters | Full rack data access |
| Power Consumption | Approx. 6 W | Typical |
| Operating Temperature Range | –30 °C to +65 °C | Continuous operation |
| Storage Temperature Range | –40 °C to +85 °C | Non-operating condition |
| Relative Humidity | 5–95% non-condensing | Industrial specification |
| Dimensions (H × W × D) | 241.3 × 24.4 × 241.8 mm (9.50″ × 0.96″ × 9.52″) | Full-height module size |
| Weight | Approx. 0.9 kg (2.0 lb) | Typical |
| Mounting Type | Full-height slot in 3500 rack | Rear I/O connection |
| LED Indicators | OK, TX/RX, CONFIG OK | Front-panel status indicators |
| Compliance | API 670, CE, CSA, ATEX | International industrial standards |
Bently Nevada 3500/93 135813-01 System Communications Gateway Module is in stock. Please contact us for a quick quote and competitive pricing.
