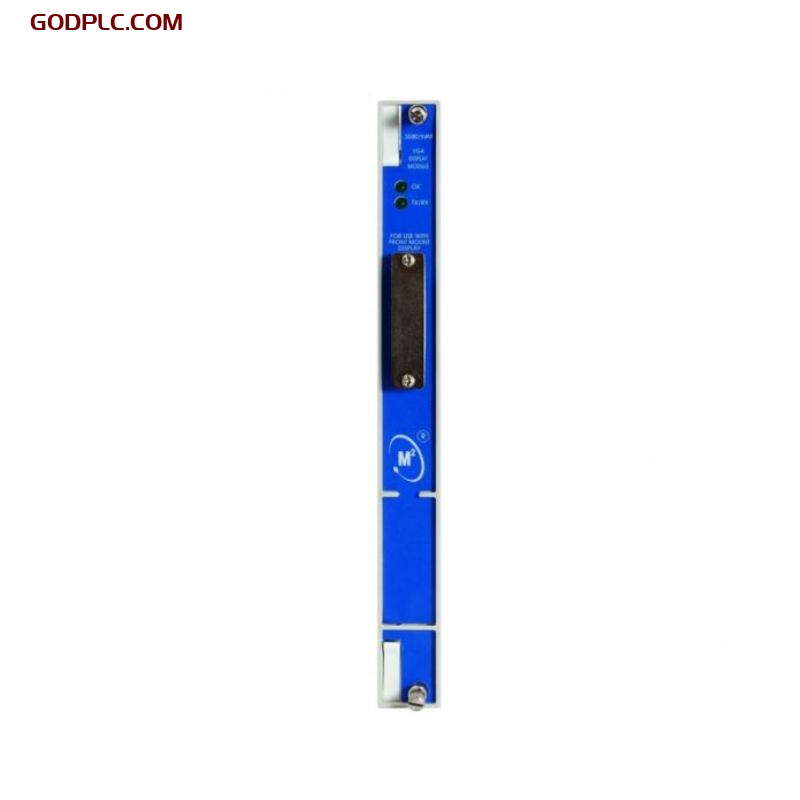

Bently Nevada 3500/94 145988-01 VGA Display Module
| Company Information | ||||||||
| sales@industrial88.com | ||||||||
| Mobile | +8617350837383 | |||||||
| +8617350837383 | ||||||||
| 17350837383 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Bently Nevada 3500/94 145988-01 VGA Display Module
Product Overview
The Bently Nevada 3500/94 (P/N 145988-01) VGA Display Module is a high-resolution external display interface for the 3500 Machinery Protection System. Designed to provide detailed visual feedback, it outputs system status, alarm conditions, and machine parameter trends to a standard VGA monitor. This module enables centralized monitoring at a glance and supports both local and remote diagnostics for critical rotating machinery systems. It is ideal for operators who require comprehensive and continuous visibility into machine health from a control room or operations center.
Key Features
-
VGA Video Output – Displays real-time data from the 3500 rack to any standard VGA-compatible monitor.
-
Flexible Interface – Presents vibration levels, temperatures, speeds, alarms, and system diagnostics in graphical or tabular formats.
-
User-Configurable Views – Customizable screen layouts for various machines and operational requirements.
-
Rack-Mounted Integration – Installs directly into the 3500 rack, minimizing installation complexity.
-
Supports Multiple Racks – Capable of displaying data from more than one 3500 rack via rack-to-rack communication.
-
Plug-and-Play – No special configuration software required for initial setup.
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 241.3 x 24.4 x 241.8 mm |
| Weight | 0.73 kg |
3.2 Electrical Characteristics
| Item | Specification |
|---|---|
| Power Supply | Via 3500 rack backplane |
| Video Output | VGA (15-pin D-Sub) |
| Output Resolution | 640 x 480 pixels (VGA standard) |
| Display Format | Text and graphics |
| Configuration | Local setup via keypad or serial port |
3.3 Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temp | 0°C to +65°C |
| Storage Temp | -40°C to +85°C |
| Humidity | 95% non-condensing max |
| Environmental Seal | IP20 standard |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Compatible Systems | Bently Nevada 3500 Series Machinery Protection System |
| Mounting | 3500 rack-mount (standard slot) |
Industry Applications
-
Oil & Gas – Delivers real-time visualization of compressor, pump, and turbine data in control rooms.
-
Power Generation – Provides graphical machine health display for turbines and generators.
-
Petrochemical & Chemical Plants – Offers alarm status and diagnostics for rotating assets.
-
Heavy Manufacturing – Enables operator interface for condition monitoring in automated systems.
-
Metals & Mining – Supports machinery condition visualization in rugged, high-load environments.
The Bently Nevada 3500/94 (145988-01) VGA Display Module enhances situational awareness and operational efficiency by bringing machinery health data directly to a standard display. Its real-time capabilities and easy integration make it a vital part of condition monitoring and protection strategies in critical industries.
Bently Nevada 3500/94 145988-01 VGA Display Module is in stock. Please contact us for a quick quote and competitive pricing.
