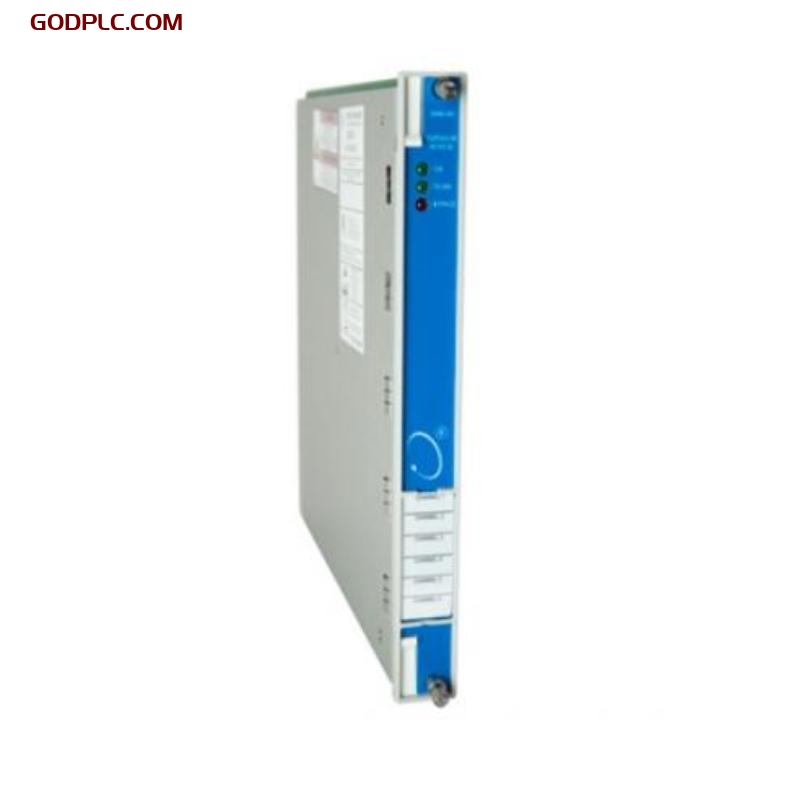

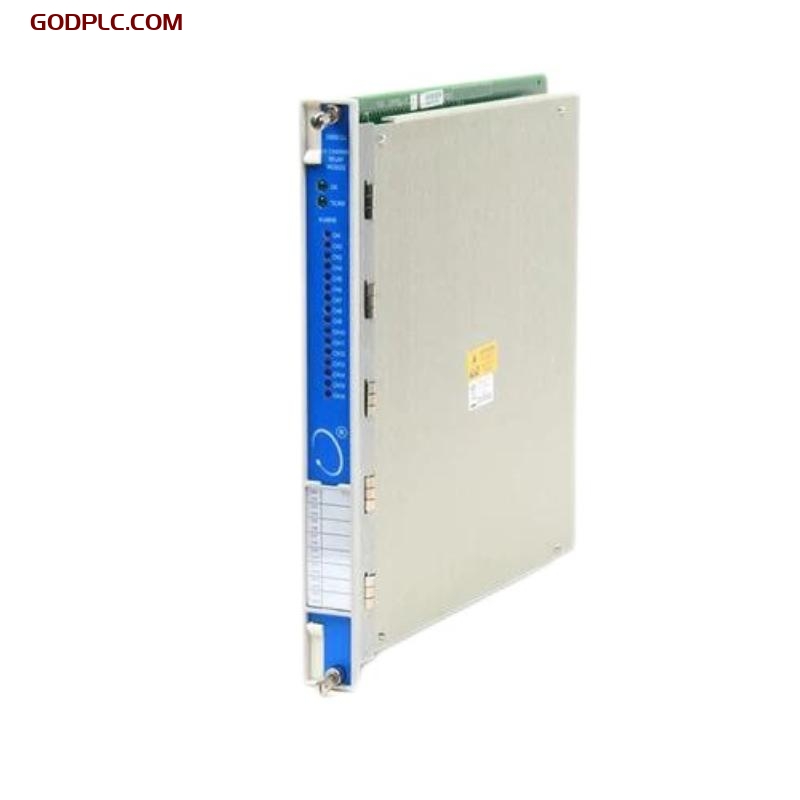

Bently Nevada 350033-01-00 16-Channel Relay Module
1. Product Overview
The Bently Nevada 350033-01-00 16-Channel Relay Module is an integral component of the Bently Nevada 3500 Series Machinery Protection and Monitoring Systems. This module is designed to provide 16 relay outputs for controlling field devices based on alarm or protection system conditions. It supports real-time response actions, enabling immediate activation of control systems in critical machinery protection applications.
The module features flexible configuration options, allowing for customization of relay logic, making it suitable for complex, high-reliability industrial environments. It is engineered to operate efficiently in harsh conditions, ensuring machinery protection and minimizing downtime in industries such as power generation, oil and gas, manufacturing, and chemicals.
2. Key Features
-
16 Independent Relay Channels: Provides up to 16 relay outputs, offering flexibility for controlling multiple field devices.
-
Alarm Drive Logic: Implements AND/OR logic for processing alarm inputs, fault conditions, and safety mechanisms.
-
Flexible Configuration: Configurable for different relay output types (NO/NC) to suit varying application requirements.
-
High-Performance Relay Contacts: Supports both AC and DC relay loads, ensuring reliable operation across different applications.
-
Durable and Reliable Design: Engineered to withstand harsh industrial environments, providing long-term performance.
-
Status Indicators: Includes LED indicators for real-time feedback on relay and system statuses, ensuring easy monitoring and diagnostics.
3. Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 241 x 24.4 x 242 mm |
| Weight | 0.7kg |
3.2 General Information
| Item | Specification |
|---|---|
| Model | 350033-01-00 |
| Manufacturer | Bently Nevada (a Baker Hughes business) |
| Product Type | 16-Channel Relay Module |
| Mounting | Rack-mountable (fits Bently Nevada 3500 Series Racks) |
| Operating Temp | -40°C to +70°C |
| Storage Temp | -40°C to +85°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
3.3 Relay Specifications
| Item | Specification |
|---|---|
| Relay Type | Single-pole, double-throw (SPDT) |
| Contact Ratings | Min. Switched Current: 100 mA at 5 Vdc Max. Switched Current: 5 A Max. Switched Power: 70 W at 24 Vdc |
| Relay Life | 10,000 cycles |
3.4 Electrical Characteristics
| Item | Specification |
|---|---|
| Power Supply | 24 V DC ±20% (via system backplane) |
| Power Consumption | Approx. 5.8 W |
| Operating Current | ≤ 0.24 A |
| Isolation | Channel-to-channel isolation |
3.5 Environmental Specifications
| Item | Specification |
|---|---|
| Sealing | Epoxy-sealed relays |
| Arc Suppression | 250 Vrms |
3.6 Approvals
| Item | Specification |
|---|---|
| CSA/NRTL-C | Class 1, Division 2 |
| ATEX/IECEx | Class 1, Zone 2 |
4. Industry Applications
The Bently Nevada 350033-01-00 16-Channel Relay Module is widely used in industries where machinery protection and real-time monitoring are critical:
-
Power Generation: Safeguards turbines, generators, and other critical equipment by enabling control over shutdown or alarm systems.
-
Oil and Gas: Ensures safe operation of machinery in upstream and downstream processes, minimizing the risk of damage to critical assets.
-
Manufacturing: Controls various automated processes by activating or deactivating field devices based on system conditions.
-
Chemical Processing: Protects reactors, compressors, and pumps by providing immediate activation of safety systems when necessary.
-
Mining: Monitors and controls heavy machinery to prevent equipment failure and enhance operational safety.
With its high reliability and flexibility, the Bently Nevada 350033-01-00 16-Channel Relay Module is an essential component in machinery protection systems, ensuring operational continuity and safety across a wide range of industrial applications.
Bently Nevada 350033-01-00 16-Channel Relay Module is in stock. Please contact us for a quick quote and competitive pricing.
