1. What is the primary function of the Bently Nevada 60R/CHA02?

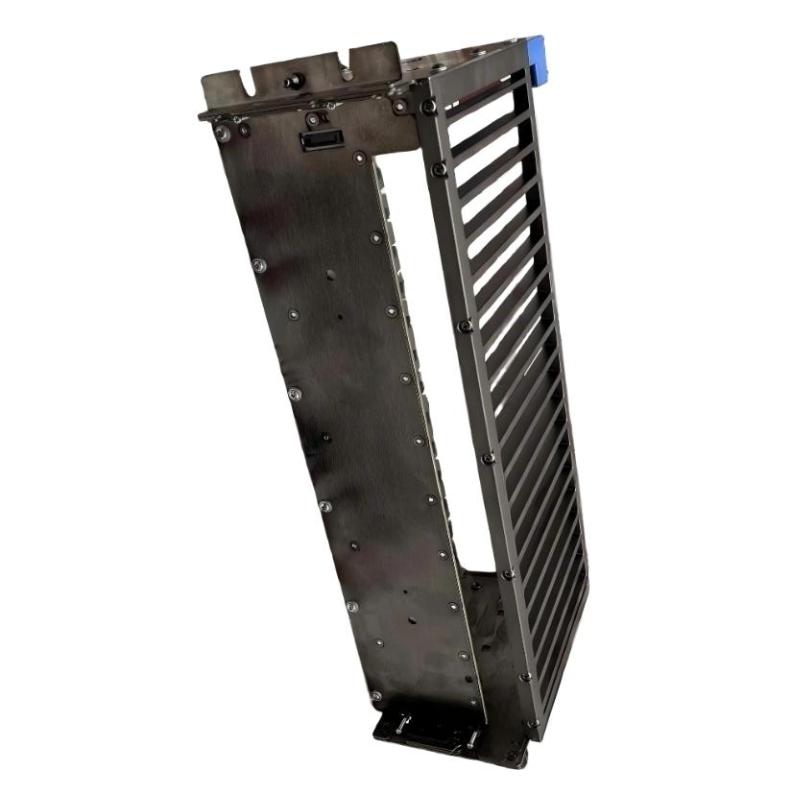

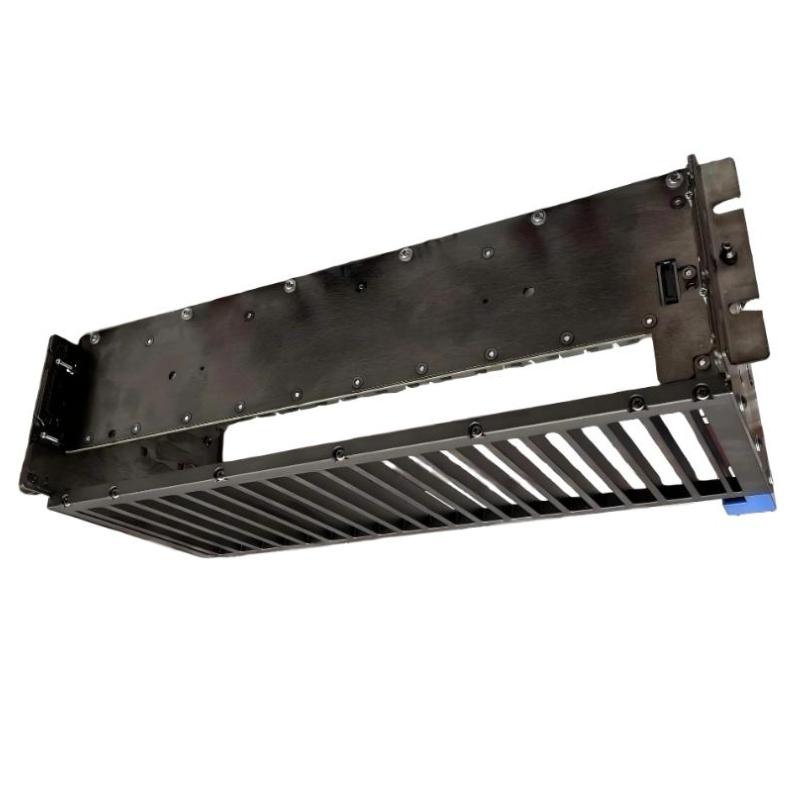

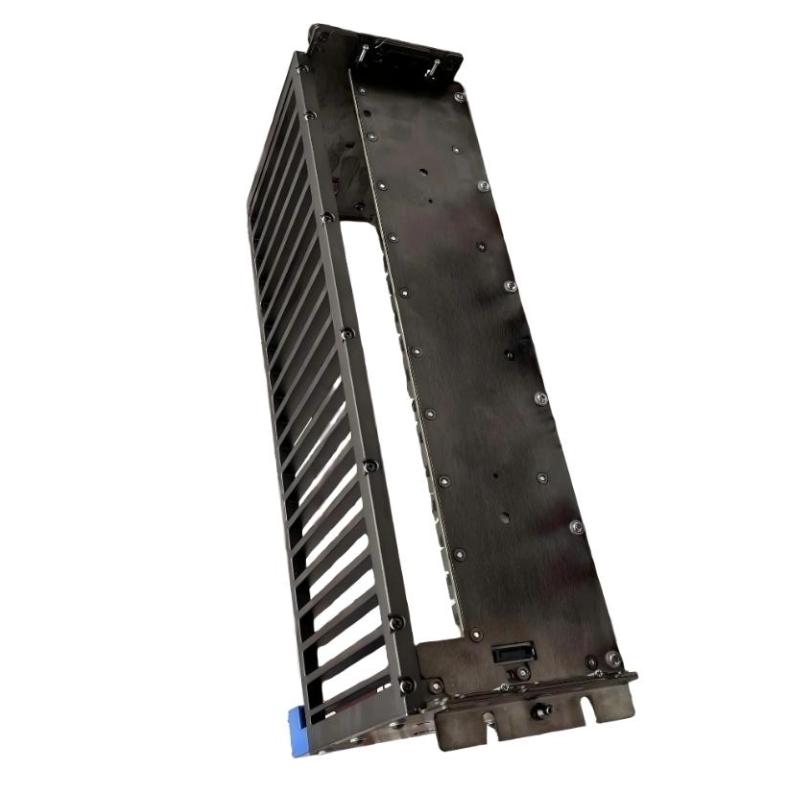

The 60R/CHA02 is a 3U panel chassis designed for the Bently Nevada Orbit 60 machinery protection and condition monitoring platform. It provides the physical mounting structure for compatible Orbit 60 system modules and is intended for installation in industrial control panels. The chassis separates the public-facing interface from the rear utility side, allowing operators and maintenance personnel to access status indicators, configuration functions, and reset controls from the front while module installation and field wiring can be handled from the rear. The 3U panel configuration provides 19 general-purpose module slots, allowing multiple monitoring, protection, communication, and system interface modules to be assembled into a single monitoring system.

2. Which Orbit 60 modules can be installed in the 60R/CHA02 chassis?

The 60R/CHA02 is designed to accommodate compatible Orbit 60 system modules, including the System Interface Module (SIM), Protection Processing Module (PPM), Condition Monitoring Module (CMM), Communications Gateway Module (CGW), Bridge Module (BRG), power input modules, input modules, and output modules. The actual module combination depends on the required machinery monitoring and protection architecture. A SIM is used to define the Orbit 60 system and provide the system-level interface, while a PPM performs protection processing and alarm determination. Other modules can provide condition monitoring, communication, signal input, relay output, or system expansion functions. When configuring the chassis, module compatibility, power requirements, available slots, communication architecture, and required protection functions should all be considered.

3. How are modules installed in the 60R/CHA02?

Orbit 60 modules are installed from the utility or rear side of the chassis, while the front side provides the operator-facing interface. This arrangement is useful for industrial control cabinets because field wiring can remain organized at the rear while status information and operating controls remain accessible from the front. During installation, the chassis should first be securely mounted into the panel and properly grounded according to the system installation requirements. Each module should then be positioned in its designated slot and inserted carefully to ensure that the electrical connectors are properly engaged. Field wiring should be completed from the utility side using the appropriate terminal and cable arrangements. Before applying power, verify module positions, wiring, power connections, grounding, and system configuration to avoid commissioning problems.

4. What front-panel functions are available on the 60R/CHA02?

The front side of the Orbit 60 chassis is designed to provide access to important system interface functions. Depending on the installed front-panel configuration and associated system modules, the operator-facing area can provide status LEDs, a configuration interface, a Config/Run key, and a reset button. Status indicators provide quick information about system and module operating conditions, while the configuration interface can be used during commissioning and maintenance. The Config/Run function helps control whether configuration changes are permitted, reducing the possibility of unintended changes during normal operation. The reset function can be used to clear applicable latched alarm and NOT OK conditions. These features allow maintenance personnel to perform basic system checks without disconnecting the installed modules.

5. What is the difference between the 60R/CHA02 and other Orbit 60 chassis configurations?

The 60R/CHA02 is the 3U panel-mounted version of the Orbit 60 chassis family. Other configurations are designed for different mounting requirements, such as standard rack mounting or bulkhead installation. The 3U panel version is intended to be secured directly into a suitable control-panel cutout using the specified mounting arrangement. The 3U chassis architecture provides 19 general-purpose slots, making it suitable for systems requiring multiple protection and monitoring modules within a standard industrial cabinet. The choice between panel, rack, and bulkhead configurations should be based on cabinet design, accessibility, environmental protection requirements, wiring arrangement, and available installation space. The actual monitoring functions depend on the modules installed rather than the chassis alone.

6. What environmental conditions should be considered when installing the 60R/CHA02?

The 60R/CHA02 is designed for industrial indoor applications and has an operating temperature range of approximately -30 to +70 °C under the specified system conditions. Storage temperature can extend from approximately -40 to +85 °C. Relative humidity should remain within the specified non-condensing range, and the installation environment should be protected from excessive dust, moisture, corrosive substances, and conductive contamination. The chassis and installed modules should also be protected against excessive mechanical vibration and shock. When operating in elevated-temperature environments, appropriate cabinet ventilation or forced-air cooling may be required to keep the installed electronics within their allowable operating limits. Environmental conditions should be evaluated for the complete Orbit 60 system because individual modules and power components can have their own operating limitations.

7. How should the 60R/CHA02 be maintained during long-term operation?

Maintenance should focus on mechanical mounting, electrical connections, environmental conditions, and the condition of installed modules. Periodically inspect the chassis mounting hardware to ensure that vibration has not loosened the panel installation. Check the rear utility-side wiring for loose terminals, damaged insulation, corrosion, or signs of overheating. The front-panel indicators should also be monitored for abnormal status conditions, and any recurring NOT OK or alarm indication should be investigated rather than repeatedly reset. The cabinet should remain clean and adequately ventilated so that installed modules can dissipate heat effectively. During maintenance, avoid removing modules unnecessarily because repeated insertion and removal can place mechanical stress on connectors. A planned inspection schedule based on the operating environment, criticality of the monitored machinery, and system duty cycle can help maintain reliable monitoring and protection performance.

8. Can the 60R/CHA02 be used as part of a larger Orbit 60 monitoring system?

Yes. The 60R/CHA02 can form part of an Orbit 60 system containing multiple functional modules and, where required, multiple chassis. A System Interface Module can define the system, while protection processing, condition monitoring, communication, input, output, and bridge functions can be added according to the application. Orbit 60 architecture allows multiple chassis to be connected through appropriate bridge functionality, making it possible to build a larger machinery protection and condition monitoring installation. This is useful for applications involving multiple machines or machine trains where vibration, position, speed, process, and protection information needs to be collected within a coordinated monitoring architecture. The final configuration should be planned around the required measurement channels, protection logic, communications, power capacity, module compatibility, and plant control-system interfaces.
