1. What is the primary function of the 60R/INP01-00-0 Dynamic Input Module?

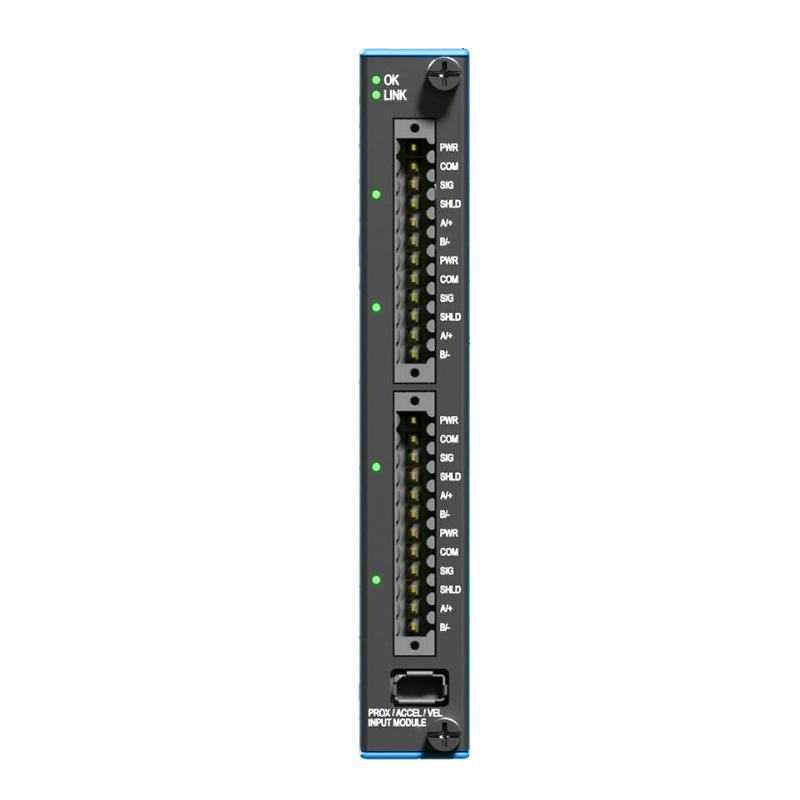

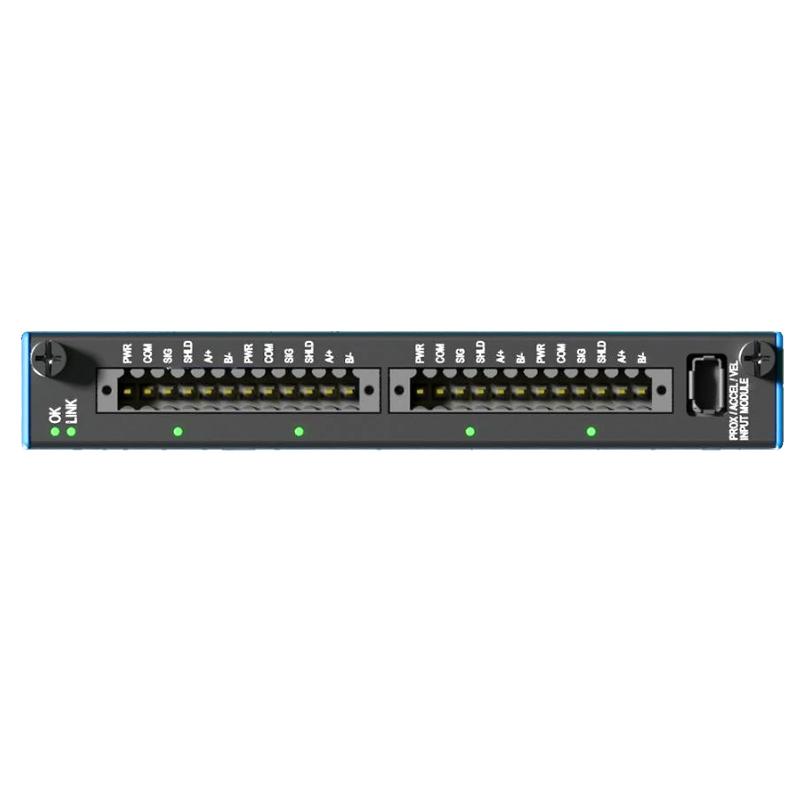

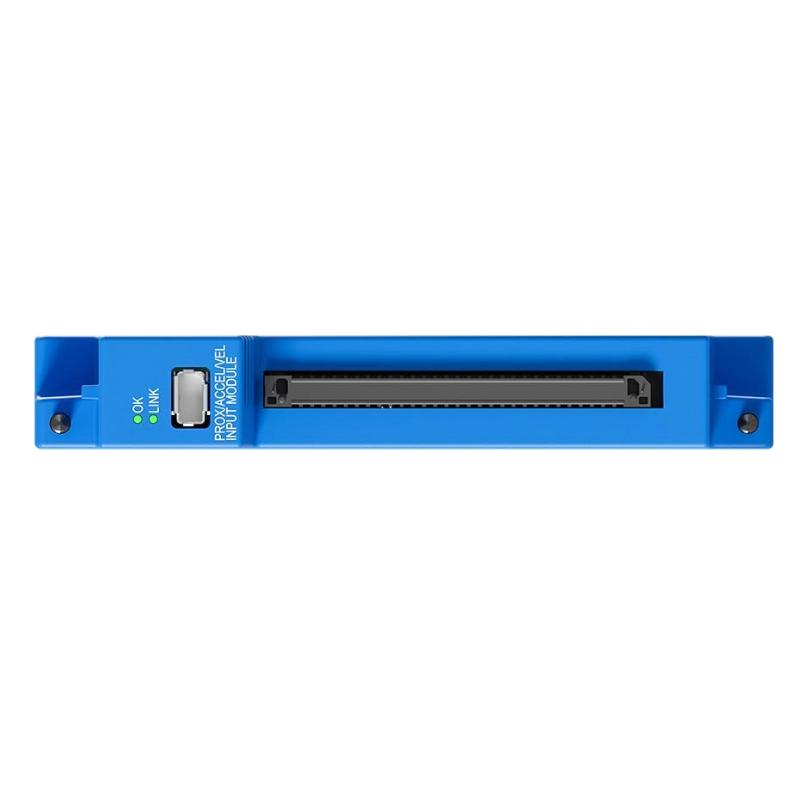

The 60R/INP01-00-0 is a four-channel Dynamic Input Module designed for the Bently Nevada Orbit 60 machinery protection and condition monitoring system. Its main function is to receive dynamic analog signals from compatible field sensors, digitize and process those signals, and make the resulting measurement information available to the Orbit 60 system. The module can be used with suitable eddy-current displacement probes, accelerometers, and Velomitor velocity sensors. It can therefore support measurements such as shaft displacement, radial vibration, axial vibration, and vibration velocity. The module also provides power for compatible dynamic sensors and can provide true analog buffered outputs through the appropriate BTO connection. In rotating machinery applications, the INP01 provides an important interface between field sensors and the Orbit 60 monitoring and protection architecture.

2. Which sensors are compatible with the 60R/INP01-00-0?

The 60R/INP01-00-0 is primarily designed for compatible negative-voltage dynamic sensors. Typical applications include 3-wire negative-voltage eddy-current proximity probes, 3-wire negative-voltage accelerometers, and 2-wire Velomitor velocity sensors. These sensor types allow the module to handle different machinery measurements, including shaft displacement, vibration acceleration, and vibration velocity. Sensor selection should not be based only on the parameter being measured. The electrical characteristics, power requirements, signal polarity, wiring arrangement, and interface of the sensor must also be compatible with the input module. When replacing an existing sensor or using a different sensor manufacturer, engineers should verify the complete electrical requirements before making the connection. Incorrect sensor matching can cause unstable measurements, channel alarms, incorrect signal levels, or complete loss of the expected measurement.

3. How many dynamic input channels does the 60R/INP01-00-0 provide?

The 60R/INP01-00-0 provides four dynamic input channels. Each channel can be assigned to an appropriate compatible dynamic sensor according to the machinery monitoring design. A four-channel configuration is suitable for monitoring multiple points on a rotating machine, such as radial vibration at different bearings, axial position, or other dynamic measurements. Each input channel has an individual status indication, making it easier for maintenance personnel to identify an abnormal channel. When configuring the system, the four channels should be assigned according to the actual machinery monitoring requirements, and the sensor type configured for each channel should match the sensor installed in the field. If more than four dynamic measurement points are required, additional compatible Orbit 60 input modules can be used, provided that the chassis capacity, power requirements, and overall system architecture are suitable.

4. Can the 60R/INP01-00-0 be used for Keyphasor signal acquisition?

Yes. Applicable dynamic input channels of the 60R/INP01-00-0 can be used for rotational speed and Keyphasor-related signal acquisition. A Keyphasor signal provides a rotational reference that is important for vibration phase analysis, rotor diagnostics, and shaft dynamic measurements. The module can support up to two speed channels, with a maximum speed of 12,000 rpm and a maximum speed pulse frequency of 12,000 cpm, equivalent to 200 Hz. If the application requires more speed channels or a rotational speed or pulse frequency above these limits, a dedicated high-speed Keyphasor module should be considered. When configuring a Keyphasor input, the connected sensor, signal characteristics, wiring, and software configuration must all be checked. A stable and correctly synchronized rotational reference is essential for accurate phase-related machinery analysis.

5. Can the 60R/INP01-00-0 supply power directly to dynamic sensors?

Yes. The 60R/INP01-00-0 includes sensor power supply functionality for compatible dynamic sensors. This allows supported field sensors to receive the required operating power through the input module without requiring a separate power source for every sensor circuit. However, different sensor technologies have different electrical requirements, so the sensor’s power requirements and interface must be verified before installation. This is especially important when replacing existing sensors or introducing sensors from another manufacturer. Engineers should confirm the sensor’s power requirements, signal polarity, wiring configuration, and output characteristics against the INP01 requirements. For hazardous-area applications, the complete sensor circuit may also require an appropriate external electrical isolator and certified configuration. Correct sensor power and interface matching are essential for stable measurements and reliable channel operation.

6. What is the purpose of the BTO buffered output on the 60R/INP01-00-0?

The BTO buffered output provides access to the true analog sensor signal from the dynamic input channel. This can be useful when engineers need to connect external test or analysis equipment to examine the actual sensor signal during commissioning, maintenance, or troubleshooting. Because the buffered output provides the analog signal from the sensor input, it can be used to verify whether the signal reaching the monitoring system is behaving as expected. For example, if a displayed vibration value appears abnormal, engineers can use the buffered signal as an additional diagnostic reference to determine whether the problem originates from the sensor, field wiring, input configuration, or subsequent signal processing. The BTO connection should be used according to the applicable system wiring and connection requirements, and any external test equipment should be compatible with the available buffered signal interface.

7. How should abnormal vibration signals from the 60R/INP01-00-0 be troubleshot?

When an abnormal vibration signal is detected, troubleshooting should normally begin with the field sensor and wiring rather than immediately replacing the input module. First check that the sensor is correctly positioned and securely mounted. Then inspect the sensor cable for open circuits, short circuits, damaged insulation, shielding problems, or poor connector contact. The installed sensor model should also be compared with the configured input type to ensure that the electrical characteristics are compatible. Next, review the channel status, measurement value, and dynamic waveform through the Orbit 60 system. If only one channel is abnormal while other channels operate normally, the sensor and field wiring associated with that channel should receive particular attention. If the sensor and cable are confirmed to be healthy, check the module connection, channel configuration, buffered output, and input hardware. Following this sequence makes it easier to distinguish sensor faults, cable problems, configuration errors, and actual module failures.

8. What do the “00-0” suffixes in 60R/INP01-00-0 indicate?

The “00-0” suffix identifies the certification and safety configuration of this specific 60R/INP01 ordering version. The first “00” indicates that this configuration does not include hazardous-area certification, while the final “0” indicates that it is not configured with a SIL certification level. Therefore, the complete part number must be considered when determining whether a particular INP01 module is suitable for a specific installation. For applications in oil and gas, petrochemical, power generation, or other potentially hazardous industrial environments, the module certification must be checked against the hazardous-area classification and project requirements. Similarly, if the machinery protection system requires a specific functional safety level, a suitable SIL-configured version should be selected. When purchasing a replacement, engineers should compare the complete model number rather than relying only on the basic INP01 designation.
