1. What is the primary function of the 60R/INP01 Dynamic Input Module?

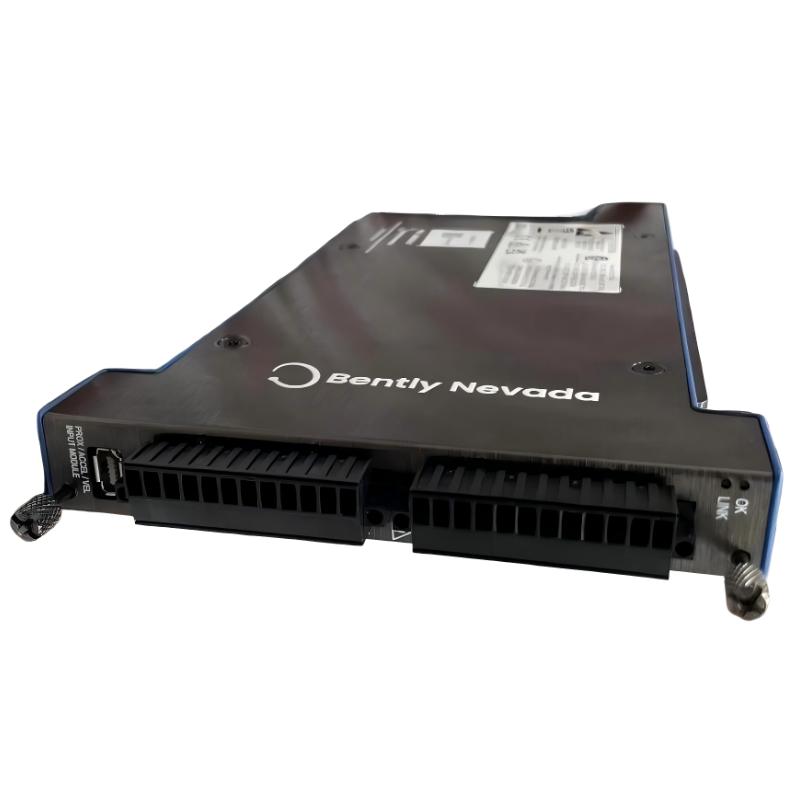

The 60R/INP01 is a four-channel Dynamic Input Module designed for the Bently Nevada Orbit 60 machinery protection and condition monitoring system. Its primary function is to receive dynamic signals from compatible machinery sensors, digitize and process the incoming analog signals, and provide the acquired information to the Orbit 60 system. The module can also provide the required power for compatible dynamic sensors. It is intended for applications involving eddy-current displacement probes, accelerometers, Velomitor velocity sensors, and other supported negative-voltage dynamic sensors. The collected information can be used for vibration, displacement, velocity, and overall machinery condition monitoring. This makes the INP01 an important interface between field-mounted dynamic sensors and the Orbit 60 monitoring and protection architecture.

2. Which sensors are compatible with the 60R/INP01?

The 60R/INP01 is designed primarily for compatible negative-voltage dynamic sensors. Typical supported sensor types include 3-wire negative-voltage eddy-current proximity probes, 3-wire negative-voltage accelerometers, and 2-wire Velomitor velocity sensors. These sensor types allow the module to support different machinery measurements, including shaft displacement, vibration acceleration, and vibration velocity. Sensor selection must always be based on the electrical characteristics and interface requirements of the specific sensor rather than simply the measurement type. During installation, engineers should verify sensor wiring, power requirements, signal polarity, and compatibility with the selected input configuration. If a sensor from another manufacturer is considered, its electrical characteristics should be carefully compared with the INP01 input requirements before connection. Incorrect sensor matching can result in unstable measurements, channel alarms, incorrect signal levels, or complete loss of measurement.

3. How many input channels does the 60R/INP01 provide?

The 60R/INP01 provides four dynamic input channels. Each channel can be used for an appropriate compatible dynamic sensor according to the system configuration. A four-channel arrangement is useful for monitoring multiple measurement locations on the same machine, such as radial vibration at different bearing positions, axial displacement, or other dynamic parameters. Each channel has its own status indication, allowing maintenance personnel to identify abnormal channel conditions more easily. When configuring the system, engineers should assign each channel according to the actual machinery monitoring plan and verify that the selected sensor type and measurement function correspond correctly to the channel configuration. If more than four dynamic measurement points are required, additional compatible Orbit 60 input modules can be incorporated into the overall system architecture, subject to chassis capacity and system design requirements.

4. Can the 60R/INP01 be used for Keyphasor signals?

Yes. Applicable dynamic input channels of the 60R/INP01 can be used for rotational speed or Keyphasor-related signal acquisition when the connected sensor and system configuration meet the required electrical characteristics. A Keyphasor signal provides a rotational reference that is important for phase-related vibration analysis, shaft position analysis, and rotor diagnostics. Accurate phase reference information allows engineers to relate vibration behavior to the rotational position of the machine shaft. When using an INP01 channel for this purpose, the sensor type, signal characteristics, wiring arrangement, and system configuration should be verified carefully. For applications requiring specialized high-speed Keyphasor functions or specific signal-processing requirements, the appropriate dedicated Orbit 60 module should be selected according to the system design. Proper configuration is essential to ensure that the acquired rotational reference is reliable and synchronized with the associated dynamic measurements.

5. How can the 60R/INP01 be used to determine whether a sensor channel is operating correctly?

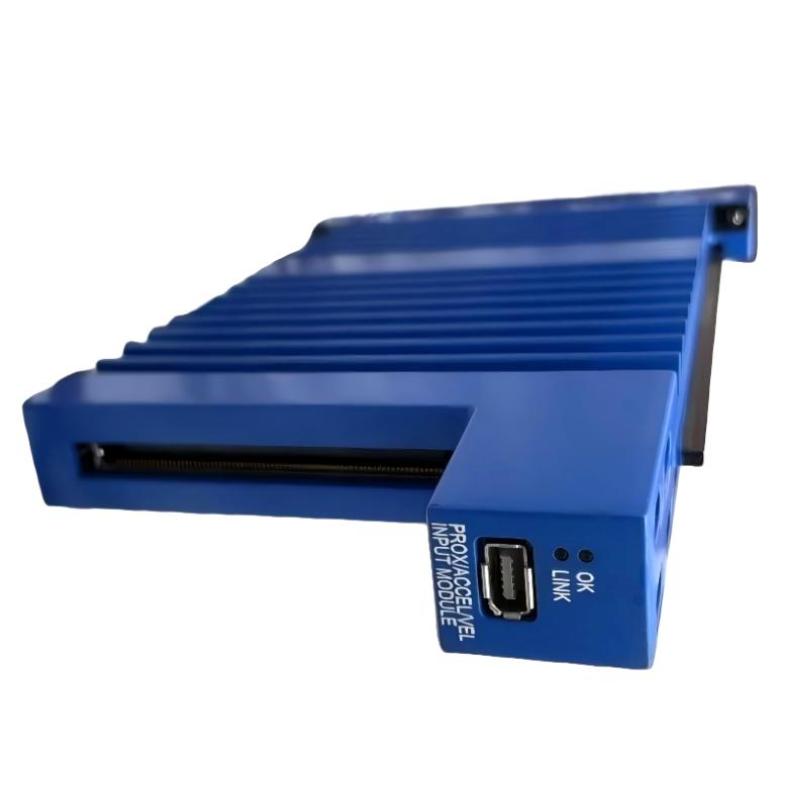

The 60R/INP01 provides module and channel status indications that can help maintenance personnel perform an initial assessment of system health. The module OK indicator provides information about the operating condition of the module, while the LINK indicator provides information about communication with the Orbit 60 system. Individual channel indicators provide additional information about the associated dynamic input channels. If a channel reports an abnormal condition, the first step should normally be to inspect the associated sensor, field wiring, connectors, and sensor power supply. The sensor type configured in the system should also be compared with the sensor actually installed in the field. If the physical installation appears correct, engineers can use the Orbit 60 system software to review the channel status, measurement values, and dynamic waveform information. Combining front-panel indications with system diagnostics makes it easier to determine whether the problem originates from the sensor, wiring, configuration, or input module.

6. Can the 60R/INP01 provide power directly to dynamic sensors?

Yes. The 60R/INP01 includes sensor power supply functionality for compatible dynamic sensors. This allows supported sensors to obtain the operating power required for signal generation without requiring a separate power source for every sensor circuit. However, the power requirements vary between different sensor technologies, so the exact sensor type and electrical interface must be verified before installation. This is particularly important when replacing existing sensors or introducing sensors from a different supplier. Engineers should check the sensor’s power requirements, signal polarity, wiring configuration, and operating range against the INP01 specifications. For hazardous-area installations, the complete sensor circuit may also require an appropriate external electrical isolator or certified interface. Correct sensor power and isolation arrangements are essential for obtaining stable measurements and maintaining compliance with the overall machinery monitoring system design.

7. How should abnormal vibration signals from the 60R/INP01 be troubleshot?

When an INP01 channel produces an abnormal vibration signal, troubleshooting should normally begin with the field sensor and wiring rather than immediately replacing the input module. First inspect the sensor mounting and verify that the sensor is correctly positioned and securely installed. Then check the sensor cable for open circuits, short circuits, damaged insulation, shielding problems, or poor connector contact. The sensor model and electrical characteristics should also be checked against the configured input type. After the physical checks, review the corresponding channel status, measurement value, and waveform through the Orbit 60 system. If only one channel shows abnormal behavior while other channels operate normally, the investigation should focus initially on the affected sensor and its wiring. If the sensor and cable are confirmed to be healthy but the abnormal condition remains, check the module connection, channel configuration, and input hardware. This step-by-step approach helps distinguish between sensor faults, cable problems, configuration errors, and actual module failures.

8. What hazardous-area and SIL configurations are available for the 60R/INP01?

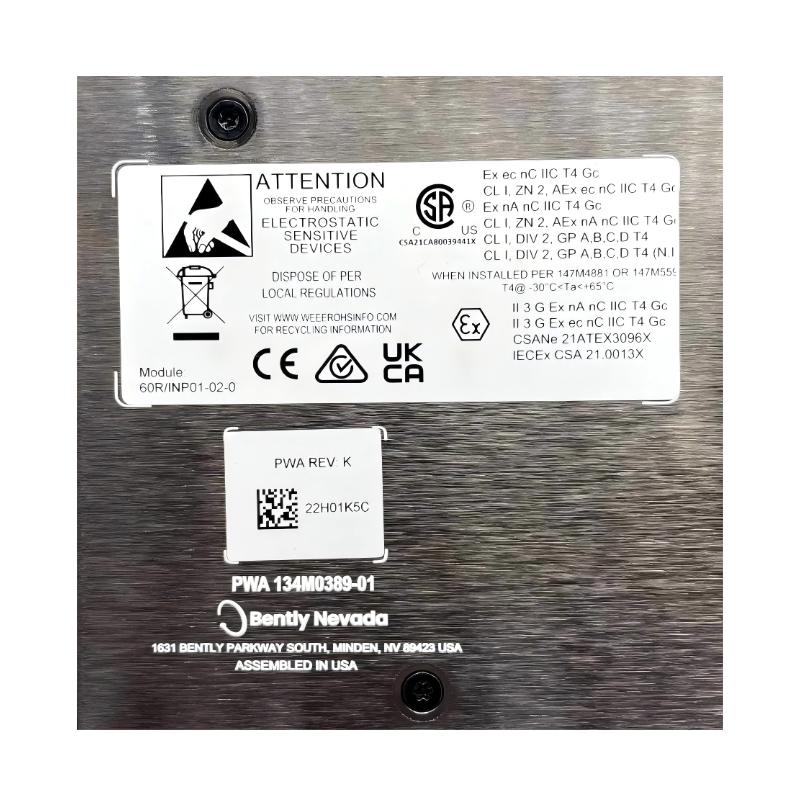

The 60R/INP01 can be supplied in different ordering configurations to meet specific hazardous-area and functional-safety requirements. Depending on the selected configuration, available certification options may include non-hazardous-area applications as well as applicable CSA/NRTL/C, ATEX, IECEx, and other regional certification arrangements. SIL-related configurations can also be selected according to the requirements of the overall safety system. The exact certification and safety capability must be determined from the complete ordering code rather than from the basic INP01 model name alone, because different suffixes can represent different certification and application configurations. Before purchasing a replacement module, engineers should compare the complete part number with the existing system requirements, hazardous-area classification, installation conditions, and required safety integrity level. This is especially important in oil and gas, petrochemical, power generation, and other critical industrial installations where both equipment compatibility and certification compliance are required.
