1. What is the primary function of the Bently Nevada 60R/INP07 RTD/TC Temperature Module?

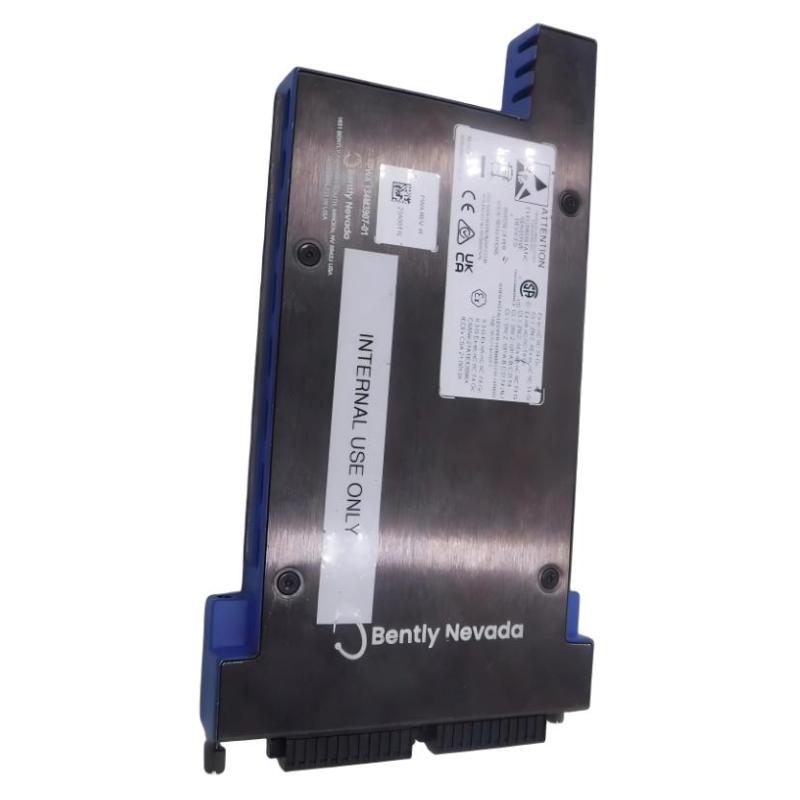

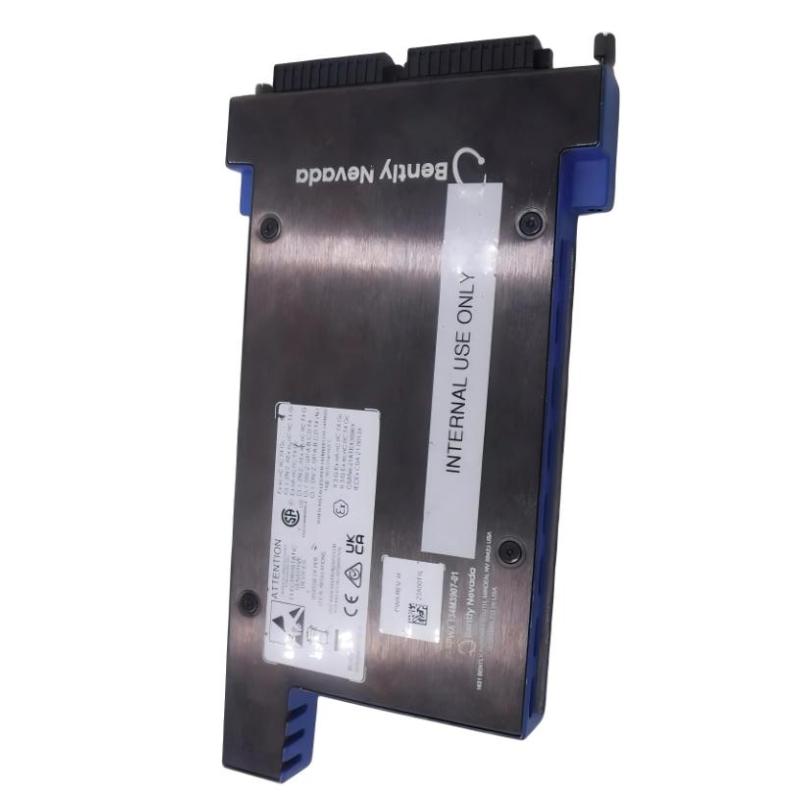

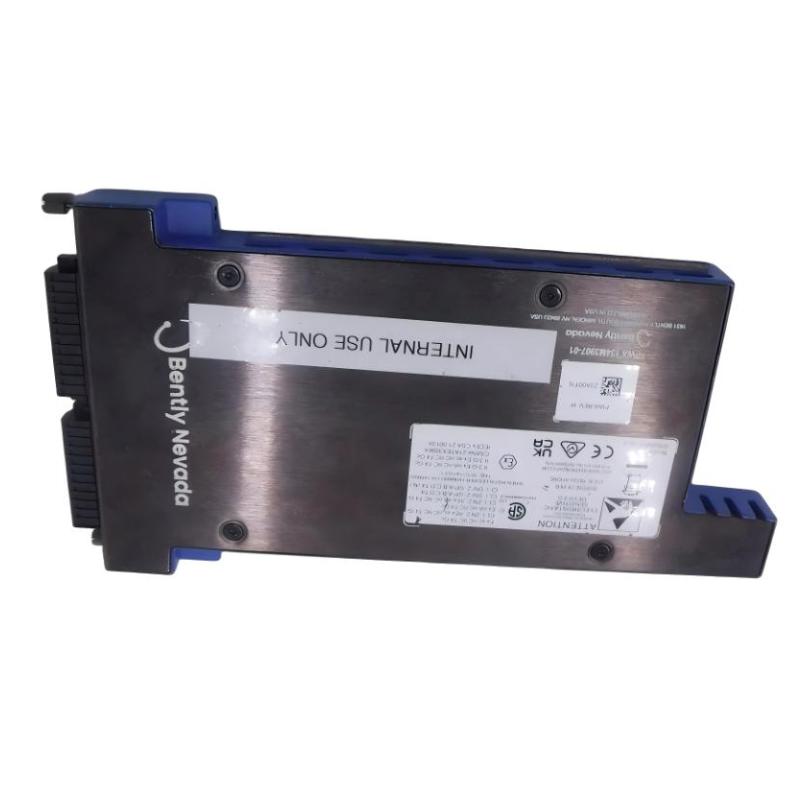

The 60R/INP07 is a six-channel temperature input module designed for the Bently Nevada Orbit 60 machinery protection and condition monitoring system. Its primary function is to receive temperature signals from RTD and thermocouple sensors, condition the incoming signals, convert them into digital data, and provide the processed measurements to the Orbit 60 system. Each of the six channels can be configured independently according to the connected sensor type and required measurement range. This makes the module suitable for monitoring temperatures at multiple points on rotating machinery and associated equipment. Typical applications include bearing temperature, casing temperature, winding temperature, process temperature, and other parameters that need continuous monitoring. The temperature measurements can also be compared with configured alarm limits to support machinery protection and condition monitoring functions.

2. Which thermocouple types are supported by the 60R/INP07?

The 60R/INP07 supports Type J, Type K, Type E, and Type T thermocouples. The thermocouple channels include cold junction compensation, allowing the system to compensate for the reference junction temperature when calculating the actual measured temperature. Each input channel can be individually configured for the required thermocouple type and measurement range through Orbit Studio configuration software. When selecting a thermocouple for a specific application, engineers should consider the expected temperature range, sensor construction, installation environment, response requirements, and cable characteristics. Using the correct thermocouple type in the software is particularly important because different thermocouple materials produce different voltage-temperature characteristics. If the physical sensor type and software configuration do not match, the displayed temperature can be significantly inaccurate even though the electrical connection appears normal.

3. Which RTD sensors can be used with the 60R/INP07?

The 60R/INP07 supports several common RTD configurations, including Pt100 with 0.00385 and 0.00392 temperature coefficients, Ni120, and Cu10. These RTD types allow the module to be used for a wide range of industrial temperature monitoring applications. Each channel can be configured according to the RTD type and required measurement range. Pt100 sensors are commonly used where stable and accurate temperature measurement is required, while other RTD types can be selected according to existing plant instrumentation standards or specific equipment requirements. Before installation, the RTD sensor characteristics should be confirmed and matched with the configuration in Orbit Studio. Incorrect selection of the RTD type or temperature coefficient can introduce measurement errors because the resistance-temperature relationship differs between sensor standards.

4. Can the six channels of the 60R/INP07 be configured independently?

Yes. Each of the six input channels can be configured individually for the applicable sensor type and measurement range. This provides considerable flexibility when different temperature sensors are installed on the same machine or within the same monitoring system. For example, one channel can be configured for a Type K thermocouple while another channel can be configured for a Pt100 RTD, provided that the overall wiring and system configuration are appropriate. Independent channel configuration is particularly useful for machinery where several temperature measurement technologies are required. During commissioning, each channel should be checked against the actual sensor installed in the field, including sensor type, range, wiring, and alarm settings. Proper channel configuration helps prevent incorrect temperature readings and makes troubleshooting much easier when a sensor or wiring problem occurs.

5. Why does the 60R/INP07 require temperature transducers to be isolated at the sensing end?

The RTD/TC inputs of the 60R/INP07 are referenced to the internal system ground. Because of this design, the connected temperature transducers should be electrically isolated at the sensing end. This requirement helps prevent unwanted ground loops and electrical interference from entering the temperature measurement circuit. A ground loop or unintended electrical connection between the sensor and machinery can introduce measurement offsets, unstable readings, or other signal-quality problems. During installation, engineers should therefore verify whether the selected RTD or thermocouple has the appropriate isolation characteristics for the application. If the field installation cannot provide the required isolation, an appropriate external barrier or galvanic isolation solution may be required depending on the system configuration and site requirements. Correct grounding and isolation practices are especially important in large industrial facilities where multiple electrical systems share common equipment grounds.

6. What is the purpose of cold junction compensation in the 60R/INP07?

Cold junction compensation is used with thermocouple measurements because a thermocouple produces a voltage based on the temperature difference between its measurement junction and reference junction. The 60R/INP07 provides cold junction compensation for supported Type J, K, E, and T thermocouples. The compensation allows the system to account for the temperature at the reference connection and calculate a more accurate representation of the actual process or machinery temperature. Without appropriate cold junction compensation, the measured temperature could contain an error related to changes in the reference junction temperature. This function is particularly important in industrial machinery monitoring because the temperature around the monitoring cabinet or termination area may change during operation. Proper thermocouple wiring and correct channel configuration remain essential because cold junction compensation cannot correct errors caused by incorrect sensor type, wiring mistakes, or damaged thermocouple connections.

7. How should an abnormal temperature reading from the 60R/INP07 be troubleshot?

When a temperature measurement from the 60R/INP07 appears abnormal, troubleshooting should begin by checking the sensor and field wiring. First confirm that the RTD or thermocouple is installed correctly and that its physical condition is satisfactory. Inspect the cable, terminals, connectors, and shielding for loose connections, open circuits, short circuits, or damage. Next verify that the sensor type configured for the corresponding channel matches the actual sensor installed in the field. For RTD inputs, confirm the correct RTD type and temperature coefficient; for thermocouples, confirm the correct J, K, E, or T configuration. The channel status LED and module OK indicator should also be checked for abnormal conditions. If the physical sensor and wiring are normal, use Orbit Studio and the Orbit 60 system diagnostics to review the channel configuration and measured value. Comparing the affected channel with other temperature channels can also help determine whether the problem is isolated to the sensor circuit or related to the module or system configuration.

8. What hazardous-area and SIL configurations are available for the 60R/INP07?

The 60R/INP07 can be supplied with different certification and safety configurations depending on the ordering option. The hazardous-area options include a configuration with no hazardous-area certification, a CSA/NRTL/C Class I Division 2 configuration, and a multi-certification configuration covering applicable CSA, ATEX, and IECEx requirements. SIL options include No SIL and SIL 2 configurations. The exact certification and safety capability must be determined from the complete ordering configuration rather than from the basic 60R/INP07 model designation alone. Before installing or replacing a module in a hazardous industrial environment, engineers should verify the area classification, required certification, sensor barrier or isolator arrangement, and overall system safety requirements. If the temperature monitoring function forms part of a safety-related system, the selected SIL configuration must also be consistent with the safety architecture and requirements of the complete Orbit 60 installation.
