1. What is the primary function of the 60R/PIM01 Power Input Module?

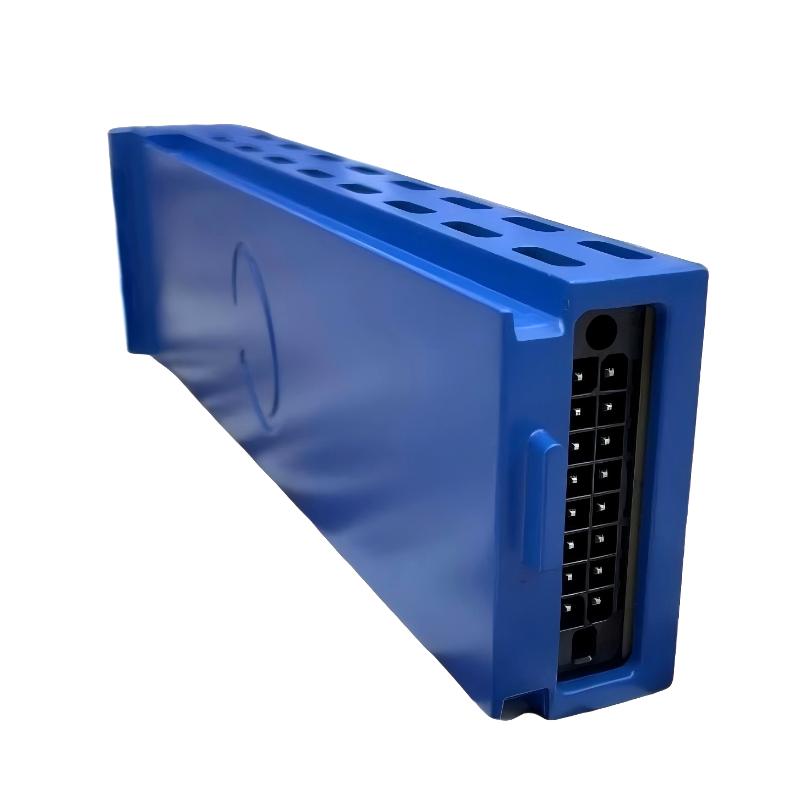

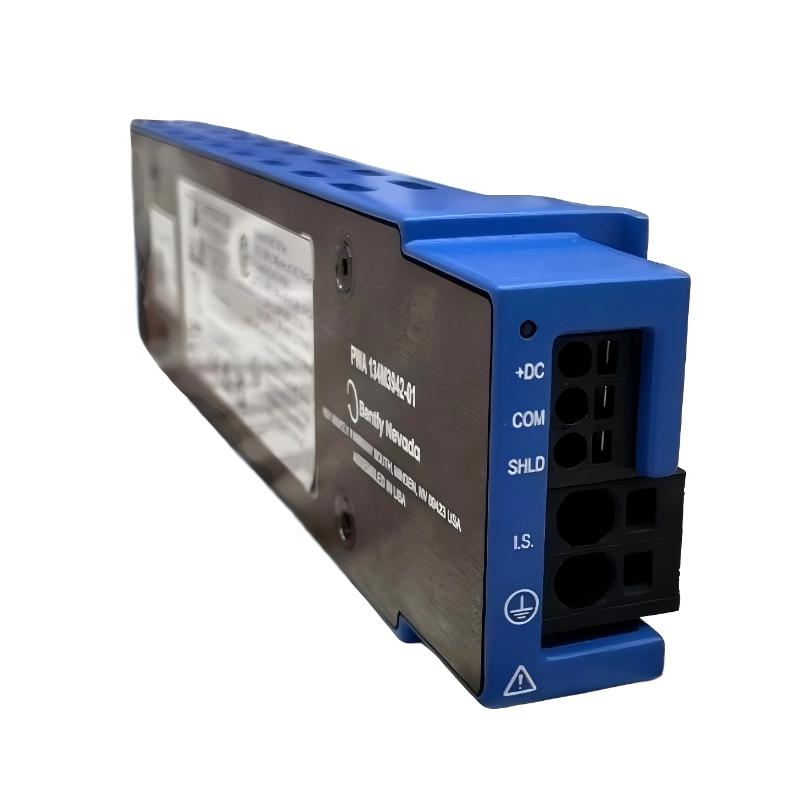

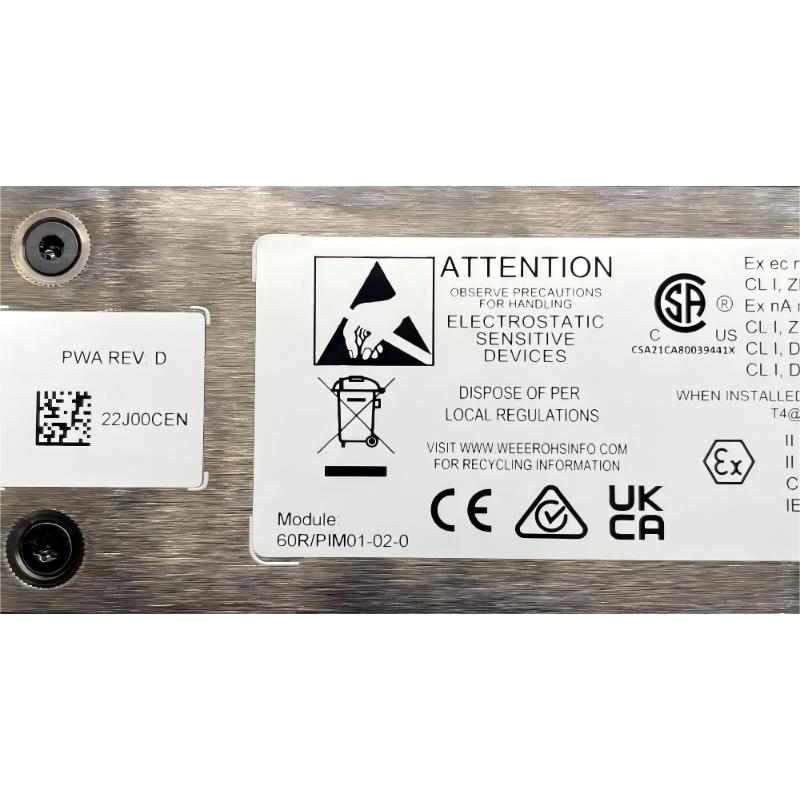

The 60R/PIM01 is the dedicated 3U Power Input Module for the Bently Nevada Orbit 60 Series system. Its main purpose is to receive external DC power and provide the appropriate power connection to the Orbit 60 chassis. The module accepts an external DC supply in the +21 to +32 VDC range, with +24 VDC being the typical operating supply. The PIM is installed in a dedicated power-input position and forms the interface between the external plant power supply and the internal Orbit 60 system electronics. Unlike monitoring modules that process vibration, temperature, or process signals, the PIM is responsible for the system power interface. Correct PIM installation is therefore essential for reliable operation of the complete Orbit 60 system. In applications where continuous machinery protection is important, the PIM is normally used together with a redundant power input arrangement to improve system availability.

2. What input voltage does the 60R/PIM01 support?

The 60R/PIM01 supports an external DC input voltage from +21 to +32 VDC, with +24 VDC being the most common supply voltage used in Orbit 60 installations. A suitable external power supply is normally installed separately, often using a DIN-rail-mounted AC/DC power supply that provides a regulated +24 VDC output. When selecting the external power supply, engineers should ensure that the output voltage remains within the permitted PIM input range under normal operating and load conditions. The supply should also have sufficient current capacity for the complete Orbit 60 chassis and all installed modules. Voltage drop in the field wiring should be considered, particularly when the power supply is installed at a significant distance from the chassis. Maintaining the correct voltage at the PIM input is important for preventing undervoltage conditions and ensuring stable operation of the connected system modules.

3. Can two 60R/PIM01 modules be installed in the same Orbit 60 chassis?

Yes. The Orbit 60 Series chassis can accommodate two redundant power input modules. The two PIMs are connected to separate external power sources so that the system has an independent backup power path. Under normal conditions, both power inputs can supply the system simultaneously. If one external power source or one PIM becomes unavailable, the remaining power path can continue supplying the chassis, helping prevent an interruption to system operation. This redundancy is particularly valuable for machinery protection systems where unexpected loss of power could result in the loss of monitoring or protection functions. When implementing redundant PIMs, the two external power supplies should preferably be independent and appropriately sized. Engineers should also verify the field wiring, protective earth connections, and power-source availability to ensure that the redundancy is effective rather than relying on two PIM modules connected to the same vulnerable power source.

4. Is redundant power required for the 60R/PIM01?

At least one PIM is required to power an Orbit 60 chassis, so a single PIM can provide the required system power. However, redundant PIMs and independent power sources are strongly recommended for applications where high system availability is important. With two PIMs installed and connected to separate power supplies, the failure of one power source does not necessarily interrupt the operation of the Orbit 60 system because the second power path remains available. This arrangement is especially useful for critical machinery such as turbines, compressors, generators, and other equipment where the monitoring or protection system is expected to operate continuously. Redundancy should be considered as a complete architecture rather than simply adding a second module. The external power supplies, wiring, circuit protection, and PIM connections should all be arranged so that a single point of failure does not disable both power paths.

5. Can the 60R/PIM01 be replaced while the Orbit 60 system is operating?

Yes. An individual PIM can be removed and inserted without interrupting system operation as long as another PIM remains installed and connected to an active external power source. This capability allows maintenance personnel to replace a faulty PIM while maintaining system power through the redundant input path. Before performing a replacement, the technician should confirm that the second PIM and its associated power supply are operating correctly. The external power connection to the module being replaced should be handled according to the applicable installation and electrical safety procedures. After the replacement, the technician should verify that the new PIM is correctly seated, the external power connection is secure, and the system recognizes the power input correctly. If only one PIM is installed, removing that module will interrupt power to the chassis, so redundancy should be established before attempting a live replacement.

6. What protection functions are provided by the 60R/PIM01?

The 60R/PIM01 incorporates protection designed to help safeguard the Orbit 60 system against abnormal power-input conditions. The PIM provides out-of-range protection and is designed to handle conditions such as incorrect wiring and excessive input voltage. An overvoltage or other abnormal power condition can therefore be managed by the PIM rather than being directly passed to the downstream system electronics. However, the PIM should not be considered a substitute for properly designed external power distribution and circuit protection. The external DC power supply should still be correctly selected, protected, and wired according to the installation requirements. Engineers should also verify polarity and wiring before energizing the system. Maintaining the input voltage within the specified +21 to +32 VDC range is important because operation outside the permitted range can cause power faults or prevent the Orbit 60 chassis from operating normally.

7. What is the difference between the 60R/PIM01 and 60R/PIM02?

The main difference is the chassis format for which the two modules are designed. The 60R/PIM01 is the dedicated Power Input Module for the 3U Orbit 60 chassis, while the 60R/PIM02 is designed for the 6U Orbit 60 chassis. The two PIM versions are specifically designed for their respective chassis formats and are not interchangeable. Therefore, when selecting a replacement, engineers should first identify whether the existing Orbit 60 chassis is a 3U or 6U configuration. Installing the wrong PIM type can result in mechanical incompatibility as well as incorrect system configuration. The 3U and 6U architectures can also have different system loading and power requirements, so the correct PIM should always be selected according to the chassis model. For a 3U Orbit 60 installation, the 60R/PIM01 is the appropriate power input module.

8. How should a 60R/PIM01 power fault be troubleshot?

When an Orbit 60 system reports a power-related fault, troubleshooting should begin with the external DC power supply and then proceed toward the PIM and chassis. First measure the voltage at the power supply output and confirm that it is within the expected range. Next inspect the wiring between the external supply and the PIM for loose terminals, damaged conductors, incorrect polarity, or excessive voltage drop. The PIM connection should then be checked to ensure that the module is correctly seated in its dedicated chassis position. If two redundant PIMs are installed, compare the behavior of both power paths and verify that each external supply is independently operational. If the system continues operating when one PIM is disconnected but fails when the other is disconnected, the problem may be isolated to the affected power path. Engineers should also check the chassis and system module status indicators for additional diagnostic information. A structured check of the external supply, wiring, PIM, redundant power path, and chassis makes it easier to determine whether the fault is caused by the plant power source, field wiring, PIM, or another Orbit 60 system component.
