1. What is the main function of the Bently Nevada 60R/RLY02?

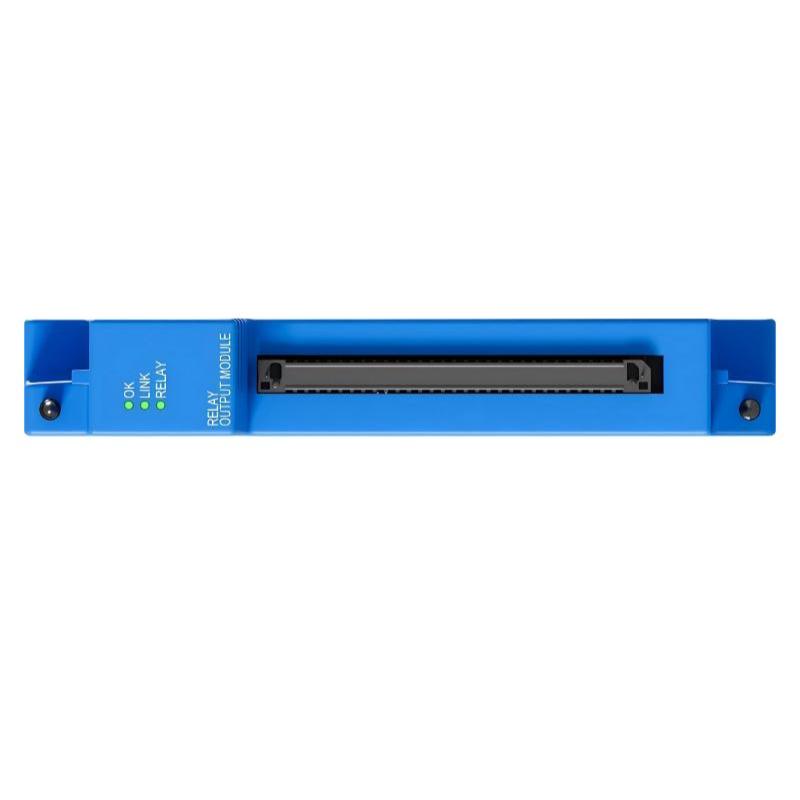

The 60R/RLY02 is a solid-state relay module designed for the Orbit 60 Series. Its primary function is to convert alarm conditions, protection states, and control logic within the monitoring system into low-current solid-state output signals for external equipment. Unlike a conventional electromechanical relay designed to switch relatively higher loads, the 60R/RLY02 is primarily intended for low-current communication and discrete status transmission. It can be connected to PLCs, DCS systems, and other digital input devices to communicate machinery alarms, trip conditions, operating states, and system status. The module provides eight independent solid-state relay outputs that can be configured according to the requirements of the overall machinery monitoring and protection system.

2. How many solid-state relay outputs are provided on the 60R/RLY02?

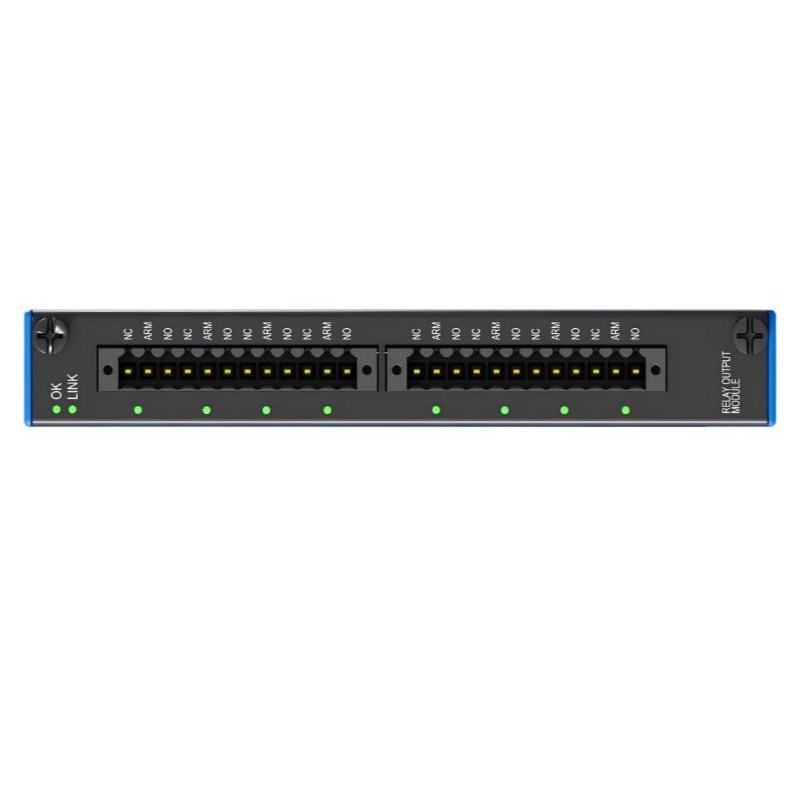

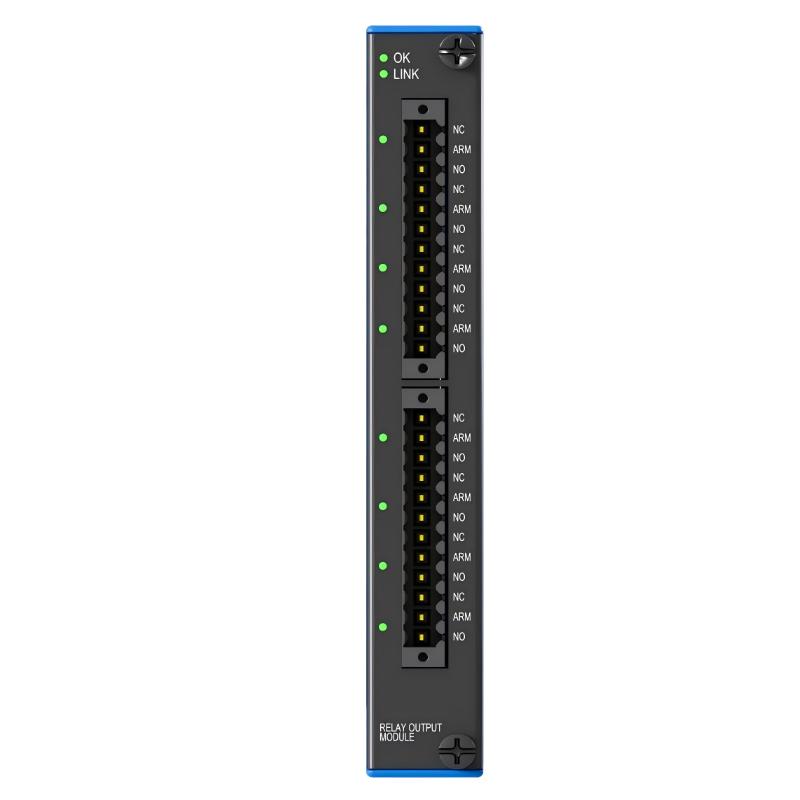

The 60R/RLY02 provides eight independent solid-state relay outputs. Each output can be assigned to a specific alarm, protection condition, or system status according to the Orbit 60 configuration. For example, one output may be assigned to a high-vibration alarm, another to a machinery trip condition, and additional outputs to other machine or system states. Because the outputs are independently controlled, engineers can distribute different protection and monitoring functions across the available channels. The solid-state design also eliminates mechanical contact movement, making the module suitable for applications that require frequent switching of low-current status signals.

3. Is the 60R/RLY02 suitable for directly driving high-power loads?

No. The 60R/RLY02 is primarily intended for low-current communication and discrete input applications rather than directly driving high-power loads. The standard configuration supports a maximum DC switching current of 125 mA, a maximum DC switching voltage of 125 VDC, and a maximum switching power of 650 mW. Therefore, it should not normally be used to directly drive solenoid valves, motor contactors, large relays, or other high-power actuators. If a connected device requires a higher current, an appropriate interposing relay, interface module, or power driver should be used. Voltage, current, and switching power must all be considered when selecting the external load.

4. Can the 60R/RLY02 relay outputs be configured as normally energized or normally de-energized?

Yes. The solid-state relay outputs can be configured according to the required system operating philosophy as normally energized or normally de-energized. This configuration affects the output state during normal operation, alarm conditions, and certain system fault conditions. In machinery protection applications, the choice should be made according to the required fail-safe behavior and the logic used by the connected PLC or DCS. For example, a protection signal may be designed to remain in a defined state during normal operation and change state when an alarm or trip condition occurs. The relay configuration should therefore be coordinated with the Orbit 60 protection logic and the input logic of the receiving control system.

5. What should be checked if a 60R/RLY02 output signal is missing?

Start by verifying that the alarm, protection condition, or system state assigned to the relay output has actually occurred. Then check the relay channel assignment and configuration within the Orbit 60 system to make sure the correct condition is linked to the correct output. The module status should also be reviewed for any diagnostic indication. Next, inspect the external wiring, terminals, and the digital input of the connected PLC or DCS. The external circuit voltage and load should be checked to ensure that they are within the solid-state relay’s permitted operating range. If the system logic clearly commands an output but the external device does not detect it, the output circuit should be electrically tested under controlled maintenance conditions to determine whether the issue is related to configuration, wiring, the external input, or the relay channel itself.

6. What is the difference between the 60R/RLY02 and the 60R/RLY01 relay modules?

Both modules can be used for alarm, protection, and status output functions within the Orbit 60 system, but they use different relay technologies and are intended for different electrical applications. The 60R/RLY01 uses electromechanical relays and is better suited to applications requiring higher switching currents or direct relay contact operation. The 60R/RLY02 uses solid-state relays and is primarily intended for low-current communication and discrete input applications, with a maximum DC switching current of 125 mA. The solid-state design has no conventional mechanical contacts, making it suitable for frequent low-current switching. Selection should be based on the external load, voltage, current, switching frequency, and overall protection architecture.

7. Can the 60R/RLY02 be used to transmit machinery alarm and trip status?

Yes. The 60R/RLY02 can transmit alarm, protection, and system status information from the Orbit 60 system to external PLCs, DCS systems, or other devices with compatible discrete inputs. When a configured alarm or protection condition occurs, the associated solid-state relay output can change state and provide a corresponding status signal to the external control system. It is particularly suitable for transmitting low-current machinery alarm and protection states. However, if the output must directly drive a high-power shutdown device, the 60R/RLY02 should generally be connected through an appropriate interface or interposing relay rather than used as the direct power-switching element. Critical trip functions should also be tested as part of the complete protection system.

8. How can the long-term reliability of the 60R/RLY02 be maintained?

Long-term reliability depends primarily on keeping the external load within the specified voltage, current, and switching-power limits. Field wiring should be securely terminated and protected against loose connections, contamination, corrosion, and insulation damage. Because the module is commonly used for low-current signal transmission, the electrical compatibility between the relay output and the digital input of the connected PLC or DCS should also be verified. The Orbit 60 configuration, alarm logic, and relay assignments should be periodically reviewed to ensure that they continue to match the machinery protection design. If an output becomes abnormal, technicians should check the triggering logic, module status, field wiring, external input device, and load conditions before replacing the module. For critical machinery protection applications, periodic functional testing should be performed to confirm that alarm, protection, and status outputs operate correctly under controlled conditions.
