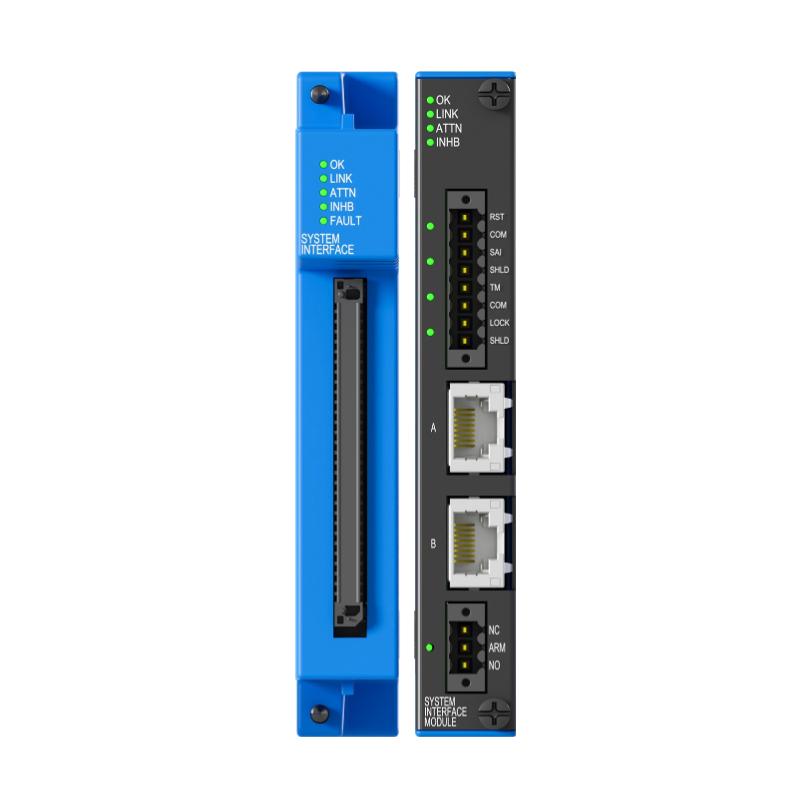

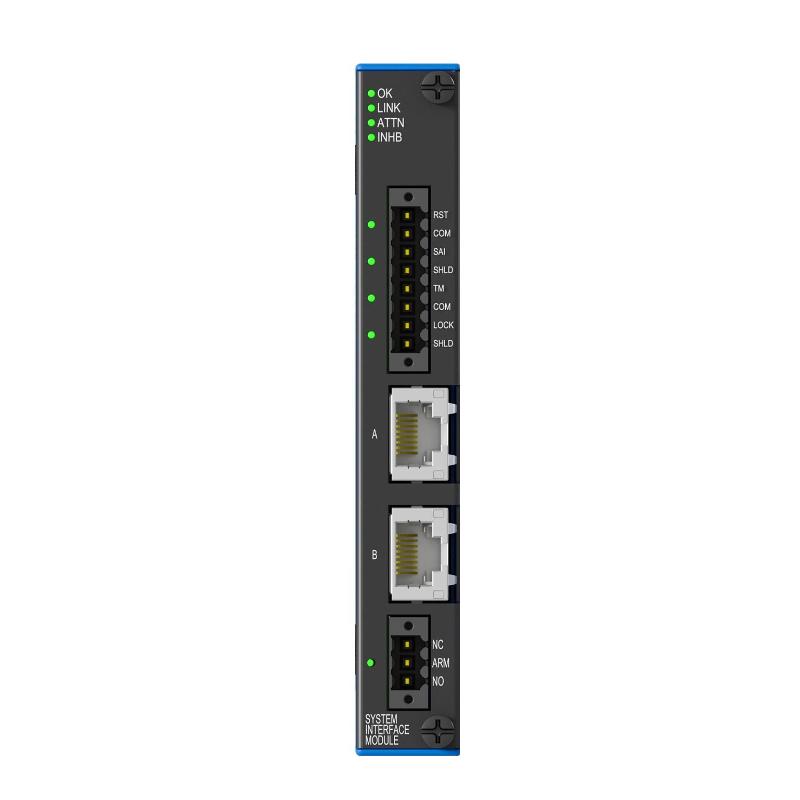

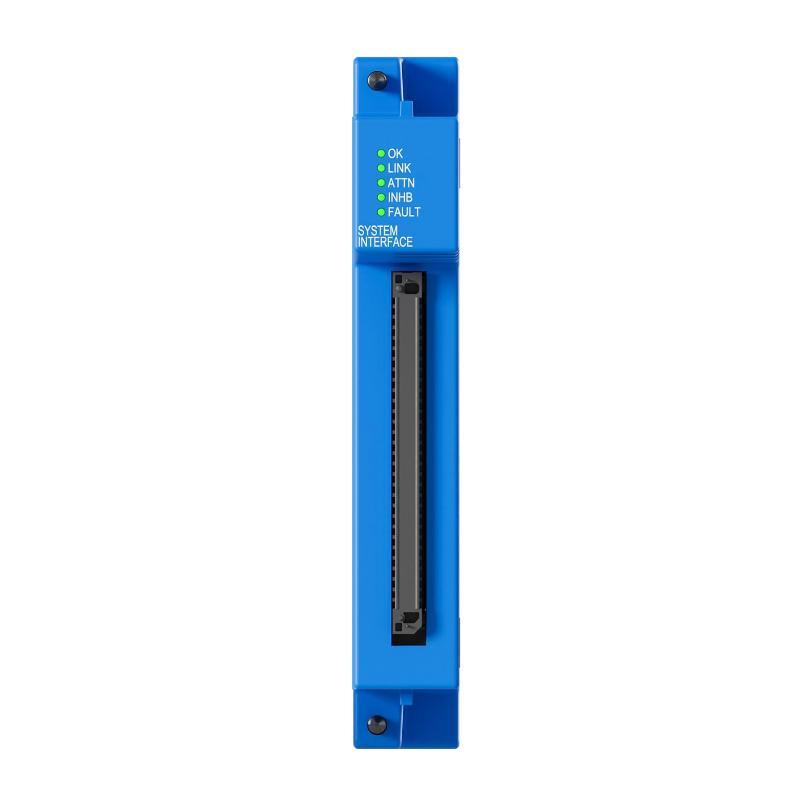

1. What is the main function of the Bently Nevada 60R/SIM01-00-0?

The 60R/SIM01-00-0 is the System Interface Module for the Orbit 60 Series. It provides the central interface between the Orbit 60 machinery monitoring system and external engineering, control, and monitoring systems. The module is responsible for system communication, configuration management, diagnostics, event handling, and access to system-level information. It allows engineers to configure and monitor the Orbit 60 system while also providing communication capabilities for integrating machinery data with higher-level systems such as SCADA, DCS, and PLC platforms. Because it performs system-level interface functions, the SIM plays an important role in the overall operation and maintenance of an Orbit 60 installation.

2. What communication protocols are supported by the 60R/SIM01-00-0?

The 60R/SIM01-00-0 supports several industrial communication technologies, including Modbus TCP/IP, OPC UA, EtherNet/IP, and SNMP. These communication options allow the Orbit 60 system to exchange machinery monitoring and system status information with different types of industrial automation and plant information systems. The appropriate communication method depends on the architecture of the installation and the requirements of the external control or monitoring platform. During commissioning, network parameters and communication settings should be configured consistently between the SIM, the engineering workstation, and the connected plant network.

3. How is the 60R/SIM01-00-0 configured?

The module can be configured through the appropriate Orbit 60 configuration environment and its available communication interfaces. Configuration normally includes system parameters, communication settings, module assignments, monitoring functions, alarm-related parameters, and other system-level settings. Before making configuration changes, the existing system configuration should be reviewed and backed up where applicable. Protection-related settings should be changed only by qualified personnel who understand the machinery protection requirements. After configuration, the system should be checked to confirm that communication, diagnostics, measurements, alarms, and protection functions operate according to the intended system design.

4. What should be checked if the 60R/SIM01-00-0 cannot communicate with the engineering workstation?

Troubleshooting should begin with the physical network connection. Check the Ethernet cable, connectors, network switch, and the active communication port on the SIM. Next, verify the network configuration, including the IP address and other relevant communication parameters. The module’s operating status and diagnostic information should also be checked for abnormal conditions. If the physical connection and network settings are correct, confirm that the engineering workstation is using the appropriate communication method and that network access is not being blocked by the plant network configuration. If the problem appeared after a configuration change, compare the current settings with the previously verified configuration to identify the source of the communication problem.

5. How does the 60R/SIM01-00-0 handle system diagnostics and events?

The SIM provides system-level diagnostic and event-management functions that help engineers identify abnormal operating conditions. System events can be recorded with time information, allowing maintenance personnel to review the sequence of events surrounding a fault or alarm. Diagnostic information can be used to determine whether an issue is related to the system interface, communication, configuration, power, or another connected Orbit 60 module. When troubleshooting intermittent problems, reviewing the event history is particularly useful because it can reveal recurring communication interruptions, module faults, configuration changes, or other conditions that may not be visible during a physical inspection.

6. Can the 60R/SIM01-00-0 be integrated with a DCS or PLC system?

Yes. The module is designed to provide communication between the Orbit 60 system and external industrial control or monitoring systems. Depending on the selected communication architecture, machinery monitoring information and system status can be made available to DCS, PLC, SCADA, or other compatible systems. During integration, the communication protocol, network parameters, data mapping, update requirements, and alarm-handling strategy should be defined before commissioning. Particular attention should be given to the difference between monitoring information and critical protection signals. Protection functions should remain properly implemented within the dedicated machinery protection architecture rather than relying solely on a general-purpose plant communication network.

7. What power supply does the 60R/SIM01-00-0 require?

The module uses a nominal 24 VDC power supply and supports an operating range of approximately 18–36 VDC. The power supply should be stable and suitable for the industrial environment in which the Orbit 60 system is installed. If the SIM unexpectedly resets, loses communication, or repeatedly reports faults, the power supply should be checked before assuming that the module itself has failed. Technicians should measure the supply under normal operating conditions and also check terminals, wiring, protective devices, and other components in the power distribution path. Unstable or insufficient power can produce symptoms that appear to be communication or module faults.

8. How can the long-term reliability of the 60R/SIM01-00-0 be maintained?

Reliable operation depends on maintaining stable power, correct network configuration, secure connections, and a controlled system configuration. Ethernet connections should be checked periodically for loose connectors, damaged cables, or other physical problems. System event logs and diagnostic information should also be reviewed when abnormal behavior occurs, particularly when communication problems are intermittent. Configuration changes should be documented and controlled so that engineers can quickly identify what changed if a problem develops after maintenance. Firmware and system updates should be performed according to the applicable maintenance procedure, with appropriate backups and verification. For critical machinery protection installations, regular functional checks of communication, diagnostics, alarms, and associated system interfaces can help identify developing problems before they affect normal monitoring or protection operations.
