Technical Specifications

FAQ

1. What is the main function of the 60X/CMP01-00 industrial computer?

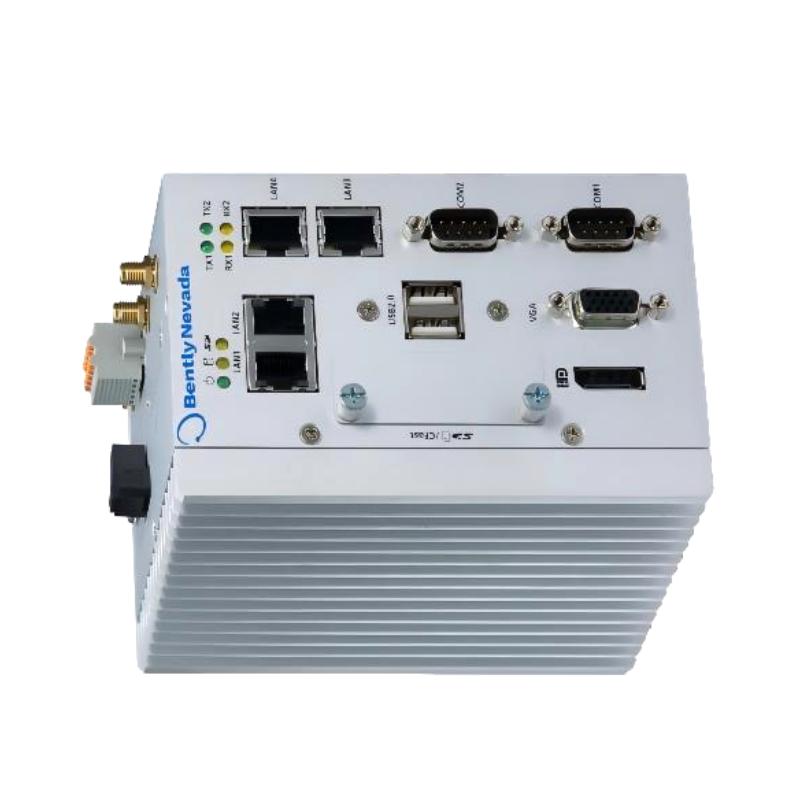

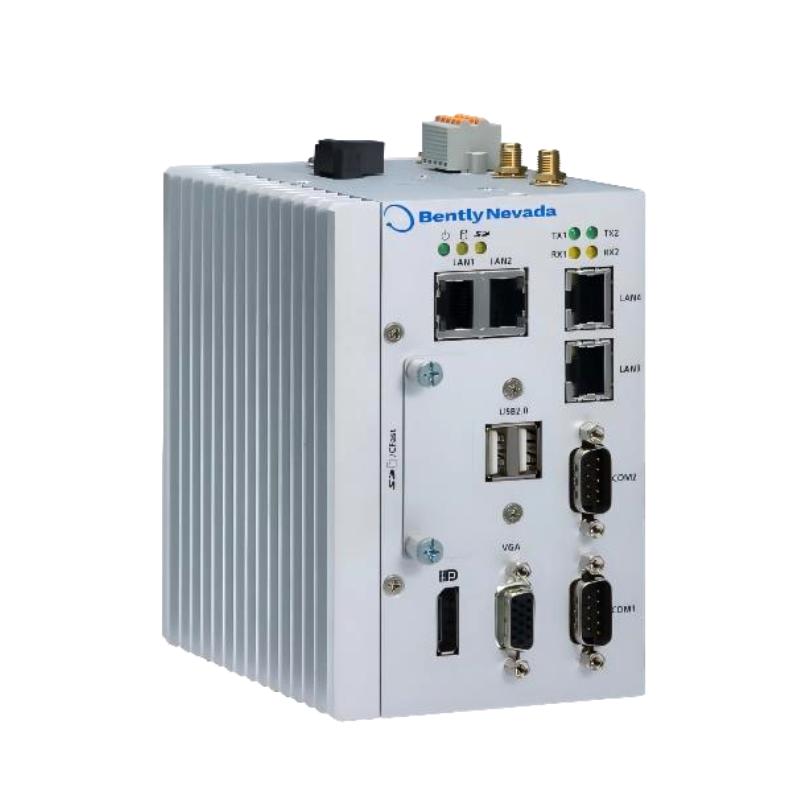

The 60X/CMP01-00 is an industrial computer intended for display purposes within a Bently Nevada Orbit 60 machinery condition monitoring environment. Its primary role is to provide an operator-facing platform for viewing monitoring information collected by the associated system. Depending on the installed software and system configuration, users can view measurement values, equipment status, alarm conditions, and other machinery monitoring information. It is primarily intended for industrial monitoring and visualization rather than general-purpose office computing.

2. How is the 60X/CMP01-00 integrated into an Orbit 60 monitoring system?
The 60X/CMP01-00 can serve as the computer and display platform for an Orbit 60 monitoring installation. It communicates with compatible monitoring equipment and presents the collected information through the installed monitoring software. During commissioning, engineers should verify the communication connection, software configuration, system identification, and availability of the required monitoring data. The computer should be configured according to the overall monitoring architecture so that operators can access the appropriate measurement screens, system status information, and alarms.

3. What type of machinery information can be displayed on the 60X/CMP01-00?
The available information depends on the Orbit 60 system configuration and the software installed on the industrial computer. Typical information can include machinery measurement values, monitoring channel status, equipment operating conditions, alarm states, and other condition monitoring data. The display allows operators and maintenance personnel to observe the condition of connected machinery without directly accessing individual monitoring modules. During commissioning, displayed measurements should be compared with expected field conditions to verify that the complete signal path is functioning correctly.

4. What should be checked if the 60X/CMP01-00 cannot communicate with the monitoring system?
Troubleshooting should begin with the computer’s power and operating status, followed by the communication connection to the Orbit 60 system. Check network cabling, communication interfaces, addressing, configuration parameters, and relevant software services. If the computer can communicate with the system but individual measurements are unavailable, inspect the corresponding monitoring channel and module configuration. If communication with the entire monitoring system is lost, the network infrastructure and communication settings should receive priority during troubleshooting. Any recent software or configuration changes should also be reviewed.

5. Can the 60X/CMP01-00 be used for continuous machinery monitoring?
Yes. The 60X/CMP01-00 is intended for industrial monitoring applications where machinery condition information needs to remain available to operators and maintenance personnel. For continuous operation, stable electrical power and reliable communication with the monitoring system are important. The computer should be installed in an environment suitable for industrial electronic equipment and protected from excessive environmental conditions and electrical interference. Regular checks of system communication, software operation, and display functions can help identify problems before they affect the monitoring workstation.

6. How should the 60X/CMP01-00 be commissioned after installation?
Commissioning should begin by verifying the power supply and confirming that the industrial computer starts normally. Next, establish and verify communication with the associated Orbit 60 monitoring system. Confirm that the required software starts correctly and that the intended monitoring system is recognized. Individual measurement values should then be reviewed to ensure that data is being received correctly. Alarm and system status information should also be checked where applicable. If the computer is being used as an operator display, the final commissioning step should confirm that all required monitoring screens are accessible and that the displayed information corresponds with the actual machinery condition.

7. What should be done if a displayed measurement on the 60X/CMP01-00 is incorrect?
An incorrect displayed measurement should be investigated through the complete signal chain. First compare the displayed value with the actual machinery operating condition and determine whether the problem affects one channel or multiple channels. For an individual channel, check the associated sensor, field wiring, monitoring module, channel configuration, measurement type, and scaling parameters. If multiple unrelated measurements are affected simultaneously, communication or software configuration should also be investigated. The industrial computer should not be assumed to be the source of the problem until the upstream monitoring equipment and data path have been verified.

8. What role does the 60X/CMP01-00 play in maintenance and troubleshooting?
The 60X/CMP01-00 provides maintenance personnel with access to machinery monitoring information that can help identify abnormal operating conditions. By reviewing current measurements, channel status, alarms, and system information, engineers can determine whether an issue is isolated to a particular machine, measurement channel, or monitoring component. During troubleshooting, the displayed information can be used together with field measurements and hardware inspections to narrow down the fault location. Maintaining an accurate system configuration and ensuring reliable communication are important for making the displayed diagnostic information useful during long-term equipment maintenance.
