1. What is the primary purpose of the 60X/EXD02 external monitor?

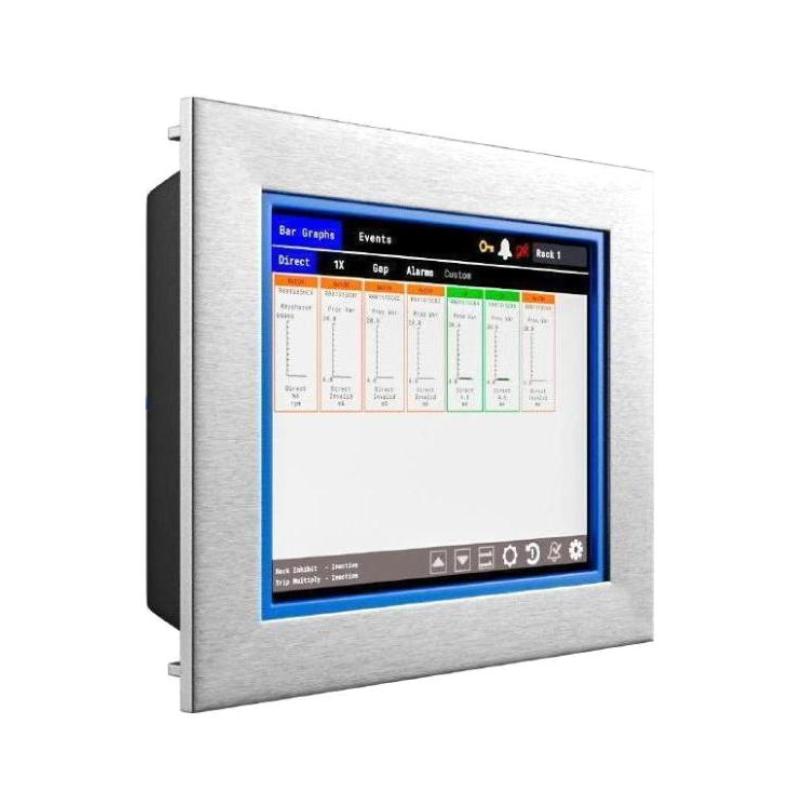

The 60X/EXD02 is a 15-inch external monitor designed for use with the Bently Nevada Orbit 60 Series machinery condition monitoring system. Its primary purpose is to provide operators and maintenance personnel with a larger local display for viewing monitoring information. Depending on the system configuration, the monitor can present measurement information, system events, alarm events, module data, channel information, and system status. It is intended to improve the visibility of important machinery monitoring information in industrial operating and maintenance environments.

2. How is the 60X/EXD02 connected to an Orbit 60 monitoring system?
The monitor is used as part of the Orbit 60 external display arrangement and works with the associated industrial computer and system interface equipment. The display connection should be established according to the configured system architecture, with the VGA interface used for video transmission and Ethernet communication used within the associated monitoring system where applicable. During commissioning, engineers should verify the monitor power supply, video connection, network connection, industrial computer status, and Orbit 60 system communication. Once connected, the display should be checked to confirm that the required monitoring information is presented correctly.

3. What information can be displayed on the 60X/EXD02?
The 60X/EXD02 can display information generated by the Orbit 60 machinery condition monitoring system. Depending on the installed configuration, this can include system events, alarm events, module information, individual channel data, alarm status, and overall system status. The actual screens and information available depend on the monitoring software and connected Orbit 60 hardware. During commissioning, engineers should verify that important measurement channels and alarm information are available and that the displayed status corresponds with the actual operating condition of the monitored equipment.

4. What power supply is required for the 60X/EXD02?
The external monitor uses a 24 V DC power supply. The power source should be suitable for industrial electronic equipment and should provide stable voltage during normal operation. During installation, the supply voltage should be checked at the monitor connection point rather than relying only on the nominal output of the power supply. If the monitor fails to start, repeatedly resets, or shows unstable operation, the DC power supply, wiring, terminal connections, and possible voltage drop should be inspected before replacing the monitor.

5. What should be checked if the 60X/EXD02 has power but no display image?
If the monitor has power but does not display an image, first check the VGA connection and confirm that the associated industrial computer is operating correctly. Inspect the video cable and connectors for loose or damaged connections. The computer’s display output configuration should also be checked to ensure that the expected resolution and display signal are being provided. If possible, verify the video output using a known-good display or cable. If the video signal is confirmed to be present but the monitor remains blank, the monitor input and internal display circuitry should then be investigated.

6. Can the 60X/EXD02 be used to monitor machinery alarms?
Yes. The monitor can present alarm-related information generated by the Orbit 60 monitoring system. Operators can use the display to observe alarm events and the current status of monitored channels or equipment. During commissioning, alarm functions should be tested according to the approved site procedure to confirm that the configured alarm conditions are correctly generated and displayed. If an alarm occurs within the monitoring system but does not appear on the external monitor, troubleshooting should include the monitoring channel, alarm configuration, industrial computer, communication path, and display software.

7. What should be checked if monitoring data on the 60X/EXD02 is incorrect or missing?
First determine whether the problem affects one measurement channel or multiple channels. If only one channel is affected, inspect the associated sensor, field wiring, monitoring module, channel configuration, and measurement settings. If multiple unrelated measurements are missing simultaneously, communication between the industrial computer and the Orbit 60 system should be investigated. The computer software and display configuration should also be checked. Comparing the displayed information with another available monitoring interface can help determine whether the problem originates from the field measurement system or from the display path.

8. What should be considered when commissioning the 60X/EXD02?
