1. What is the primary function of the Bently Nevada 74712-03-10-02-00?

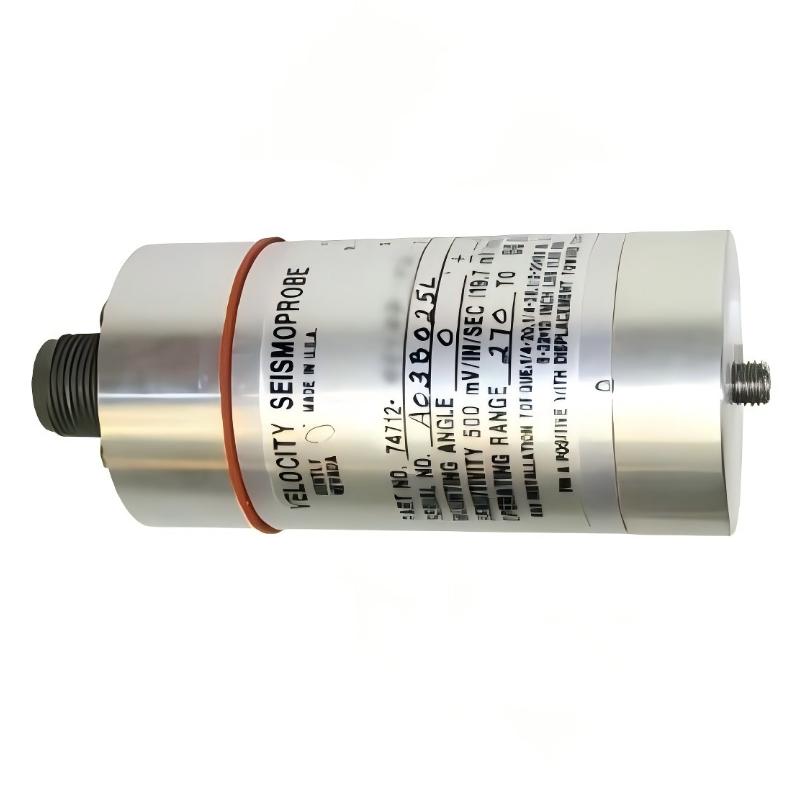

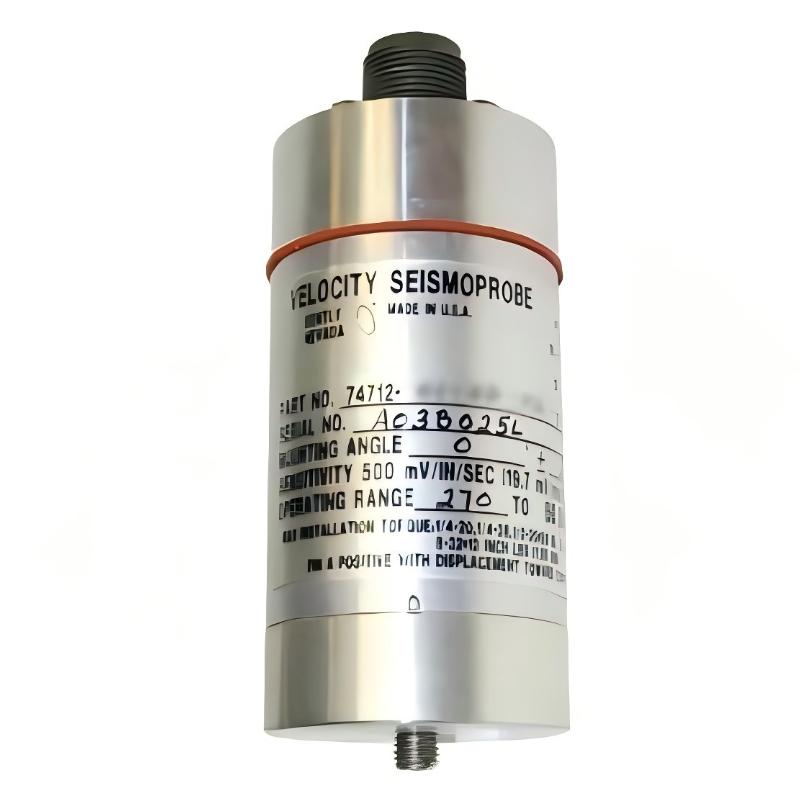

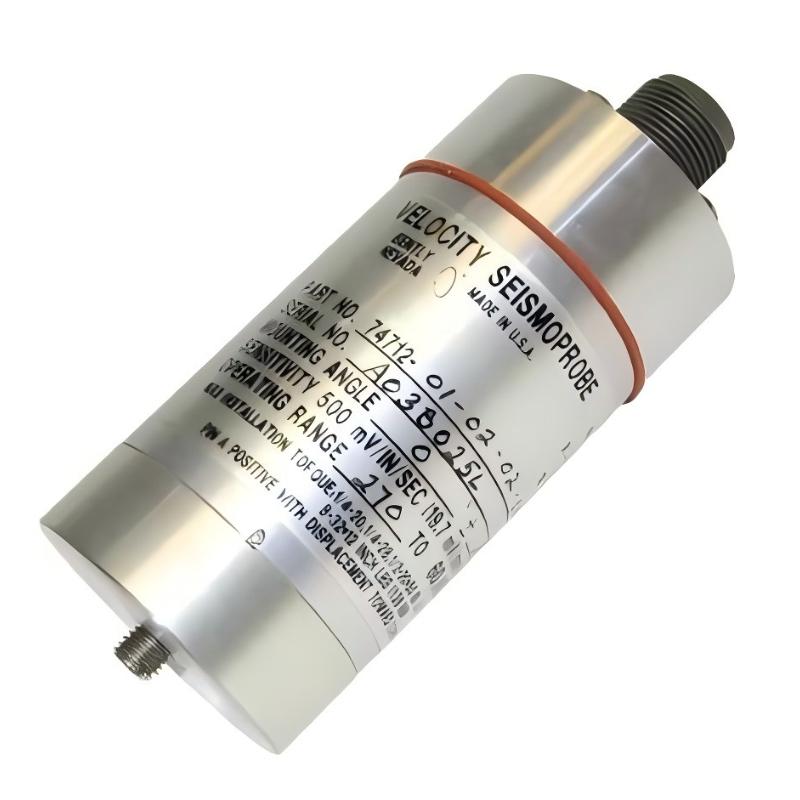

The 74712-03-10-02-00 is a high-temperature Seismoprobe velocity transducer designed to measure absolute vibration velocity on bearing housings, machine casings, and other mechanical structures. It uses moving-coil technology to generate a voltage signal directly proportional to the vibration velocity of the monitored structure. This makes it suitable for overall casing vibration monitoring on large rotating machinery, including steam turbines, gas turbines, pumps, compressors, engines, and similar industrial equipment. The sensor is particularly useful in applications where vibration velocity is preferred as the primary condition indicator. Because the 74712 series is designed for elevated-temperature environments, it can also be applied to machinery locations where standard-temperature velocity sensors may not be suitable.

2. How does the moving-coil measurement principle work in the 74712-03-10-02-00?
The 74712-03-10-02-00 uses electromagnetic moving-coil technology. When the sensor housing moves with the machine structure, the internal coil moves relative to a magnetic field and produces an electrical voltage. The generated voltage is proportional to the vibration velocity of the structure being monitored. This design provides a direct velocity output without requiring an external integration circuit to convert acceleration into velocity. The sensor also uses a two-wire configuration and does not require an external power supply for generating its vibration signal. Correct mechanical mounting and electrical connection are essential because the quality of the measured signal depends on how effectively machine vibration is transferred to the sensing element.

3. What are the main vibration measurement characteristics of the 74712-03-10-02-00?
The sensor has a nominal sensitivity of 20 mV/mm/s, equivalent to 500 mV/in/s, with a specified tolerance of ±5% when properly terminated and installed at the specified calibration angle. Its velocity range is 25 mm/s, while the dynamic operating range permits a maximum displacement of 2.54 mm peak-to-peak. The frequency response extends from the configured minimum operating frequency of 4.5 Hz to 1 kHz. The sensor also provides amplitude linearity within ±5% over the specified velocity range at 100 Hz. These characteristics make the transducer suitable for monitoring overall machine casing vibration and detecting changes in vibration behavior associated with rotating machinery operating conditions.

4. Why is the 90-degree mounting angle important for the 74712-03-10-02-00?
The 74712-03-10-02-00 is configured with a 90° ±2.5° mounting orientation. The specified sensitivity is based on the sensor being correctly oriented relative to the intended vibration measurement direction. If the installation angle differs significantly from the intended orientation, the sensor may not accurately measure the vibration component of interest. This can result in reduced measurement amplitude or differences between the actual machine vibration and the measured signal. During installation, the sensor should therefore be positioned according to the specified mounting orientation and securely fastened to a rigid part of the machine structure. Maintaining the same orientation is also important when replacing a sensor because it helps ensure that new measurements remain comparable with historical vibration data.

5. Is the 74712-03-10-02-00 suitable for high-temperature industrial equipment?
Yes. The 74712 series is specifically designed as a high-temperature version of the Seismoprobe velocity transducer. The operating and storage temperature range is -29 to 204°C, making it suitable for many high-temperature machinery applications. Typical applications include steam turbines, gas turbines and other industrial rotating equipment where the sensor installation point may be exposed to elevated temperatures. However, the complete measurement installation should be evaluated before commissioning. The connecting cable, mounting components, connectors and receiving monitoring equipment must also be suitable for the actual environmental conditions. Proper thermal management and cable routing are especially important when the sensor is installed close to hot machinery or heat sources.

6. What should be considered when installing the 74712-03-10-02-00?
The sensor should be mounted on a rigid machine surface that provides a reliable mechanical path for transmitting vibration from the equipment to the sensor. Bearing housings and suitable casing locations are commonly used for casing velocity measurements. The mounting surface should be clean and free from loose material, excessive surface movement, or mechanical conditions that could introduce unwanted signals. The 74712-03-10-02-00 uses a circular M10 × 1 mounting base and is configured with a top-mounted connector. The specified mounting angle should also be maintained during installation. Cable routing should avoid excessive mechanical stress, sharp bends, high-temperature exposure beyond the cable rating, and interference with moving components. After installation, the signal should be verified and a normal operating baseline should be recorded.

7. What should be checked if the vibration signal from the 74712-03-10-02-00 suddenly increases?
When a sudden increase in vibration is detected, the first step is to determine whether the change is caused by the machine or by the measurement system. Check the sensor mounting, electrical connections, connector condition, cable routing, and monitoring system input. If the measurement chain is operating correctly, compare the machine’s current speed, load, process conditions, and operating mode with the conditions under which the previous baseline was established. If the vibration remains elevated under similar operating conditions, possible mechanical causes include rotor imbalance, shaft misalignment, coupling problems, mechanical looseness, bearing deterioration, or changes in the machine foundation. Historical vibration trends should also be reviewed because a sustained increase is generally more significant than a single short-duration peak. Additional machine inspection should be considered if abnormal vibration is accompanied by temperature changes, unusual noise, or unstable operation.

8. How can the 74712-03-10-02-00 be used for predictive maintenance?
The 74712-03-10-02-00 can be used as a vibration velocity measurement point within a rotating equipment condition monitoring system. After installation, normal vibration values can be recorded under known machine operating conditions to establish a baseline. Subsequent measurements can then be compared with the baseline to identify gradual deterioration or sudden changes in machine behavior. Increasing vibration velocity may indicate developing problems such as imbalance, misalignment, mechanical looseness, coupling deterioration, bearing problems, or structural changes. Maintenance personnel can use these trends to determine whether additional inspection or corrective action is required before the condition develops into a major equipment failure. The sensor’s high-temperature capability makes it particularly suitable for demanding applications involving turbines and other high-temperature machinery. When vibration data are evaluated together with operating speed, load, temperature, and equipment history, the sensor can support condition-based maintenance and help reduce unexpected downtime.
