1. What is the primary function of the Bently Nevada 74712-06-05-03-01 velocity sensor?

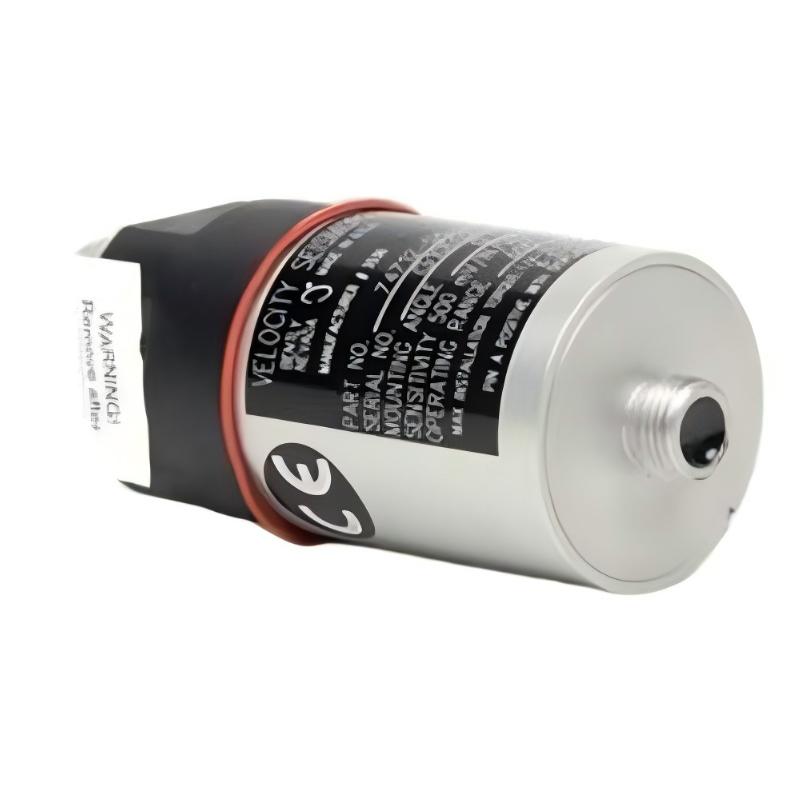

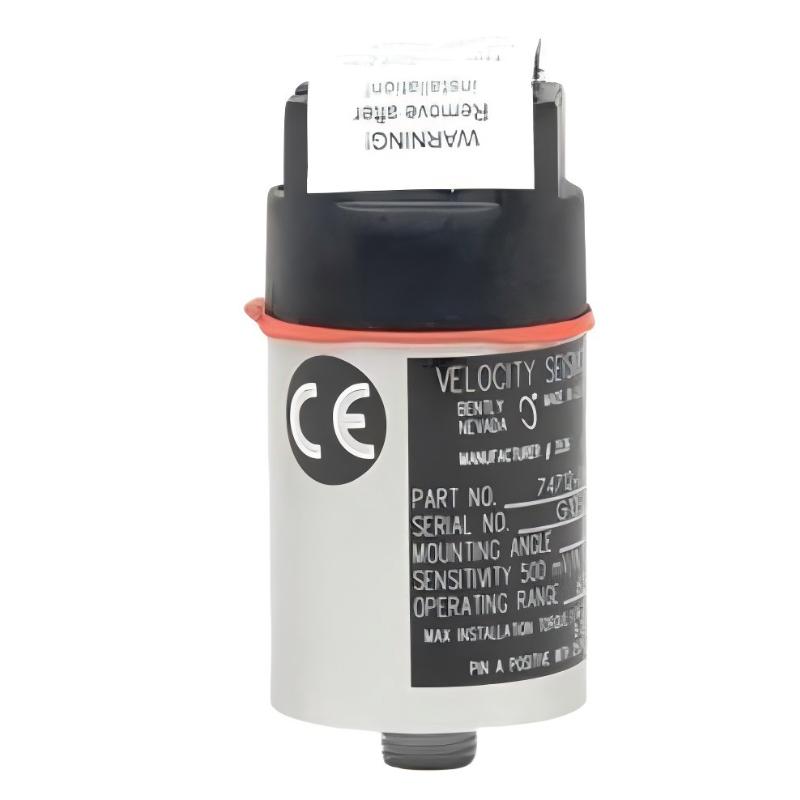

The 74712-06-05-03-01 is a high-temperature Seismoprobe velocity transducer designed to measure absolute vibration velocity on bearing housings, machine casings, and structural surfaces. It uses moving-coil technology to generate a voltage output proportional to vibration velocity, making it suitable for machinery condition monitoring and vibration protection systems.

2. What makes the 74712-06-05-03-01 suitable for high-temperature applications?
The 74712 series is designed for high-temperature vibration measurement and can operate from -29°C to +204°C. This makes it suitable for machinery where conventional vibration sensors may not tolerate elevated temperatures, including certain turbine, compressor, pump, and industrial process applications.

3. What is the sensitivity of the 74712-06-05-03-01 sensor?
The nominal sensitivity is 20 mV/mm/s, equivalent to 500 mV/in/s, with a tolerance of ±5%. The output voltage changes in proportion to the measured vibration velocity, allowing the sensor signal to be processed by compatible monitoring equipment.

4. What frequency range can the 74712-06-05-03-01 measure?
This configuration has a minimum operating frequency of 10 Hz, with a typical frequency response extending from 10 Hz to 1000 Hz at +0/-3 dB. This range covers many common machine casing and bearing housing vibration monitoring requirements.

5. Does the 74712-06-05-03-01 require an external power supply?
No. The 74712 uses a two-wire moving-coil design and does not require external power for normal vibration velocity measurement. Mechanical vibration causes movement of the internal coil, generating the corresponding electrical output signal.

6. How should the 74712-06-05-03-01 be mounted for reliable vibration measurements?

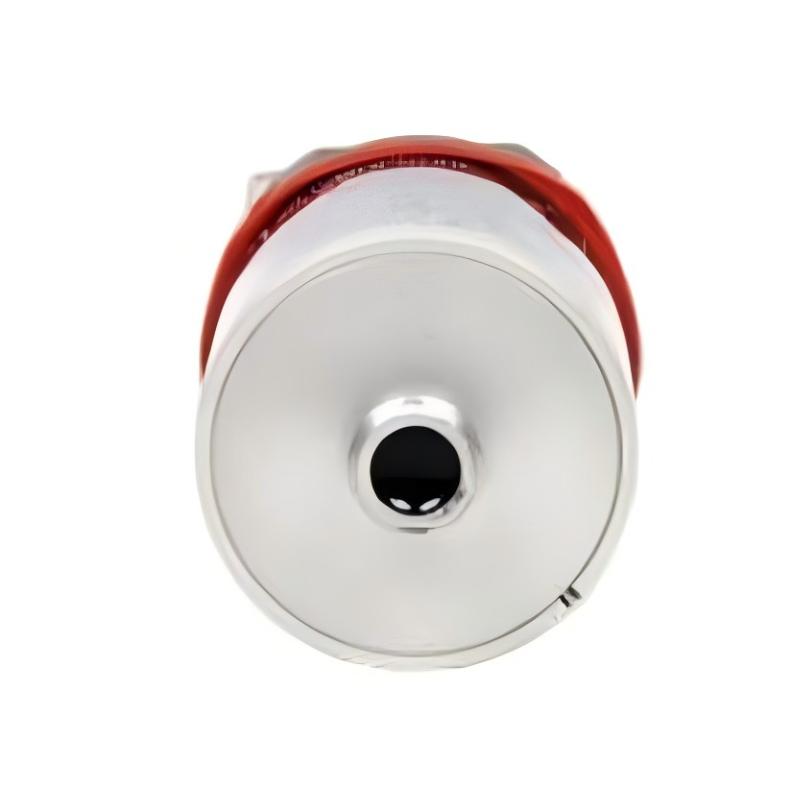

The sensor should be firmly installed on a suitable machine casing or bearing housing surface. The mounting surface should be clean, rigid, and free from excessive contamination. This model uses a 1/2-20 UNF-3A stud mounting configuration. Correct mounting torque and sensor orientation are important because loose installation can reduce measurement accuracy and introduce unwanted vibration signals.

7. Can the 74712-06-05-03-01 be connected to a Bently Nevada monitoring system?
Yes. The 74712 family is designed for use with compatible vibration monitoring equipment through appropriate interconnect cabling. It can be integrated with suitable Bently Nevada monitoring configurations, including compatible 3300 and 3500 systems. Cable selection, termination, signal polarity, and cable length should be considered when designing the complete measurement circuit.

8. What should be checked if the 74712-06-05-03-01 produces an unstable or unusually low vibration signal?
First inspect the mechanical mounting and confirm that the sensor is securely attached to the measurement surface. Check terminal connections, cable condition, shielding, and signal polarity. Verify that the sensor is installed within its specified frequency range and that the monitoring system input is configured correctly. If the electrical connections are normal, inspect the machine mounting point and consider whether excessive structural movement or cable-related signal attenuation is affecting the measurement.
