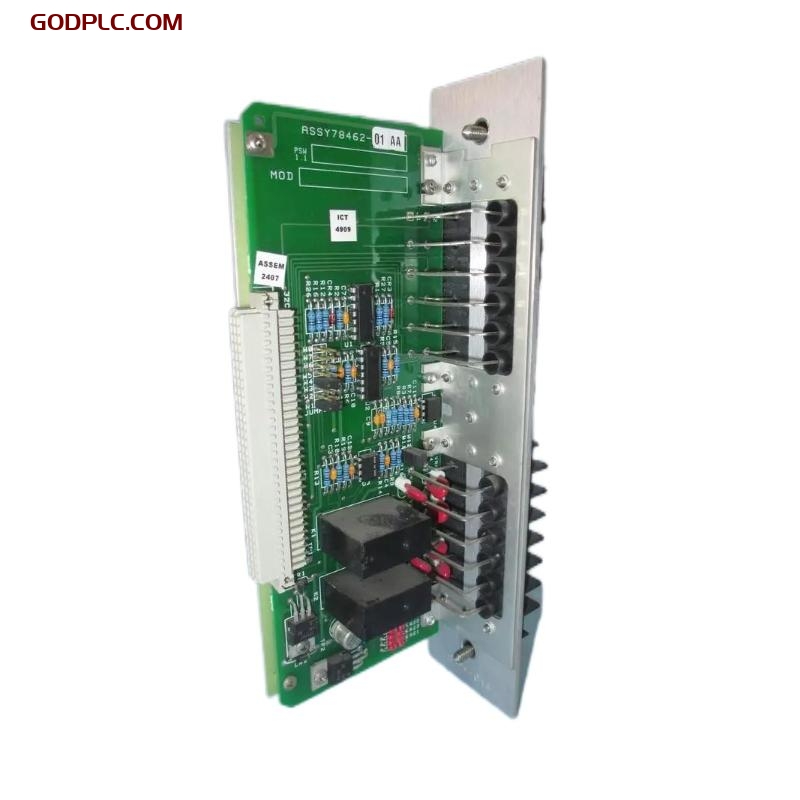

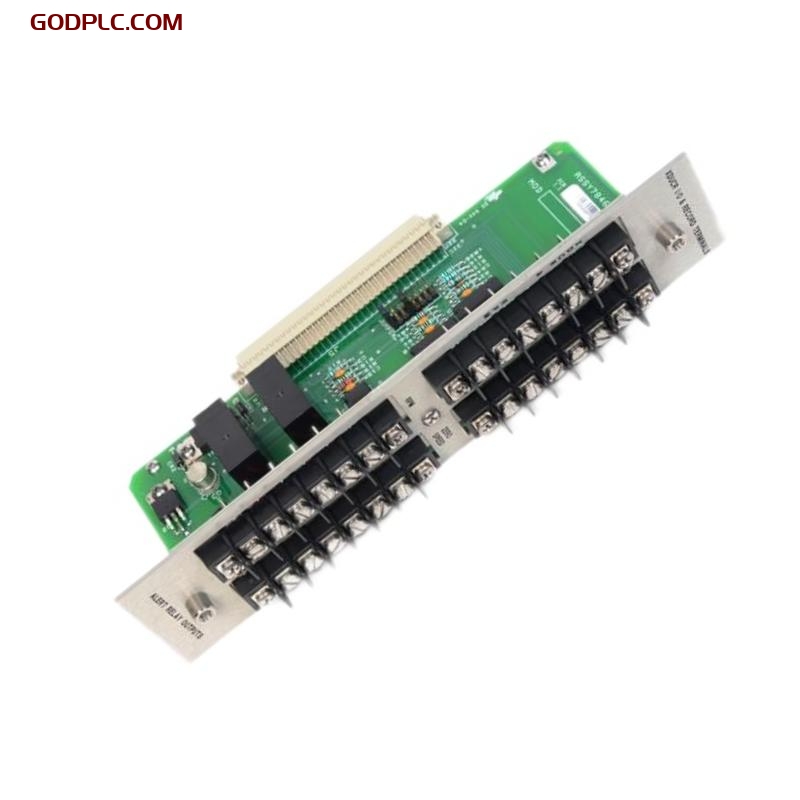

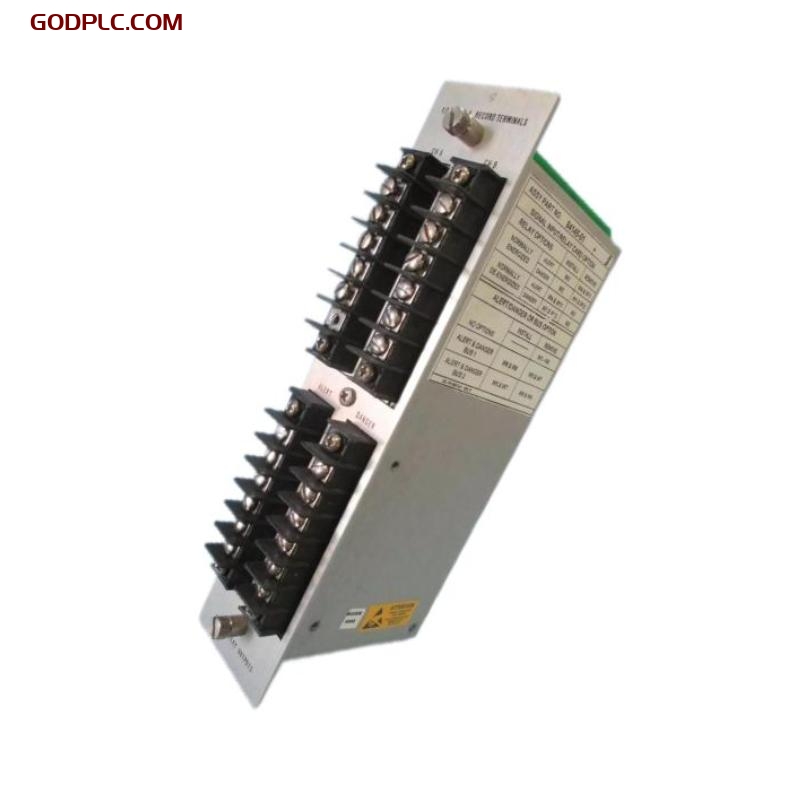

Bently Nevada 78462-01 3300 Relay Module – Conformal Coating
1. Product Overview
The Bently Nevada 78462-01 3300 Relay Module with Conformal Coating is a crucial part of the 3300 Series machinery protection and monitoring system. It is designed to provide relay outputs that can be customized to meet specific protection or control requirements. The module is built with a conformal coating to protect sensitive electronic components from environmental factors such as dust, moisture, and chemicals, making it ideal for operation in harsh industrial settings.
The module is engineered for integration with Bently Nevada’s 3300 series vibration monitoring systems and is designed to improve the safety, reliability, and longevity of machinery. The inclusion of conformal coating ensures added protection against corrosive agents and environmental stressors that could otherwise compromise the performance of electronic components.
2. Key Features
-
Conformal Coating: Provides extra protection to internal circuitry from dust, moisture, and chemicals, ensuring reliable operation in harsh environments.
-
High Reliability: Designed for critical machinery protection, ensuring long-term performance even in extreme conditions.
-
Flexible Relay Outputs: Configurable relay outputs for a variety of control and alarm functions.
-
Compact Design: Easily integrates into the 3300 series rack, offering a space-efficient solution for machinery protection.
-
Easy Integration: Compatible with Bently Nevada 3300 series monitoring systems, enabling seamless system configuration.
3. Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 180 x 100 x 80mm |
| Weight | 0.7 kg |
3.2 General Information
| Item | Specification |
|---|---|
| Model | 78462-01 |
| Manufacturer | Bently Nevada (a Baker Hughes business) |
| Product Type | 16-Channel Relay Module |
| Mounting | Rack mountable (fits 3300 series racks) |
| Operating Temp | -40°C to +70°C |
| Storage Temp | -40°C to +85°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
3.3 Relay Specifications
| Item | Specification |
|---|---|
| Relay Type | Single-pole, double-throw (SPDT) |
| Contact Ratings | Min. Switched Current: 100 mA at 5 Vdc Max. Switched Current: 5 A Max. Switched Power: 70 W at 24 Vdc |
| Relay Life | 10,000 cycles |
3.4 Electrical Characteristics
| Item | Specification |
|---|---|
| Power Supply | 24 V DC ±20% (via system backplane) |
| Power Consumption | Approx. 5.8 W |
| Operating Current | ≤ 0.24 A |
| Isolation | Channel-to-channel isolation |
3.5 Environmental Specifications
| Item | Specification |
|---|---|
| Sealing | Epoxy-sealed relays |
| Arc Suppression | 250 Vrms |
3.6 Approvals
| Item | Specification |
|---|---|
| CSA/NRTL-C | Class 1, Division 2 |
| ATEX/IECEx | Class 1, Zone 2 |
4. Industry Applications
The Bently Nevada 78462-01 3300 Relay Module is used across industries that require reliable protection and control of critical machinery:
-
Power Generation: Provides relay control for turbines, generators, and other critical systems to ensure continuous operation and safety.
-
Oil and Gas: Ensures reliable operation of machinery in harsh conditions such as offshore platforms or refineries.
-
Manufacturing: Monitors and controls production lines, ensuring machinery performance and reducing downtime.
-
Chemical Processing: Protects reactors, compressors, and other equipment by triggering alarms or shutdowns when necessary.
-
Mining: Protects heavy-duty machinery used in mining operations, ensuring operational safety under extreme conditions.
With its rugged construction, conformal coating, and reliable performance, the Bently Nevada 78462-01 3300 Relay Module is an essential part of industrial machinery protection systems across various sectors.
Bently Nevada 78462-01 3300 Relay Module – Conformal Coating is in stock. Please contact us for a quick quote and competitive pricing.
