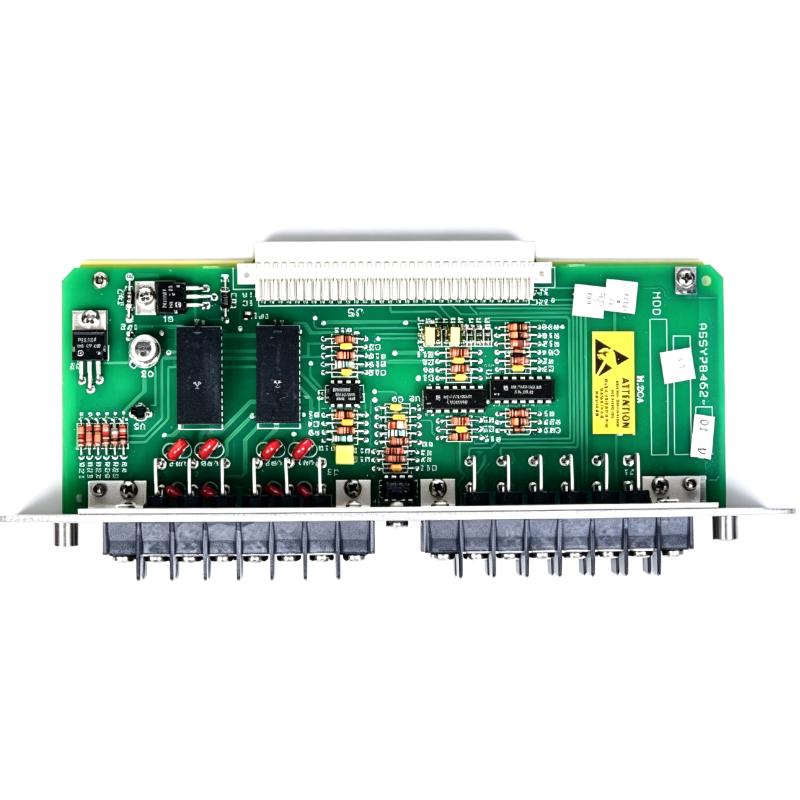

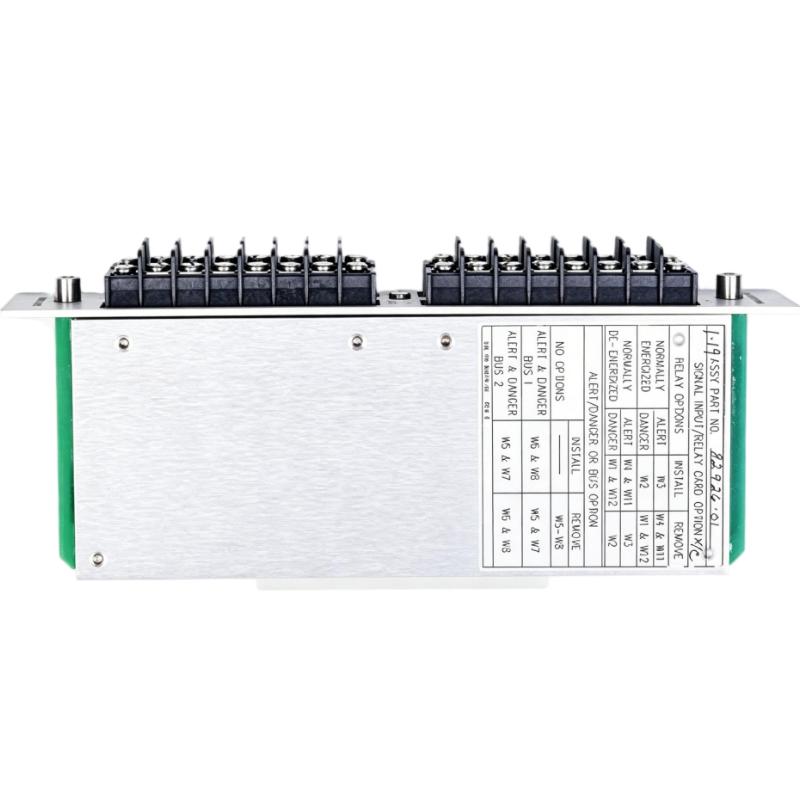

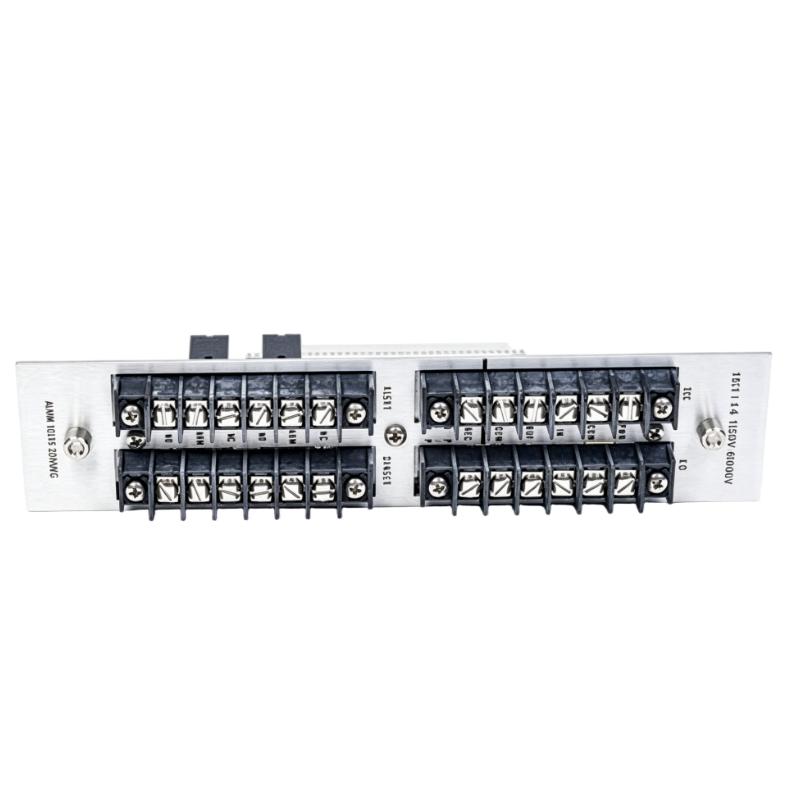

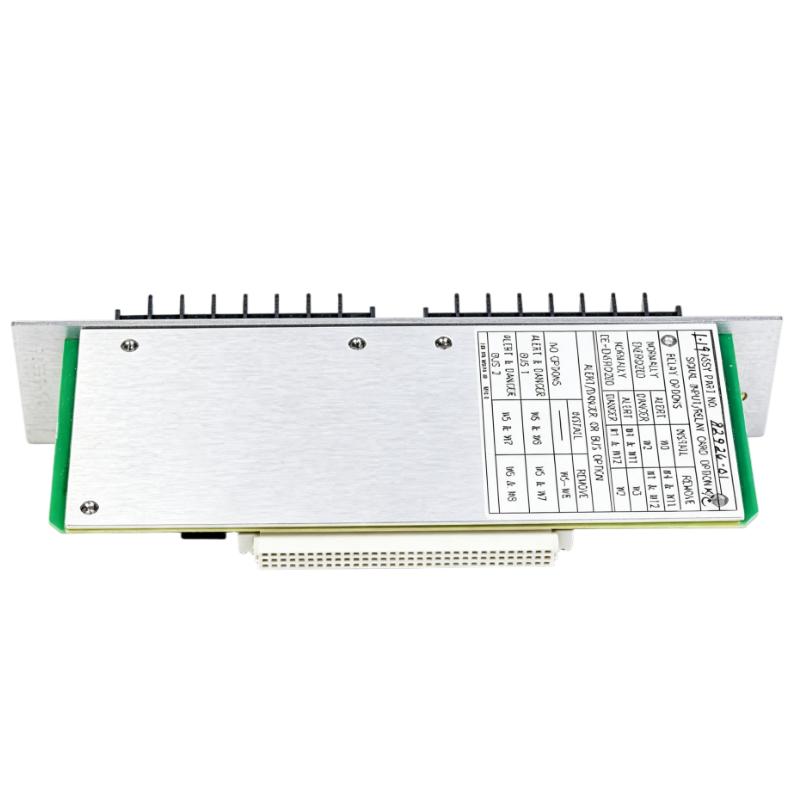

Bently Nevada 82926-01 I/O And Recording Terminal Relay Modules
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Bently Nevada |
| Model | 82926-01 |
| Product Type | I/O and Recording Terminal Relay Module |
| Product Function | I/O signal termination and relay interface |
| Product Family | Bently Nevada 3300 Series |
| Associated Monitor | 3300/20 Dual Thrust Position Monitor |
| Related Assembly | 78462-01 |
| Input Function | Transducer signal input and termination |
| Output Function | Relay output and recorder interface |
| Relay Type | Relay contact output |
| Typical Application | Shaft axial position monitoring and machinery protection |
| Monitoring Channels | Supports the associated two-channel monitoring configuration |
| Signal Interface | Provides field wiring interface between transducers and the monitoring system |
| Installation | Terminal module associated with the 3300 Series monitor |
| Relay Application | Alarm, status, interlock, and control signal interface |
| Environmental Protection | Designed for industrial machinery monitoring applications |
| Manufacturer | Bently Nevada / GE |
| Vertical Dimension | 83 mm |
| Weight | 1.0 kg |
FAQ
1. What is the main function of the Bently Nevada 82926-01?
The 82926-01 is an I/O and Recording Terminal Relay Module used as a field termination and relay interface for Bently Nevada 3300 Series monitoring equipment. It provides connections between transducer signals, recorder outputs, relay functions, and the associated monitoring system.
2. Which Bently Nevada monitor is the 82926-01 associated with?
The 82926-01 is associated with the Bently Nevada 3300/20 Dual Thrust Position Monitor. The 3300/20 continuously monitors shaft axial position through two independent measurement channels.
3. What type of signals can the 82926-01 handle?
The module provides the terminal interface for transducer-related signals and associated output circuits. It allows field wiring to be connected to the monitoring system while supporting relay and recording functions.
4. What is the purpose of the relay function in the 82926-01?
The relay interface allows monitoring conditions to be transferred to external alarm, interlock, control, or indication circuits. This can help integrate the machinery monitoring system with plant protection and control equipment.
5. What are common symptoms of an 82926-01 wiring or module problem?
Typical symptoms can include missing transducer signals, incorrect alarm states, abnormal recorder signals, or relay outputs that do not respond as expected. Troubleshooting should include the field wiring, terminal connections, transducers, monitor module, and relay circuits.
6. How should the 82926-01 be checked during troubleshooting?
Start by verifying that all field connections are secure and correctly wired. Then check the transducer signal path, monitor status, relay response, and recorder output. If the input signal is normal but the corresponding output or relay function is abnormal, the terminal relay module should be investigated.
7. Can the 82926-01 be used with PLC or DCS systems?
The relay and recording interfaces can be used as part of an integration with external control equipment such as PLC or DCS systems, provided the electrical characteristics and control logic are compatible. The actual wiring should follow the system configuration and application requirements.
8. What precautions should be taken when replacing the 82926-01?
Before replacement, isolate the relevant monitoring and control circuits and document the existing field wiring. Confirm that the replacement module has the correct 82926-01 part number and compatible configuration. After installation, verify transducer signals, relay operation, recorder outputs, and alarm functions before returning the monitoring system to service.
Bently Nevada 82926-01 I/O And Recording Terminal Relay Modules is in stock. Please contact us for a quick quote and competitive pricing.
