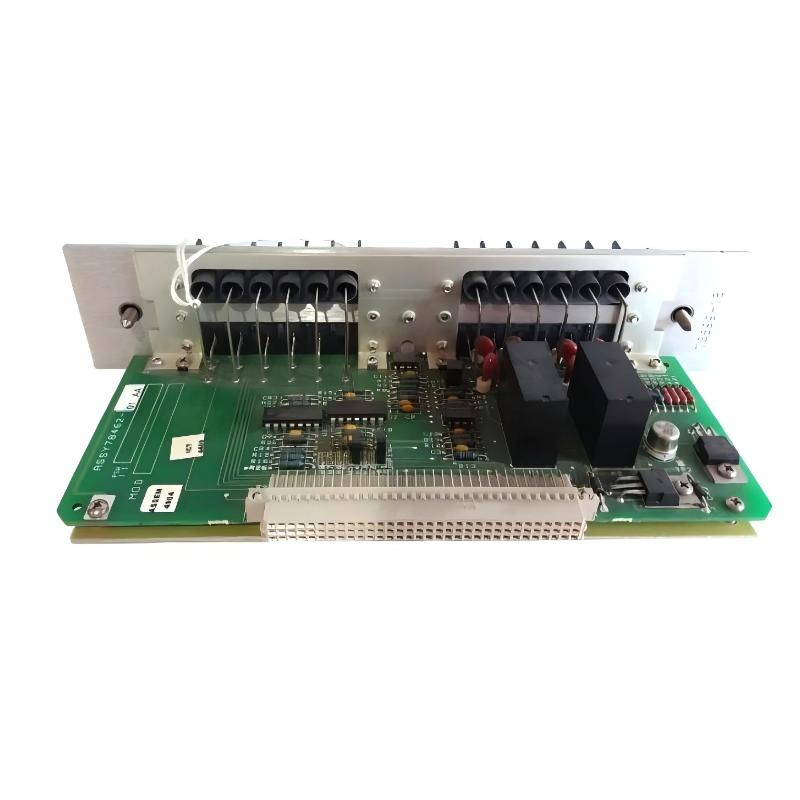

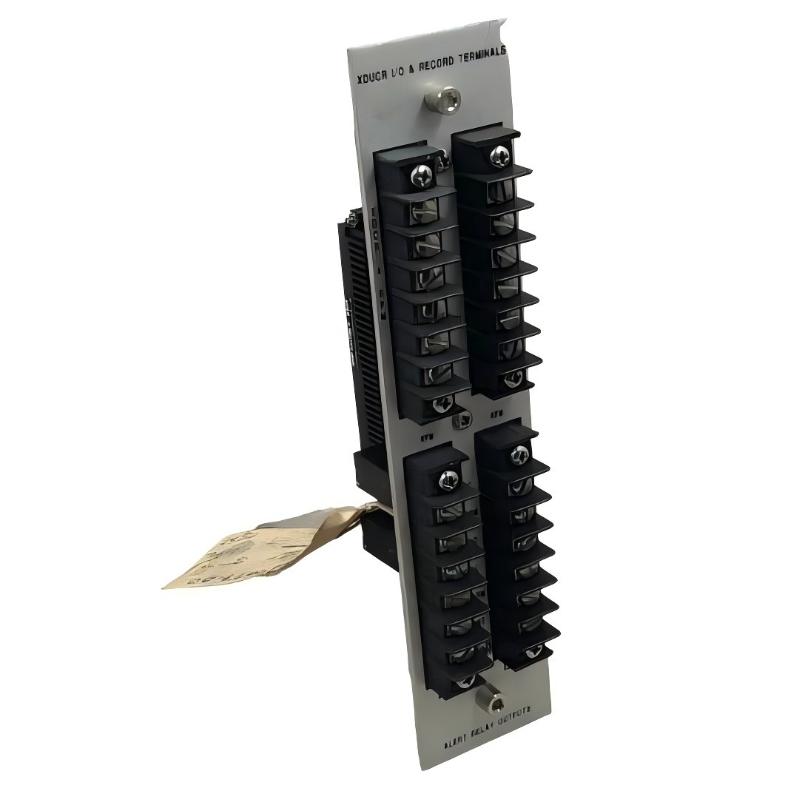

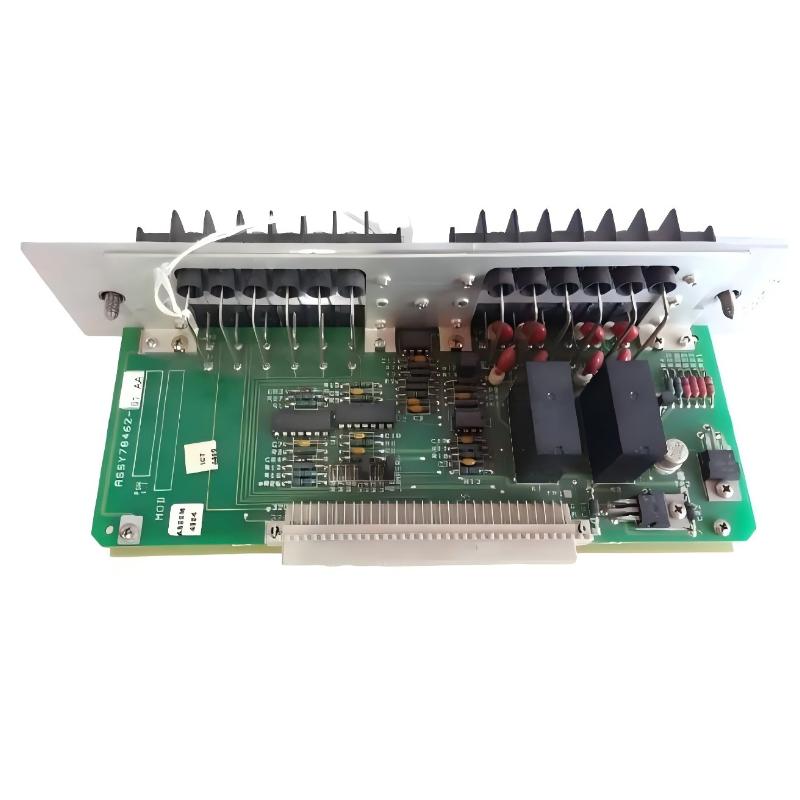

Bently Nevada 84143-01 XDUCR I/O And Recording Terminal
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Bently Nevada |
| Model | 84143-01 |
| Product Type | XDUCR I/O and Recording Terminal |
| Product Series | 3300 Series |
| Primary Function | Transducer I/O signal termination, recording interface, and relay signal connection |
| Interface Type | XDUCR I/O & Recording Terminal |
| Input Function | Transducer signal input and field termination |
| Output Function | Recording signal and alarm status output |
| Relay Configuration | Dual epoxy-sealed relays |
| Relay Function | Alarm, status, and external control signal interface |
| Typical Application | Machinery vibration monitoring, condition monitoring, and protection |
| System Interface | Designed for use with Bently Nevada 3300 Series monitoring systems |
| Recording Function | Provides monitoring signal connections for external recording and data acquisition equipment |
| Field Connection | Terminal-based field signal connection |
| Typical Use | Vibration monitoring, alarm interlocking, and machinery protection |
| Module Construction | Industrial I/O and recording terminal assembly |
| Installation | Installed as part of the associated 3300 Series monitoring system |
| Manufacturer | Bently Nevada |
| Dimensions | 220 × 45 × 102 mm |
| Weight | 0.34 kg |
FAQ
1. What is the main function of the Bently Nevada 84143-01?
The 84143-01 is an XDUCR I/O and Recording Terminal used in Bently Nevada 3300 Series monitoring systems. It provides transducer signal termination along with recording and relay interfaces for connection to monitoring and external control circuits.
2. What does XDUCR mean on the 84143-01?
XDUCR is an abbreviation for transducer. The interface is used for transducer-related signal connections, allowing field sensors to communicate with the associated monitoring electronics.
3. What is the purpose of the dual epoxy-sealed relays in the 84143-01?
The dual epoxy-sealed relays are used to provide alarm and status outputs to external circuits. They can be incorporated into alarm, interlock, indication, or control applications where relay contacts are required.
4. What is the purpose of the recording interface?
The recording interface allows relevant monitoring signals to be routed to compatible recording or data acquisition equipment. This supports continuous signal recording, trend analysis, and machinery condition evaluation.
5. What are common causes of signal problems with the 84143-01?
Common causes include faulty transducers, damaged field cables, loose terminals, poor electrical contact, and problems with the associated monitoring module. If alarm signals are affected, the relay contacts and external control circuit should also be checked.
6. How should a transducer signal problem be troubleshot on the 84143-01?
Start by checking the transducer and field cable, then inspect the terminal connections on the 84143-01. Confirm that the expected signal reaches the terminal before checking the corresponding monitoring channel. If the input signal is normal but the system does not detect it, inspect the associated monitoring electronics and signal wiring.
7. Can the 84143-01 be connected to a PLC or DCS system?
Depending on the system configuration, the relay or relevant output signals can be connected to a PLC, DCS, or other external control system. Before connection, verify relay contact characteristics, electrical requirements, PLC/DCS input specifications, and the intended control logic.
8. What precautions should be taken when replacing the Bently Nevada 84143-01?
Disconnect the relevant system power before replacement and document the existing field wiring. Verify that the replacement module is the correct 84143-01 model before installation. After installation, test the transducer signals, recording outputs, relay operation, and alarm/interlock functions before returning the system to service.
Bently Nevada 84143-01 XDUCR I/O And Recording Terminal is in stock. Please contact us for a quick quote and competitive pricing.
