1. What is the function of the Bently Nevada 84145-01?

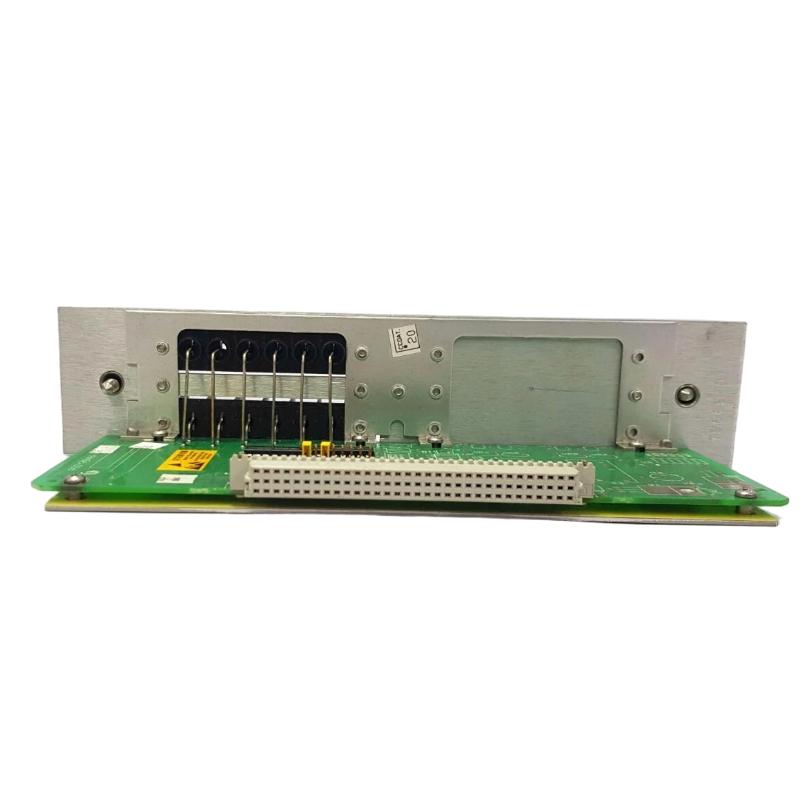

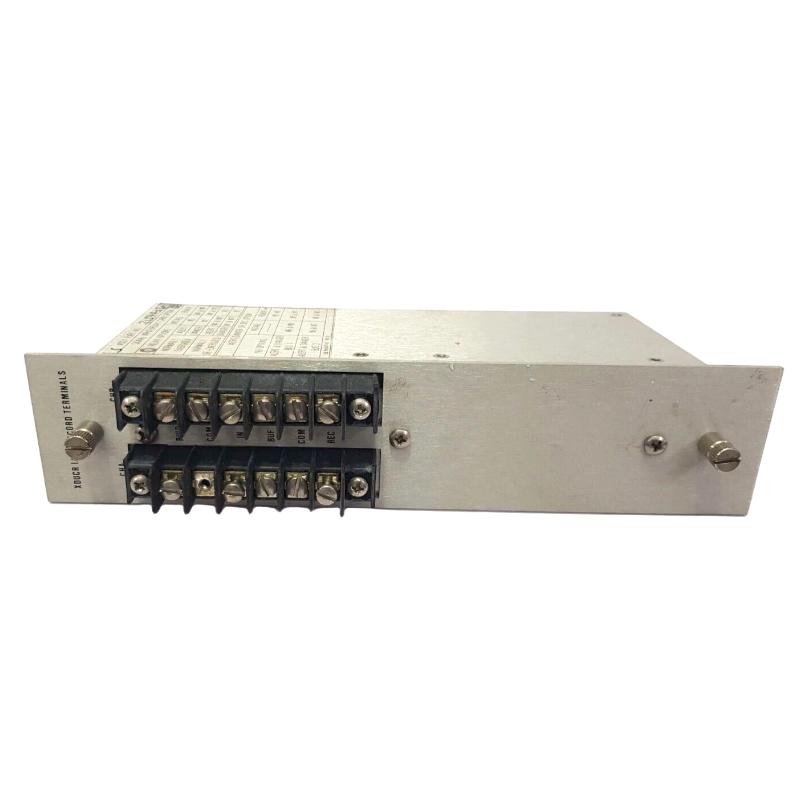

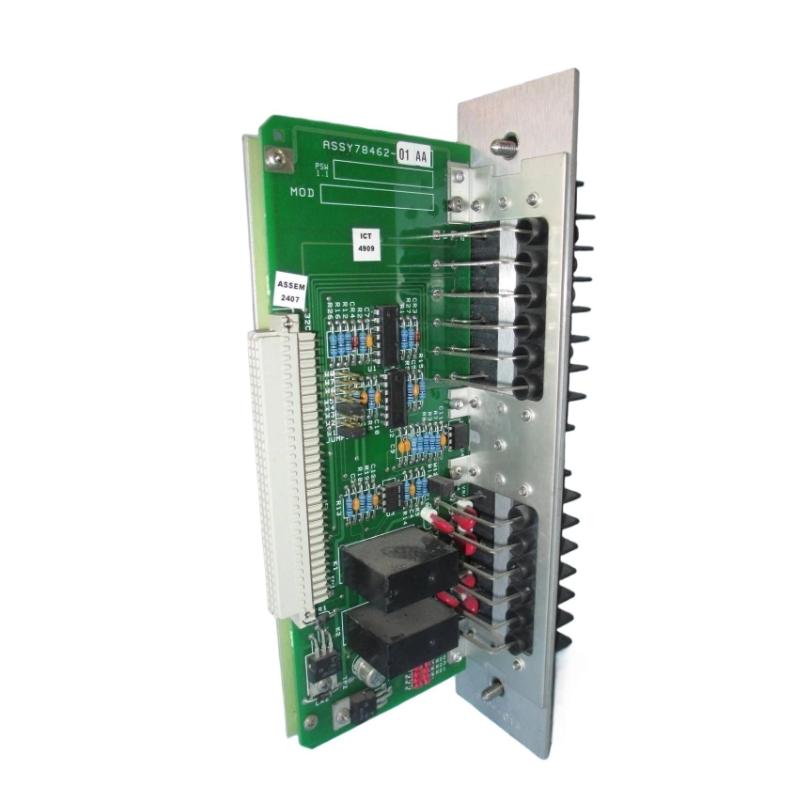

The 84145-01 is an XDCR I/O and Record Terminal assembly used with Bently Nevada machinery monitoring systems. It provides a termination point for transducer-related field wiring and interfaces monitoring signals with external recording or control equipment. The assembly is commonly associated with the 3300 Series monitoring architecture.

2. What is the relationship between 84145-01 and 78462-01?
84145-01 is the assembly part number, while 78462-01 identifies the associated XDCR I/O and record terminal component. The 84145-01 configuration is commonly listed together with the 78462-01 terminal and 78599-01 relay card, so these numbers may appear together on equipment records and replacement listings.

3. What type of relay configuration is used with the 84145-01?
The 84145-01 configuration is associated with dual epoxy-sealed relays. The relays provide isolated alarm or control contacts for interfacing the monitoring system with external annunciation, shutdown logic, PLC inputs, or other control equipment.

4. What relay contact ratings are applicable to the 84145-01 assembly?
The associated relay configuration supports switching up to 240 VAC or 30 VDC, with a maximum resistive current rating of approximately 5 A. The actual load should remain within the relay contact rating, particularly when switching inductive loads such as contactors, solenoids, or relay coils.

5. What electrical isolation does the relay interface provide?
The relay interface provides electrical isolation between the monitoring-side circuitry and the external output circuit. The associated specification allows isolation of up to 1000 VAC between input and output circuits, helping reduce the possibility of external control wiring affecting the monitoring electronics.

6. Where is the 84145-01 typically used in a machinery protection system?
The 84145-01 is typically installed as part of the transducer I/O and recorder signal termination arrangement in Bently Nevada 3300 Series systems. It can be used in applications where vibration or other machinery condition signals must be terminated, routed, recorded, or interfaced with external alarm and control equipment.

7. What should be checked when replacing a 84145-01 assembly?
Before replacement, verify the complete part-number combination, including 84145-01, 78462-01, and the associated relay configuration. Field wiring should be documented before removal, and each transducer, recorder, alarm, and relay connection should be checked against the system drawings. After installation, verify signal continuity, relay operation, alarm logic, and monitoring-channel status before returning the machinery to normal operation.

8. What are common symptoms of a faulty 84145-01 or its associated relay interface?
Typical symptoms can include missing or intermittent recorder signals, incorrect alarm relay operation, loss of external alarm outputs, unstable connections, or inconsistent readings between the monitoring system and external control equipment. Troubleshooting should begin with field wiring and terminal connections, followed by relay contact testing and verification of the associated monitoring module and transducer signals.
