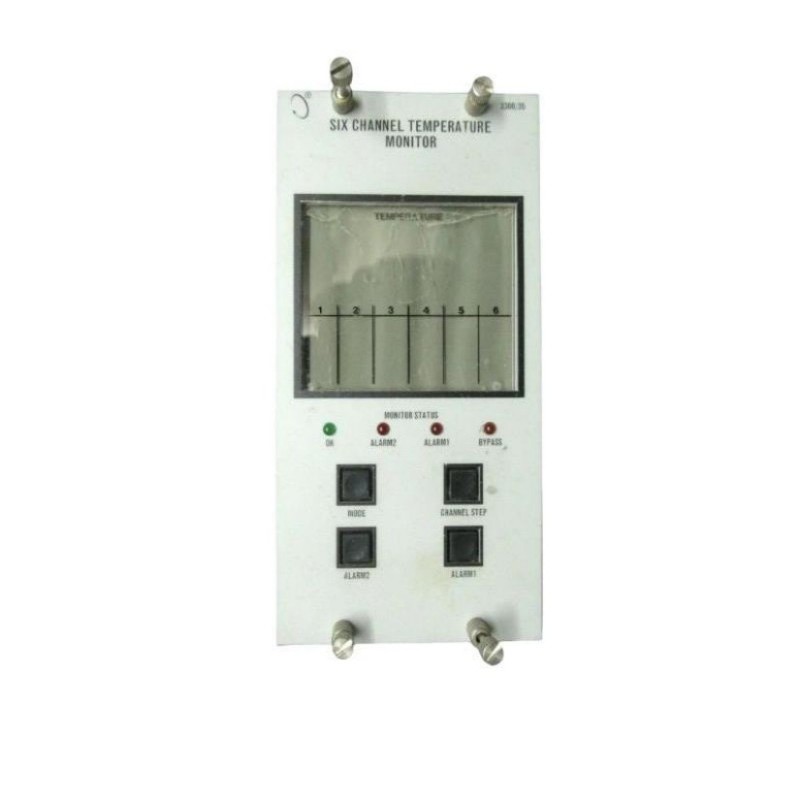

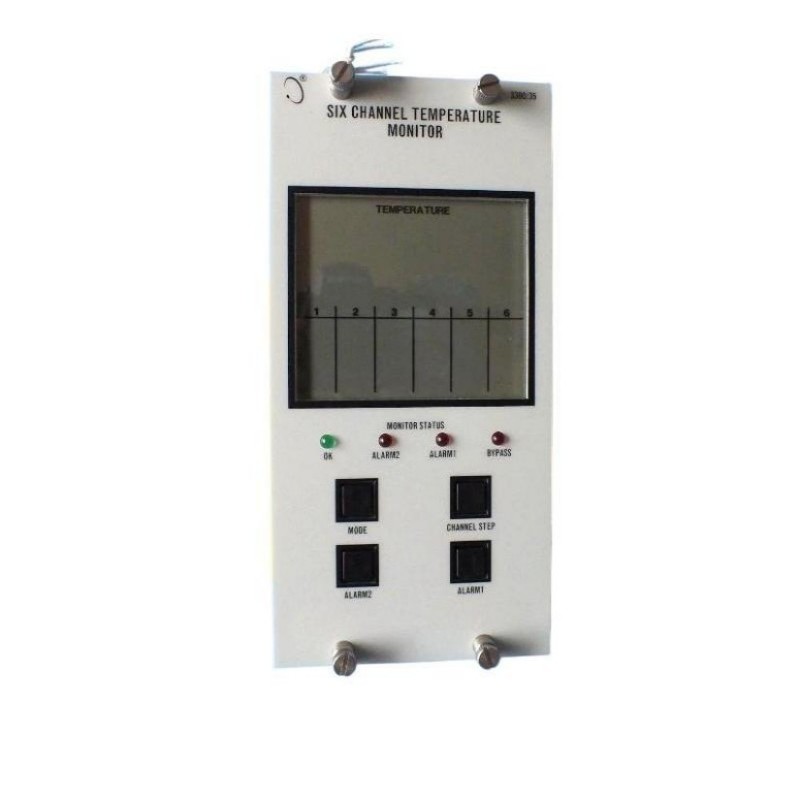

Bently Nevada 84933-02 Six-Channel Temperature Monitor – 3300 Series
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Bently Nevada 84933-02 Six-Channel Temperature Monitor – 3300 Series
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Bently Nevada |
| Product Type | Six-Channel Temperature Monitor |
| Product Model | 84933-02 |
| Product Series | 3300 Series |
| System Model | 3300/35 |
| Measurement Type | RTD temperature monitoring |
| Number of Channels | 6 independent channels |
| Sensor Type | Resistance Temperature Detector (RTD) |
| RTD Configuration | 4-wire Pt100, 0.00385 coefficient |
| Measurement Range | 0–300°F option |
| Output | 4–20 mA analog |
| Alarm Relay | Epoxy-sealed relay option |
| Mounting | Panel / system installation |
| Dimensions (L × W × H) | Approx. 41 × 41 × 102 mm |
| Weight | Approx. 0.34 kg for the module; some complete-unit listings are heavier |
| Battery | No |
| Magnet | No |
FAQ
Q: What is the Bently Nevada 84933-02?
A: The 84933-02 is the temperature display and monitor assembly associated with the Bently Nevada 3300/35 six-channel RTD temperature monitoring system.
Q: How many temperature channels does the 84933-02 support?
A: The 3300/35 system provides six independent temperature-monitoring channels, allowing multiple RTD measurements to be monitored simultaneously.
Q: What type of temperature sensors are used with the 3300/35?
A: The 3300/35 is designed for resistance temperature detectors. The associated configuration can use four-wire platinum RTDs, including Pt100 sensors.
Q: Is the 84933-02 itself an RTD sensor?
A: No. The 84933-02 is part of the monitoring electronics and display assembly. The RTD sensors are installed separately at the monitored equipment.
Q: What output signal is associated with the 3300/35 temperature monitor?
A: The system can provide 4–20 mA analog outputs for temperature measurements, depending on the installed configuration and options.
Q: What equipment can the 84933-02 monitor?
A: Typical applications include monitoring bearing, gearbox, motor, turbine, generator, and other rotating-equipment temperatures where continuous multi-point temperature surveillance is required.
Q: What are the approximate dimensions and weight of the 84933-02?
A: A commonly listed module size is approximately 41 × 41 × 102 mm (L × W × H). The module weight is approximately 0.34 kg, although a complete assembled monitor or packaged unit can weigh considerably more.
Q: Does the 84933-02 contain a battery or magnet?
A: No. The 84933-02 is an electronic temperature-monitoring assembly and does not contain a battery or permanent magnet.
Bently Nevada 84933-02 Six-Channel Temperature Monitor – 3300 Series is in stock. Please contact us for a quick quote and competitive pricing.
