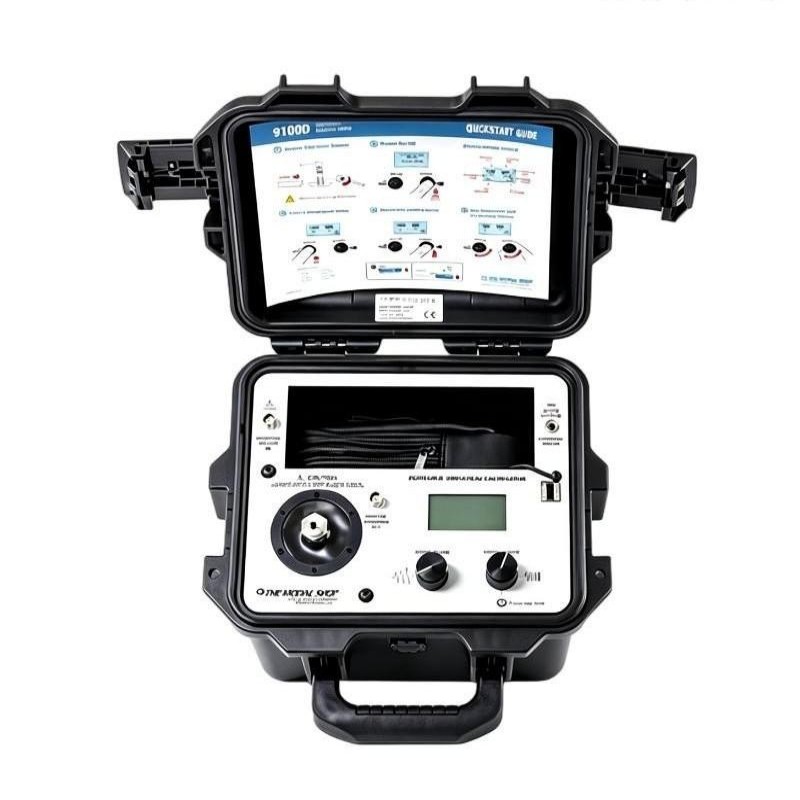

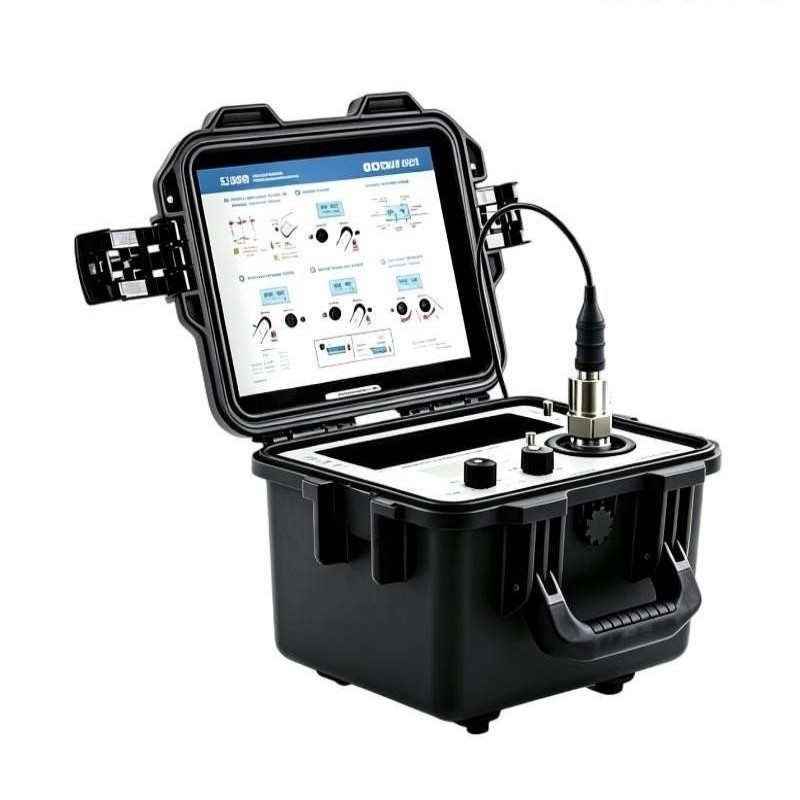

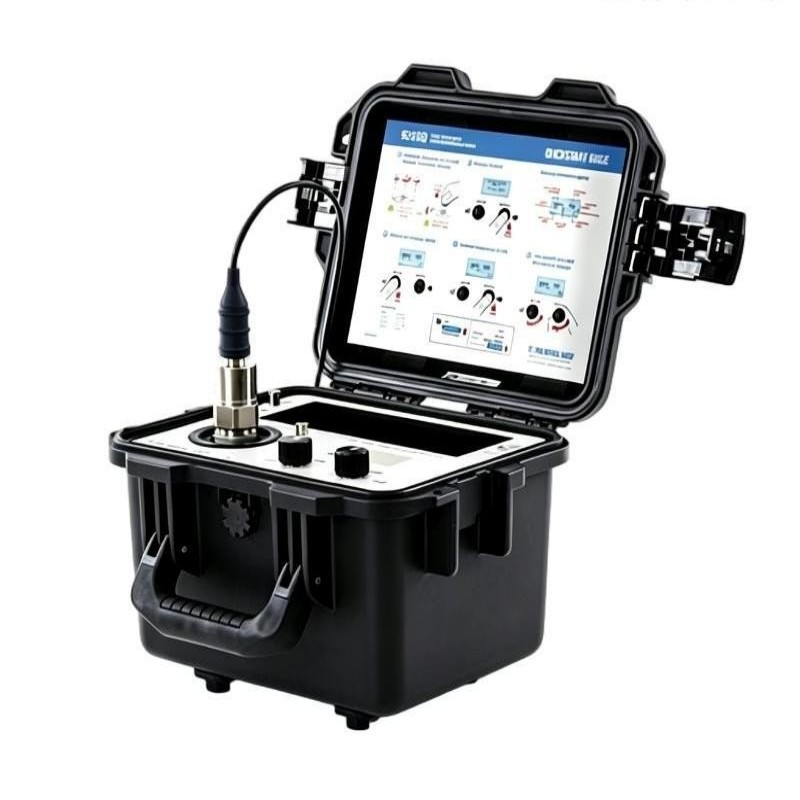

Bently Nevada 9100D Portable Shaker Table – 9100 Series
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Bently Nevada |
| Product Type | Portable Vibration Calibrator / Shaker Table |
| Product Model | 9100D |
| Product Series | 9100 Series |
| Primary Function | Field verification and calibration of vibration measurement channels |
| Compatible Sensors | Accelerometers, velocity transducers, and proximity probes |
| Operating Frequency Range | 5 Hz to 10 kHz |
| Maximum Amplitude | 20 g peak at 100 Hz with no payload |
| Maximum Velocity | 15 in/s peak at 100 Hz |
| Maximum Displacement | 50 mil peak-to-peak at 100 Hz |
| Maximum Payload | 800 g |
| Amplitude Linearity | Less than 1% up to 10 g peak at 100 Hz |
| Acceleration Readout Accuracy | ±3% from 10 Hz to 10 kHz; ±5% from 5 to 10 Hz |
| Velocity Readout Accuracy | ±3% from 10 Hz to 1 kHz |
| Displacement Readout Accuracy | ±3% from 30 to 150 Hz |
| Reference Accelerometer | Precision quartz reference accelerometer |
| Reference Output | 10 mV/g nominal |
| External Source Input | 1 VAC RMS maximum |
| Battery | Internal sealed 12 VDC, 4 Ah lead-acid battery |
| AC Charging Input | 110–240 VAC, 50–60 Hz |
| Battery Life | Approx. 18 h at 100 Hz, 1 g peak with 100 g payload; approx. 1 h at 100 Hz, 10 g peak |
| Operating Temperature | 0 to 50°C |
| Sensor Mounting Thread | 1/4-28 |
| Dimensions (L × W × H) | Approx. 30.5 × 28 × 22 cm |
| Weight | Approx. 8.2 kg |
| Magnet | No; magnetic mounting bases are optional accessories |
FAQ
Q: What is the Bently Nevada 9100D?
A: The 9100D is a portable vibration calibrator and shaker table used to verify vibration measurement channels in the field.
Q: What types of sensors can be tested with the 9100D?
A: It can be used to check accelerometers, velocity transducers, and compatible proximity probes. This allows technicians to verify the complete measurement path from sensor to monitoring equipment.
Q: What is the operating frequency range of the 9100D?
A: The 9100D operates across approximately 5 Hz to 10 kHz, providing a broad range for field verification of vibration instrumentation.
Q: What is the maximum payload of the 9100D?
A: The maximum recommended payload is 800 g. Loads above this value should not be placed on the shaker because excessive loading can affect the moving mechanism.
Q: Does the 9100D have its own battery?
A: Yes. The unit contains a sealed 12 VDC, 4 Ah lead-acid battery. Battery operating time depends strongly on vibration amplitude and payload.
Q: How accurate is the 9100D vibration output?
A: Acceleration readout accuracy is approximately ±3% from 10 Hz to 10 kHz and ±5% from 5 to 10 Hz. Velocity and displacement accuracy are approximately ±3% within their specified frequency ranges.
Q: What are the dimensions and weight of the 9100D?
A: The unit measures approximately 30.5 × 28 × 22 cm (L × W × H) and weighs approximately 8.2 kg.
Q: Does the Bently Nevada 9100D contain a magnet?
A: The 9100D itself does not contain a permanent magnet as a standard component. Magnetic mounting bases are available separately for certain sensor mounting applications.
Bently Nevada 9100D Portable Shaker Table – 9100 Series is in stock. Please contact us for a quick quote and competitive pricing.
