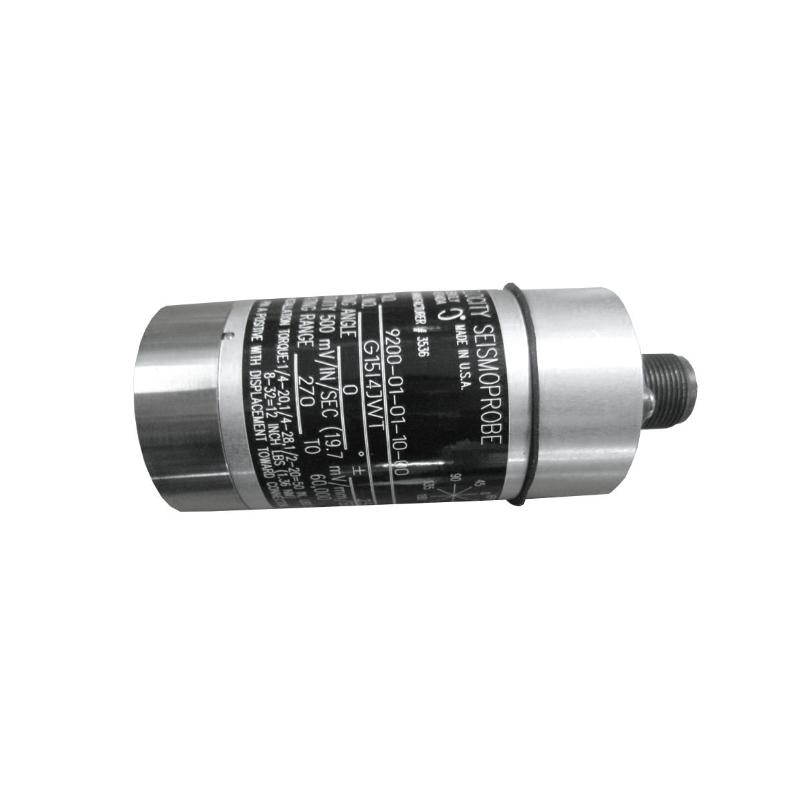

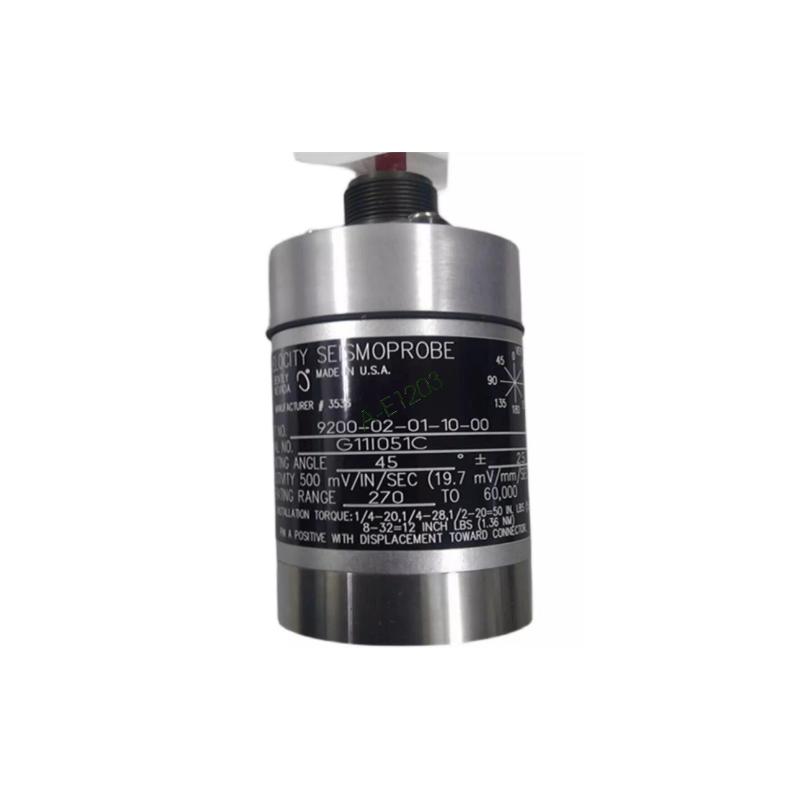

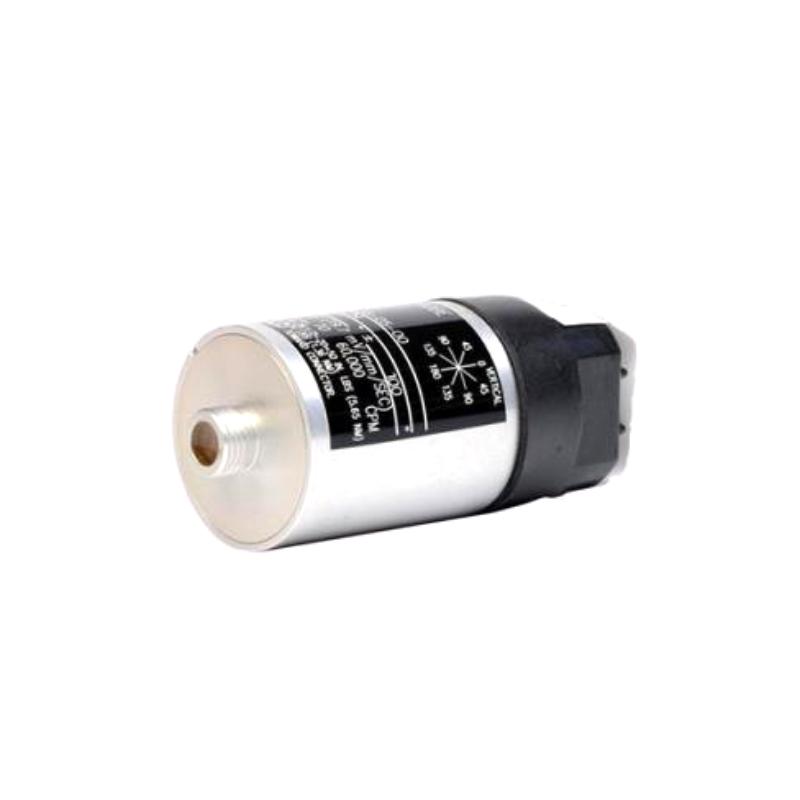

Bently Nevada 9200-06-02-10-00 Two-Wire Velocity Seismoprobe
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Two-Wire Velocity Seismoprobe |
| Product Model | 9200-06-02-10-00 |
| Manufacturer | Bently Nevada |
| Product Family | 9200 Series |
| Measurement Type | Absolute vibration velocity |
| Operating Principle | Moving-coil velocity sensing |
| Sensitivity | 20 mV/mm/s (500 mV/in/s), ±5% |
| Frequency Response | 10 to 1,000 Hz, +0/-3 dB typical |
| Electrical Configuration | Two-wire, self-generating |
| Connector Position | Side-mounted |
| Mounting | Circular 1/4-20 UNC mounting |
| Mounting Torque | Approx. 5.6 N·m (50 in·lbf) |
| Coil Resistance | Approx. 1.25 kΩ ±5% |
| Locked Coil Inductance | Approx. 125 mH |
| Dynamic Range | Up to 2.54 mm (0.100 in) peak-to-peak displacement |
| Amplitude Linearity | ±5% from 0.01 to 5.0 in/s at 100 Hz |
| Shock Resistance | Up to 50 g peak acceleration along the non-sensitive axis |
| Operating Temperature | -29°C to +121°C (-20°F to +250°F) |
| Maximum Lead Wire Length | Up to 305 m (1,000 ft) |
| Agency Approval | No additional approval specified |
| Dimensions | Approx. 102 mm × 41 mm |
| Weight | Approx. 0.3 kg |
| Application | Rotating machinery vibration monitoring |
FAQ
Q: What is the 9200-06-02-10-00 designed for?
A: The 9200-06-02-10-00 is a velocity transducer intended for measuring absolute vibration on machine casings, bearing housings, and other structural surfaces.
Q: What sensing principle does this model use?
A: It uses a moving-coil sensing mechanism. Relative movement between the internal coil and magnetic system produces an electrical signal proportional to vibration velocity.
Q: What is the nominal sensitivity?
A: The nominal sensitivity is 20 mV/mm/s, equivalent to 500 mV/in/s, with a typical tolerance of ±5%.
Q: Does the 9200-06-02-10-00 need an external power supply?
A: No. It is a self-generating, two-wire velocity transducer, so the sensing element does not require an external excitation supply.
Q: What is the frequency response?
A: The typical frequency response is 10 to 1,000 Hz with a +0/-3 dB tolerance. This provides coverage for a broad range of rotating-equipment vibration frequencies.
Q: How is the transducer mounted?
A: The unit uses a circular 1/4-20 UNC mounting arrangement. Proper mounting torque is important because a loose or poorly seated transducer can affect vibration measurements.
Q: What are the dimensions and weight?
A: The approximate overall size is 102 mm × 41 mm, and the weight is approximately 0.3 kg. The exact mechanical envelope can vary slightly with installation hardware.
Q: What equipment can use this velocity transducer?
A: Typical applications include pumps, motors, compressors, fans, turbines, and other rotating machinery where casing or bearing-housing vibration velocity is monitored for machinery-condition assessment.
Bently Nevada 9200-06-02-10-00 Two-Wire Velocity Seismoprobe is in stock. Please contact us for a quick quote and competitive pricing.
