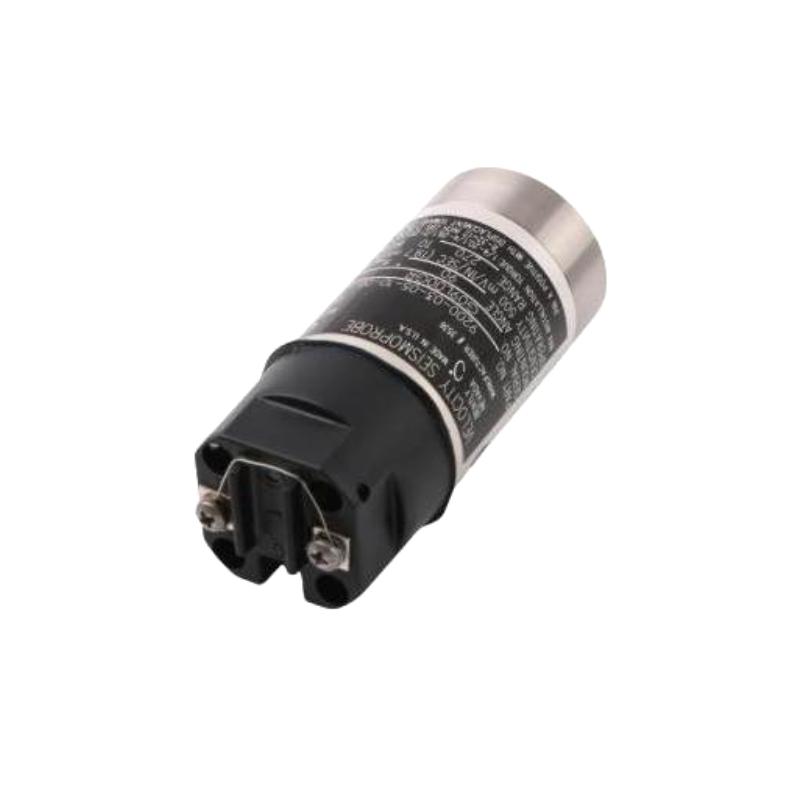

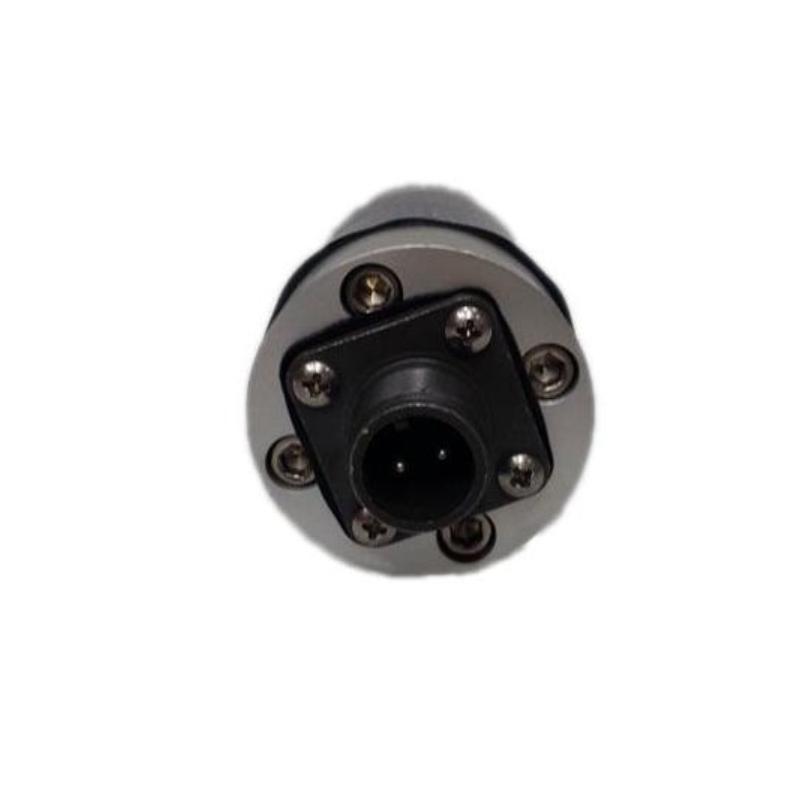

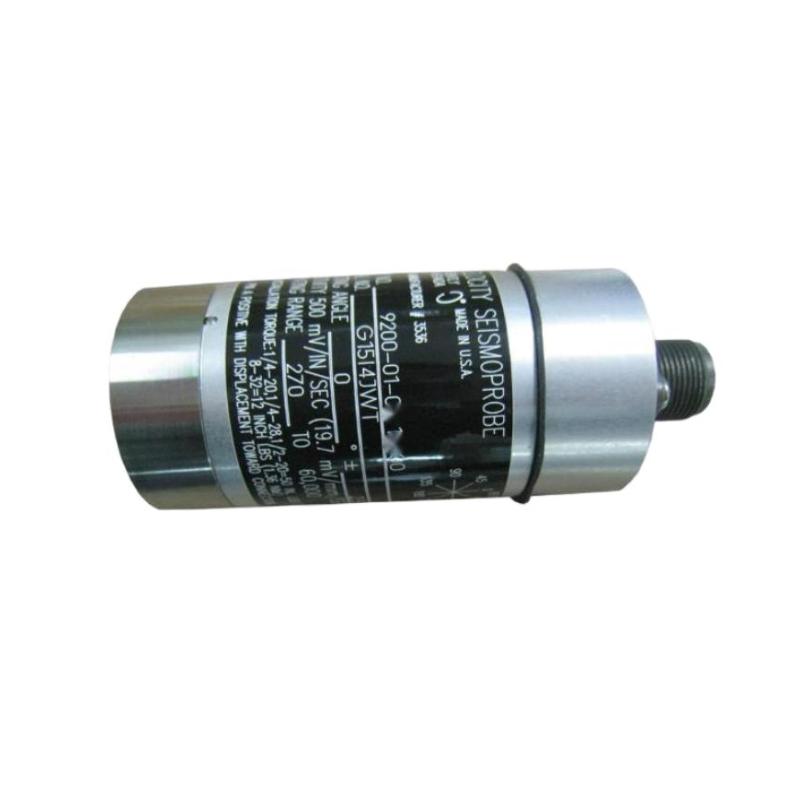

Bently Nevada 9200-09-05-05-00 Velocity Seismoprobe
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Velocity Seismoprobe |
| Manufacturer | Bently Nevada |
| Product Model | 9200-09-05-05-00 |
| Series | 9200 Seismoprobe |
| Sensor Type | Moving-coil velocity transducer |
| Measurement | Absolute vibration velocity |
| Sensitivity | 20 mV/mm/s (approximately 500 mV/in/s) |
| Minimum Operating Frequency | 15 Hz (900 CPM) |
| Output | Two-wire velocity signal |
| Output Impedance | Approximately 100 Ω with 9513-02 configuration |
| Mounting | Direct mounting |
| Mounting Thread | 1/2-20 UNF-3A stud |
| Terminal Configuration | Top-mounted terminal block, no cable |
| Material | Anodized aluminum |
| Shock Resistance | Up to 50 g peak along the non-sensitive axis |
| Operating Temperature | -29°C to +121°C |
| Agency Approval | None |
| Dimensions and Weight | Approx. 41 mm diameter × 102 mm height; approx. 0.30 kg |
FAQ
Q: What is the Bently Nevada 9200-09-05-05-00?
A: It is a moving-coil velocity transducer from the Bently Nevada 9200 Seismoprobe family, designed for measuring absolute vibration velocity on bearing housings, machine casings, and structural surfaces.
Q: What type of vibration does it measure?
A: The sensor measures absolute vibration velocity relative to free space, making it suitable for overall machine vibration monitoring.
Q: What is the sensitivity of this model?
A: Its nominal sensitivity is 20 mV/mm/s, approximately equivalent to 500 mV/in/s.
Q: What does the 09 code indicate?
A: In this configuration, the 09 code identifies the mounting-angle/minimum-frequency arrangement, with a 15 Hz (900 CPM) minimum operating frequency.
Q: What does the 05-05 portion of the model specify?
A: The first 05 identifies a top-mounted terminal-block configuration without an integral cable. The second 05 specifies the mounting arrangement with no base and a 1/2-20 UNF-3A mounting stud.
Q: What type of connection does the sensor use?
A: This version uses a top-mounted terminal block rather than an integral cable. The associated cabling is connected externally to the sensor terminals.
Q: Where is the 9200-09-05-05-00 typically used?
A: It is commonly installed on pumps, motors, compressors, turbines, fans, and other rotating machinery where casing or bearing-housing vibration velocity needs to be monitored.
Q: What are the dimensions and weight?
A: The sensor is approximately 41 mm in diameter and 102 mm high, with a unit weight of about 0.30 kg. Actual shipping dimensions and weight will be higher because of packaging.
Bently Nevada 9200-09-05-05-00 Velocity Seismoprobe is in stock. Please contact us for a quick quote and competitive pricing.
